BA2302 datasheet, PDF - EEWORLD Datasheet

BA2302: DescriptionProgrammable Timer, 1 Timer(s), CMOS, PDIP8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size517KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

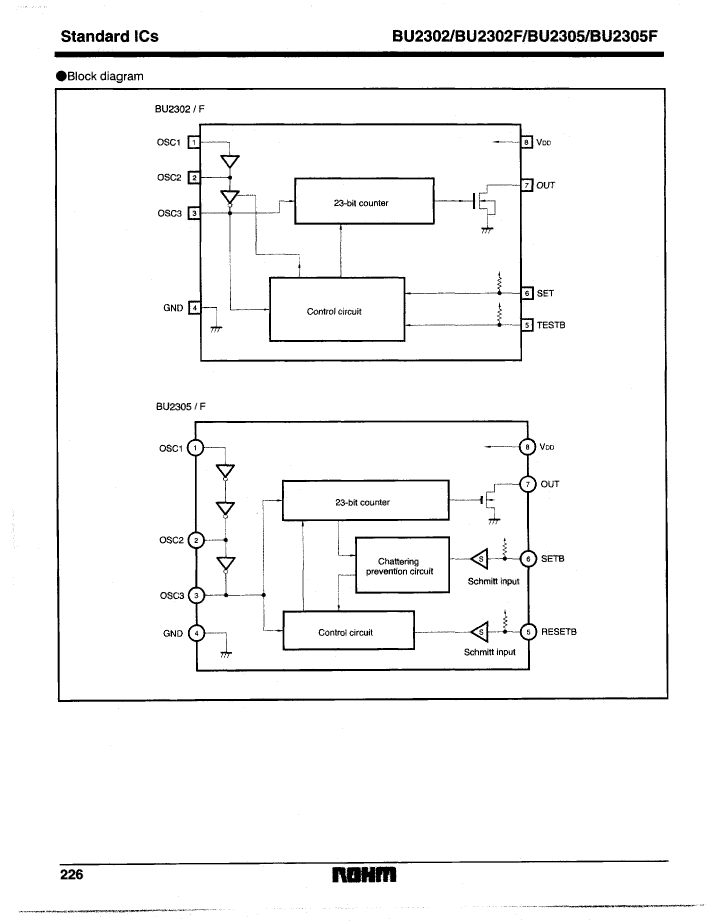

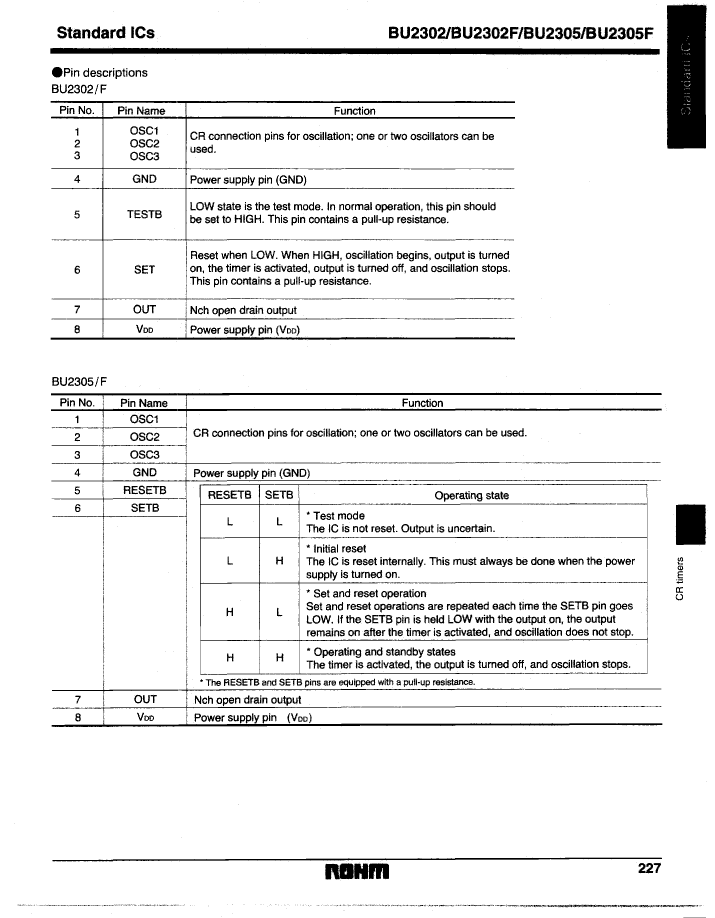

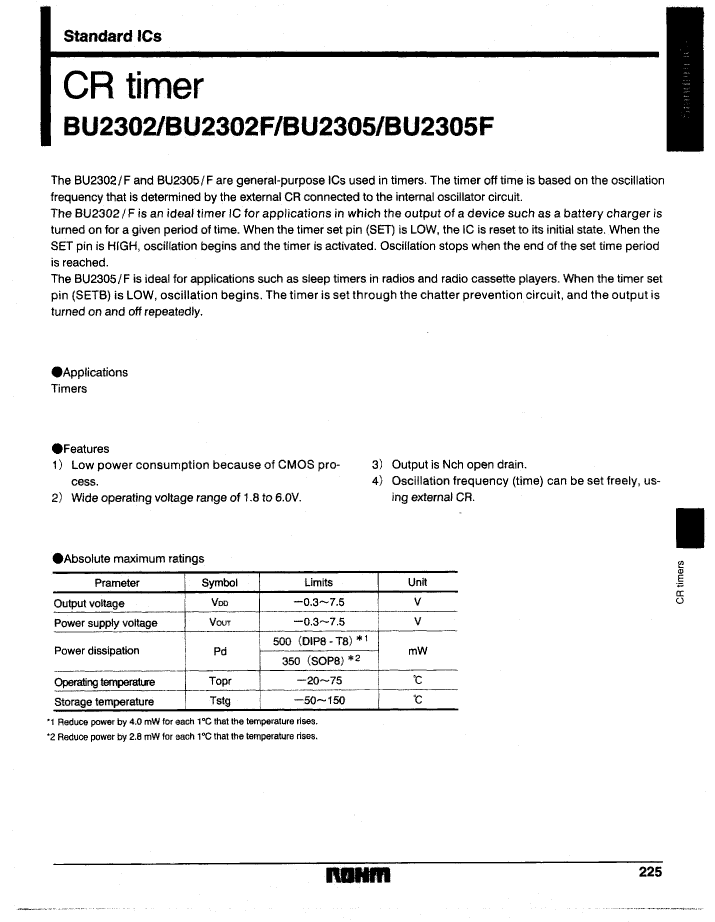

BA2302 Overview

Programmable Timer, 1 Timer(s), CMOS, PDIP8

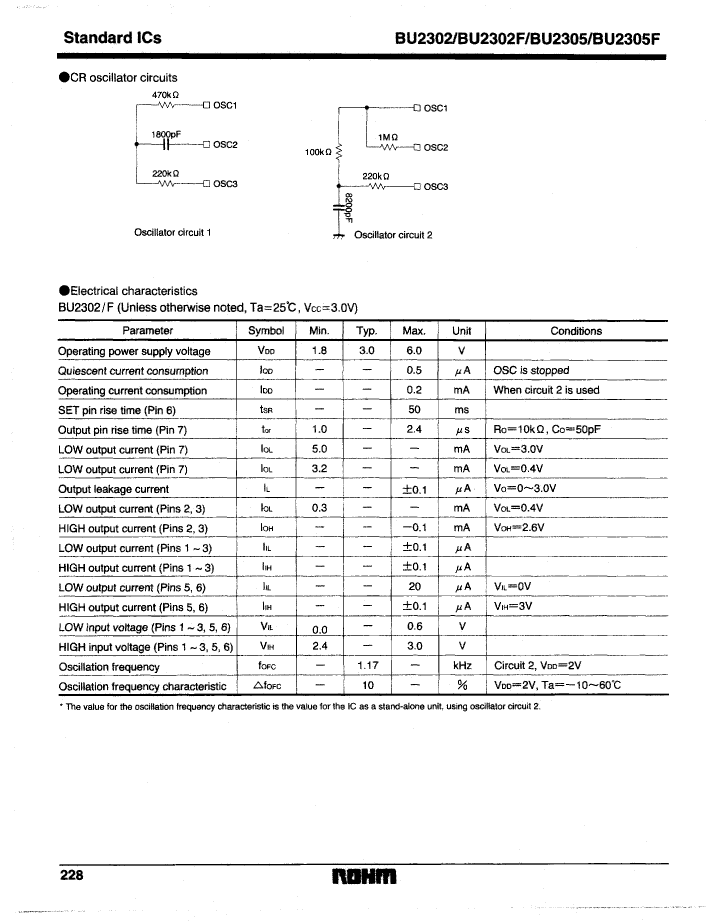

Parameter Name	Attribute value
Maker	ROHM Semiconductor
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
External data bus width
JESD-30 code	R-PDIP-T8
Number of terminals	8
Number of timers	1
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	6 V
Minimum supply voltage	1.8 V
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE
Base Number Matches	1

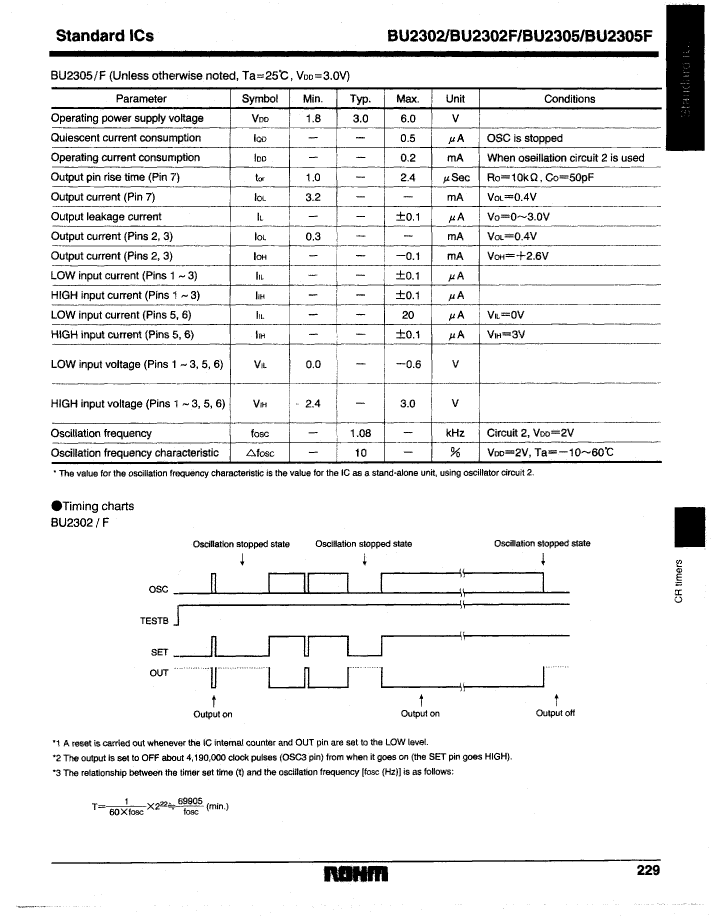

	BA2302	BA2302F	BA2305	BA2305F
Description	Programmable Timer, 1 Timer(s), CMOS, PDIP8	Programmable Timer, 1 Timer(s), CMOS, PDSO8	Programmable Timer, 1 Timer(s), CMOS, PDIP8	Programmable Timer, 1 Timer(s), CMOS, PDSO8
package instruction	DIP,	SOP,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8
Number of terminals	8	8	8	8
Number of timers	1	1	1	1
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage	3 V	3 V	3 V	3 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Maker	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor
Base Number Matches	1	1	1	-
