HER106GHR0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HER106GHR0

HER106GHR0: DescriptionRectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size356KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

HER106GHR0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HER106GHR0	-	-	View	Buy Now

HER106GHR0 Overview

Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN

HER106GHR0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

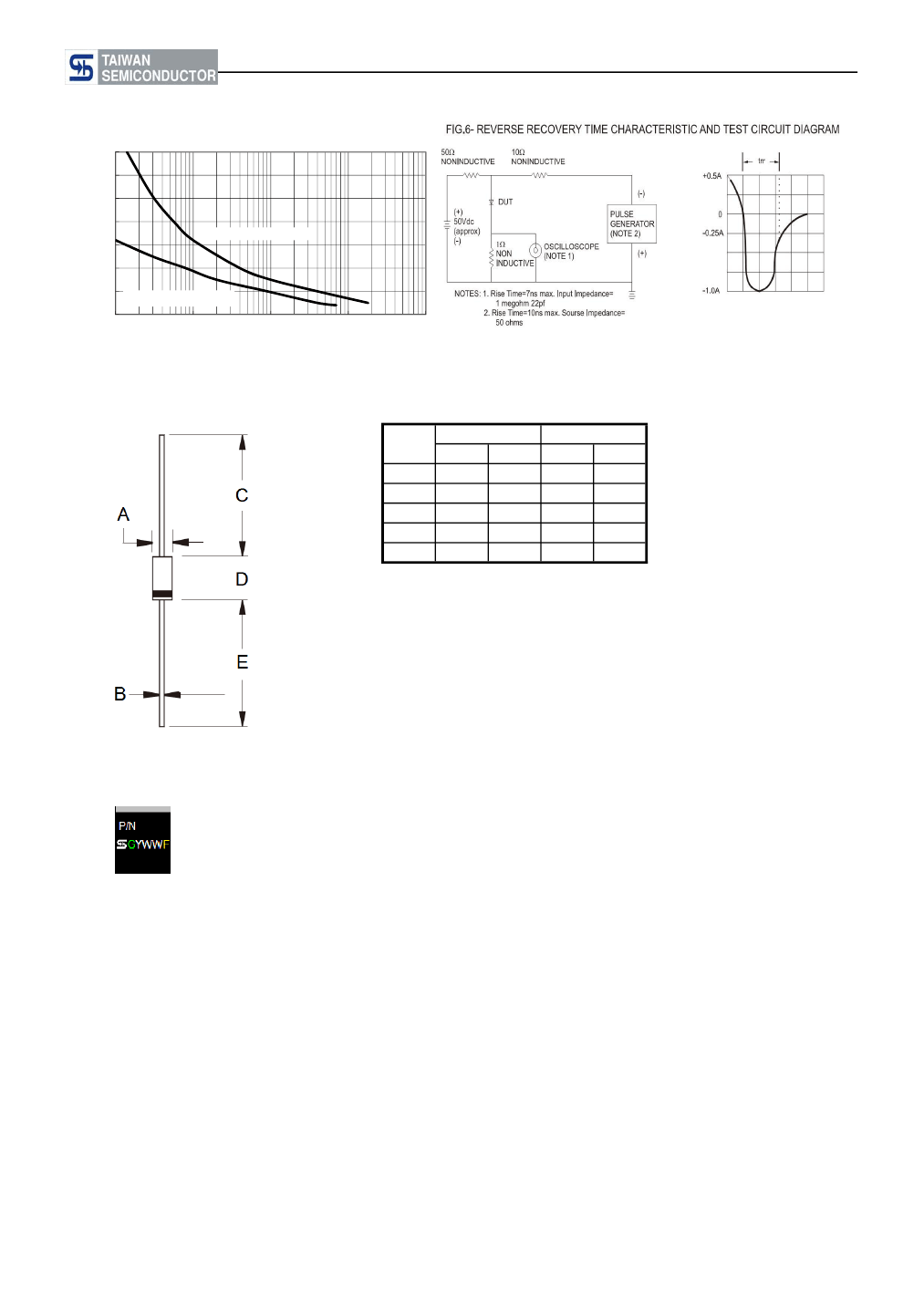

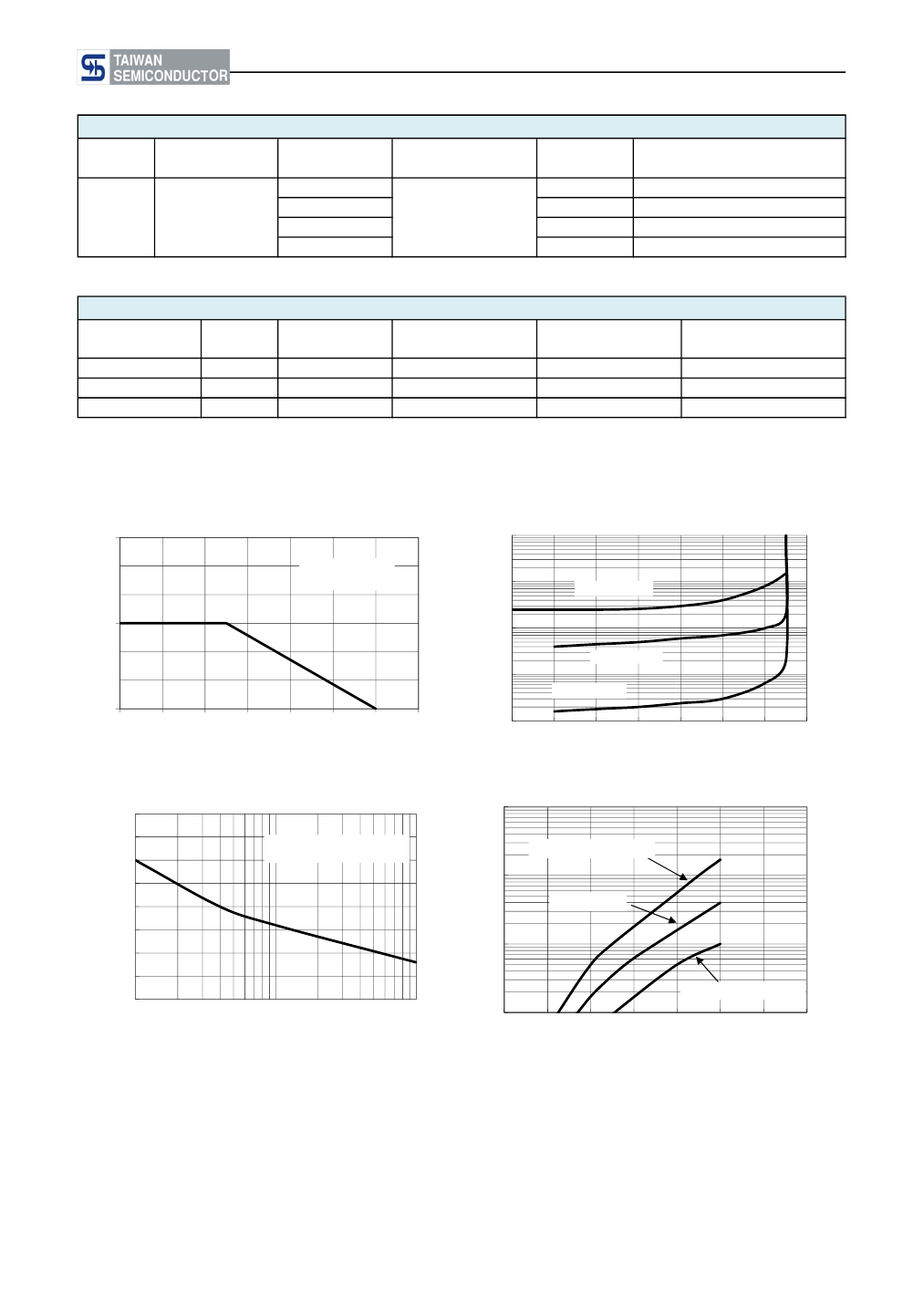

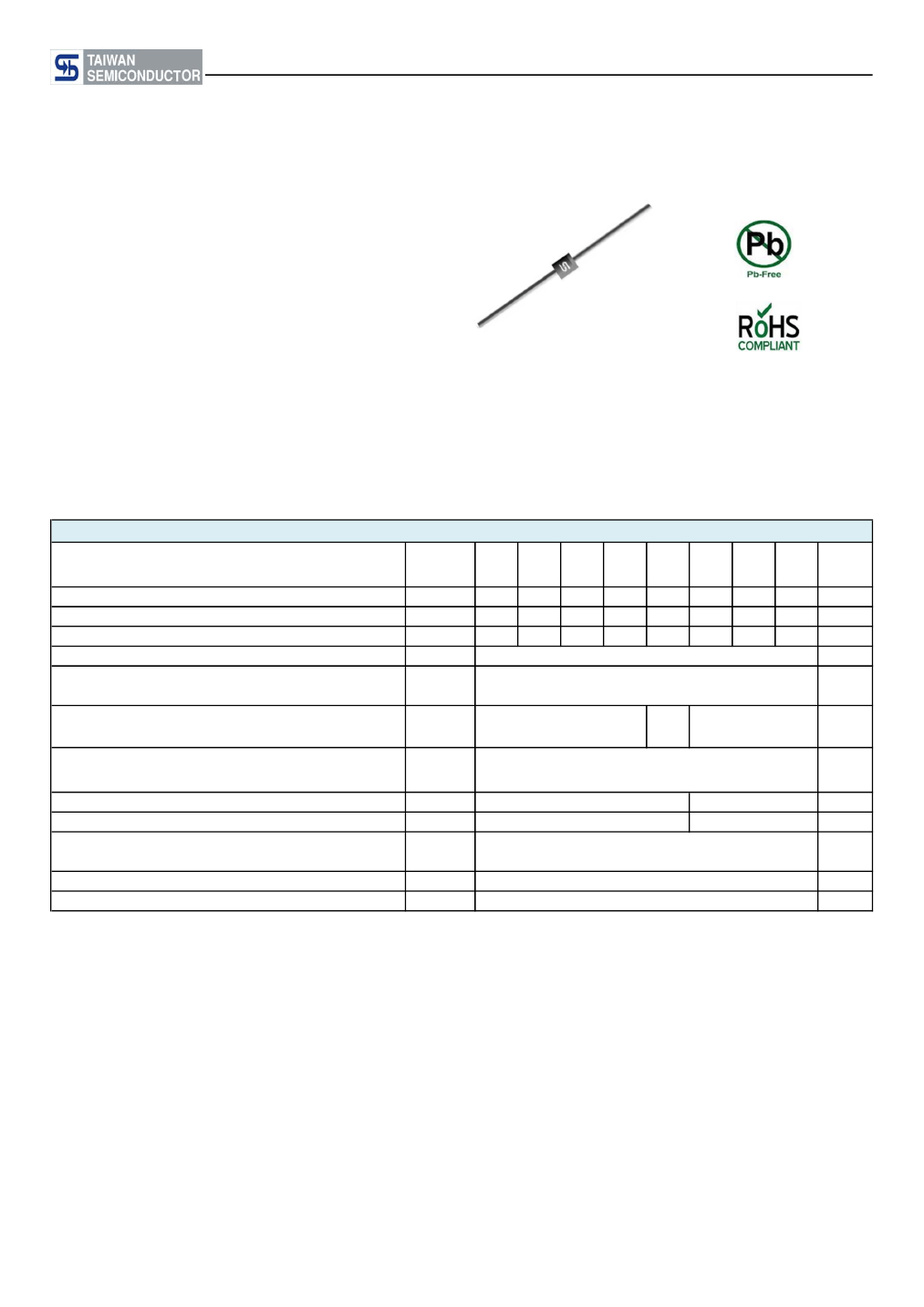

HER101G thru HER108G

Taiwan Semiconductor

CREAT BY ART

FEATURES

- Glass passivated chip junction

- High current capability, Low VF

- High reliability

- High surge current capability

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

Glass Passivated High Efficient Rectifiers

MECHANICAL DATA

Case:

DO-204AL (DO-41)

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - green compound (halogen-free)

Base P/N with prefix "H" on packing code - AEC-Q101 qualified

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

with prefix "H" on packing code meet JESD 201 class 2 whisker test

Weight:

0.33 g (approximately)

DO-204AL (DO-41)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS

=25

C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum instantaneous forward voltage (Note 1)

@1A

Maximum reverse current @ rated VR

=25

=125

Maximum reverse recovery time (Note 2)

Typical junction capacitance (Note 3)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

Note 1: Pulse Test with PW=300μs, 1% Duty Cycle

Note 2: Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.

SYMBOL

RRM

RMS

F(AV)

FSM

Trr

θJC

θJA

STG

- 55 to +150

1.0

150

HER

100

HER

200

140

200

HER

300

210

300

HER

400

280

400

HER

600

420

600

HER

800

560

800

HER

1000

700

1000

101G 102G 103G 104G 105G 106G 107G 108G

UNIT

1.3

1.7

μA

C/W

Document Number: DS_D1407033

Version: I14
