DN3545N3-GP014 Overview

SMALL SIGNAL, FET

DN3545N3-GP014 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMicrochip
Reach Compliance Codecompliant
Other featuresHIGH INPUT IMPEDANCE
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage450 V
Maximum drain current (ID)0.136 A
Maximum drain-source on-resistance20 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)15 pF
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-W3
Number of components1
Number of terminals3
Operating modeDEPLETION MODE
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Polarity/channel typeN-CHANNEL
Maximum power consumption environment0.74 W
Maximum power dissipation(Abs)0.74 W
surface mountNO
Terminal formWIRE
Terminal locationBOTTOM
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

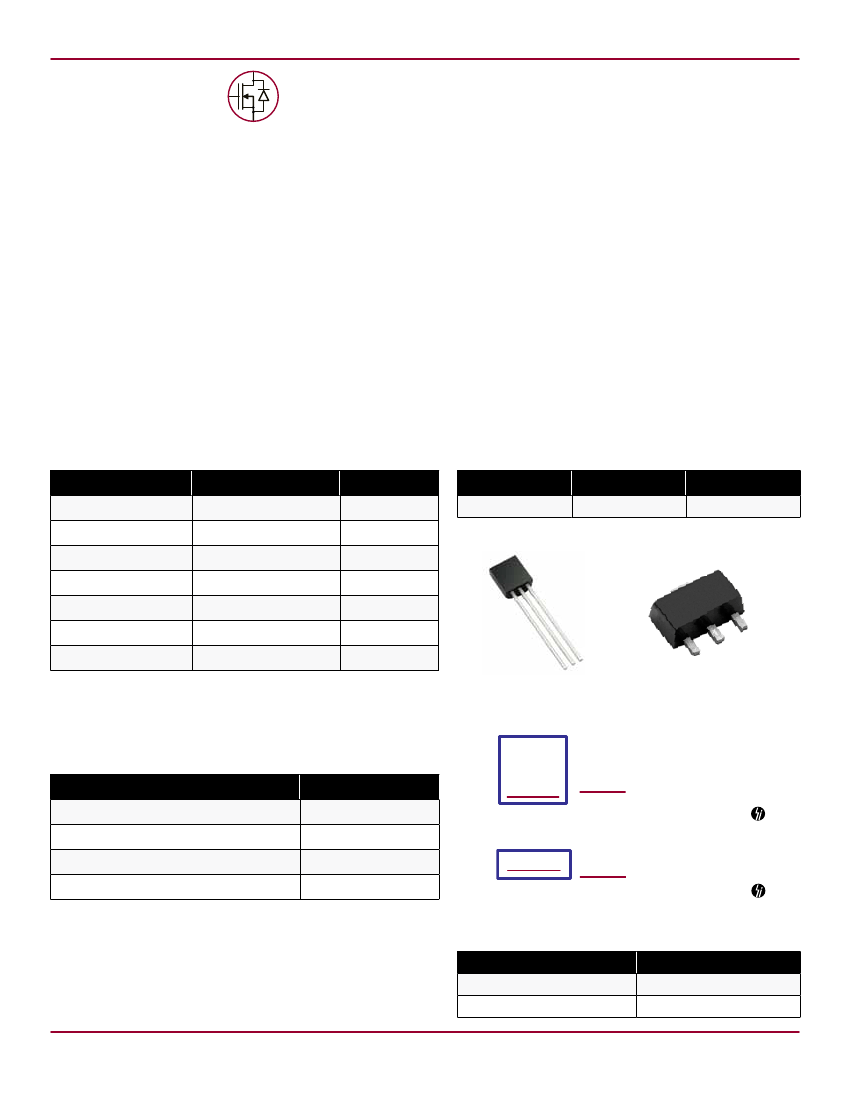

Supertex inc.
N-Channel Depletion-Mode
Vertical DMOS FET
Features
High input impedance
Low input capacitance
Fast switching speeds
Low on-resistance
Free from secondary breakdown
Low input and output leakage
DN3545
General Description
Applications
These depletion-mode (normally-on) transistors utilize an
advanced vertical DMOS structure and Supertex’s well-proven
silicon-gate manufacturing process. This combination produces
devices with the power handling capabilities of bipolar transistors
and with the high input impedance and positive temperature
coefficient inherent in MOS devices. Characteristic of all MOS
structures, these devices are free from thermal runaway and
thermally-induced secondary breakdown.
Supertex’s vertical DMOS FETs are ideally suited to a wide range
of switching and amplifying applications where high breakdown
voltage, high input impedance, low input capacitance, and fast
switching speeds are desired.
Normally-on switches
Solid state relays
Converters
Linear amplifiers
Constant current sources
Power supply circuits
Telecom
Ordering Information
Part Number
SN3545N3-G
SN3545N3-G P002
SN3545N3-G P003
SN3545N3-G P005
SN3545N3-G P013
SN3545N3-G P014
SN3545N8-G
Package Options
TO-92
TO-92
TO-92
TO-92
TO-92
TO-92
TO-243AA (SOT-89)
Packing
1000/Bag
2000/Reel
2000/Reel
2000/Reel
2000/Reel
2000/Reel
2000/Reel
Product Summary
BV
DSX
/BV
DGX
450V
R
DS(ON)
(max)
20Ω
I
DSS
(min)
200mA
Pin Configuration
DRAIN
DRAIN
SOURCE
GATE
SOURCE
DRAIN
GATE
-G denotes a lead (Pb)-free / RoHS compliant package.
Contact factory for Wafer / Die availablity.
Devices in Wafer / Die form are lead (Pb)-free / RoHS compliant.
Refer to ‘P0xx’ Tape & Reel Specs for P002, P003, P005, P013, and P014 TO-92 Taping
Specifications and Winding Styles
TO-92
TO-243AA (SOT-89)
Product Marking
S i DN
3 5 4 5
YYWW
YY = Year Sealed
WW = Week Sealed
= “Green” Packaging
TO-92
DN5MW
Absolute Maximum Ratings
Parameter
Drain-to-source voltage
Drain-to-gate voltage
Gate-to-source voltage
Operating and storage temperature
Value
BV
DSX
BV
DGX
±20V
-55
O
C to +150
O
C
Package may or may not include the following marks: Si or
W = Code for week sealed
= “Green” Packaging
TO-243AA (SOT-89)
Package may or may not include the following marks: Si or
Absolute Maximum Ratings are those values beyond which damage to the device may
occur. Functional operation under these conditions is not implied. Continuous operation
of the device at the absolute rating level may affect device reliability. All voltages are
referenced to device ground.
Typical Thermal Resistance
Package
TO-92
TO-243AA (SOT-89)
θ
ja
132
O
C/W
133
O
C/W
Doc.# DSFP-DN3545
C070113
Supertex inc.
www.supertex.com
