BUS-61559-883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BUS-61559-883B

BUS-61559-883B: DescriptionSerial IO/Communication Controller, Hybrid, CQIP78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，27 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BUS-61559-883B Overview

Serial IO/Communication Controller, Hybrid, CQIP78

BUS-61559-883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Reach Compliance Code	unknown
JESD-30 code	R-XQIP-P78
JESD-609 code	e0
Number of terminals	78
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QIP
Encapsulate equivalent code	QUIP78B,1.5/1.7
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

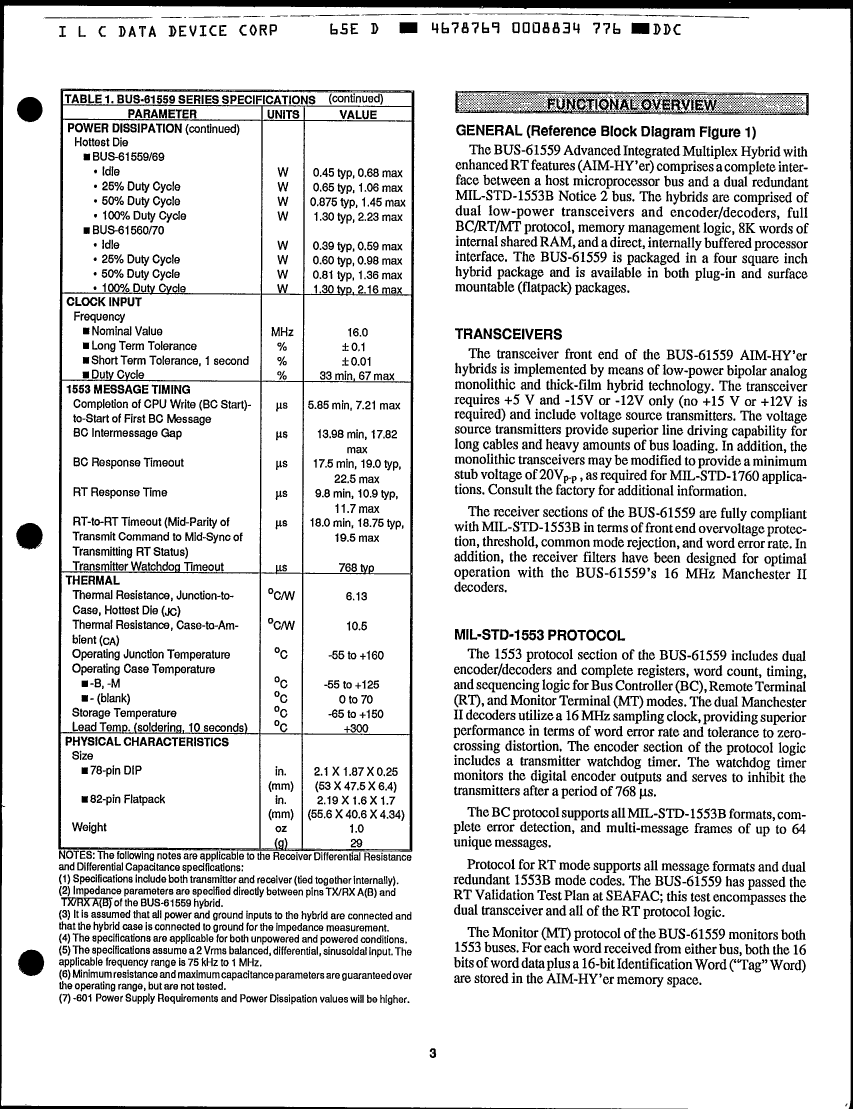

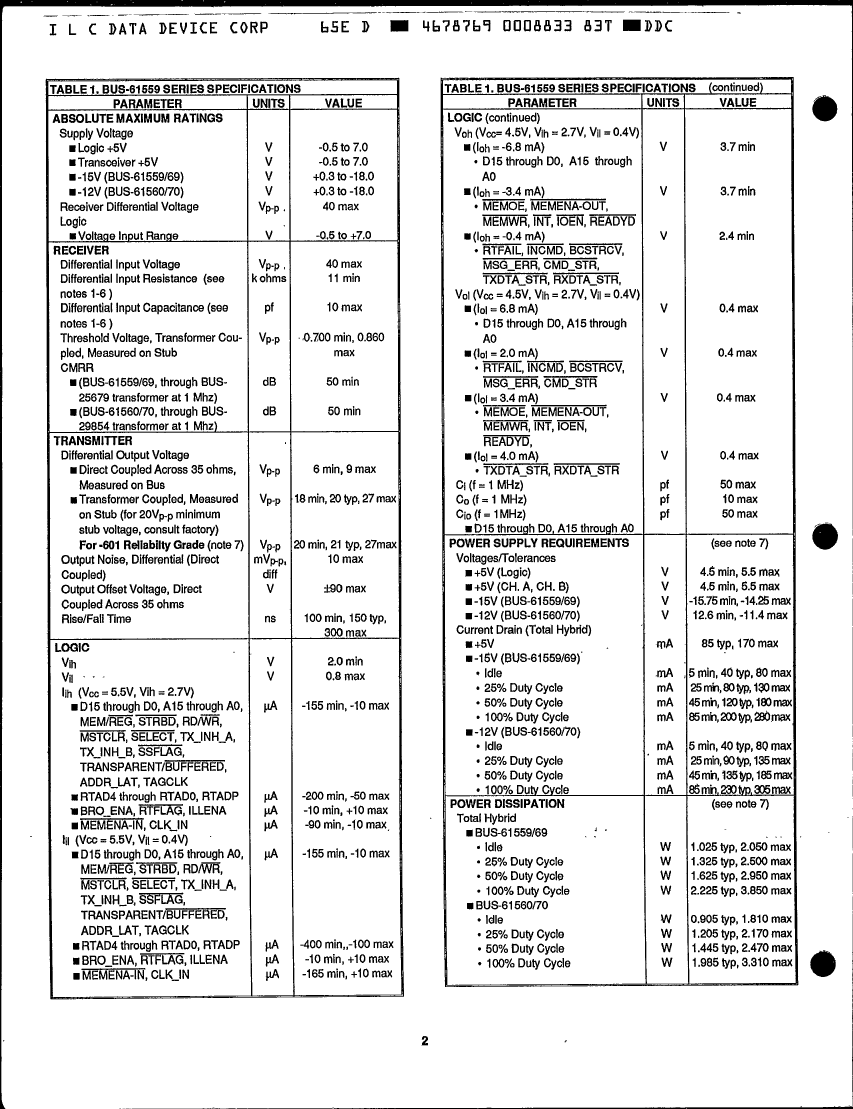

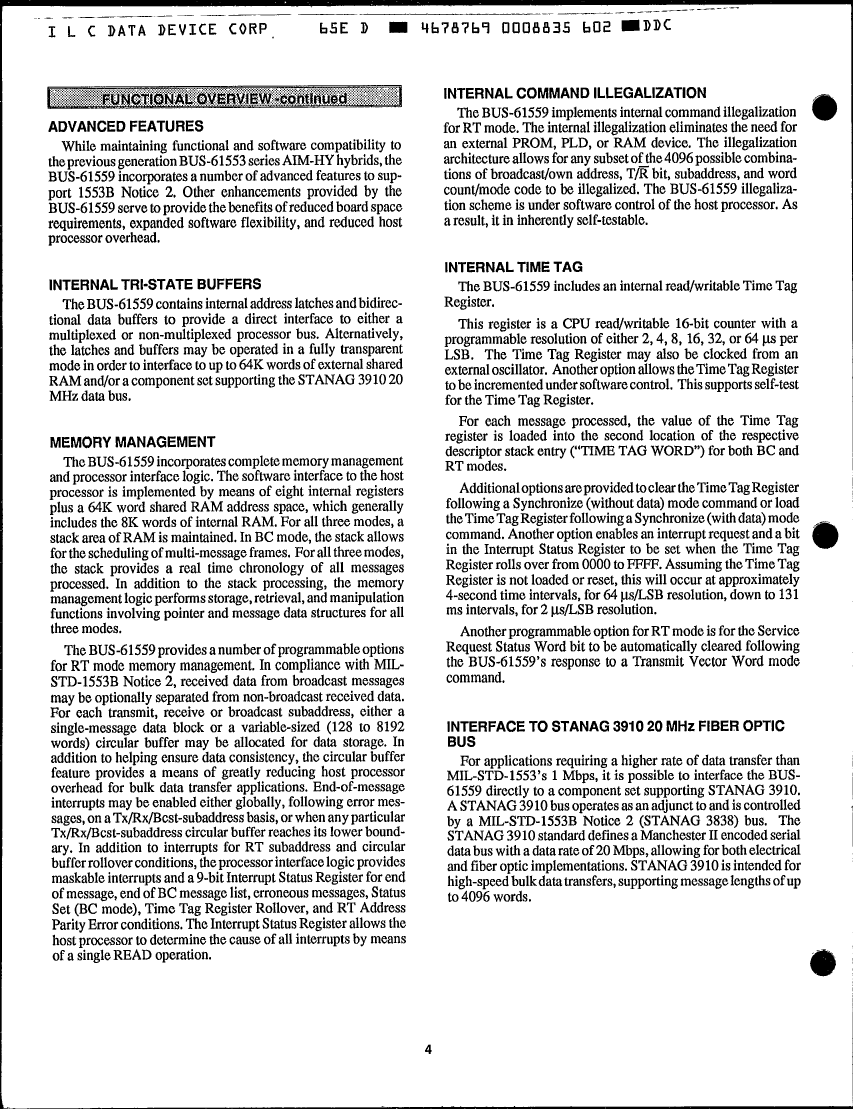

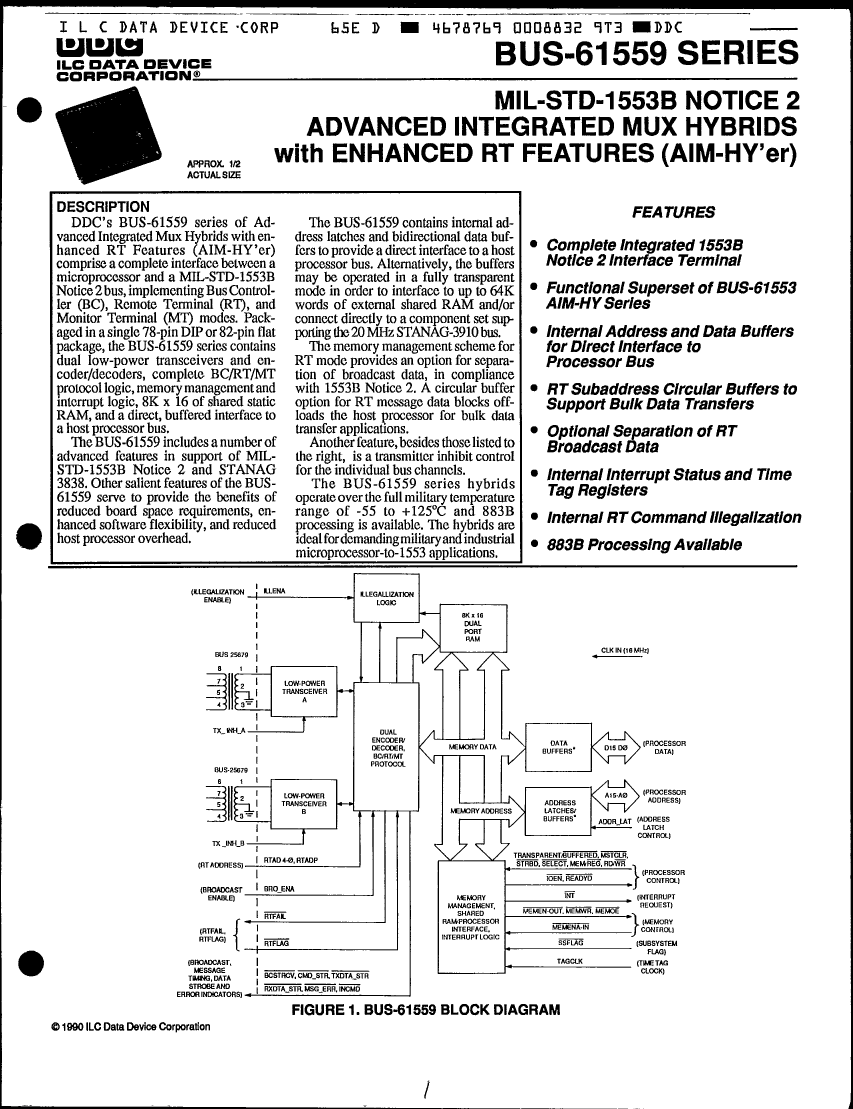

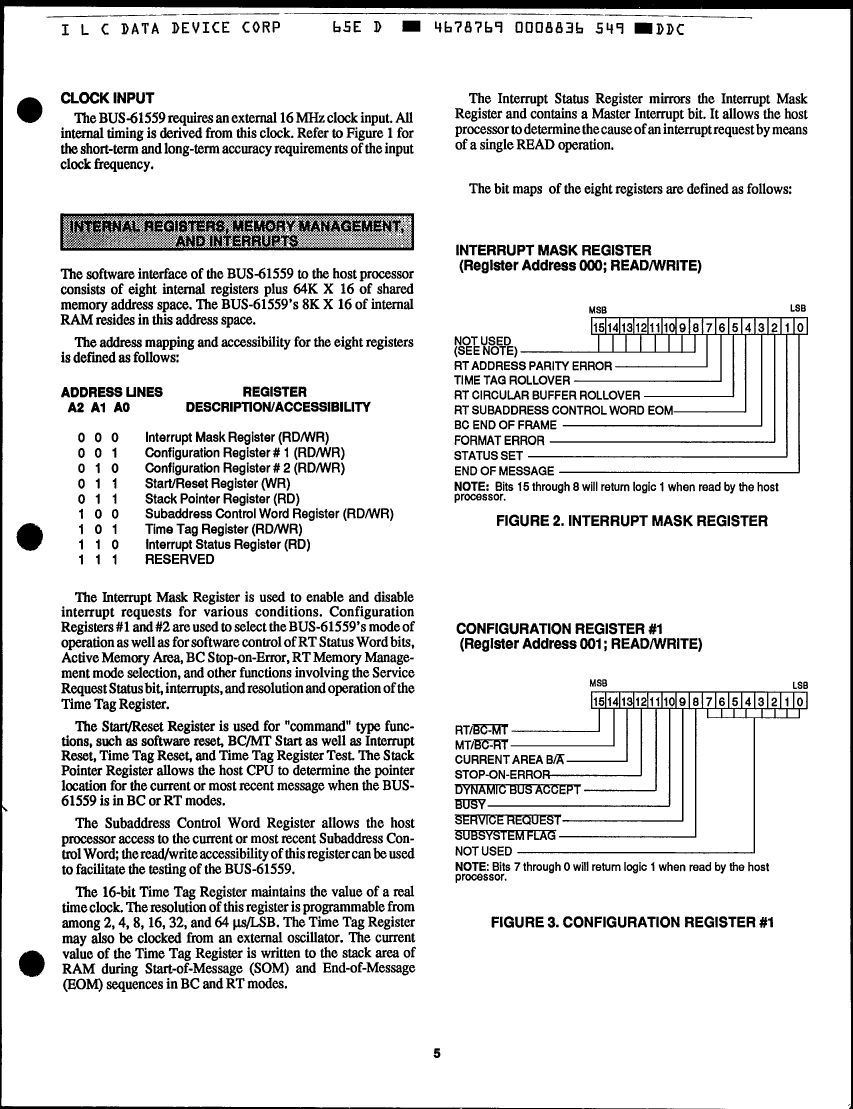

Preview

Download Datasheet

View All

BUS-61559-883B Related Products

	BUS-61559-883B	BUS-61571-883B	BUS-61561-601	BUS-61560-883B	BUS-61561-B	BUS-61561-883B	BUS-61559-B	BUS-61560	BUS-61571-601	BUS-61571-B
Description	Serial IO/Communication Controller, Hybrid, CQIP78	Serial IO/Communication Controller, Hybrid, CDFP82	Serial IO/Communication Controller, CMOS, MQIP78	Serial IO/Communication Controller, Hybrid, CQIP78	Serial IO/Communication Controller, CMOS, MQIP78	Serial IO/Communication Controller, CMOS, CQIP78	Serial IO/Communication Controller, Hybrid, MQIP78	Serial IO/Communication Controller, Hybrid, MQIP78	Serial IO/Communication Controller, Hybrid, MDFP82	Serial IO/Communication Controller, Hybrid, MDFP82
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknow	compliant	unknown	compliant	compliant	unknown	unknown	unknown	unknown
JESD-30 code	R-XQIP-P78	R-XDFP-F82	R-MQIP-P78	R-XQIP-P78	R-MQIP-P78	R-XQIP-P78	R-MQIP-P78	R-MQIP-P78	R-MDFP-F82	R-MDFP-F82
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	78	82	78	78	78	78	78	78	82	82
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	METAL	CERAMIC	METAL	CERAMIC	METAL	METAL	METAL	METAL
encapsulated code	QIP	DFP	QIP	QIP	QIP	QIP	QIP	QIP	DFP	DFP
Encapsulate equivalent code	QUIP78B,1.5/1.7	FL82,1.6	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	FL82,1.6	FL82,1.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
power supply	5,-15 V	5 V	5 V	5,-12 V	5 V	5 V	5,-15 V	5,-12 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	NO	NO	NO	NO	YES	YES
technology	HYBRID	HYBRID	CMOS	HYBRID	CMOS	CMOS	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	FLAT	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	DUAL	DUAL
Maker	Data Device Corporation	-	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	-	Data Device Corporation	Data Device Corporation
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	-	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)
Base Number Matches	1	1	1	1	1	1	1	1	-	-
Nominal supply voltage	-	5 V	5 V	-	5 V	5 V	-	-	5 V	5 V
package instruction	-	-	QIP, QUIP78B,1.5/1.7	QIP, QUIP78B,1.5/1.7	QIP, QUIP78B,1.5/1.7	QIP, QUIP78B,1.5/1.7	-	QIP, QUIP78B,1.5/1.7	DFP, FL82,1.6	-
