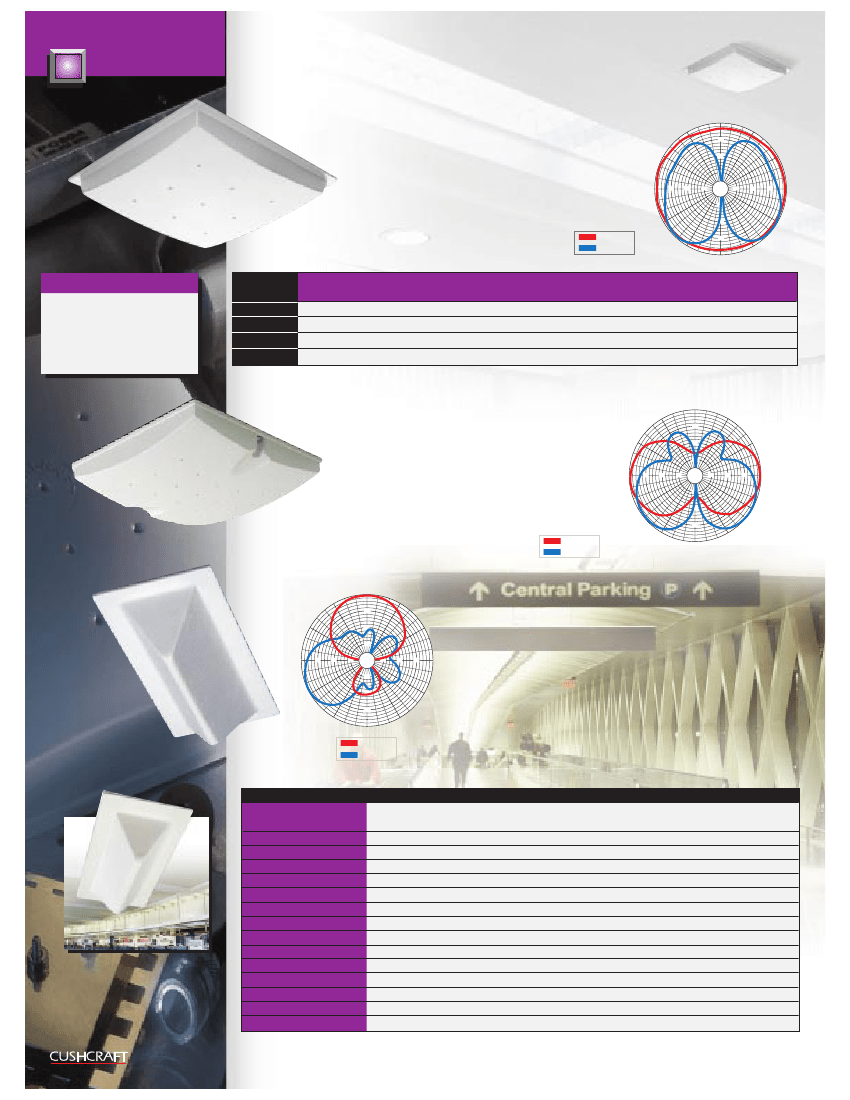

Dual-Band Ceiling Mount Antenna
Cushcraft's Dual-Band Squint antennas offer the same focused
omnidirectional pattern characteristics of the standard Squint Series
in popular Dual Band frequency combinations from 806 MHz
to 1990 MHz. For example, you can install one antenna
and provide AMPS/PCS coverage.
Antennas are available with ceiling mount hardware and vertical
column mount hardware.
300
¼
10
20
30
270
¼
60
¼
10
20
30
30
20
10
30
20
10
90
¼
240
¼
120
¼
SQ82183P
DUAL BAND SELECTOR GUIDE
DUAL BAND:
¥ Optimized for use with
RF Distribution Systems
¥ Coax & Connector Type Variable
¥ See Selector Guide for Available
Frequencies
¥ IMT 2000 Available Soon
Model
SQ82183PNF
SQ87173PNF
Freq.
MHz
1850 - 1990
Lowband
824-896
Highband
1710 - 1880
Lowband
870-960
Highband
H-Plane
E-Plane
210
¼
180
¼
150
¼
Gain
dBi
3.5
3.5
3dB bmwidth
bmwidth
E-Plane
Azimuth Plane
60¼
60¼
Omnidirectional
Omnidirectional
Weight
lb (kg)
1.4 (0.64)
1.4 (0.64)
Power
(Watts)
50
50
Enclosure
Material
PVC/Acrylic
PVC/Acrylic
Mount
Style
Ceiling
Dimensions
10.1Ó x 10.1Ó x 1.5Ó
(25.7 x 25.7 x 3.8 cm)
Ceiling 10.1Ó x 10.1Ó x 1.5Ó
(25.7 x 25.7 x 3.8 cm)
¥ ¥¥¥¥ ¥¥¥¥ ¥¥¥¥ ¥¥¥¥ ¥¥¥¥ ¥¥¥¥ ¥¥¥¥ ¥¥¥¥
Directional Antennas for Horizontal Mouting Surfaces
Cushcraft offers a unique series of directional antennas designed
for mounting to ceilings and other horizontal mounting surfaces.
These antennas offer the advantages of directional pattern
shaping while allowing for installation to a ceiling
as well as other horizontal mounting platforms.
270
¼
0
¼
330
¼
30
¼
SQ1855DD
10
300
¼
20
30
10
20
30
30
20
10
210
¼
180
¼
150
¼
60
¼
30
20
10
90
¼
SQ1855DD
Bidirectional
Antennas are available offering either directional or
bidirectional pattern shape characteristics in frequencies from 1.7
GHz to 5.875 GHz and can be supplied either with integral coax
pigtails or fixed connectors.
H-Plane
E-Plane
240
¼
120
¼
S2408MD
0
¼
330
¼
30
¼
10
300
¼
20
30
60
¼
270
¼
10
20
30
30
20
10
30
20
10
90
¼
240
¼
120
¼
S2408MD
Directional
210
¼
180
¼
150
¼
H-Plane
E-Plane
SQUINT ª SELECTOR GUIDE
Model:
Frequency:
VSWR:
Polarization:
Gain:
Front to Back Ratio
Azimuth Plane 3dB BW:
Elevation Plane 3dB BW:
Cable Type:
Grounding
RF Connector:
Dimensions:
Power:
Weight w/12Ó cable:
Mounting:
SQ1855DD12NF
1850 -1990 MHz
1:5:1 Maximum
Vertical Linear
5 dBi minimum
Ð
70¡ Dual Directional
65¡
12Ó Plenum coax
Element DC Grounded
Type N-Female
6Ó x 6Ó x 1-1/4Ó
(15.2 x 15.2 x 3.2 cm)
50 Watts
0.65 lbs (.3 kg)
Ceiling/Surface
SQ1715DD12NF
1710-1880
1:5:1
Vertical Linear
5 dBi minimum
Ð
70¡ Dual Directional
65¡
12Ó Plenum coax
Element DC Grounded
Type N-Female
6Ó x 6Ó x 1-1/4Ó
(15.2 x 15.2 x 3.2 cm)
50 Watts
.70 lbs (.3 kg)
Ceiling/Surface
S2408MD12NF
2400-2500 MHz
1.5:1
Vertical Linear
8 dBi minimum
13 dB
66
¼
56
¼
12Ó Plenum coax
Element DC grounded
Type N female
7-1/4Ó x 3-3/4Ó x 2Ó
(18.4 x 9.5 x 5.1 cm)
50 Watts
0.3 lb (.14kg)
Ceiling/Surface
S1857MD12NF
1850-1990 MHz
1.5:1
Vertical Linear
7 dBi minimum
13 dB
69
¼
68
¼
12Ó Plenum coax
Element DC grounded
Type N-female
7-1/4Ó x 3-3/4Ó x 2Ó
(18.4 x 9.5 x 5.1 cm)
50 Watts
0.3 lb (.14kg)
Ceiling/Surface
S1857MD
