PO100HSTL23A
Dual Differential LVDS/LVPECL/HSTL to LVTTL Translator
12/19/07
FEATURES:
• Patented Technology
• Differential LVDS/LVPECL/HSTL to LVTTL
Translator
• Operating frequency up to 1GHz with 2pf load
• Operating frequency up to 800MHz with 5pf load
• Operating frequency up to 450MHz with 15pf load
• Very low output pin to pin skew < 150ps
• Propagation delay < 1.8ns max with 15pf load
• 2.4V to 3.6V power supply
• Industrial temperature range: –40°C to 85°C
• Available in 8-pin SOIC package
• Available in 8-pin TSSOP package
DESCRIPTION:
Potato Semiconductor’s PO100HSTL23A is
designed for world top performance using
submicron CMOS technology to achieve 1GHz
LVTTL output frequency with less than 1.8ns
propagation delay.
The
PO100HSTL23A
is a low-skew, The small
outline 8 pin package and the low skew design to
make it ideal for applica- tions which require the
translation of a clock or a data signal.
Pin Configuration
Logic Block Diagram
D0
D0
D0
D1
D1
1
2
3
4
8
7
6
5
V
CC
D0
Q0
Q1
D1
GND
D1
LVDS
LVPEC
HSTL
LVTTL
Q1
Q0
Pin Description
Pin
Q0, Q1
D0, D1
D0, D1
V
CC
GND
Function
LVTTL Outputs
Differential
LVDS/LVPECL/HSTL Inputs
Positive Supply
Ground
1
Copyright
© Potato Semiconductor Corporation
PO100HSTL23A
Dual Differential LVDS/LVPECL/HSTL to LVTTL Translator
02/13/07
Maximum Ratings
Description
Storage Temperature
Operation Temperature
Operation Voltage
Input Voltage
Output Voltage
Max
-65 to 150
-40 to 85
-0.5 to +4.6
-0.5 to Vcc
-0.5 to Vcc+0.5
Unit
°C
°C
V
V
V
Note:
stresses greater than listed under
Maximum
Ratings
may
cause
permanent damage to the device. This
is a stress rating only and functional
operation of the device at these or any
other conditions above those indicated
in the operational sections of this
specification is not implied. Exposure
to absolute maximum rating conditions
for extended periods may affect
reliability specification is not implied.
Pin Characteristics
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
Test Conditions
Minimum
Typical
4
88
88
Maximum
Units
pF
K
Ω
K
Ω
DC Electrical Characteristics
Symbol
Description
Output High voltage
Output Low voltage
Input High voltage
Input Low voltage
Input High current
Input Low current
Clamp diode voltage
Test Conditions
Vcc=3V Vin=V
IH
or V
IL
, I
OH
= -12mA
Vcc=3V Vin=V
IH
or V
IL
, I
OH
=12mA
Guaranteed Logic HIGH Level (Input Pin)
Guaranteed Logic LOW Level (Input Pin)
Vcc = 3.6V and Vin = Vcc
Vcc = 3.6V and Vin = 0V
Vcc = Min. And
I
IN
= -18mA
Min
Typ
Max
Unit
V
OH
V
OL
V
IH
V
IL
I
IH
I
IL
V
IK
Notes:
1.
2.
3.
4.
5.
2.4
-
2
-0.5
-
-
-
3
0.3
-
-
-
-
-0.7
-
0.5
Vcc
0.8
1
-1
-1.2
V
V
V
V
uA
uA
V
For conditions shown as Max. or Min., use appropriate value specified under Electrical Characteristics for the applicable device type.
Typical values are at Vcc = 3.3V, 25
°C
ambient.
This parameter is guaranteed but not tested.
Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
VoH = Vcc – 0.6V at rated current
2
Copyright
© Potato Semiconductor Corporation
PO100HSTL23A
Dual Differential LVDS/LVPECL/HSTL to LVTTL Translator
02/13/07
Power Supply Characteristics
Symbol
Description
Quiescent Power Supply Current
Test Conditions (1)
Vcc=Max, Vin=Vcc or GND
Min
Typ
Max
Unit
Icc
Q
Notes:
1.
2.
3.
4.
-
0.1
30
uA
For conditions shown as Max. or Min., use appropriate value specified under Electrical Characteristics for the applicable device type.
Typical values are at Vcc = 3.3V, 25°C ambient.
This parameter is guaranteed but not tested.
Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
Switching Characteristics
Symbol
Description
Propagation Delay D to Output pair
Test Conditions (1)
CL = 15pF
0.8V – 2.0V
CL = 15pF, 125MHz
CL = 15pF, 125MHz
CL =15pF
CL = 5pF
CL = 2pF
M ax
Unit
t
PD
tr/tf
tsk(o)
tsk(pp)
fmax
fmax
fmax
Notes:
1.8
0.8
150
300
450
250
800
300
1000
400
ns
ns
ps
ps
MHz
MHz
MHz
Rise/Fall Time
Output Pin to Pin Skew (Same Package)
Output Skew (Different Package)
Input Frequency
Input Frequency
Input Frequency
1. See test circuits and waveforms.
2. tpLH, tpHL, tsk(p), and tsk(o) are production tested. All other parameters guaranteed but not production tested.
3. Airflow of 1m/s is recommended for frequencies above 133MHz
Test Circuit
Vcc
50
Ω
Pulse
Generator
V+
V-
V+
V-
D.U.T
50
Ω
15pF
to
2pF
3
Copyright
© Potato Semiconductor Corporation
PO100HSTL23A
Dual Differential LVDS/LVPECL/HSTL to LVTTL Translator
02/13/07
Test Waveforms
FIGURE 1.
LVDS/ PECL/ ECL/ HSTL /DIFFERENTIAL INPUT WAVEFORM DEFINITIONS
VCC
VCC= 3.3V
VIH
VPP
VIL
VEE=0.0V
VEE
VPP RANGE
0V-VCC
FIGURE 2.
LVTTL OUTPUT
tr,tf,
VO
FIGURE 3.
Propogation Delay, Output pulse skew, and output-to-output skew for D to output
INPUT
CLOCK
TPLH
TPD
VPP
TPHL
VO
OUTPUT
CLOCK
tSK(O)
ANOTHER
OUTPUT
CLOCK
4
Copyright
© Potato Semiconductor Corporation
PO100HSTL23A
Dual Differential LVDS/LVPECL/HSTL to LVTTL Translator
02/13/07

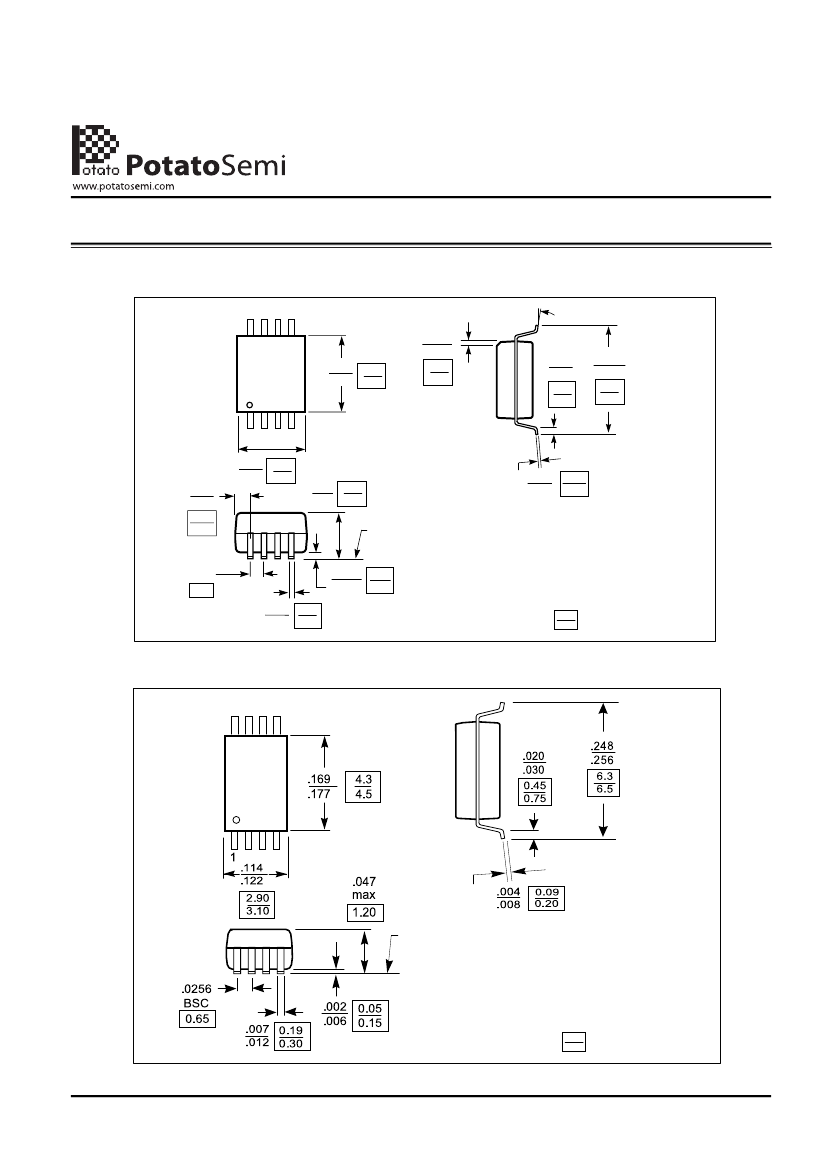

Packaging Mechanical Drawing: 8 pin SOIC
8
.0099
.0196
0.25
x 45˚
0.50
0-8˚
.149
.157
3.78
3.99
.016
.050
0.40
1.27
.2284
.2440
5.80
6.20
1
.189
.196
.016
.026
0.406
0.660
REF
.050
BSC
1.27
.013 0.330
.020 0.508
.0040 0.10
.0098 0.25
X.XX DENOTES DIMENSIONS
X.XX IN MILLIMETERS
4.80
5.00
.053
.068
1.35
1.75
SEATING PLANE
.0075
.0098
0.19
0.25
Packaging Mechanical Drawing: 8 pin TSSOP
8
SEATING PLANE
X.XX DENOTES DIMENSIONS
X.XX IN MILLIMETERS
5
Copyright
© Potato Semiconductor Corporation
