PO100HSTL22A
Dual LVTTL/LVCMOS to Differential HSTL Translator
02/13/07
FEATURES:
• Patented Technology
• HSTL differential outputs
• LVTTL/LVCMOS to Differential HSTL Translator
• Operating frequency up to 1.65GHz with 5pf load
• Operating frequency up to 500MHz with 15pf load
• Very low output pin to pin skew < 100ps
• Propagation delay < 1.4ns max with 15pf load
• 1.65V to 3.6V power supply
• Industrial temperature range: –40°C to 85°C
• Available in 8-pin SOIC package
• Available in 8-pin TSSOP package
DESCRIPTION:
Potato Semiconductor’s PO100HSTL22A is
designed for world top performance using
submicron CMOS technology to achieve
1.65GHz HSTL output frequency with less than
1.4ns propagation delay.
The
PO100HSTL22A
is a low-skew,
LVTTL/LVCMOS to Differential HSTL
Translator. The small outline 8 pin package and
the low skew design to make it ideal for applica-
tions which require the translation of a clock or a
data signal.
Pin Configuration
Logic Block Diagram
Q0
Q0
Q0
Q1
Q1
1
2
3
4
8
7
6
5
V
CC
Q0
D0
D0
HSTL
D1
Q1
GND
LVTTL/
LVCMOS
D1
Q1
Pin Description
PIN
Qn, Qn
D0, D1
V
CC
GND
FUNCTION
HSTL Differential Outputs
LVTTL/LVCMOS Inputs
Positive Supply
Ground
1
Copyright
© Potato Semiconductor Corporation
PO100HSTL22A
Dual LVTTL/LVCMOS to Differential HSTL Translator
02/13/07
Maximum Ratings
Description
Storage Temperature
Operation Temperature
Operation Voltage
Input Voltage
Output Voltage
Max
-65 to 150
-40 to 85
-0.5 to +4.6
-0.5 to +5.5
-0.5 to Vcc+0.5
Unit
°C
°C
V
V
V
Note:
stresses greater than listed under
Maximum
Ratings
may
cause
permanent damage to the device. This
is a stress rating only and functional
operation of the device at these or any
other conditions above those indicated
in the operational sections of this
specification is not implied. Exposure
to absolute maximum rating conditions
for extended periods may affect
reliability specification is not implied.
DC Electrical Characteristics
Symbol
Description
Output High voltage
Output Low voltage
Input High voltage
Input Low voltage
Input High current
Input Low current
Clamp diode voltage
Test Conditions
Vcc=3V Vin=V
IH
or V
IL
, I
OH
= -12mA
Vcc=3V Vin=V
IH
or V
IL
, I
OH
=12mA
Guaranteed Logic HIGH Level (Input Pin)
Guaranteed Logic LOW Level (Input Pin)
Vcc = 3.6V and Vin = 5.5V
Vcc = 3.6V and Vin = 0V
Vcc = Min. And
I
IN
= -18mA
Min
Typ
Max
Unit
V
OH
V
OL
V
IH
V
IL
I
IH
I
IL
V
IK
Notes:
1.
2.
3.
4.
5.
2.4
-
2
-0.5
-
-
-
3
0.3
-
-
-
-
-0.7
-
0.5
Vcc
0.8
1
-1
-1.2
V
V
V
V
uA
uA
V
For conditions shown as Max. or Min., use appropriate value specified under Electrical Characteristics for the applicable device type.
Typical values are at Vcc = 3.3V, 25
°C
ambient.
This parameter is guaranteed but not tested.
Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
VoH = Vcc – 0.6V at rated current
2
Copyright
© Potato Semiconductor Corporation
PO100HSTL22A
Dual LVTTL/LVCMOS to Differential HSTL Translator
04/03/07
Power Supply Characteristics
Symbol
Description
Quiescent Power Supply Current
Test Conditions (1)
Vcc=Max, Vin=Vcc or GND
Min
Typ
Max
Unit
Icc
Q
Notes:
1.
2.
3.
4.
-
0.1
30
uA
For conditions shown as Max. or Min., use appropriate value specified under Electrical Characteristics for the applicable device type.
Typical values are at Vcc = 3.3V, 25°C ambient.
This parameter is guaranteed but not tested.
Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
Switching Characteristics
Symbol
Description
Propagation Delay D to Output pair
Rise/Fall Time
Output Pin to Pin Skew (Same Package)
Output Skew (Different Package)
Random Clock Jitter (RMS)
Input Frequency
Input Frequency
Test Conditions (1)
CL = 15pF
0.8V – 2.0V
CL = 15pF, 125MHz
CL = 15pF, 125MHz
CL = 15pF, 125MHz
CL =15pF
CL = 5pF
Typ
M ax
Unit
t
PD
tr/tf
tsk(o)
tsk(pp)
tJITTER
fmax
fmax
Notes:
1.4
0.8
100
250
1.6
500
250
1.65
300
ns
ns
ps
ps
ps
MHz
GHz
1. See test circuits and waveforms.
2. tpLH, tpHL, tsk(p), and tsk(o) are production tested. All other parameters guaranteed but not production tested.
3. Airflow of 1m/s is recommended for frequencies above 133MHz
Test Circuit
Vcc
15pF
to
2pF
Pulse
Generator
D.U.T
50
Ω
15pF
to
2pF
3
Copyright
© Potato Semiconductor Corporation
PO100HSTL22A
Dual LVTTL/LVCMOS to Differential HSTL Translator
02/13/07

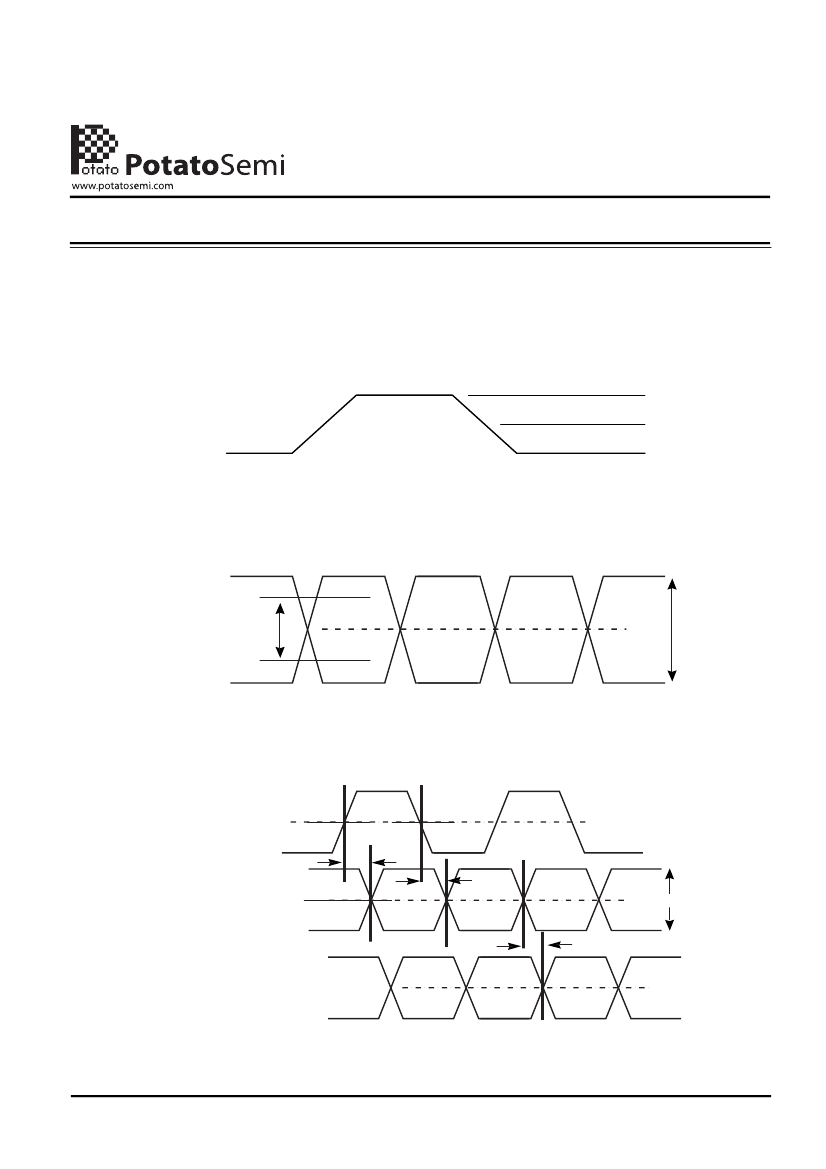

Test Waveforms
FIGURE 1.
LVTTL/LVCMOS INPUT WAVEFORM DEFINITION
3V
Input
1.5V
0V
FIGURE 2.
HSTL OUTPUT
tr,tf,
20-80%
VO
FIGURE 3.
Propogation Delay, Output pulse skew, and output-to-output skew for D to output pair
INPUT
CLOCK
TPLH
TPD
TPHL
VO
OUTPUT
CLOCK
tSK(O)
ANOTHER
OUTPUT
CLOCK
4
Copyright
© Potato Semiconductor Corporation
PO100HSTL22A
Dual LVTTL/LVCMOS to Differential HSTL Translator
02/13/07

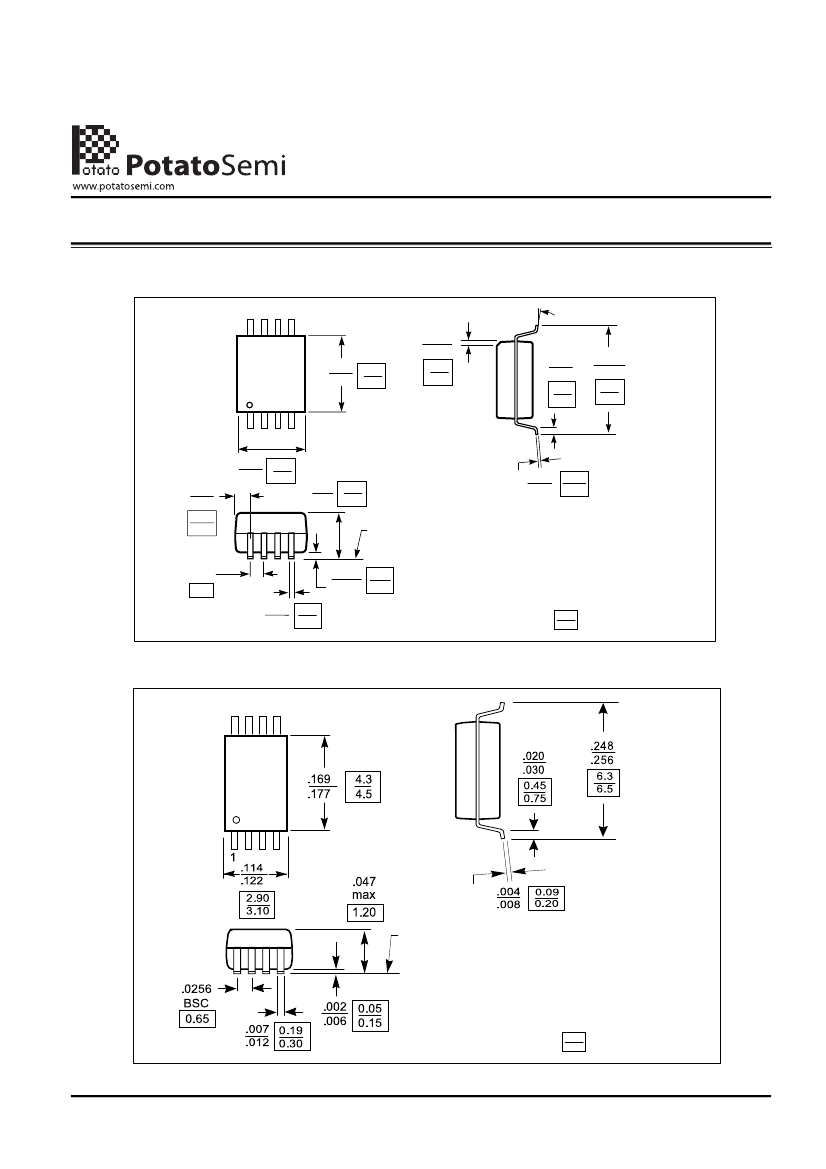

Packaging Mechanical Drawing: 8 pin SOIC
8
.0099
.0196
0.25
x 45˚
0.50
0-8˚
.149
.157
3.78
3.99
.016
.050
0.40
1.27
.2284
.2440
5.80
6.20
1
.189
.196
.016
.026
0.406
0.660
REF
.050
BSC
1.27
.013 0.330
.020 0.508
.0040 0.10
.0098 0.25
X.XX DENOTES DIMENSIONS
X.XX IN MILLIMETERS
4.80
5.00
.053
.068
1.35
1.75
SEATING PLANE
.0075
.0098
0.19
0.25
Packaging Mechanical Drawing: 8 pin TSSOP
8
SEATING PLANE
X.XX DENOTES DIMENSIONS
X.XX IN MILLIMETERS
5
Copyright
© Potato Semiconductor Corporation
