SF302D-A: DescriptionRectifier Diode, 1 Phase, 2 Element, 30A, 100V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size103KB，1 Pages; ManufacturerDiodes Incorporated

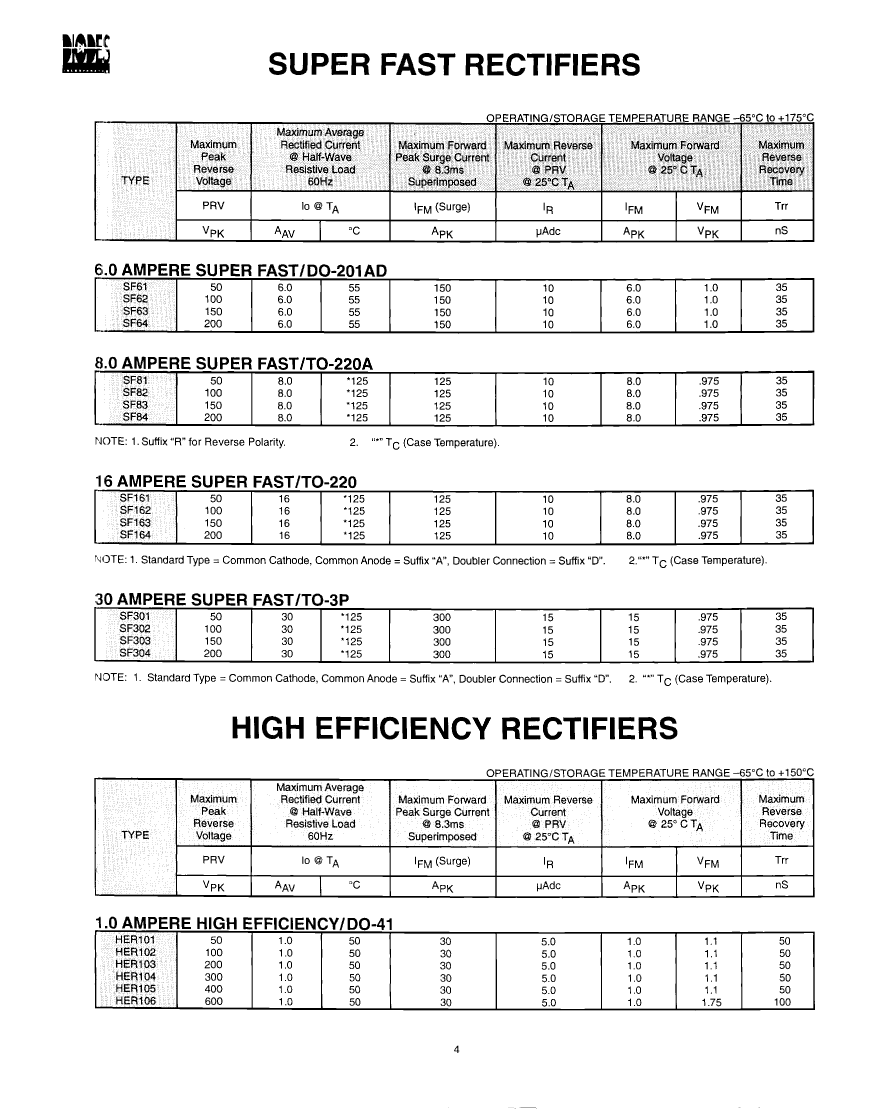

Download Datasheet Parametric View All

SF302D-A Overview

Rectifier Diode, 1 Phase, 2 Element, 30A, 100V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	Diodes Incorporated
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	SUPER FAST RECOVERY
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	15 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1
