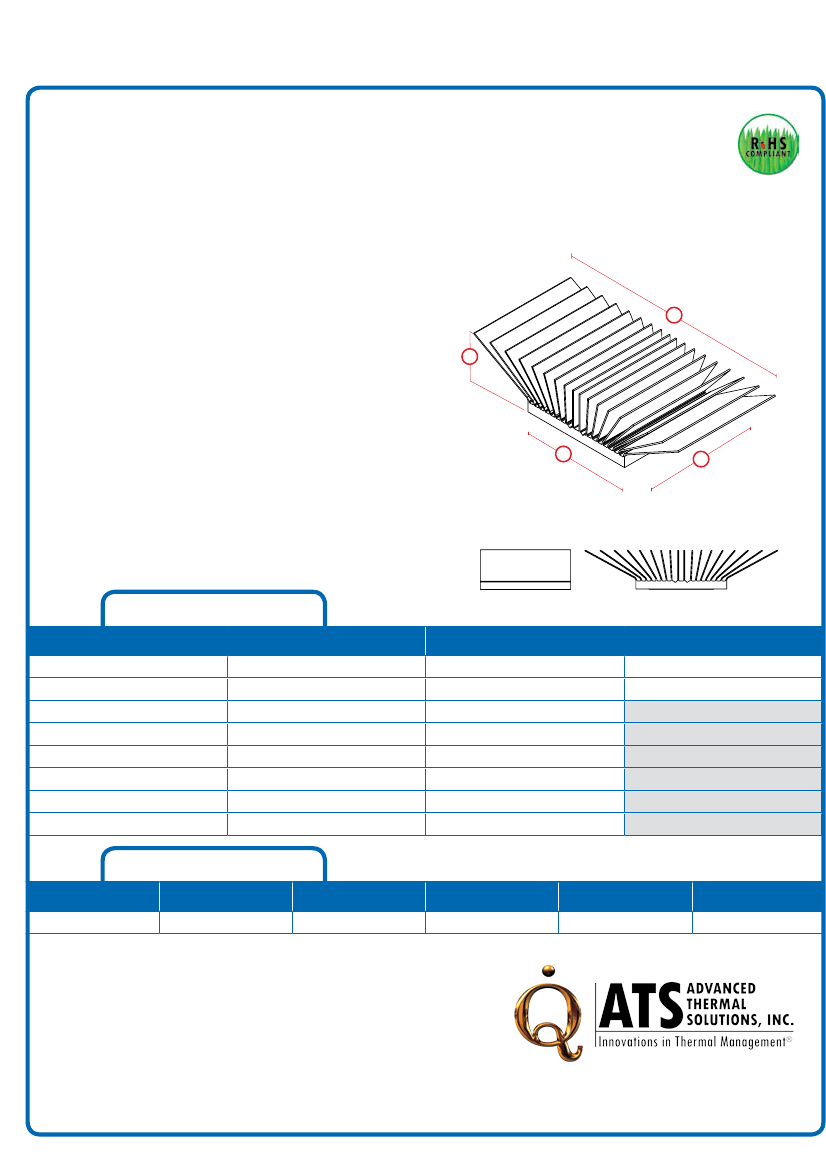

Ultra High Performance BGA Cooling
Solutions w/ Thermal Tape Attachment
ATS PART # ATS-52300P-C2-R0
Features & Benefits
»
maxiFLOW™ design features a low profile, spread fin
array that maximizes surface area for more effective
convection (air) cooling
Fabricated from extruded aluminum, which minimizes
thermal resistance from the base to the fins, reduces
weight and keeps costs low
Higher performance helps ensure reliable product life at a
lower cost than other extruded heat sinks
B
A
C
D
»
»
thermal Performance
AIR VELOCITy
*Image above is for illustration purposes only.
THERMAL RESISTANCE
FT/MIN
200
300
400
500
600
700
800
M/S
1.0
1.5
2.0
2.5
3.0
3.5
4.0
°C/W (UNDUCTED FLOW)
3.4
2.8
2.4
2.2
2
1.9
1.7
°C/W (DUCTED FLOW)
2.7
Product Details
DIMENSION A
30 mm
Notes:
1)
2)
3)
4)
DIMENSION B
30 mm
DIMENSION C
17.5 mm
DIMENSION D
53.3 mm
INTERFACE MATERIAL
SAINT-gOBAIN C675
FINISH
BLUE-ANODIZED
Dimension
C = heat sink height from bottom of the base to the top of the fin field.
Thermal performance data are provided for reference only. Actual performance may vary
by application.
ATS reserves the right to update or change its products without notice to improve the
design or performance.
Contact ATS to learn about custom options available.
For more information, to find a distributor or to place an order, visit www.qats.com or
call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).
REV1_0908
