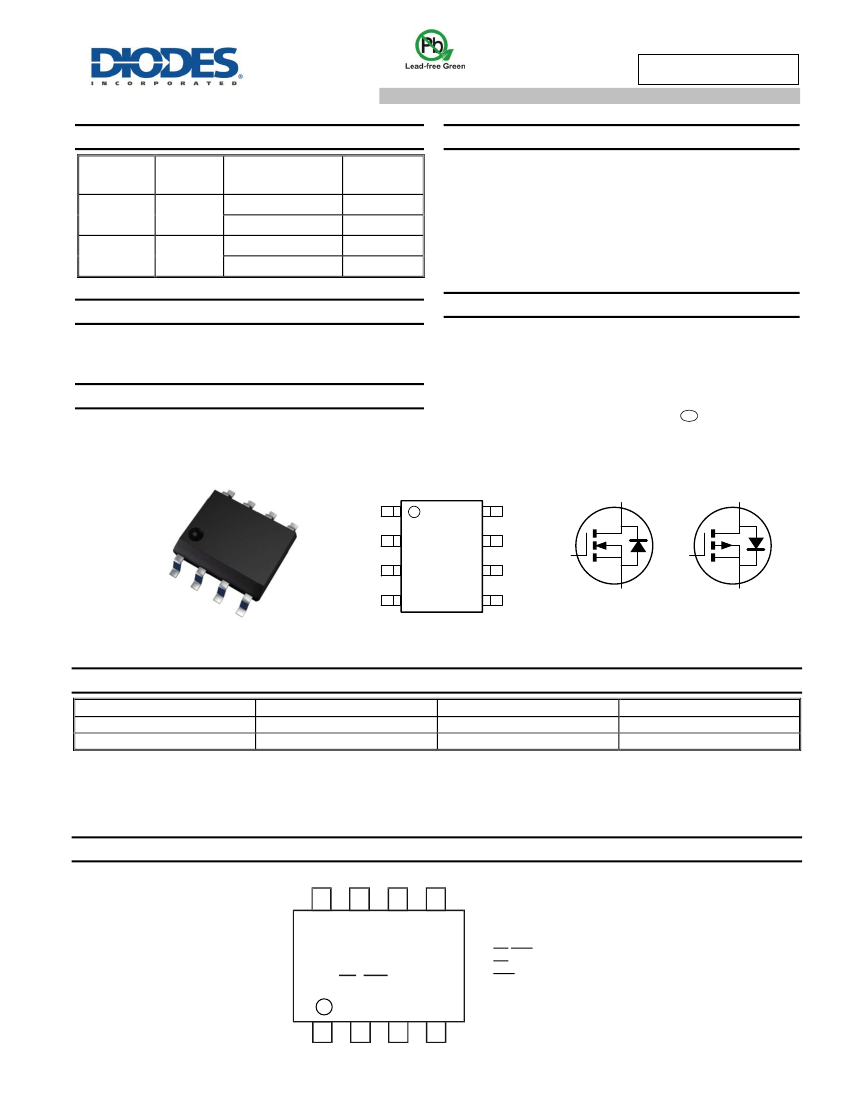

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Q1
100V
Q2
-100V
Description
This new generation complementary dual MOSFET features low on-
resistance achievable with low gate drive.
Mechanical Data
SO-8
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Lead Frame.
Solderable per MIL-STD-202, Method 208
e3
Weight: 0.074 grams (Approximate)
Applications
DC Motor Control
Backlighting
D1
S1
G1
D2
D1
D1
G1
S2
G2
Top View
G2
S1
Q1 N-Channel
D2
D2
Top
View
view
Top
S2
Q2 P-Channel
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
ZXMC10A816N8TA
ZXMC10A816N8TC
Notes:
Reel Size (inches)
7
13
Tape Width (mm)
12
12
Quantity Per Reel
500
2,500
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green" products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. For a device surface mounted on 25mm x 25mm x 1.6mm FR-4 PCB with high coverage of single sided 1oz copper, in still air conditions; the device is
measured when operating in a steady-state condition.
6. Same as note (5), except the device is measured at t
10 sec.
7. Same as note (5), except the device is pulsed with D = 0.02 and pulse width 300µs. The pulse current is limited by the maximum junction temperature.
8. For a dual device with one active die.
9. For a device with two active die running at equal power.
10. Thermal resistance from junction to solder-point (at the end of the drain lead); the device is operating in a steady-state condition.
11. I
AS
rating is based on low frequency and duty cycles to keep T
