5962-89636012A Overview

5962-89636012A amplifier basic information:

5962-89636012A is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are,

5962-89636012A amplifier core information:

The minimum operating temperature of 5962-89636012A is -55 °C and the maximum operating temperature is 125 °C.

The maximum slew rate of the 5962-89636012A given by the manufacturer is 10 mA.

The nominal supply voltage of 5962-89636012A is 15 V, and its corresponding nominal negative supply voltage is -15 V.

Related dimensions of 5962-89636012A:

5962-89636012A has 20 terminals. Its terminal position type is: QUAD.

5962-89636012A amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: S-CQCC-N20. The corresponding JESD-609 code is: e0. The materials of the 5962-89636012A package are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is SQUARE.

5962-89636012A package pin form is: CHIP CARRIER. Its terminal forms are: NO LEAD.

5962-89636012A Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum slew rate	10 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

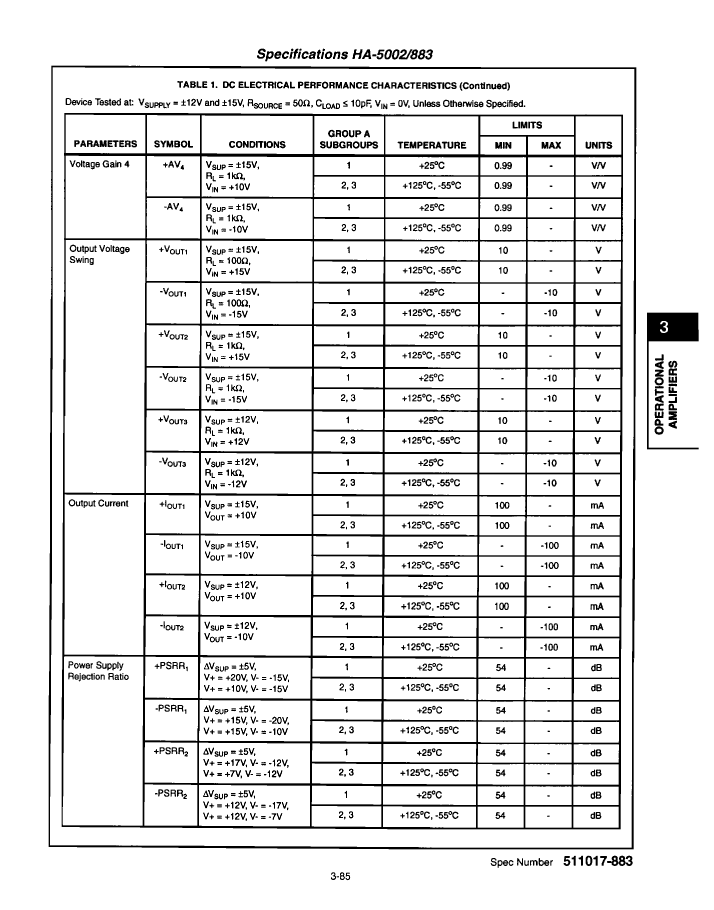

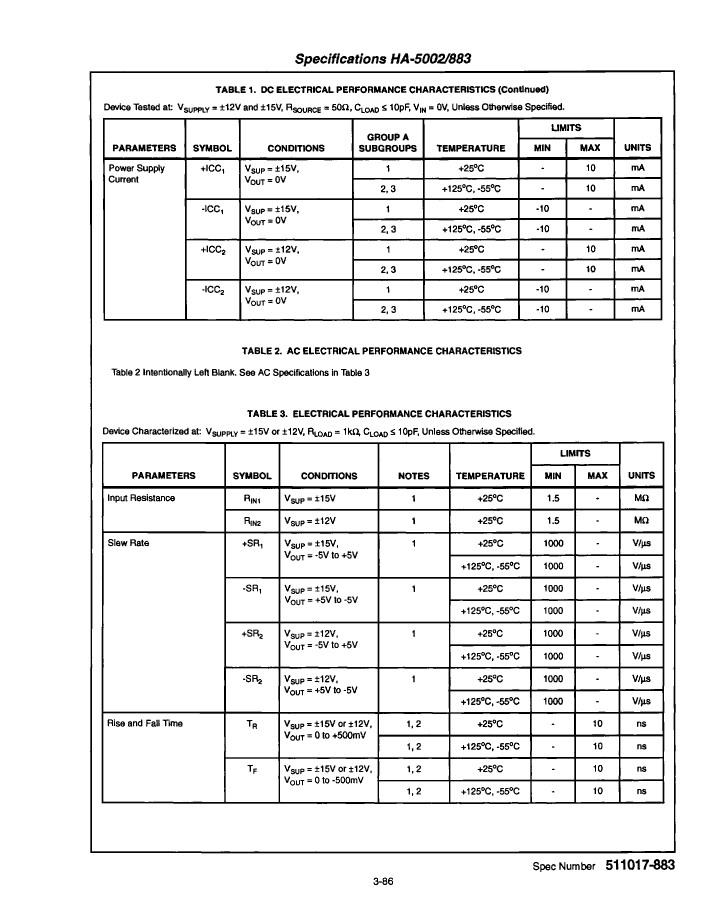

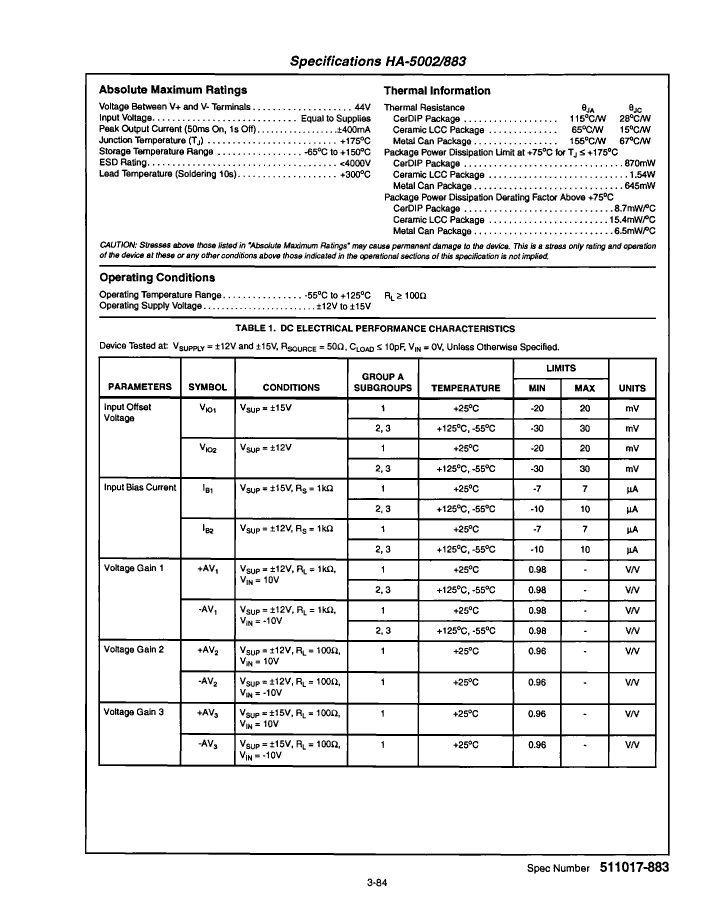

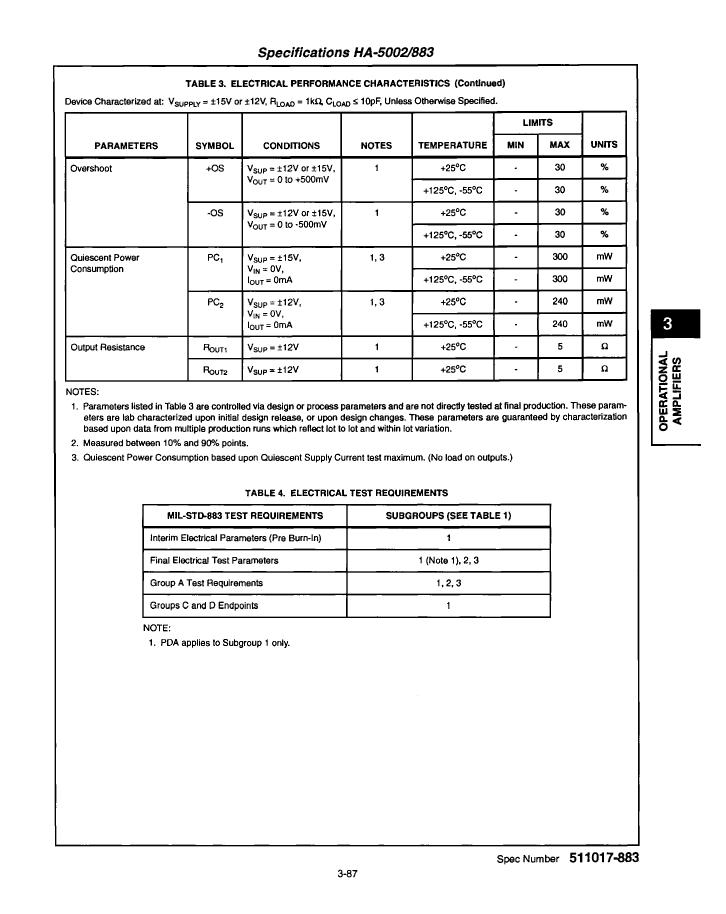

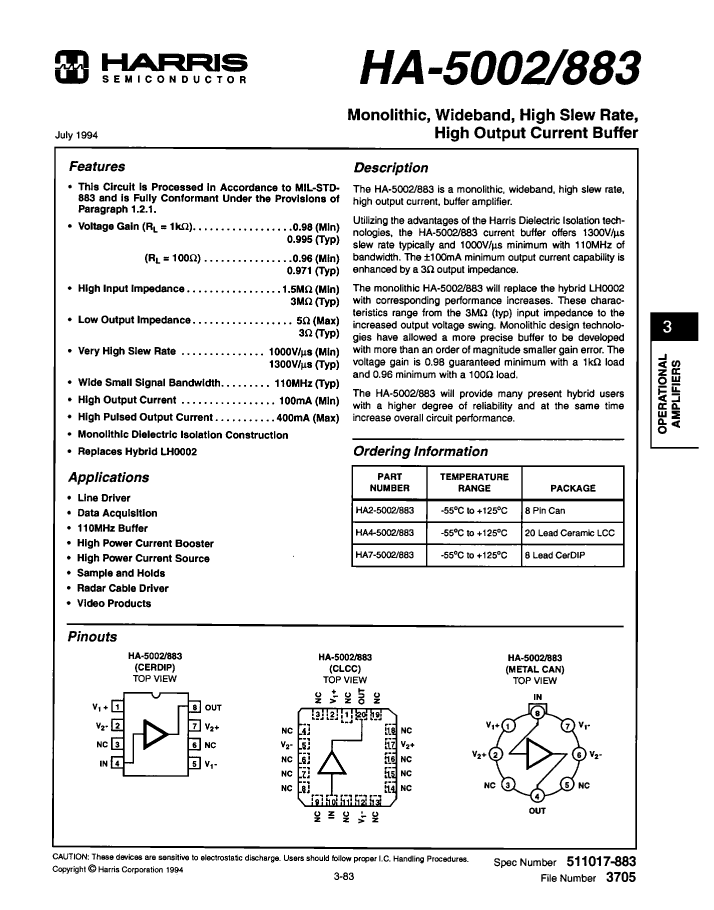

Preview

Download Datasheet

View All

5962-89636012A Related Products

	5962-89636012A	5962-8963601GX	5962-89636012X	5962-8963601GC	5962-8963601PA
Description	Operational Amplifier, 1 Func, BIPolar, CQCC20,	Buffer Amplifier, 1 Func, BIPolar, MBCY8,	Buffer Amplifier, 1 Func, BIPolar, CQCC20, CERAMIC, LCC-20	Buffer Amplifier, 1 Func, BIPolar, MBCY8, METAL CAN-8	Buffer Amplifier, 1 Func, BIPolar, CDIP8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	BUFFER	BUFFER	BUFFER	BUFFER
JESD-30 code	S-CQCC-N20	O-MBCY-W8	S-CQCC-N20	O-MBCY-W8	R-GDIP-T8
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	20	8	20	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, GLASS-SEALED
Package shape	SQUARE	ROUND	SQUARE	ROUND	RECTANGULAR
Package form	CHIP CARRIER	CYLINDRICAL	CHIP CARRIER	CYLINDRICAL	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	WIRE	NO LEAD	WIRE	THROUGH-HOLE
Terminal location	QUAD	BOTTOM	QUAD	BOTTOM	DUAL
Maker	Harris	Harris	Harris	-	Harris
JESD-609 code	e0	-	-	e4	e0
Maximum slew rate	10 mA	-	-	10 mA	10 mA
Terminal surface	TIN LEAD	-	-	GOLD	TIN LEAD
Base Number Matches	1	1	1	1	-
Maximum average bias current (IIB)	-	7 µA	7 µA	7 µA	7 µA
Maximum input offset voltage	-	20000 µV	20000 µV	20000 µV	20000 µV
Minimum output current	-	0.1 A	0.1 A	0.1 A	0.1 A
Nominal slew rate	-	1300 V/us	1300 V/us	1300 V/us	1300 V/us
