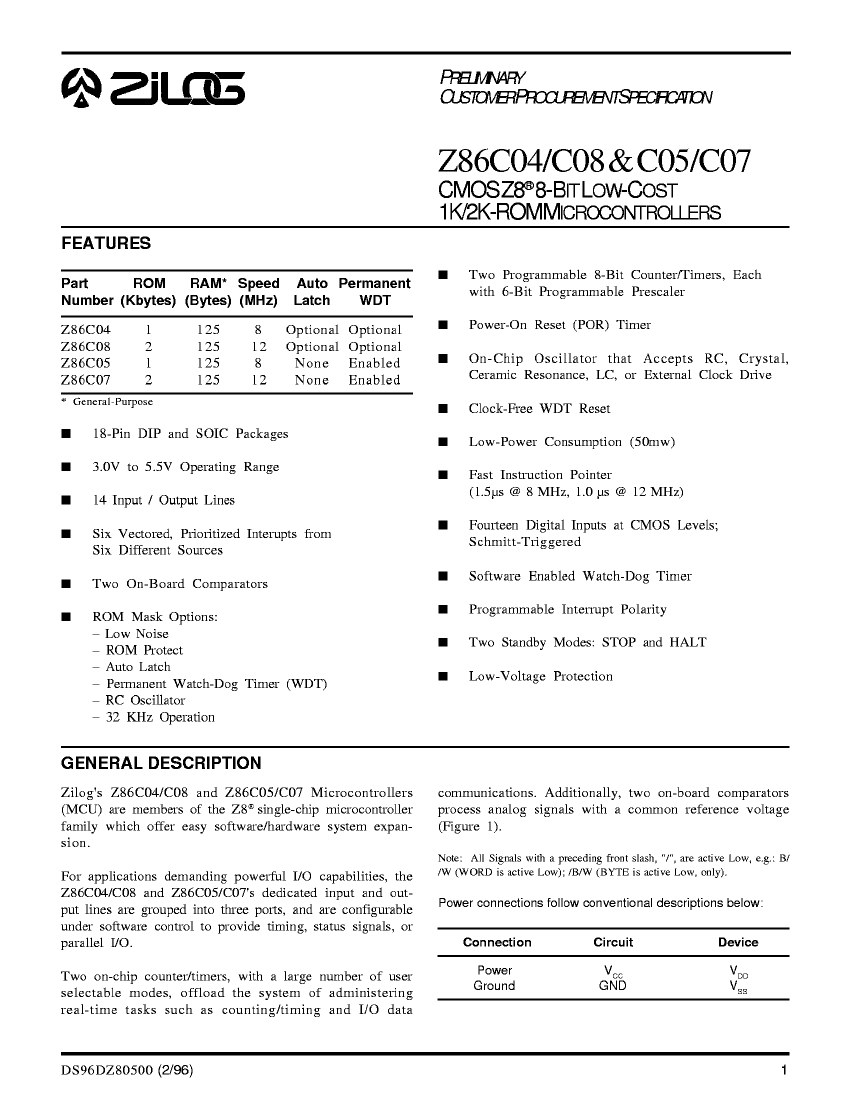

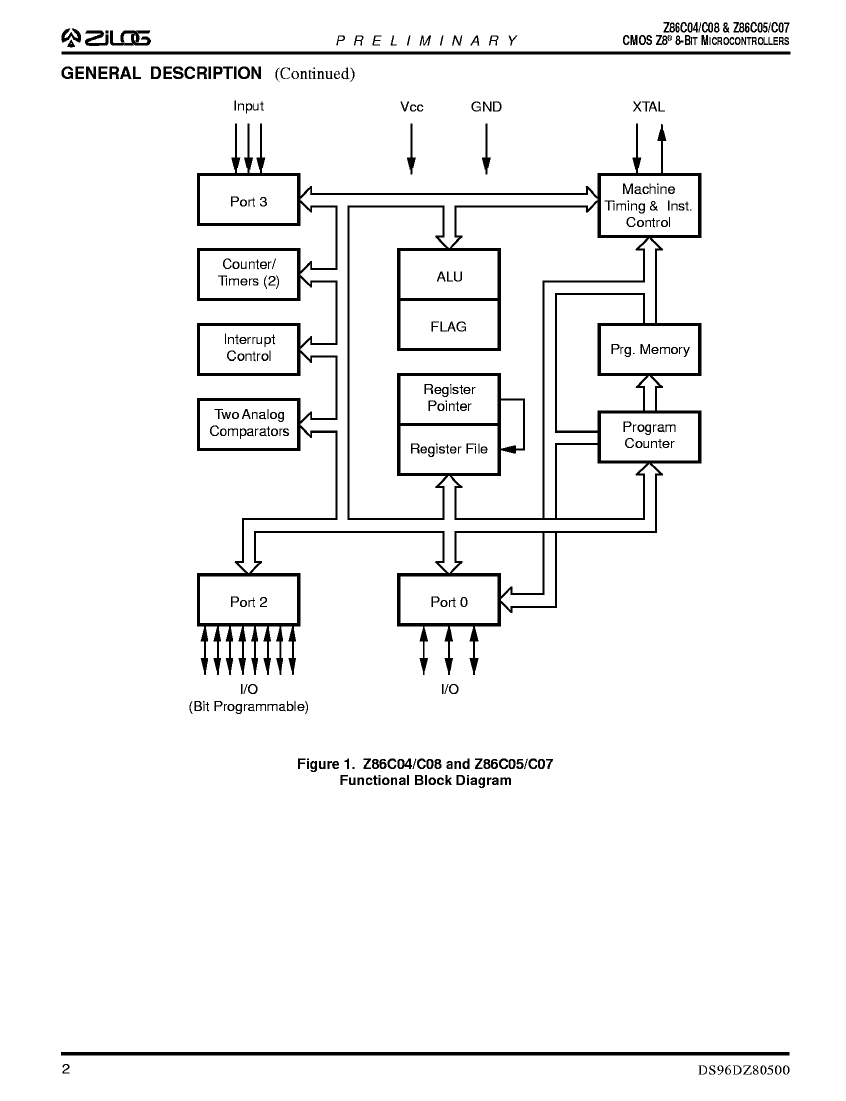

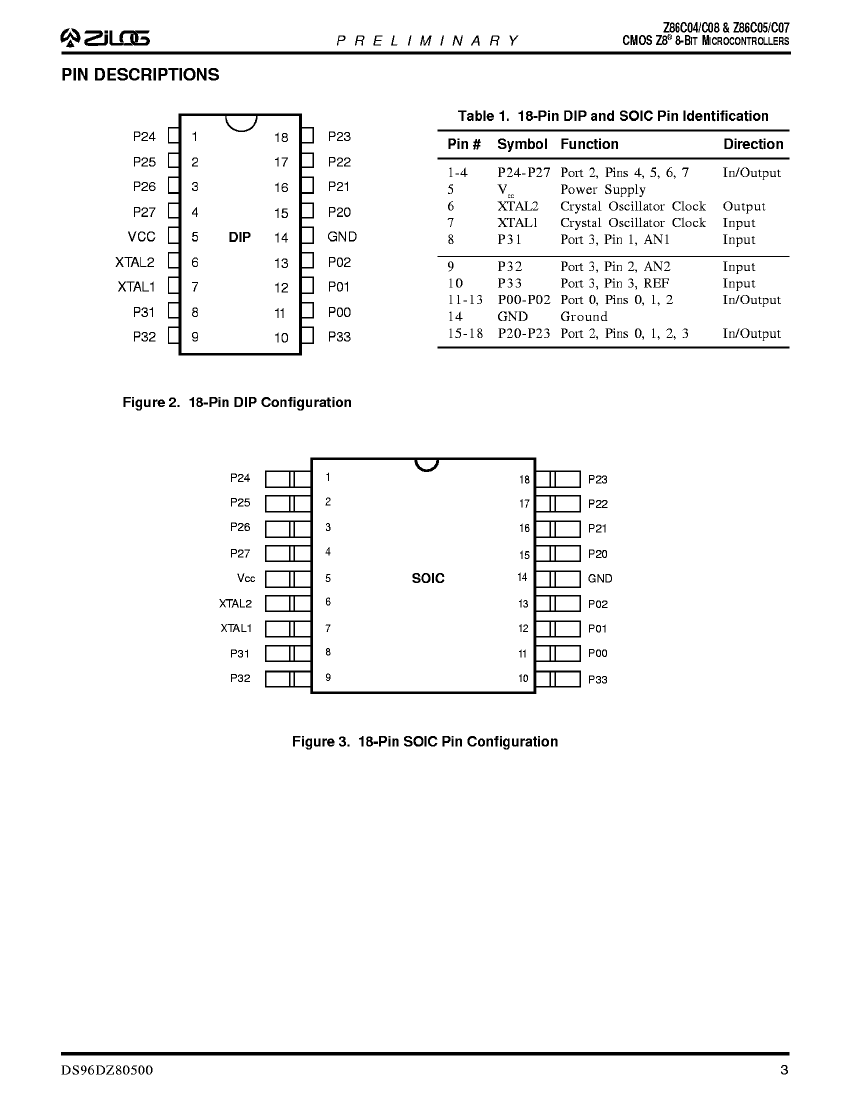

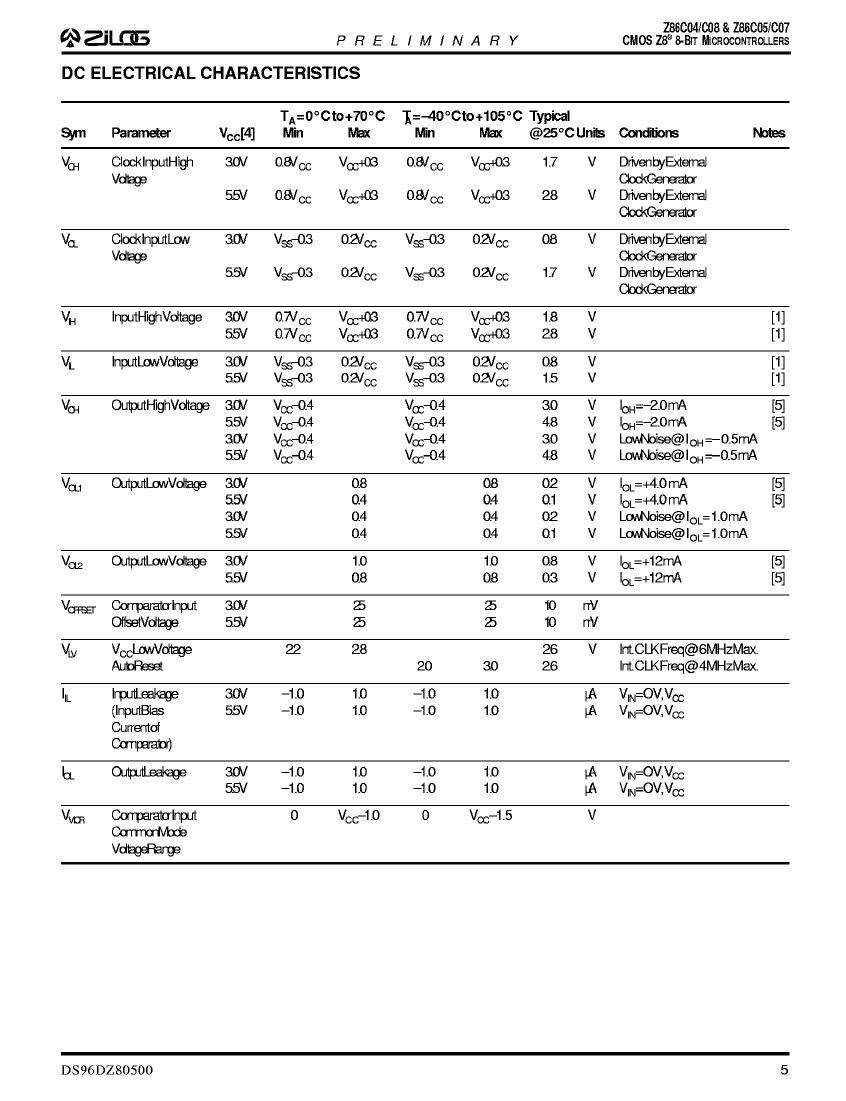

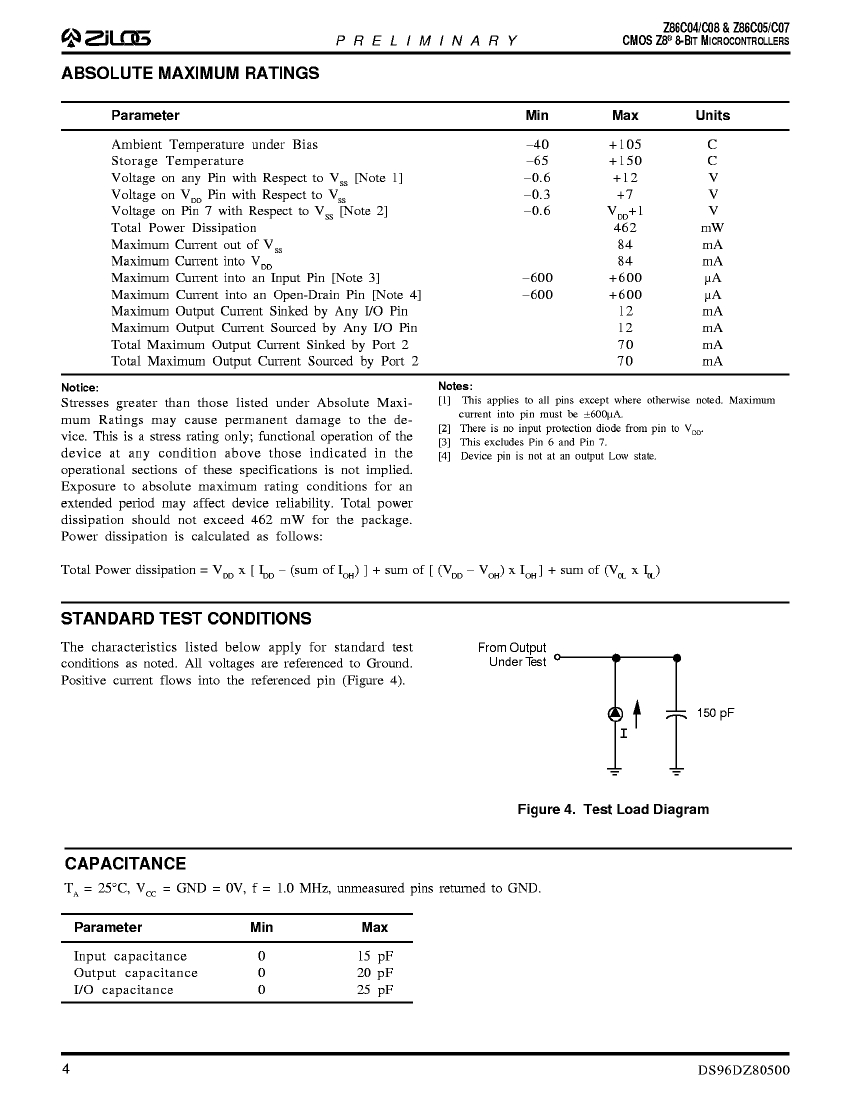

Preview

Z86C0408SSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size211KB，12 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z86C0408SSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18

Z86C0408SSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	SOIC
package instruction	SOIC-18
Contacts	18
Reach Compliance Code	not_compliant
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES
Address bus width
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	11.55 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
RAM (number of words)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	2.65 mm
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

Z86C0408SSC Related Products

	Z86C0408SSC	Z86C0408SSG
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18	Microcontroller, 8-Bit, MROM, 8MHz, CMOS, PDSO18, SOIC-18
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	IXYS	IXYS
Parts packaging code	SOIC	SOIC
package instruction	SOIC-18	SOIC-18
Contacts	18	18
Reach Compliance Code	not_compliant	compliant
Has ADC	NO	NO
Other features	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES
bit size	8	8
boundary scan	NO	NO
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	R-PDSO-G18	R-PDSO-G18
JESD-609 code	e0	e3
length	11.55 mm	11.55 mm
low power mode	YES	YES
Number of external interrupt devices	6	6
Number of I/O lines	14	14
Number of terminals	18	18
Number of timers	2	2
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225	225
Certification status	Not Qualified	Not Qualified
RAM (number of words)	124	124
rom(word)	1024	1024
ROM programmability	MROM	MROM
Maximum seat height	2.65 mm	2.65 mm
speed	8 MHz	8 MHz
Maximum slew rate	11 mA	11 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	7.5 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
