NX5D0AE01A51CA datasheet, PDF - EEWORLD Datasheet

NX5D0AE01A51CA: DescriptionBoard Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size205KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

NX5D0AE01A51CA Overview

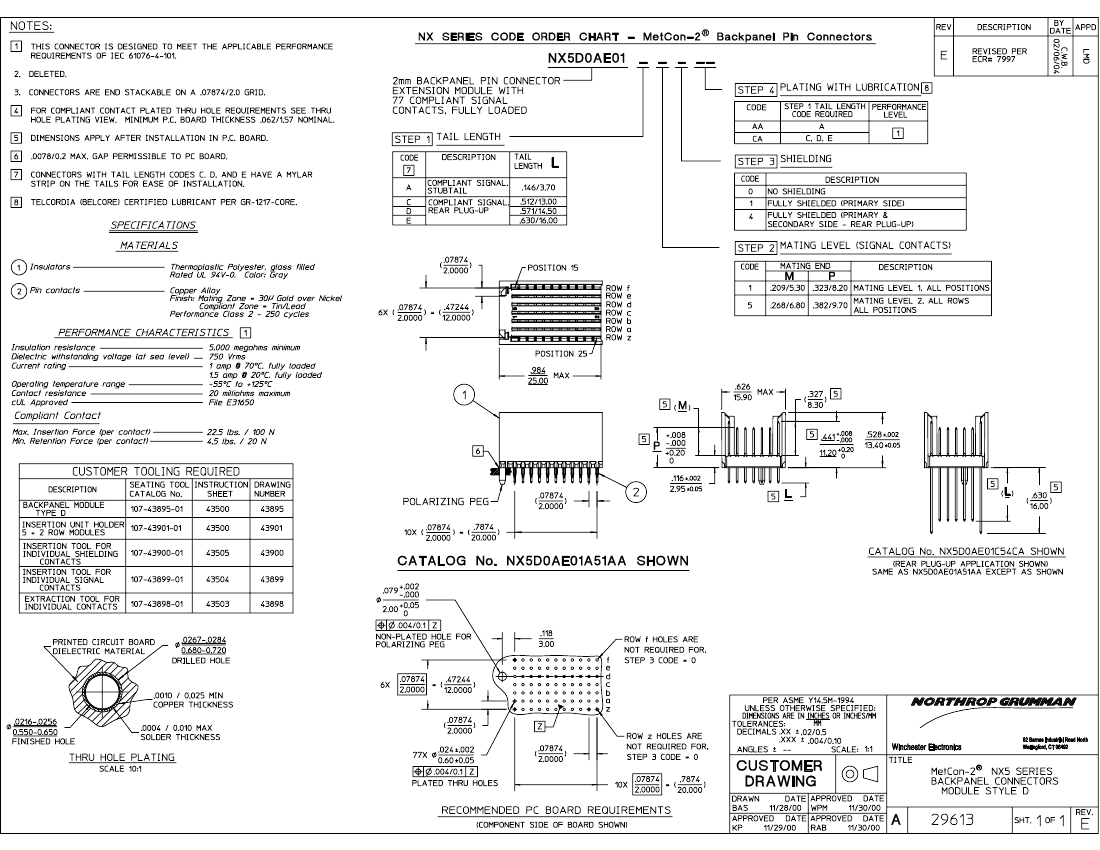

Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal,

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	STANDARD:IEC 61076-4-101, POLARIZED, SHIELDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	YES
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	NX5
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	77
UL Flammability Code	94V-0
Base Number Matches	1
