Kingbright
Features
l
HIGH
®
T-1 (3mm) ROUND LED LAMPS
L-132XH BRIGHT RED
L-132XI HIGH EFFICIENCY RED
L-132XN PURE ORANGE
L-132XG GREEN
L-132XY YELLOW
L-132XPG PURE GREEN
Package Dimensions
INTENSITY.
l
LOW POWER CONSUMPTION.
l
POPULAR T-1 DIAMETER PACKAGE.
l
GENERAL PURPOSE LEADS.
l
RELIABLE AND RUGGED.
l
LONG LIFE - SOLID STATE RELIABILITY.
l
AVAILABLE ON TAPE AND REEL.
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The Green source color devices are made with Gallium Phosphide
Green Light Emitting Diode.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange Light
Emitting Diode.
The Yellow source color devices are made with Gallium Arsenide
Phosphide on Gallium Phosphide Yellow Light Emitting Diode.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±
0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the lead emer-
ge package.
4. Specifications are subjected to change without notice.
Selection Guide
Part No.
L-132XHD
L-132XHT
L-132XID
L-132XIT
L-132XGD
L-132XGT
L-132XGC
L-132XYD
L-132XYT
L-132XYC
L-132XND
L-132XNT
L-132XNC
L-132XPGD
L-132XPGT
L-132XPGC
Dice
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
Lens Type
RED DIFFUSED
RED TRANSPARENT
RED DIFFUSED
RED TRANSPARENT
GREEN DIFFUSED
GREEN TRANSPARENT
WATER CLEAR
YELLOW DIFFUSED
YELLOW TRANSPARENT
WATER CLEAR
ORANGE DIFFUSED
ORANGE TRANSPARENT
WATER CLEAR
GREEN DIFFUSED
GREEN TRANSPARENT
WATER CLEAR
Iv (mcd)
@ 10 mA
Min.
Max.
1.3
5
2
8
8
50
20
125
8
32
20
80
20
80
8
32
10
50
10
50
8
50
20
125
20
125
2
8
3.2
20
3.2
20
Viewing
Angle
2θ1/2
60°
50°
60°
50°
50°
60°
50°
50°
60°
50°
50°
60°
50°
50°
60°
50°
YELLOW (GaAsP/GaP)
PURE ORANGE (GaAsP/GaP)
PURE GREEN (GaP)
Note:
1.
θ
1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2-L132X-1

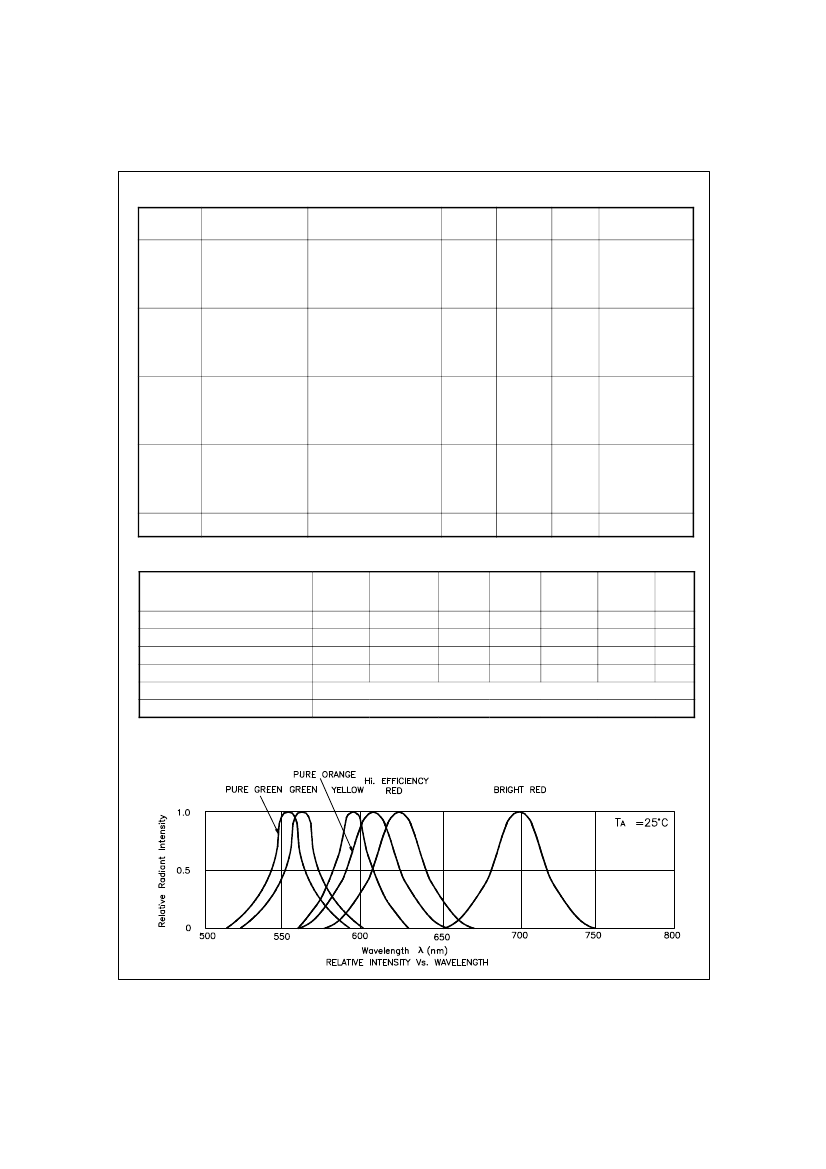

Electrical / Optical Characteristics at T
A
=25
°
C
Symbol
Parameter
Device
Bright Red
High Efficiency Red
Green
Yellow
Pure Orange
Pure Green
Bright Red
High Efficiency Red
Green
Yellow
Pure Orange
Pure Green
Bright Red
High Efficiency Red
Green
Yellow
Pure Orange
Pure Green
Bright Red
High Efficiency Red
Green
Yellow
Pure Orange
Pure Green
All
Typ.
700
625
565
590
610
555
45
45
30
35
35
30
40
12
45
10
15
45
2.0
2.0
2.2
2.1
2.0
2.25
10
Max.
Units
Test Conditions
λ
peak
Peak Wavelength
nm
IF=20mA
∆λ
1/2
Spectral Line
Halfwidth
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
v
F
Forward Voltage
2.5
2.5
2.5
2.5
2.6
2.6
V
IF=20mA
I
R
Reverse Current
uA
VR = 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Soldering Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
Bright
Red
120
25
150
5
High
Efficiency
Red
105
30
150
5
Green
105
25
150
5
Yellow
105
30
150
5
Pure
Orange
105
30
150
5
Pure
Green
105
25
150
5
Units
mW
mA
mA
V
-40
°C
To +85
°C
260
°C
For 5 Seconds
2-L132X-2

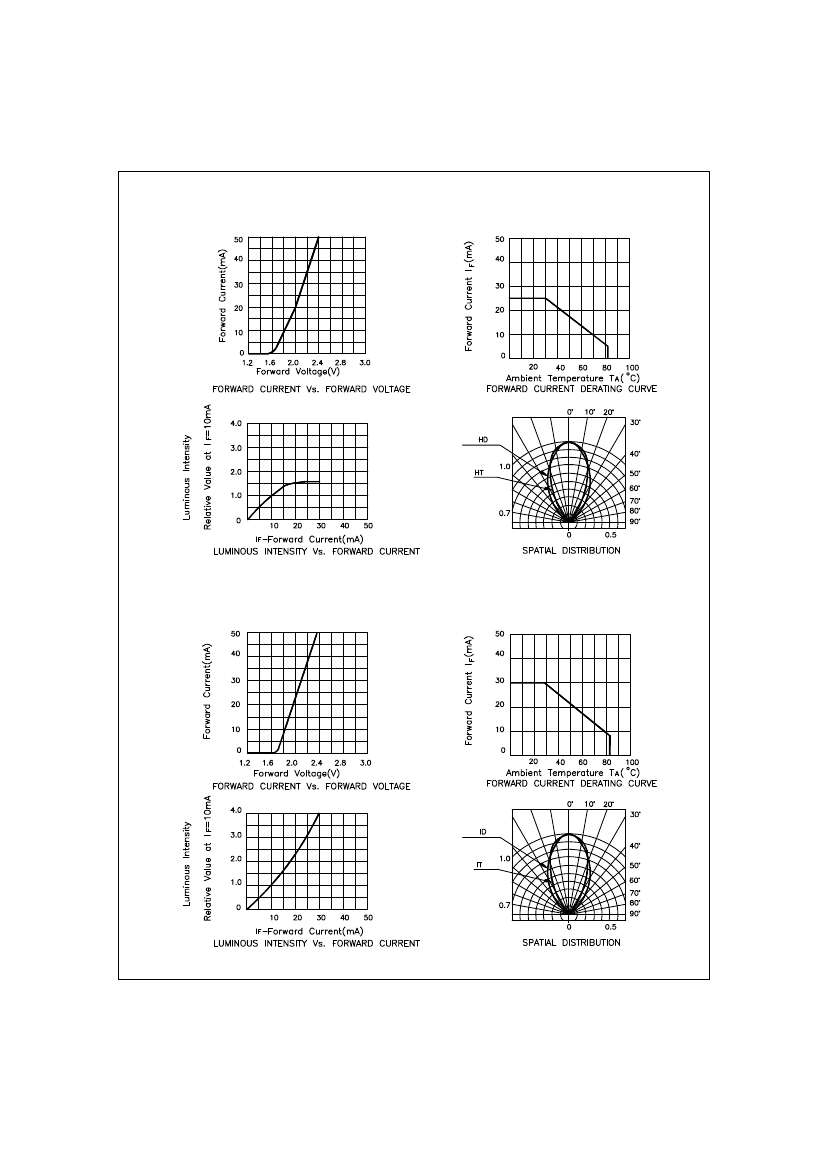

Bright Red L-132XHD, L-132XHT
High Efficiency Red L-132XID, L-132XIT
2-L132X-3

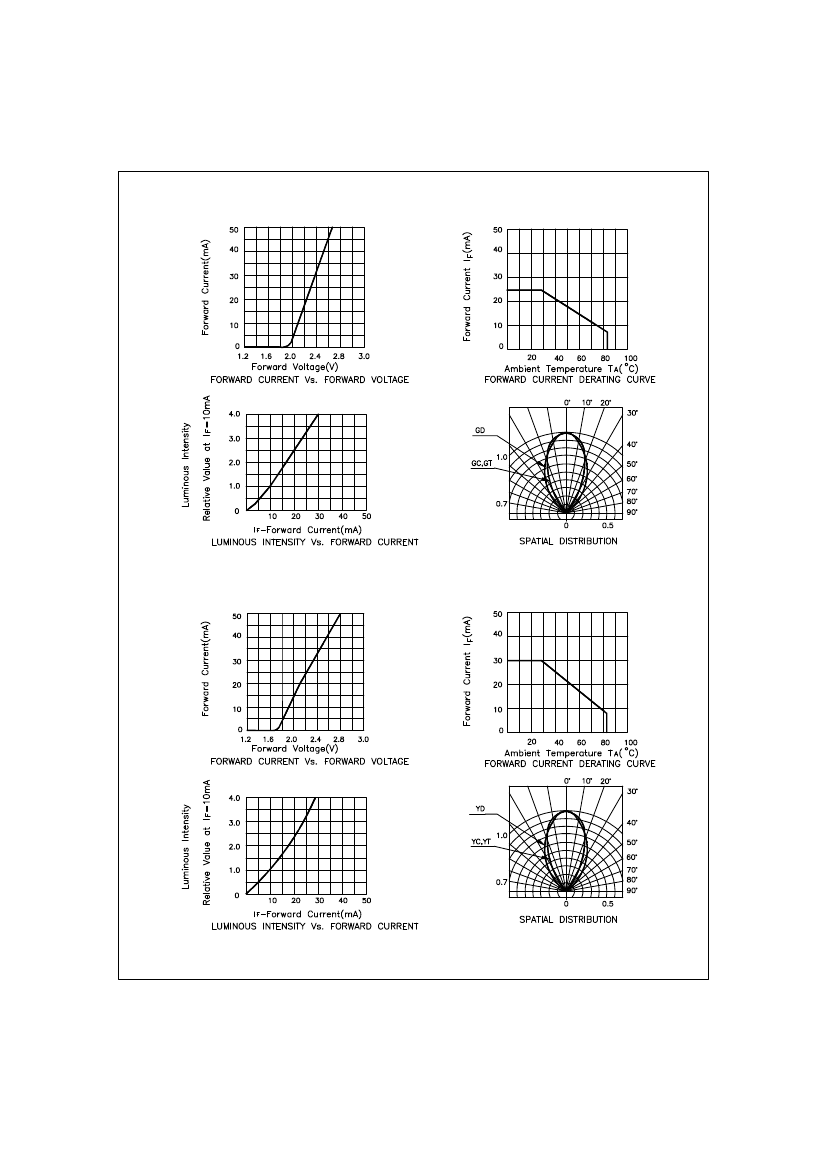

Green L-132XGD, L-132XGT, L-132XGC
Yellow L-132XYD, L-132XYT, L-132XYC
2-L132X-4

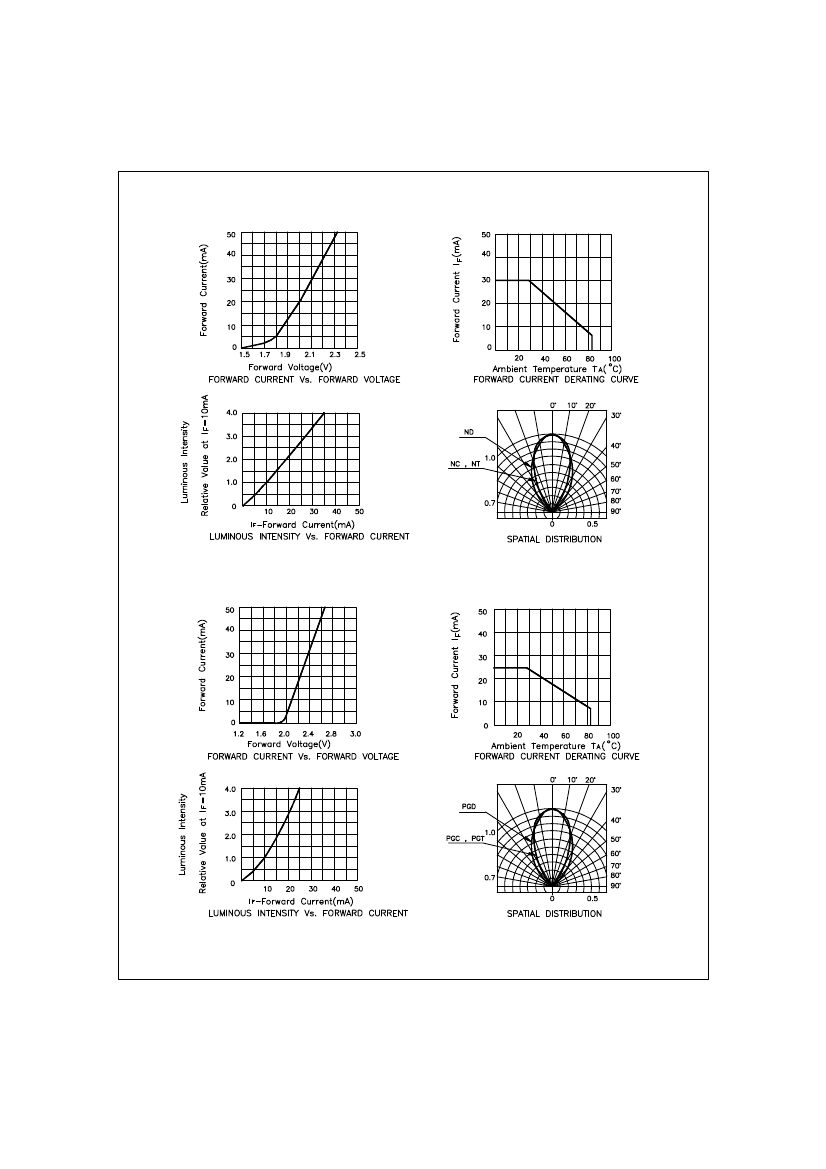

Pure Orange L-132XND, L-132XNT, L-132XNC
Pure Green L-132XPGD, L-132XPGT, L-132XPGC
2-L132X-5
