SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 5000, Rev. B
SMCT6M40-10
SMCT6M40-25
TORQUE CONTROLLER
BRUSHLESS DC MOTOR DRIVER MODULE
100V/40A, 250V/40A
FEATURES:
• True Four Quadrant Complementary Switching.
• Fully integrated 3-Phase Brushless DC Motor Control Subsystem includes power stage, non-isolated driver stage,
and controller stage
• MOSFET Output Stage, with low Rdson.
• 40A peak Phase Current with 10V to160V Maximum Bus Voltage
• Internal Precision Current Sense Resistor
• Cycle by cycle current limiting.
• Fixed frequency PWM.
• Closed-loop SERVO Control of Motor, Current Loop Closed Internally
• Direction and motor current are controlled through command polarity and value.
• Tacho output with frequency proportional to speed
• Enable/Disable input
• Direction Output
• Adjustable Current Limit
• On board –11.7V supply
• On board +5V supply
• Hermetic or non-hermetic packaging available (3.10" x 2.10" x 0.385")
APPLICATIONS:
Servo positioning systems
Actuation systems
Hoists
DESCRIPTION:
SMCT6MXX-XX is a completely self-contained 4-quadrant motor controller that converts an analog input
command signal into a motor current. The motor current is internally sensed, processed, and used as an output for
the closed current loop feedback control. Error amplified input and output are available for closed loop
compensation. Proportional or proportion/integral (PI) compensation can be implemented to optimize motor and
system performance. SMCT6MXX-XX is best used as a four-quadrant torque controller for controlling servo systems.
The SMCT6MXX-XX is a fully integrated three-phase brushless DC motor control module housed in a 43 Pin
power flatpack. Many integral control features provide user flexibility in adapting the SMCT6MXX-XX to specific
system requirements. Current control or closed loop speed control can be easily implemented.
The small size of this complete motor control module makes it ideal for commercial aerospace and military
applications.
•
221 West Industry Court Deer Park, NY 11729 (631) 586 7600, FAX 631 242 9798
•
•
World Wide Web - www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
Page 1
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 5000, Rev. B
SMCT6M40-10
SMCT6M40-25
COMMUTATION TRUTH TABLE
This table shows the Phase Output state versus the state of the Hall-Effect and Command Polarity Inputs. The commutation
o
coding shown reflects Hall-Effect sensors that are spaced at 120 mechanical increments. Also, internal protection logic disables
all three Phase Outputs when the Hall-Effect Inputs are set to an illegal condition (i.e., all logic low or all logic high).
Hall Sensors
HA
1
1
1
0
0
0
0
1
HB
0
0
1
1
1
0
0
1
HC
1
0
0
0
1
1
0
1
Command Polarity =Positive
Forward Rotation
PHASE OUTPUTS
PhA
Source
Source
Hi-Z
Sink
Sink
Hi-Z
Hi-Z
Hi-Z
PhB
Sink
Hi-Z
Source
Source
Hi-Z
Sink
Hi-Z
Hi-Z
PhC
Hi-Z
Sink
Sink
Hi-Z
Source
Source
Hi-Z
Hi-Z
Command Polarity =Negative
Reverse Rotation
PHASE OUTPUTS
PhA
Sink
Sink
Hi-Z
Source
Source
Hi-Z
Hi-Z
Hi-Z
PhB
Source
Hi-Z
Sink
Sink
Hi-Z
Source
Hi-Z
Hi-Z
PhC
Hi-Z
Source
Source
Hi-Z
Sink
Sink
Hi-Z
Hi-Z
ABSOLUTE MAXIMUM RATINGS
(T
C
=25
o
C) unless otherwise noted
Characteristic
Maximum Peak DC Bus Supply Voltage
SMCT6M40-10,
SMCT6M40-25
Maximum Operating DC Bus Supply Voltage
SMCT6M40-10
SMCT6M40-25
RMS Output Current
Peak Output Current
+15V Supply Voltage
-11.7V Output Load Current
+5V Output Load Current
Logic Input Voltage
Error Amplifier Input (EA1-)
Error Amplifier Output Current
Spare Amplifier Input Voltage (EA2+/EA2-)
Spare Amplifier Output Current
Operating & Storage Junction Temperature
Power Devices Thermal Resistance R
thjC
for SMCT6M40-XX
for SMCT6M40-10, T
C
=90
o
C
for SMCT6M40-25, T
C
=90
o
C
for SMCT6M40-10, T
C
=90
o
C
for SMCT6M40-25, T
C
=90
o
C
Maximum
100 V
250 V
60 V
150 V
40 A
30A
50 A
40A
+15.5 V
30mA
30mA
-0.3 V to +5.5 V
+/- 10 V
±8 mA
+/- 10 V
±8 mA
-55
o
C to +150
o
C
0.60
o
C/W
•
221 West Industry Court Deer Park, NY 11729 (631) 586 7600, FAX 631 242 9798
•
•
World Wide Web - www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
Page 2
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 5000, Rev. B
SMCT6M40-10
SMCT6M40-25
ABSOLUTE MAXIMUM RATINGS (continued)
(T
C
=25
o
C) unless otherwise noted
Characteristic
Pin-to-Case Voltage Isolation
for SMCT6MXX-XX
for SMCT6MXX-XX-1
Lead Soldering Temperature, 10 seconds maximum, 0.125” from case
600V DC
1000V DC
300°C
Maximum
RECOMMENDED OPERATING CONDITIONS
(T
C
=25
o
C) unless otherwise noted
Characteristic
Operating Supply Voltage
SMCT6M40-10
SMCT6M40-25
RMS Output Current
for SMCT6M40-10, T
C
=80
o
C
for SMCT6M40-25, T
C
=80
o
C
Maximum
50 V
130 V
40 A
30A
+ 14 V +/-10%
+15V Supply Voltage
PARAMETER SYMBOL CONDITIONS
(1)
Power Output Section
Drain-Source Leakage Current
IDss at 0.8VDss
Diode Forward Voltage
V
F
at I
F
= 40 A
Diode Reverse Recovery Time trr I
F
= 40A, di/dt = -100A/usec
Drain-to-Source On-Resistance Rds(on)
Per switch
,
Control Section
Input Supply Current
Icc at +14V supply without any external load on –11.7V or +5V
outputs
Error Amplifier EA1
Output Offset Voltage
Amplifier Output Voltage Range
I
D
=20A
(2)
SMCT6M40-10-1
SMCT6M40-25-1
MIN.
TYP.
MAX.
UNITS
250
1.0
300
5
60
uA
V
nSec
mΏ
80
mA
-20
-11
-
-
20
11.5
mV
V
•
221 West Industry Court Deer Park, NY 11729 (631) 586 7600, FAX 631 242 9798
•
•
World Wide Web - www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
Page 3
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 5000, Rev. B
SMCT6M40-10
SMCT6M40-25
RECOMMENDED OPERATING CONDITIONS (continued)
(T
C
=25
o
C) unless otherwise noted
PARAMETER SYMBOL CONDITIONS
(1)
Spare Amplifier Sections EA2
Output Offset Voltage, VCM=0V
Amplifier Input Common-mode Voltage Range
Current-Sense Amplifier Section
Amplifier Voltage Gain
Logic Input Section
HA, HB, HC, and EN
High Level Input Voltage Threshold
Low Level Input Voltage Threshold
Tachometer
Tachometer Output High Level Voh
Tachometer Output Low Level Vol
Tachometer Frequency Ratio To Hall Input Frequency
Oscillator Section
Oscillator Frequency f
S
18
20.0
22.0
kHz
4.5
-
3
4.8
-
3
5.2
200
3
V
mV
-
0.23
0.25
0.27
V/A
-20
-10
-
-
20
10
mV
V
MIN.
TYP.
MAX.
UNITS
2.0
-
-
-
-
1.0
V
V
NOTES:
1. All parameters specified for Ta = 25
o
C, Vcc = +15Vdc, and all Phase Outputs unloaded. All negative currents
shown are sourced by (flow from) the Pin under test.
2. Pulse Test: Pulse Width < 300 µSec, Duty Cycle < 2%.
•
221 West Industry Court Deer Park, NY 11729 (631) 586 7600, FAX 631 242 9798
•
•
World Wide Web - www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
Page 4
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 5000, Rev. B
SMCT6M40-10
SMCT6M40-25
1
43

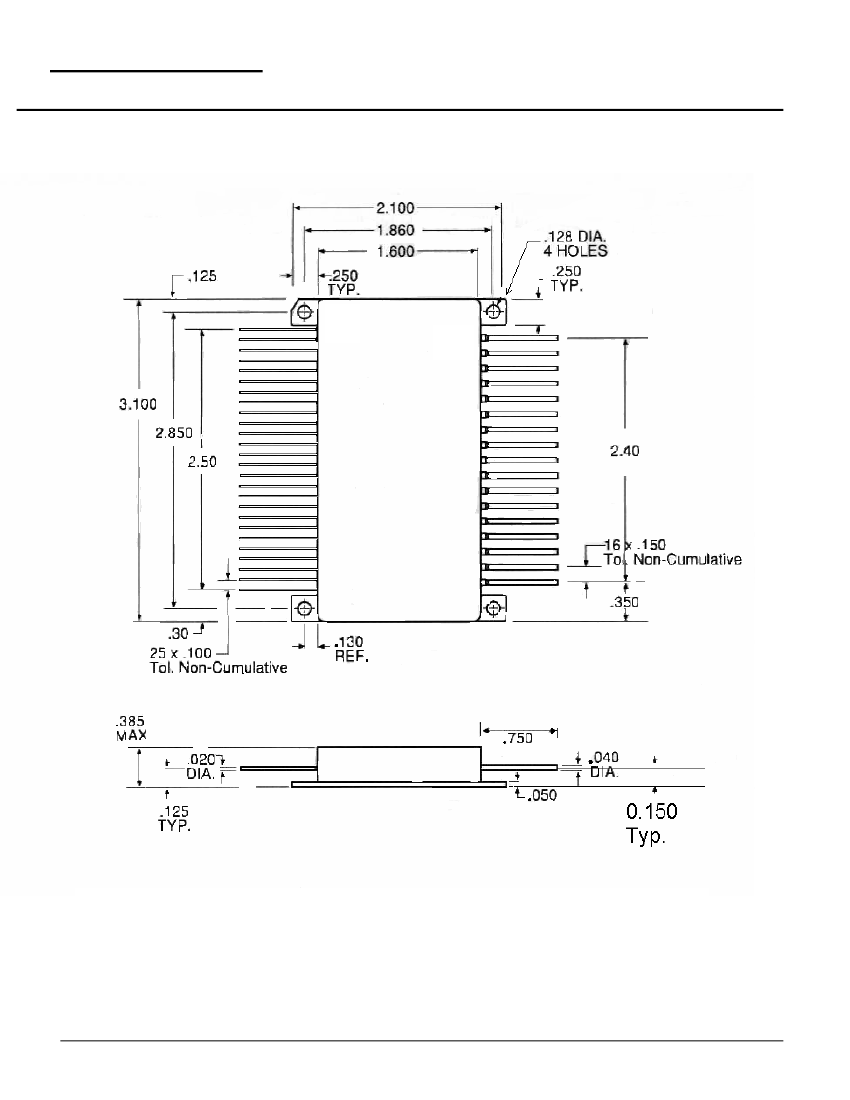

Fig. 2: Mechanical Outline For Hermetic Package, SMCT6MXX-XX
•
221 West Industry Court Deer Park, NY 11729 (631) 586 7600, FAX 631 242 9798
•
•
World Wide Web - www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
Page 5
