REFLECTIVE LIMITERS
REFLECTIVE LIMITERS - MH300 & KA7 SERIES
Features
•
Broadband frequency range
Operating characteristics
•
•
•
•
Peak power: Rating is defined at 1 µs pulse width/duty cycle: 10
-3
and 25° C
Spike leakage: 0.2 ERGS (typical)
Operating temperature: - 55° C to + 125° C
Maximum flat leakage is tested at 1 µs pulse width/duty cycle: 10
-3
and 25° C with external DC return
of less than 1
Ω
•
High power, low loss

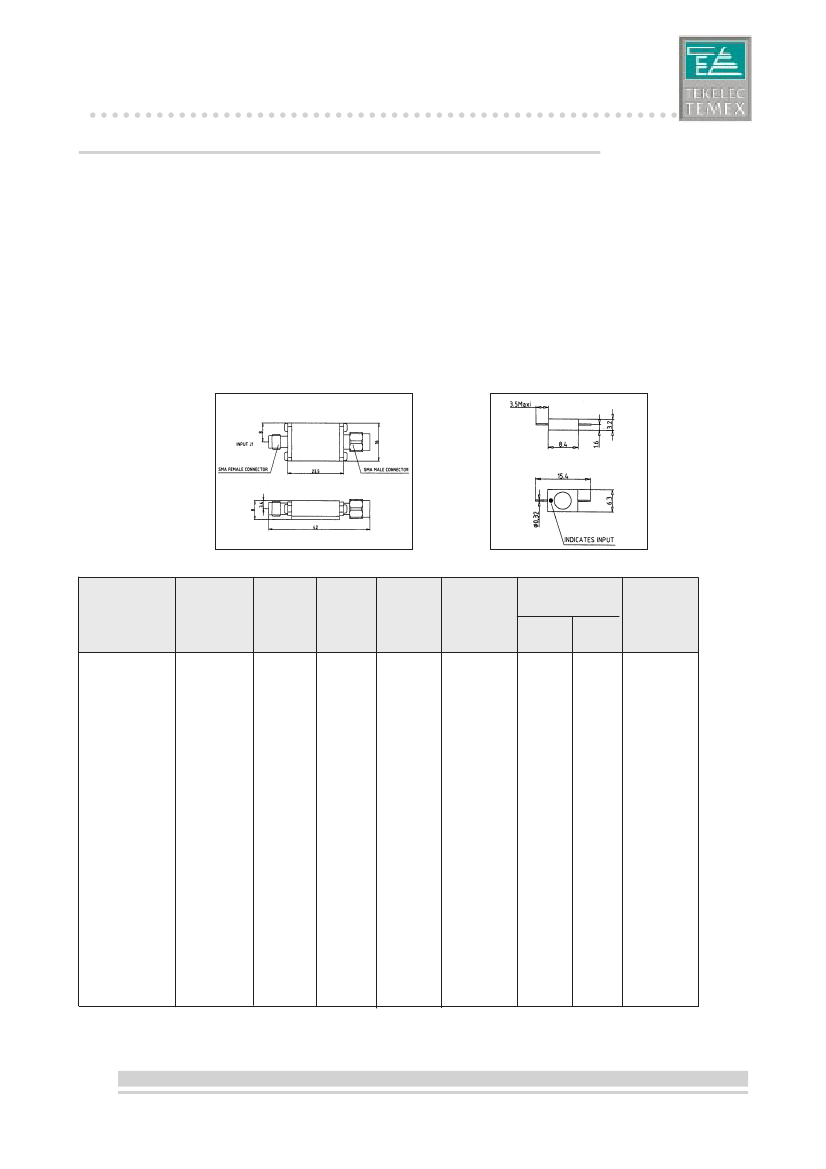

Case drawings
BMH2
Electrical characteristics
1 dB
Frequency
Model
comp.
range
N°
point
(GHz)
(dBM)
MH305
KA7120
KA7130
MH306
KA7220
KA7230
MH303
KA7620
KA7630
MH307
KA7320
KA7330
MH308
KA7420
KA7430
MH310
KA7720
KA7730
MH309
KA7520
KA7530
•
Leakage power:
Insertion
loss
(dB)
max.
Peak
power
(W)
max.
Leakage power
(mW)
CW max. Peak
(1)
max.(2)
BMH16
CW
power
max. (W)
Package
0.5-2
7
2
0.6
200
80
150
BMH2
0.5-2
10
1
0.7
100
50
55
BMH2
0.5-2
10
3
0.7
1000
100
200
BMH2
2-4
7
2
0.8
200
80
150
BMH2
2-4
10
1
1
100
50
55
BMH2
2-4
10
3
1.1
1000
100
200
BMH2
2-12
7
2
1.7
200
80
150
BMH2
2-12
10
1
1.7
100
50
55
BMH2
2-12
10
3
2
1000
100
200
BMH2
4-8
7
2
1.4
200
80
150
BMH2
4-8
10
1
1.4
100
50
55
BMH2
4-8
10
3
1.6
1000
100
200
BMH2
8-12
7
2
1.7
200
80
150
BMH2
8-12
10
1
1.7
100
50
55
BMH2
8-12
10
3
2
1000
100
200
BMH2
8-18
7
2
2.5
200
80
150
BMH2
8-18
10
1
2.5
100
50
55
BMH2
8-18
10
3
2.6
1000
100
200
BMH2
12-18
7
2
2.5
200
80
150
BMH2
12-18
10
1
2.5
100
50
55
BMH2
12-18
10
3
2.6
1000
100
200
BMH2
1. Measured with 1 W CW input power
2. Measured with 100 W, 1 µs pulse for MH300 and KA7*20 series
. Measured with 1 KW, 1 µs pulse for KA7*30 series
WEB SITE: http://www.tekelec-temex.com
/
ASIA PACIFIC: +852 2813 9826
GERMANY: +49 (0) 89 51 64-0
ITALY: +39 (0) 2 58 01 91 06
/
EUROPE: +33 (0) 1 49 88 49 00
/
AFRICA: +33 (0) 1 49 88 49 00
NL: +31 (0) 79 3461430
UK: +44 (0) 1256 883340
SALES OFFICES
3-48
AMERICA: +1 (602) 780 1995
BELGIUM: +32 (0) 2 715 90 20
FRANCE: +33 (0) 1 49 88 49 00
NORDIC: +46 (0) 8 590 303 00
SPAIN: +34 (0) 1 320 41 60
REFLECTIVE LIMITERS
Model
N°
MH341A
MH381A
MH383A
MH341B
MH381B
MH383B
MH341J
MH381J
MH383J
MH341F
MH381F
MH383F
MH341H
MH381H
MH383H
MH341C
MH381C
MH383C
MH341D
MH381D
MH383D
MH341G
MH381G
MH383G
MH341E
MH381E
MH383E
Frequency
range
(GHz)
0.5-2
0.5-2
0.5-2
2-4
2-4
2-4
2-8
2-8
2-8
2-12
2-12
2-12
2-18
2-18
2-18
4-8
4-8
4-8
8-12
8-12
8-12
8-18
8-18
8-18
12-18
12-18
12-18
1 dB
comp.
point
(dBM)
7
10
10
7
10
10
7
10
10
7
10
10
7
10
10
7
10
10
7
10
10
7
10
10
7
10
10
CW
power
max. (W)
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
2
1
3
Insertion
loss
(dB)
max.
0.5
0.6
0.6
0.8
1
1
1.25
1.25
1.5
1.6
1.6
2
2.4
2.4
2.5
1.25
1.25
1.5
1.6
1.6
2
2.4
2.4
2.5
2.4
2.4
2.5
Peak
power
(W)
max.
200
100
1000
200
100
1000
200
100
1000
200
100
1000
200
100
1000
200
100
1000
200
100
1000
200
100
1000
200
100
1000
Leakage power
(mW)
VSWR
CW max. Peak
max.
(1)
max.(2)
1.5
80
150
1.5
50
55
1.5
100
200
1.6
80
150
1.6
50
55
2
100
200
1.7
80
150
1.8
50
55
2
100
200
1.9
80
150
2
50
55
2
100
200
2
80
150
2
50
55
2.2
100
200
1.7
80
150
1.8
50
55
2
100
200
1.9
80
150
2
50
55
2
100
200
2
80
150
2
50
55
2.2
100
200
2
80
150
2
50
55
2.2
100
200
Package
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
BMH16
• Leakage power:
1. Measured with 1 W CW input power
2. Measured with 100 W, 1 µs pulse for MH341 and MH381 series
. Measured with 1 KW, 1 µs pulse for MH383 series
SALES OFFICES
AMERICA: +1 (602) 780 1995
BELGIUM: +32 (0) 2 7159020
FRANCE: +33 (0) 1 49884900
/
WEB SITE: http://www.tekelec-temex.com
3-49
ASIA PACIFIC: +852 2813 9826
GERMANY: +49 (0)895164-0
ITALY: +39 (0) 2 58 01 91 06
/
EUROPE: +33 (0) 1 49884900
/
AFRICA: +33 (0) 1 49884900
NL: +31 (0) 793461430
UK: +44 (0) 1256 883340
NORDIC: +46 (0) 8 590 303 00
SPAIN: +34 (0) 1 3204160
