WML-C11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> WML-C11

WML-C11: DescriptionTelecom Circuit, 1-Func, 18.80 X 13.20 MM, 2.05 MM HEIGHT, SMT-27; CategoryWireless rf/communication Telecom circuit; File Size54KB，2 Pages; ManufacturerMitsumi Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

WML-C11 Overview

Telecom Circuit, 1-Func, 18.80 X 13.20 MM, 2.05 MM HEIGHT, SMT-27

WML-C11 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mitsumi Electric Co., Ltd.
package instruction	,
Contacts	27
Reach Compliance Code	unknown
JESD-30 code	R-XTMA-N27
Number of functions	1
Number of terminals	27
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Nominal supply voltage	3.3 V
surface mount	NO
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	TRIPLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

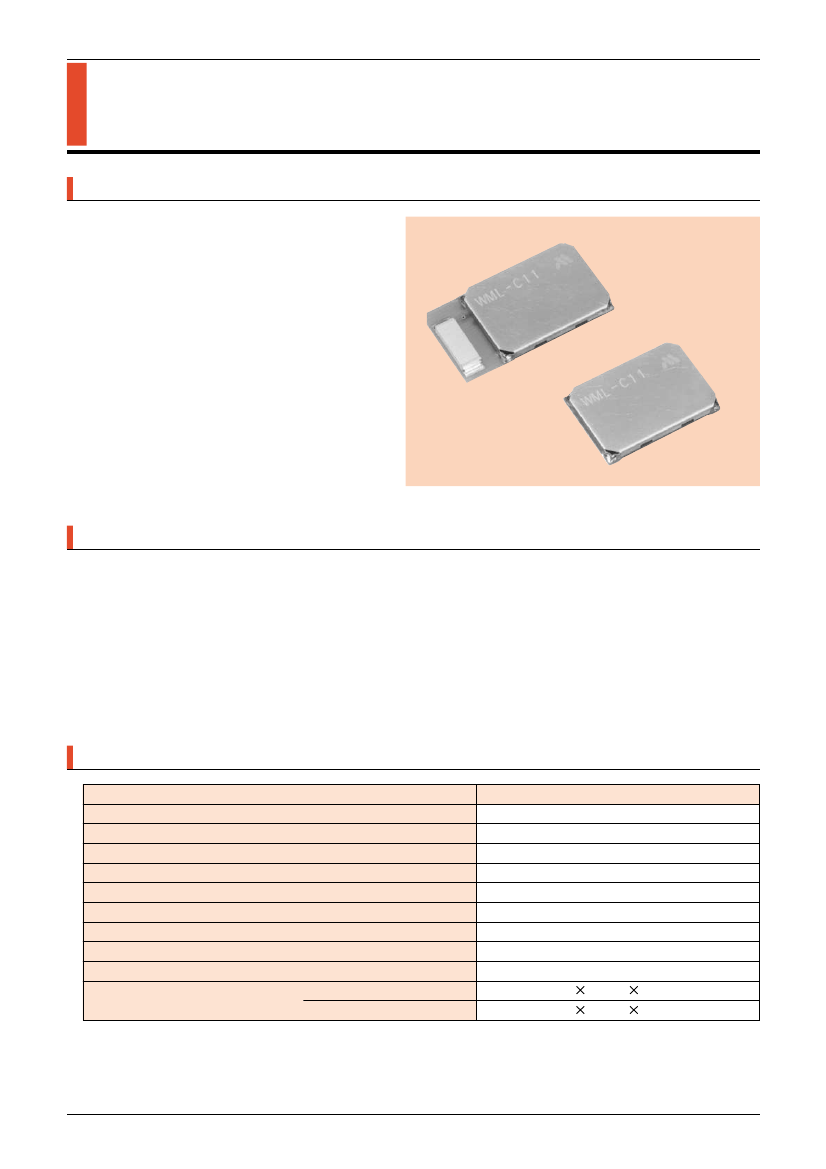

MITSUMI

Bluetooth

Module

WML-C11

Class 2

Telecommunication component

OUTLINE

Wireless communication module conforming to

Bluetooth

Ver. 1.1.

Notebook PCs, PC Peripherals, PDA, Access

point.

The "Bluetooth" trademarks are owned by

Telefonaktiebolaget LM Ericsson, Sweden.

FEATURES

1. Reducing the size and thickness greatly due to the high-density surface mounting technology.

2. Long-distance communication due to its high sensitivity.

3. UART,USB and PCM interfaces available to various applications.

4. Conforms to FCC,CE and the EMI standard of each country.

5. Conforming to BluetoothTM Class1.

6. Operating temperature range : – 40~+70˚C.

7. Two types of models : With/without an antenna are provided.

SPECIFICATIONS

Item

Frequency

Modulation

Channel intervals

Number of channels

Power suppIy voltage

Current consumption

Transmission rate

Receive sensitivity

Output level(Class1)

Without an antenna

Dimensions

With an antenna

Specifications

2402 ~ 2480MHz

FHSS/GFSK

1MHz

79CH

3.3V(3.2V~3.4V)

200mA max.

721kbps

-80dBm typ.

20dBm max.

13.2(W) 18.8(L) 2.05(H)mm

13.2(W) 24.8(L) 2.05(H)mm
