NFT3-BK Overview

55 A, BARRIER STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK

NFT3-BK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL 94V-2
Fastening method	SCREW
Installation type	C RAIL
Number of layers	1
Rows	2
Number of channels	6
Rated current	55 A
Rated voltage	600 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	8 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

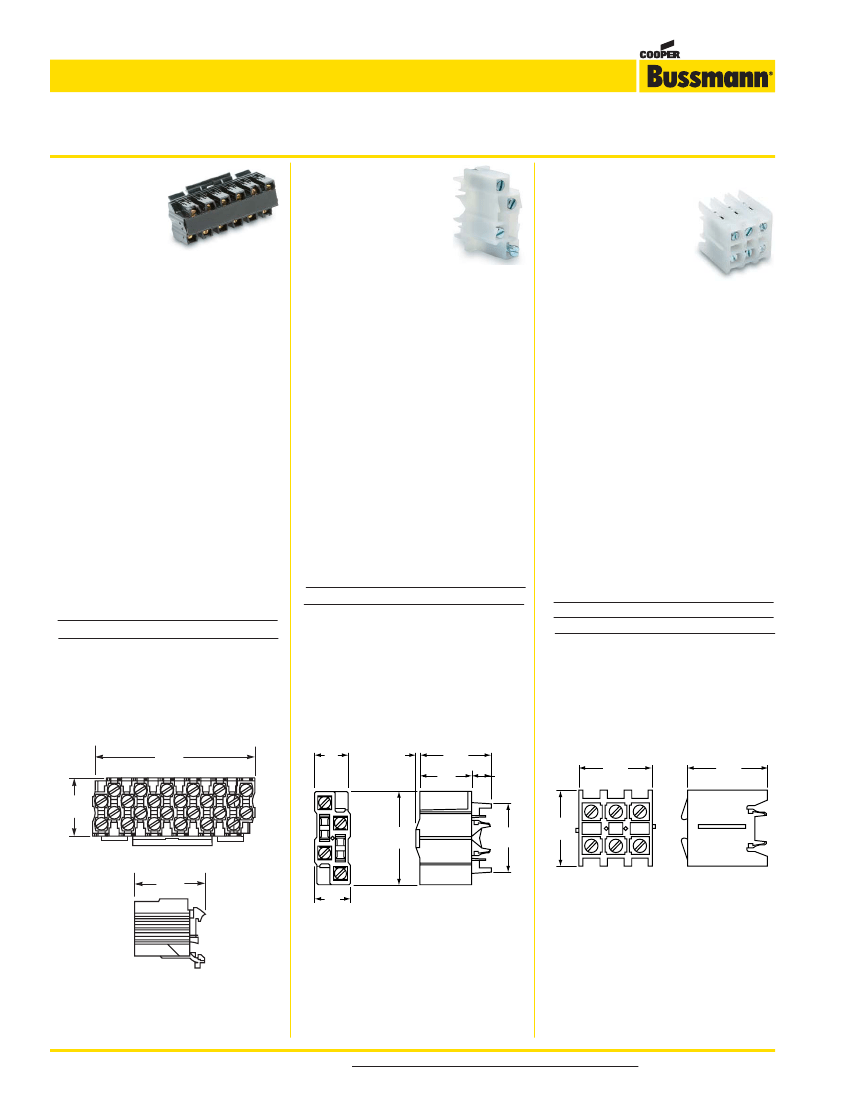

Wire Connection Products

Rail mount terminal blocks

N512-BK

Specifications

Description:

Rail

mount terminal

block.

Center Spacing:

0.197" (5.00).

Circuit Jumper:

JN512, 12 circuits.

Screw Size:

#4-48.

Poles:

12

Circuits Per Foot:

60

Wire Range:

AWG #12-22 CU.

Ratings:

Volts: — 300V (20A)

— 600V (5A)

Amps: — 20A (300V)

— 5A (600V)

Agency Information:

CE, UL

E62622; CSA LR15364.

Flammability Rating:

UL 94V2

Marking Tape:

AT512.

Torque Rating:

12 in-lb max.

Mounting Options:

C-rail, 15mm DIN

rail.

Catalog Numbers

Catalog

Number

N512-BK

Color

Black

NFT2-WH

Specifications

Description:

Rail mount

terminal block.

Center Spacing:

0.281" (7.13).

Circuit Jumper:

JN2, 2 circuits.

Screw Size:

#8-32.

Poles:

2

Circuits Per Foot:

38

Wire Range:

AWG #8-22 CU.

Ratings:

Volts: — 600V

Amps: — 40A

— 55A (factory wired)

Agency Information:

CE, UL

E62622; CSA LR15364.

Flammability Rating:

UL 94V2.

Marking Tape:

MT12-

1

⁄

2.

Torque Rating:

18 in-lb max.

Mounting Options:

C-rail.

Catalog Numbers

Catalog

Numbers

NFT2-WH

Colors

White

NFT3-__ __(color)

Specifications

Description:

Rail

mount terminal block.

Center Spacing:

0.390" (9.91).

Circuit Jumper:

JN3,

2 circuits.

Screw Size:

#8-32.

Poles:

3

Circuits Per Foot:

28

Wire Range:

AWG #8-22 CU.

Ratings:

Volts: — 600V

Amps: — 40A

— 55A (factory wired)

Agency Information:

CE, UL

E62622; CSA LR15364.

Flammability Rating:

UL 94V2.

Marking Tape:

MT12-

1

⁄

2.

Torque Rating:

18 in-lb max.

Mounting Options:

C-rail.

Catalog Numbers

Catalog

Numbers

NFT3-WH

NFT3-BK

Colors

White (Standard)

Black

Dimensions - in (mm)

2.40

(60.96)

Dimensions - in (mm)

.60

(15.44)

.07

(1.78)

1.29

(32.94)

.93

(23.80)

.36

(9.14)

Dimensions - in (mm)

1.18

(29.97)

1.29

(32.94)

.88

(22.35)

1.68

(42.82)

1.23

(31.34)

1.23

(31.37)

1.09

(27.68)

.65

(16.51)

288

For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
