5962F0721501V9A: DescriptionDUAL COMPARATOR, 8000uV OFFSET-MAX, CDFP10, ROHS COMPLIANT, HERMETIC SEALED, METAL SEALED, CERAMIC, DFP-10; Categoryaccessories; File Size37KB，2 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Compare View All

5962F0721501V9A Overview

DUAL COMPARATOR, 8000uV OFFSET-MAX, CDFP10, ROHS COMPLIANT, HERMETIC SEALED, METAL SEALED, CERAMIC, DFP-10

Preview

Download Datasheet

View All

ISL7119RH

Data Sheet

October 8, 2008

FN6607.2

Radiation Hardened High Speed Dual

Voltage Comparator

The ISL7119RH is a radiation hardened high speed dual

voltage comparator fabricated on a single monolithic chip. It

is designed to operate over a wide dual supply voltage range

as well as a single 5V logic supply and ground. The open

collector output stage facilitates interfacing with a variety of

logic devices and has the ability to drive relays and lamps at

output currents up to 25mA.

The ISL7119RH is fabricated on our dielectrically isolated

Rad-hard Silicon Gate (RSG) process, which provides

immunity to Single Event Latch-up (SEL) and highly reliable

performance in the natural space environment.

Specifications for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Specifications for the ISL7119RH are

contained in SMD 5962-07215. A “hot-link” is provided

on our website for downloading.

Features

• Electrically Screened to DSCC SMD # 5962-07215

• QML Qualified Per MIL-PRF-38535 Requirements

• Radiation Environment

- Total Dose. . . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEL/SEB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Immune

• Input Offset Voltage (V

). . . . . . . . . . . . . . . . . 8mV (Max)

• Input Bias Current (I

BIAS

) . . . . . . . . . . . . . .1000nA (Max)

• Input Offset Current (I

) . . . . . . . . . . . . . . . .150nA (Max)

• Saturation Voltage @ I

SINK

= 3.2mA (V

SAT

) . 0.65V (Max)

• Saturation Voltage @ I

SINK

= 25mA (V

SAT

) . . 1.8V (Max)

• Response Time (t

) . . . . . . . . . . . . . . . . . . . 160ns (Max)

Applications

• Window Detector

• Level Shifter

• Relay Driver

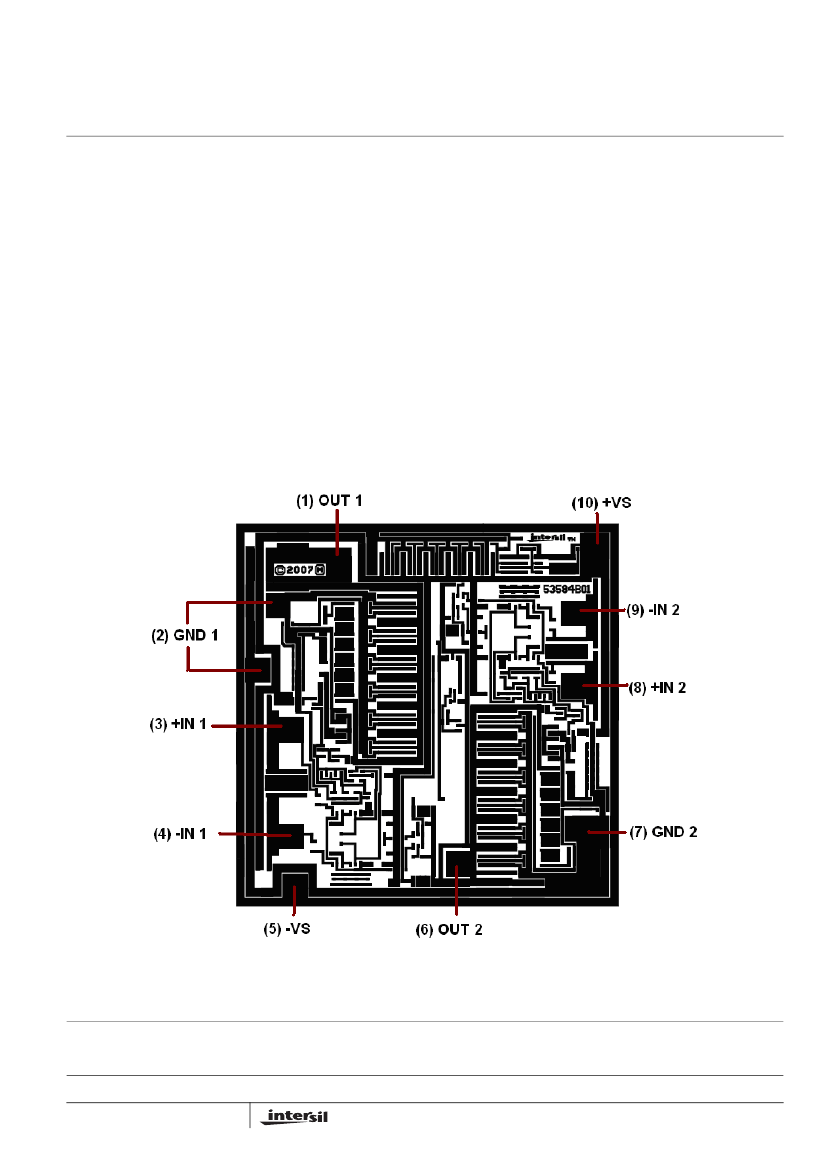

Pinouts

• Lamp Driver

ISL7119RH

(10 LD FLATPACK GDFP1-F10 OR CDFP2-F10)

TOP VIEW

OUT 1

GND 1

+IN 1

-IN 1

-V

-IN 2

+IN 2

GND 2

OUT 2

Ordering Information

ORDERING

NUMBER

INTERNAL

MKT. NUMBER

PART MARKING

Q 5962F07 21501QXC

Q 5962F07 21501VXC

TEMP. RANGE

(°C)

-55 to +125

ISL7 119RHF /Proto

-55 to +125

PACKAGE

10 Ld Flatpack

PKG. DWG. #

K10.A

5962F0721501QXC ISL7119RHQF

5962F0721501VXC

5962F0721501V9A

ISL7119RH/Proto

ISL7119RHVF

ISL7119RHVX

ISL7119RHF/Proto

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774

Intersil (and design) is a registered trademark of Intersil Americas Inc.

All other trademarks mentioned are the property of their respective owners.
