GUS-QS014-03-1002-G datasheet, PDF

Datasheet> All Categories > GUS-QS014-03-1002-G

Preview

GUS-QS014-03-1002-G: DescriptionR-2R Ladder Network; File Size336KB，2 Pages; ManufacturerIRC ( TT Electronics ); Websitehttp://www.irctt.com/

Download Datasheet View All

GUS-QS014-03-1002-G Overview

R-2R Ladder Network

Preview

Download Datasheet

View All

R-2R Ladder Network

R-2R Series

•

±2% Absolute tolerance

•

Ladder accuracy +/- 1 LSB

•

8 and 10 bit R-2R Schematic

•

QSOP Package - Small Footprint

•

Standard Sn/Pb and Pb-free terminations available

Electrical Data

Resistance Value

(ohms)

Absolute

Tolerance

(%)

Ratio

Tolerance

Absolute TCR

(ppm/°C)

TCR Tracking

(ppm/°C)

Operating

Temperature Range

(°C)

10K/20K and 25K/50K

±2%

±1 LSB

±25, ±50, ±100

±5

-55 to +125

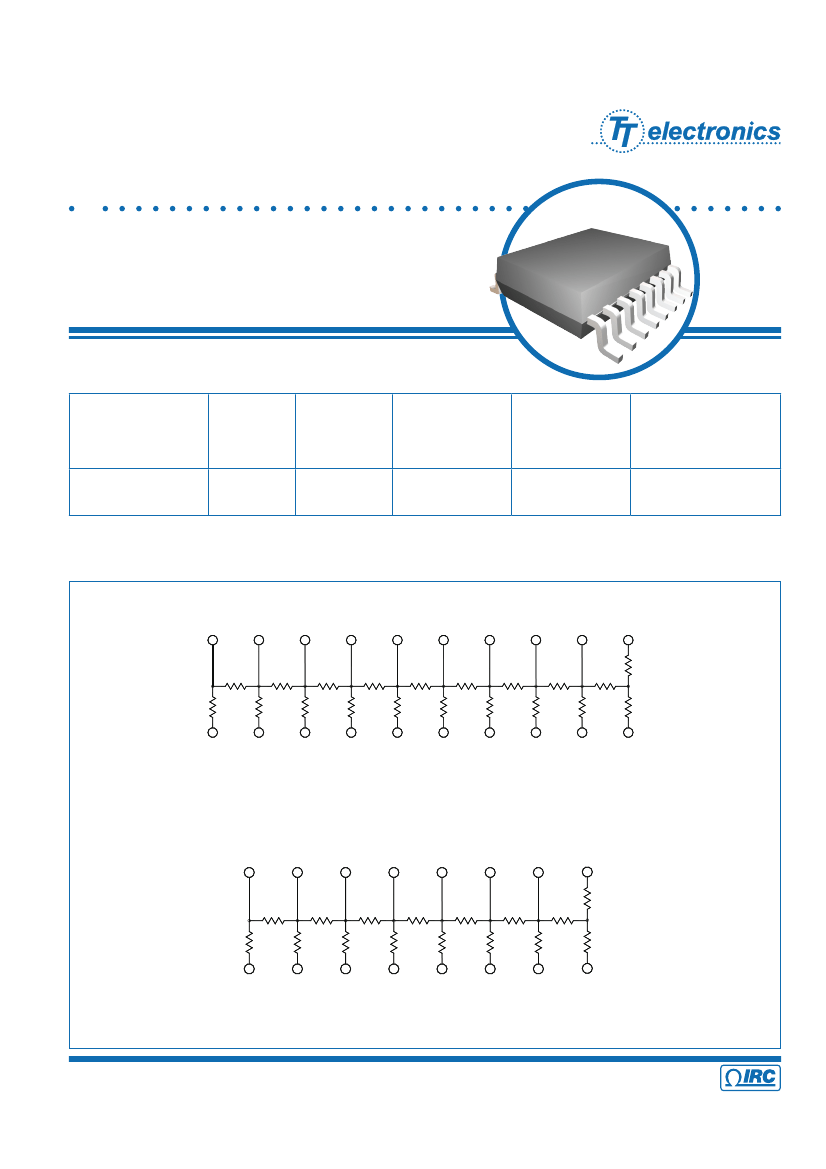

Schematic Data

QS009 20-Pin,10 bit, R-2R Schematic

QS014 16-Pin,8 bit, R-2R Schematic

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

R-2R Series Issue January 2009 Sheet 1 of 2
