ZBB77WH: DescriptionSingle Color LED, Blue, Water Clear, T-3/4, 1.9mm, 4.50 X 2 MM, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZBB77WH Overview

Single Color LED, Blue, Water Clear, T-3/4, 1.9mm, 4.50 X 2 MM, SMD, 2 PIN

ZBB77WH Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	4.50 X 2 MM, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	799.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.8 mm
method of packing	TAPE AND REEL
peak wavelength	467 nm
shape	ROUND
size	1.9 mm
surface mount	YES
T code	T-3/4
Terminal pitch	4.5 mm
perspective	20 deg
Base Number Matches	1

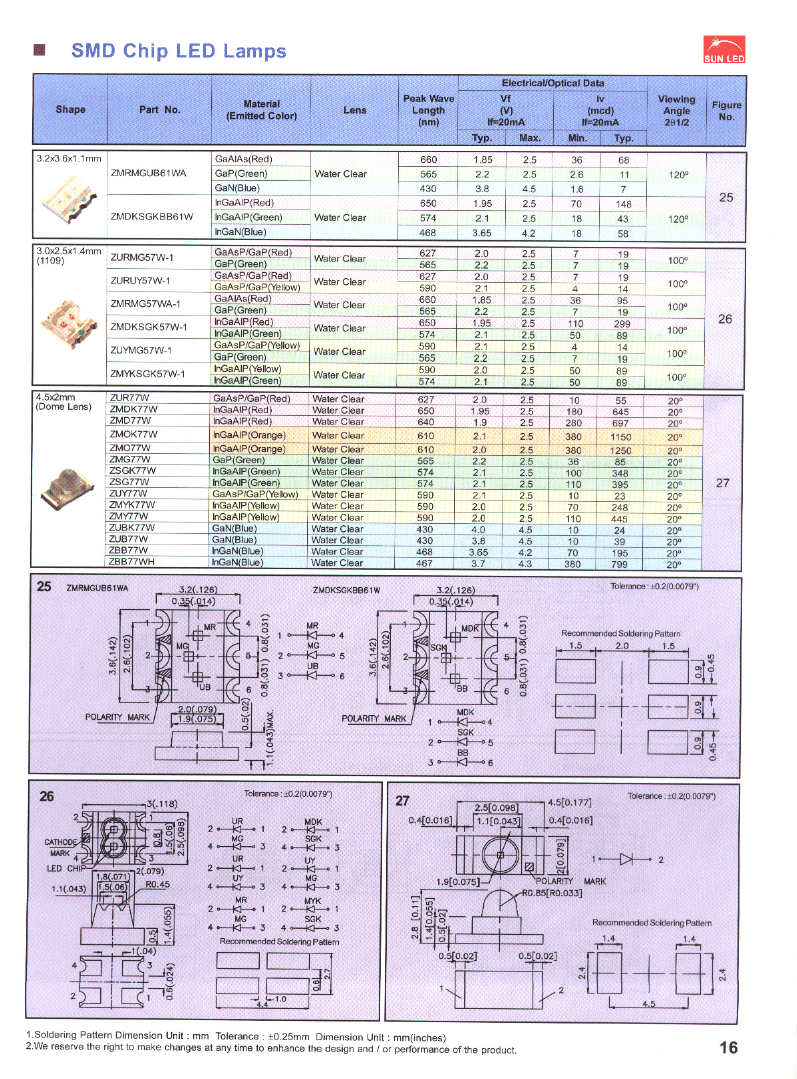

Preview

Download Datasheet

View All

ZBB77WH Related Products

	ZBB77WH	ZMDKSGK57W-1	ZMDKSGKBB61W	ZSGK77W	ZUYMG57W-1	ZMRMGUB61WA	ZBB77W
Description	Single Color LED, Blue, Water Clear, T-3/4, 1.9mm, 4.50 X 2 MM, SMD, 2 PIN	Dual Color LED, Red/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.40 MM HEIGHT, SMD, 4 PIN	Triple Color LED, Red/green/blue, Water Clear, 3.6mm, 3.20 X 3.60 MM, 1.10MM HEIGHT, SMD, 6 PIN	Single Color LED, Green, Water Clear, T-3/4, 1.9mm, 4.50 X 2 MM, SMD, 2 PIN	Dual Color LED, Yellow/green, Water Clear, 2.5mm, 3 X 2.50 MM, 1.40 MM HEIGHT, SMD, 4 PIN	Triple Color LED, Red/green/blue, Water Clear, 3.6mm, 3.20 X 3.60 MM, 1.10MM HEIGHT, SMD, 6 PIN	Single Color LED, Blue, Water Clear, T-3/4, 1.9mm, 4.50 X 2 MM, SMD, 2 PIN
Maker	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED
package instruction	4.50 X 2 MM, SMD, 2 PIN	3 X 2.50 MM, 1.40 MM HEIGHT, SMD, 4 PIN	3.20 X 3.60 MM, 1.10MM HEIGHT, SMD, 6 PIN	4.50 X 2 MM, SMD, 2 PIN	3 X 2.50 MM, 1.40 MM HEIGHT, SMD, 4 PIN	3.20 X 3.60 MM, 1.10MM HEIGHT, SMD, 6 PIN	4.50 X 2 MM, SMD, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	BLUE	RED/GREEN	RED/GREEN/BLUE	GREEN	YELLOW/GREEN	RED/GREEN/BLUE	BLUE
Configuration	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 3 ELEMENTS	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	799.0 mcd	299.0/89.0 mcd	148.0/43.0/58.0 mcd	348.0 mcd	14.0/19.0 mcd	68.0/11.0/7.0 mcd	195.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	4	6	2	4	6	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	DUAL COLOR LED	TRIPLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	TRIPLE COLOR LED	SINGLE COLOR LED
total height	2.8 mm	1.4 mm	1.1 mm	2.8 mm	1.4 mm	1.1 mm	2.8 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	467 nm	650/574 nm	650/574/468 nm	574 nm	590/565 nm	660/565/430 nm	468 nm
shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND
size	1.9 mm	2.5 mm	3.6 mm	1.9 mm	2.5 mm	3.6 mm	1.9 mm
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	4.5 mm	2.7 mm	3.5 mm	4.5 mm	2.7 mm	3.5 mm	4.5 mm
perspective	20 deg	100 deg	120 deg	20 deg	100 deg	120 deg	20 deg
Base Number Matches	1	1	1	1	-	-	-
