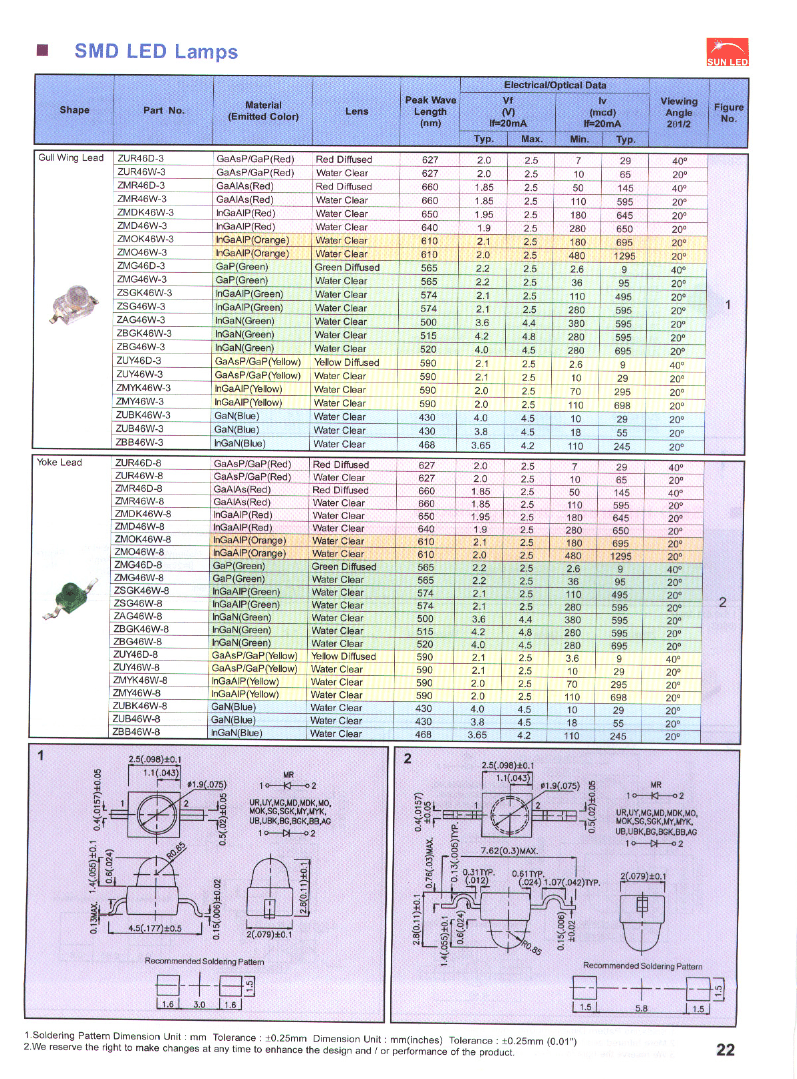

ZMYK46W-8: DescriptionSingle Color LED, Yellow, Water Clear, T-3/4, 1.9mm, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZMYK46W-8 Overview

Single Color LED, Yellow, Water Clear, T-3/4, 1.9mm, SMD, 2 PIN

ZMYK46W-8 Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	295.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.8 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	ROUND
size	1.9 mm
surface mount	YES
T code	T-3/4
Terminal pitch	7.3 mm
perspective	20 deg
Base Number Matches	1
