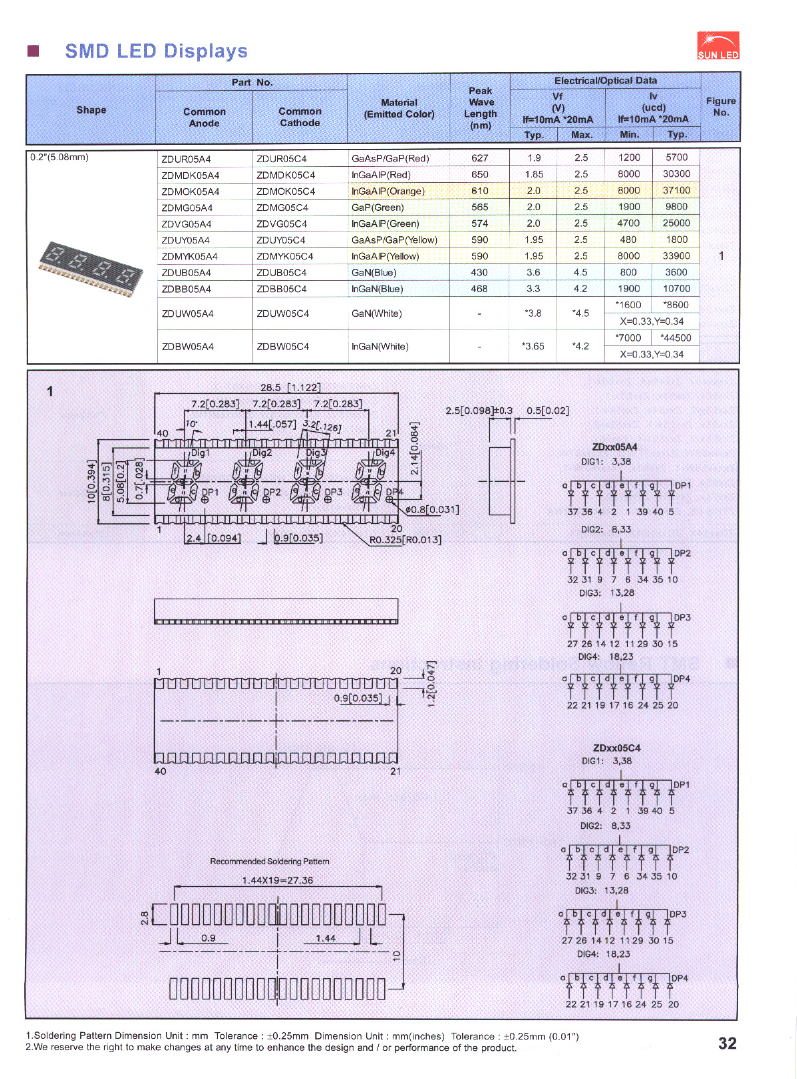

ZDUR05A4: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, SMD, 40 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZDUR05A4 Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, SMD, 40 PIN

ZDUR05A4 Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	SMD, 40 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	RED
Configuration	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT
Display height	5.08 mm
Maximum forward current	0.03 A
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

ZDUR05A4 Related Products

	ZDUR05A4	ZDUW05A4	ZDBB05A4	ZDMDK05A4	ZDMOK05A4	ZDBW05A4	ZDMG05A4	ZDMYK05A4
Description	Smart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, White, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Blue, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Orange, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, White, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Green, 5.08mm, SMD, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 5.08mm, SMD, 40 PIN
package instruction	SMD, 40 PIN	SMD, 40 PIN	SMD, 40 PIN	SMD, 40 PIN	SMD, 40 PIN	SMD, 40 PIN	SMD, 40 PIN	SMD, 40 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	RED	WHITE	BLUE	RED	ORANGE	WHITE	GREEN	YELLOW
Configuration	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT
Display height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A	0.03 A
Number of functions	4	4	4	4	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1	1	1	1	1	1	1	1
