ZMOK53W-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZMOK53W-1

ZMOK53W-1: DescriptionSingle Color LED, Orange, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size220KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZMOK53W-1 Overview

Single Color LED, Orange, Water Clear, 1.2mm, 1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN

ZMOK53W-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	1.60 X 0.80 MM, 0.75 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	155.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.75 mm
method of packing	TAPE AND REEL
peak wavelength	610 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.65 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number: ZMOK53W-1

www.SunLED.com

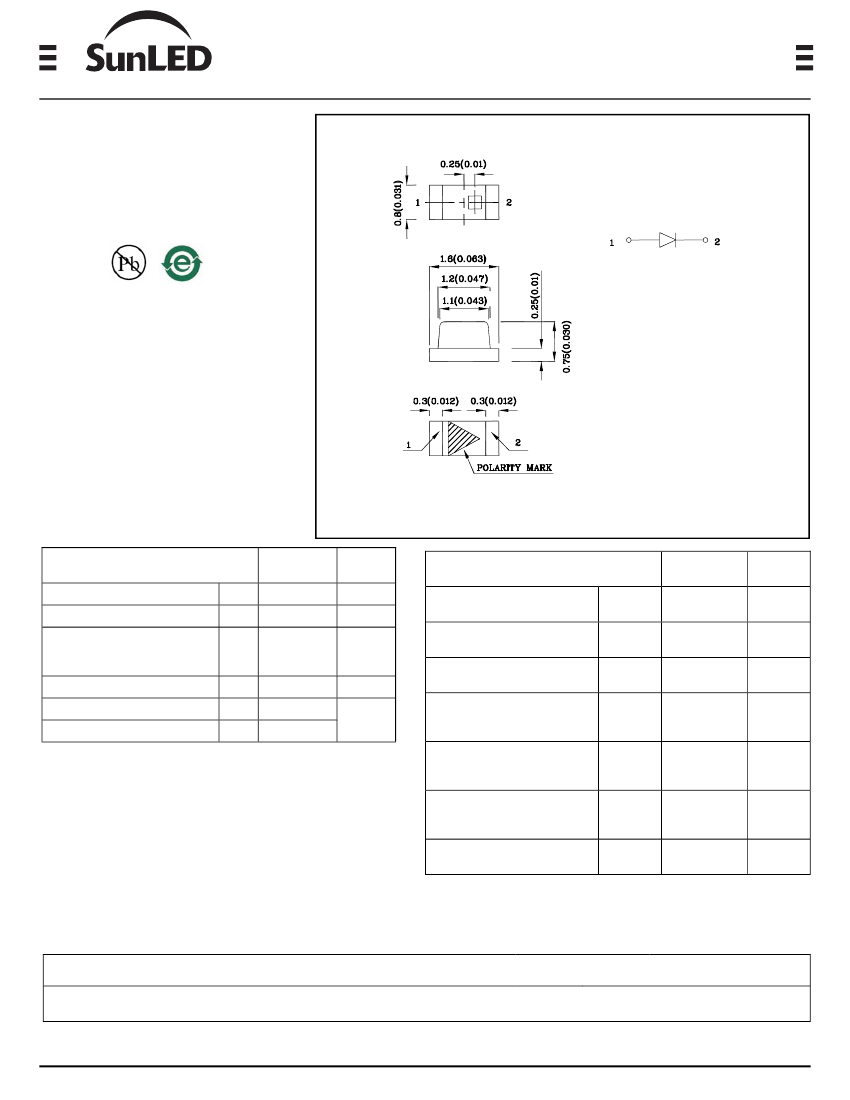

1.6X0.8mm SMD CHIP LED LAMP

Features

●

Ideal for indication light on hand held products

●

Long life and robust package

●

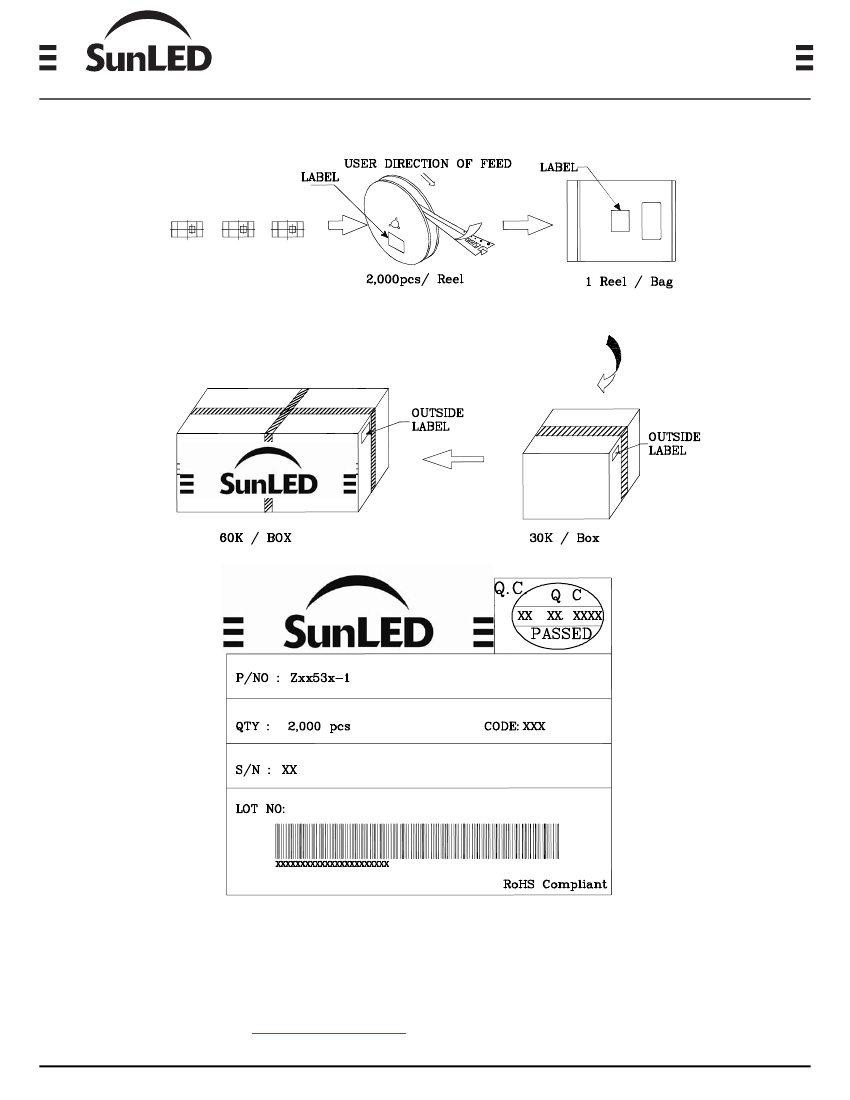

Standard Package: 2,000pcs/ Reel

●

MSL (Moisture Sensitivity Level): 3

●

RoHS compliant

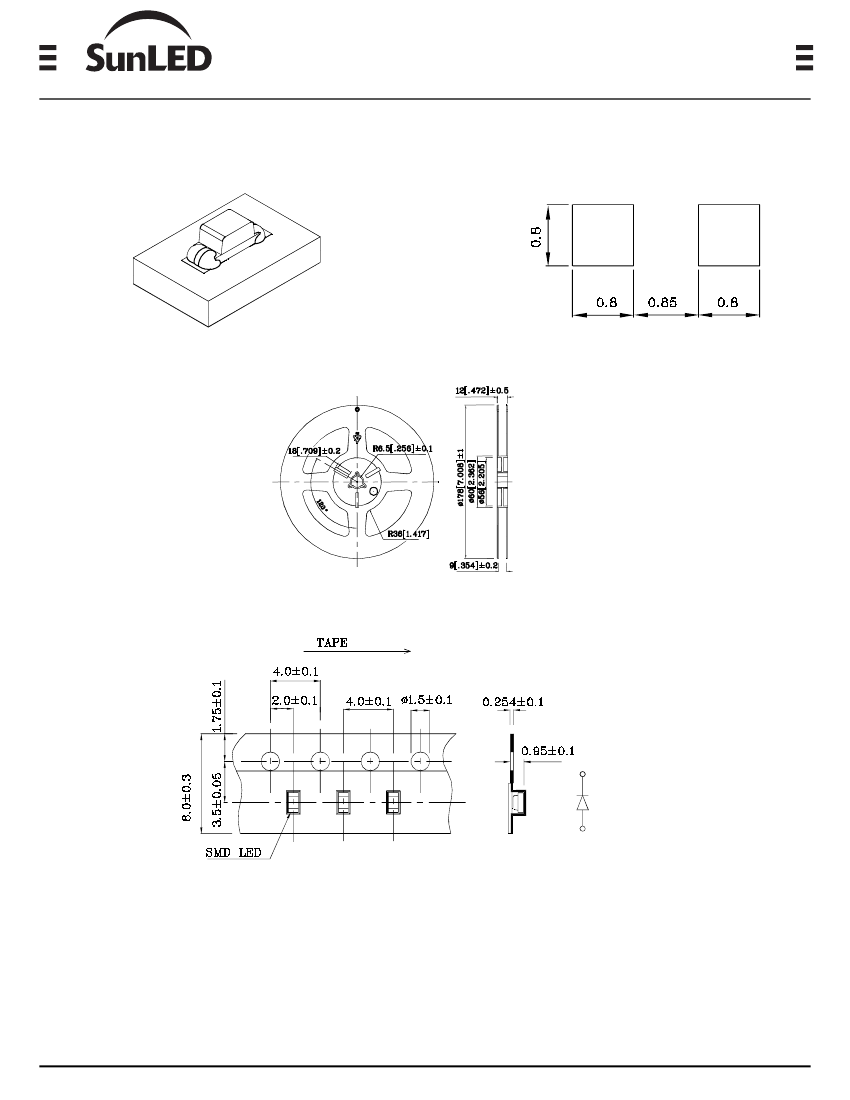

Package Schematics

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.1(0.004") unless otherwise noted.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

MOK

(AlGaInP)

195

-40 ~ +85

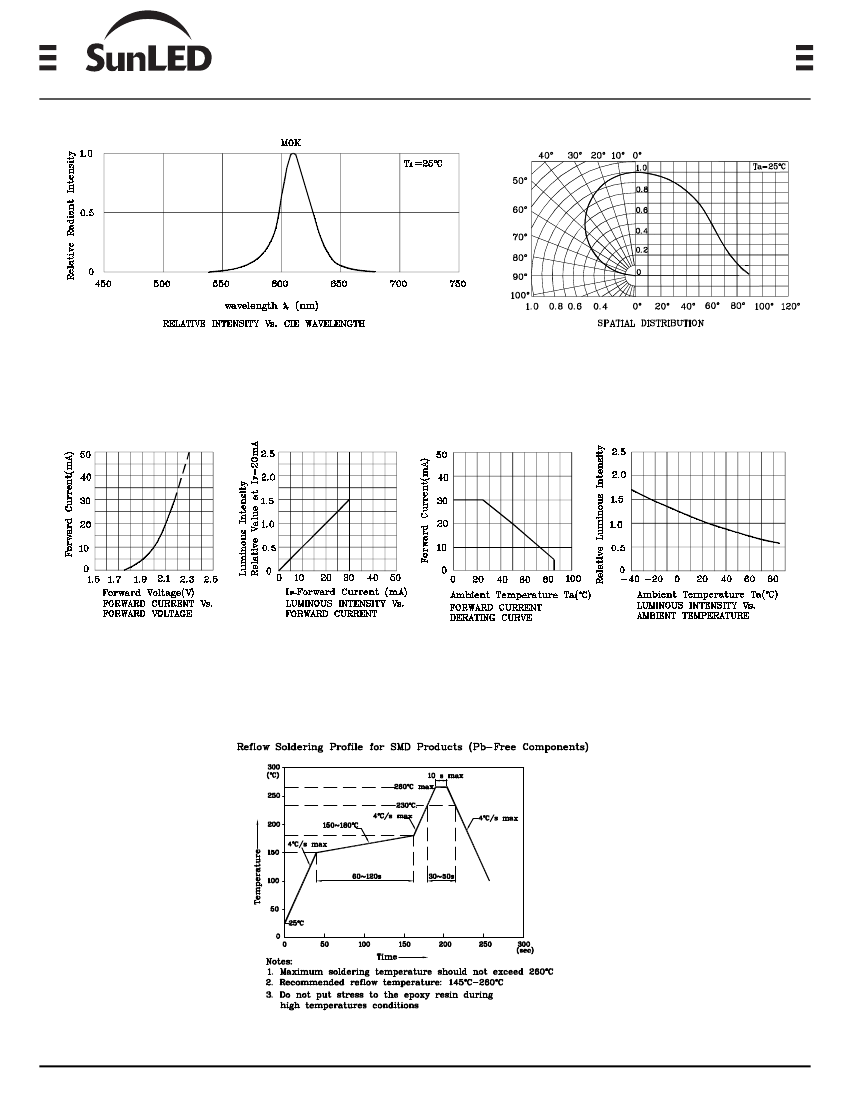

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission CIE127-2007* (Typ.)

=20mA)

Wavelength of Dominant

Emission CIE127-2007* (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

MOK

(AlGaInP)

2.1

2.5

Unit

°C

Unit

λP

610*

λD

601*

△λ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous Intensity

CIE127-2007*

=20mA)

mcd

min.

typ.

248

178*

Wavelength

CIE127-2007*

λP

Viewing

Angle

2θ 1/2

ZMOK53W-1

Orange

AlGaInP

Water Clear

120

80*

610*

120°

*Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.

Mar 10,2014

SDSA2404

V9-X

Layout: Maggie L.

P. 1/4
