Part Number:
ZMYK53W
www.SunLED.com

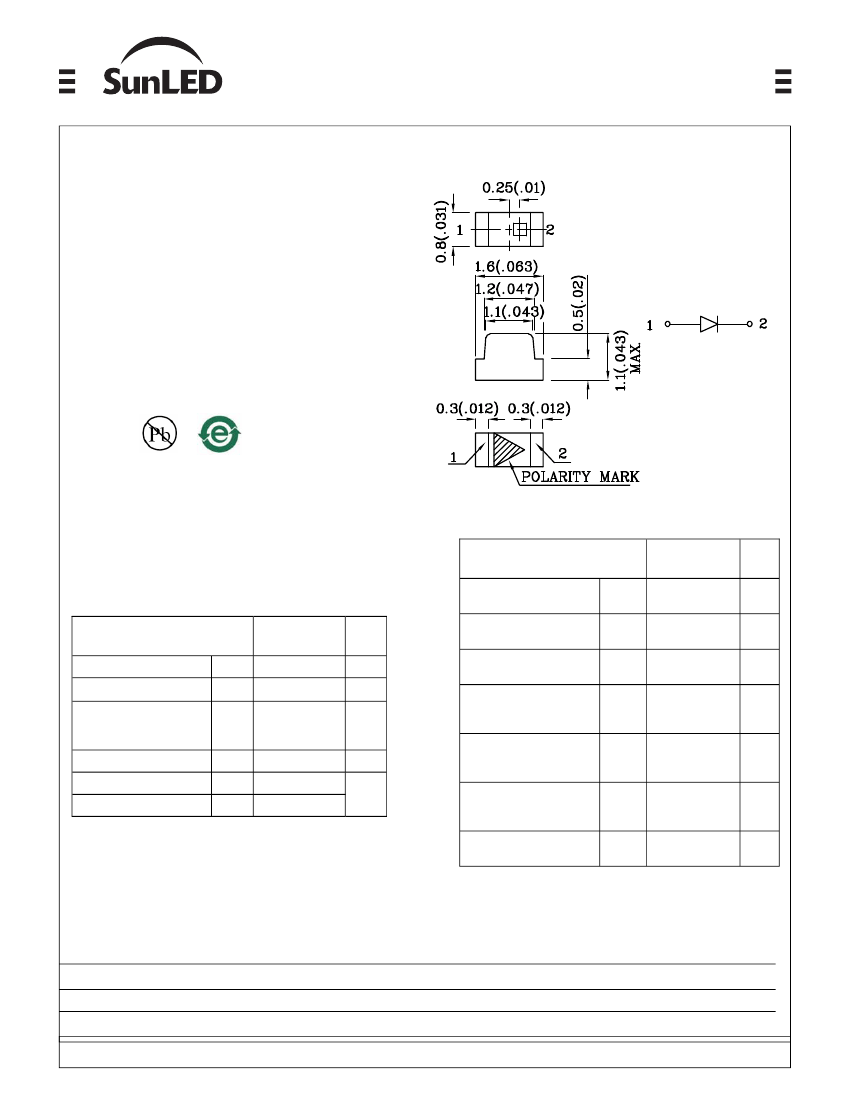

1.6x0.8mm SMD CHIP LED LAMP
Features
1.6mmX0.8mm SMT LED, 1.1mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE: 2000PCS / REEL .
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.1(0.004") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Unit
V
mA
mA
mW
°C
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength Of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength Of Domi-
nant Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(VF=0V, f=1MHz)
V
F
V
F
I
R
MYK
(InGaAlP)
2.0
2.5
10
Unit
V
V
uA
MYK
(InGaAlP)
5
30
175
75
-40 ~ +85
-40 ~ +85
λ
P
590
nm
λ
D
590
nm
Δλ
20
nm
C
20
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
118
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
ZMYK53W
Yellow
InGaAlP
Water Clear
36
590
120°
Published Date : FEB 28,2008
Drawing No : SDSA2397
V6
Checked : B.L.LIU
P.1/4
Part Number:
ZMYK53W
www.SunLED.com
1.6x0.8mm SMD CHIP LED LAMP

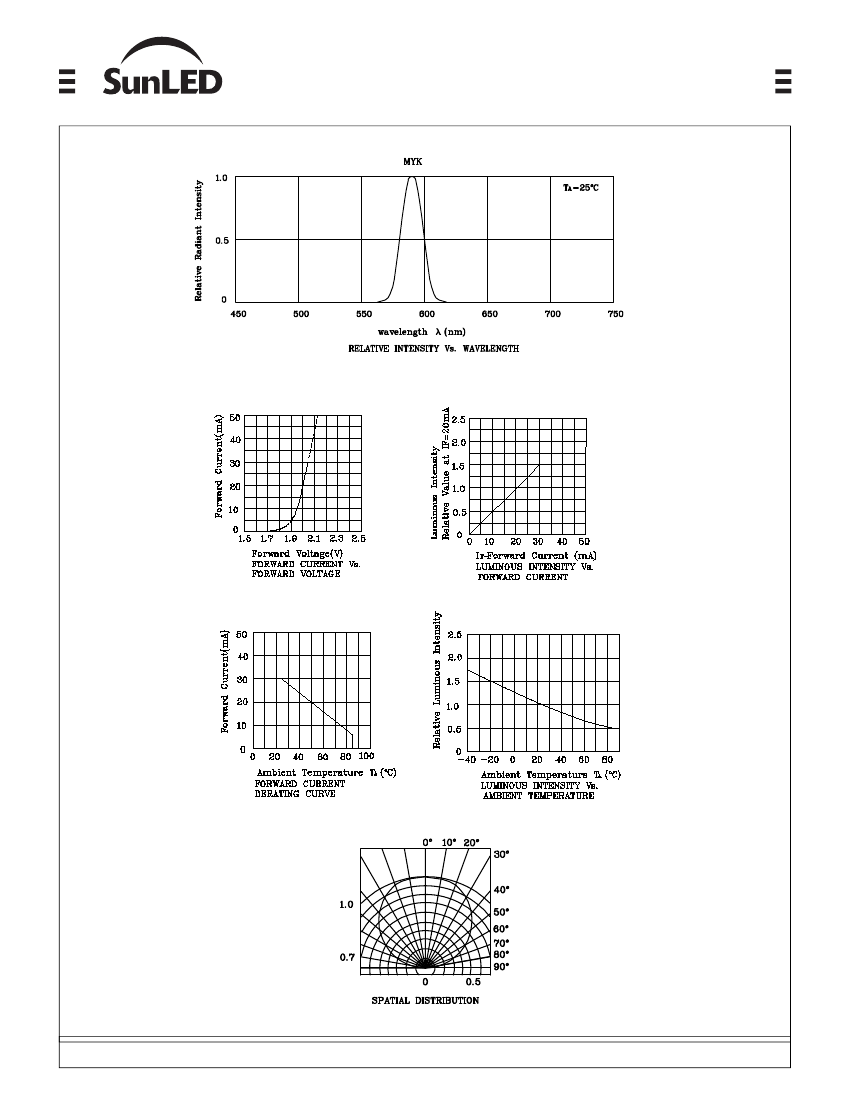

MYK
Published Date : FEB 28,2008
Drawing No : SDSA2397
V6
Checked : B.L.LIU
P.2/4
Part Number:
ZMYK53W
www.SunLED.com
1.6x0.8mm SMD CHIP LED LAMP

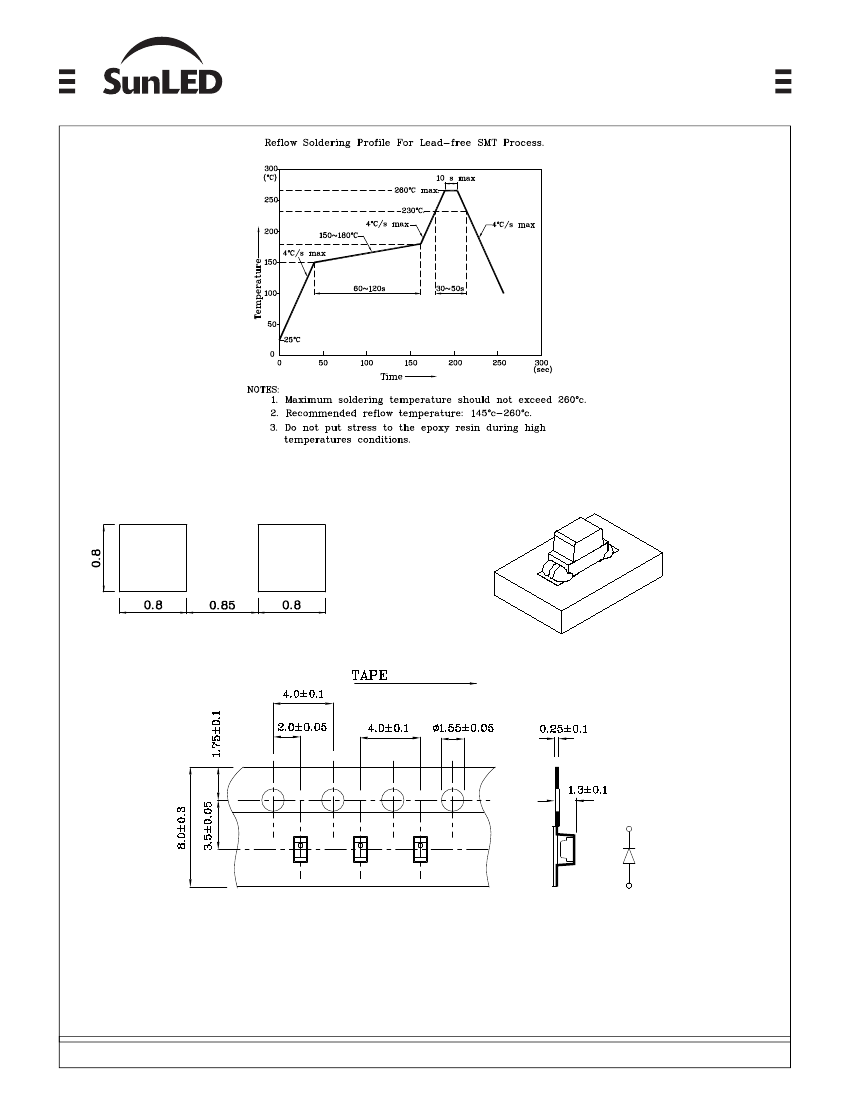

Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications
.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 28,2008
Drawing No : SDSA2397
V6
Checked : B.L.LIU
P.3/4
Part Number:
ZMYK53W
www.SunLED.com
1.6x0.8mm SMD CHIP LED LAMP

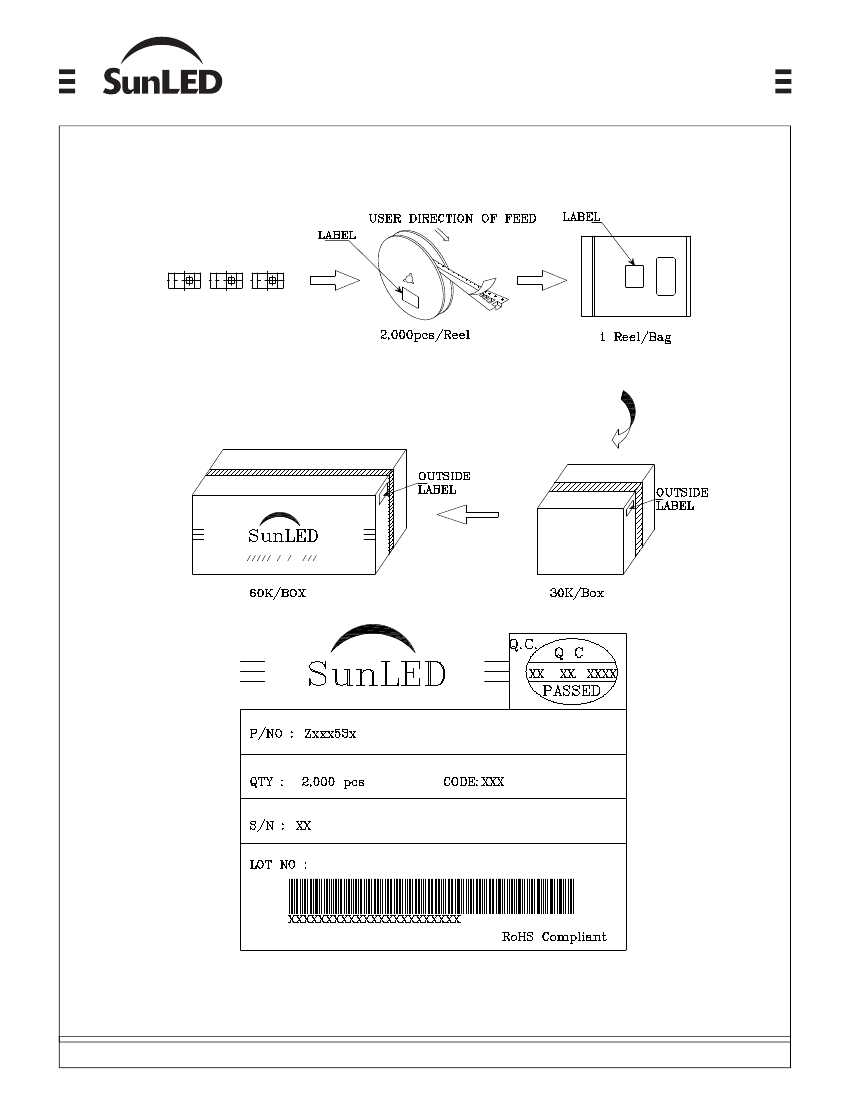

PACKING & LABEL SPECIFICATIONS
ZMYK53W
Published Date : FEB 28,2008
Drawing No : SDSA2397
V6
Checked : B.L.LIU
P.4/4
