ZUY45FW-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZUY45FW-9

ZUY45FW-9: DescriptionSingle Color LED, Yellow, Water Clear, 2.4mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size181KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZUY45FW-9 Overview

Single Color LED, Yellow, Water Clear, 2.4mm, ROHS COMPLIANT PACKAGE-2

ZUY45FW-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	14.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.9 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	5.2 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

www.SunLED.com

Part Number:

ZUY45FW-9

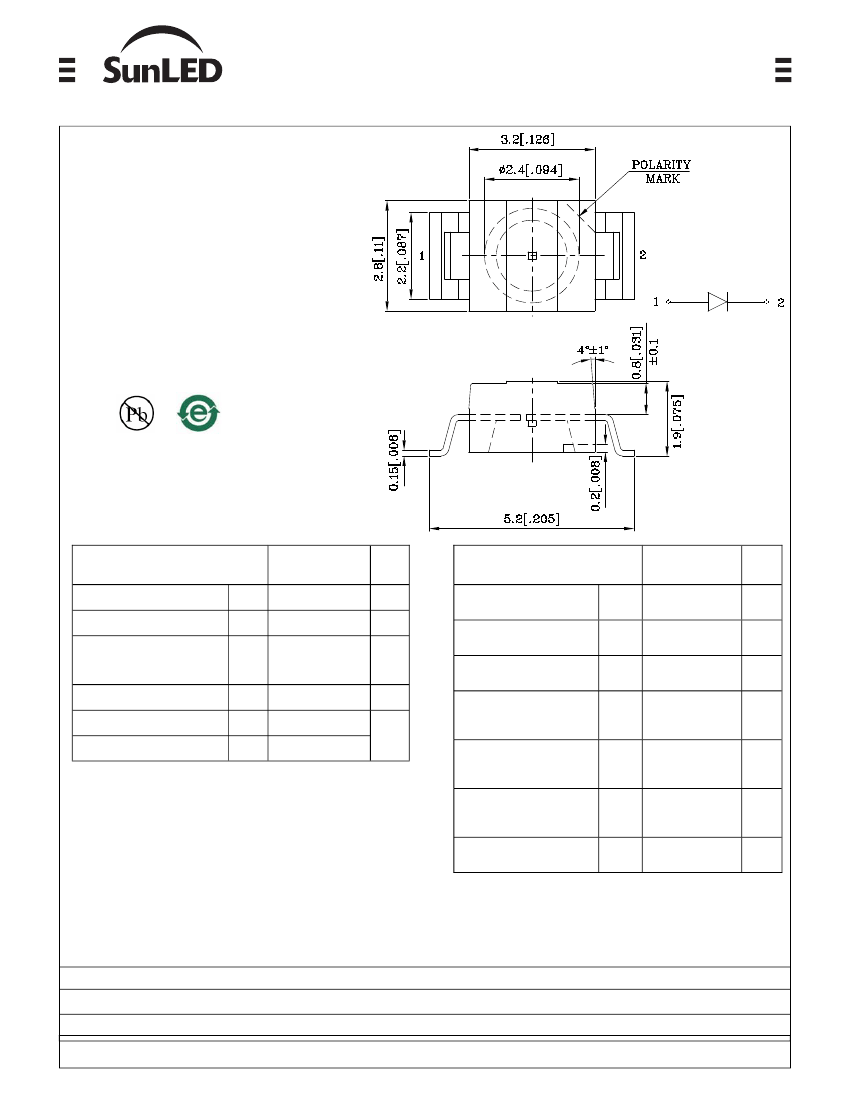

3.5x2.8 mm SURFACE MOUNT LED LAMP

Features

SINGLE COLOR.

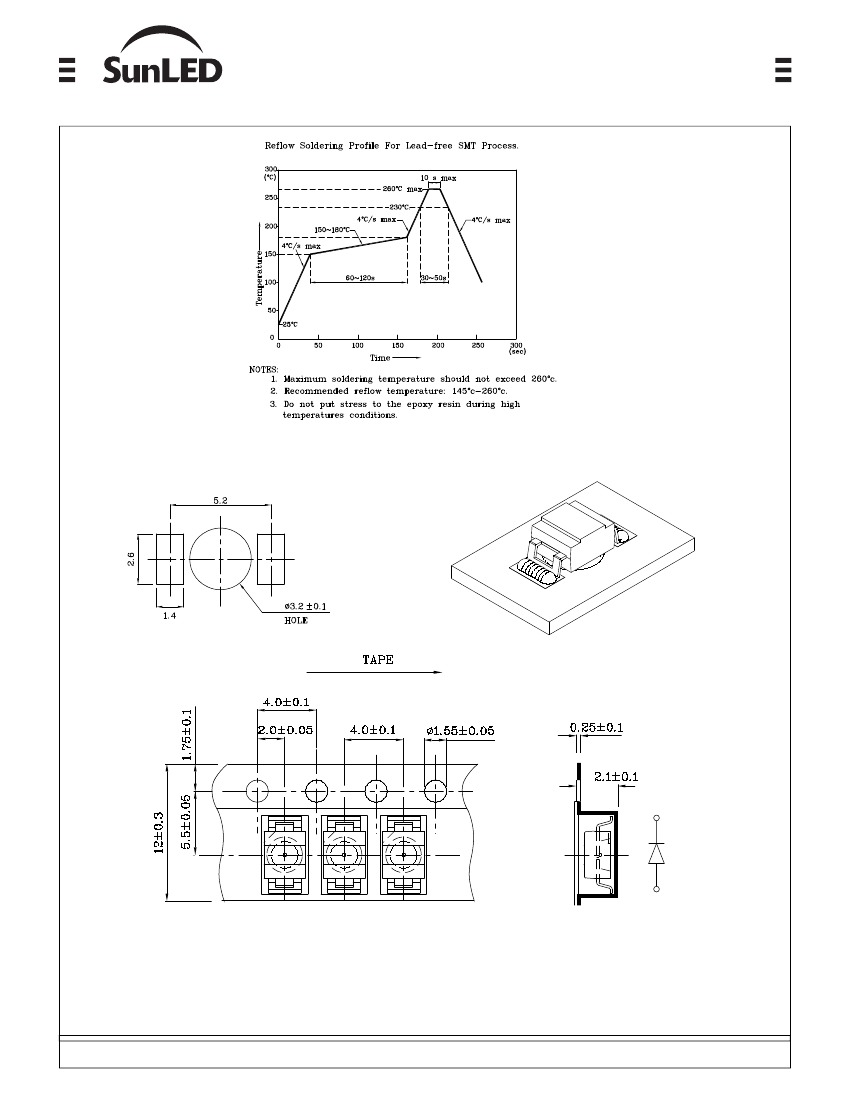

SUITABLE FOR ALL SMT ASSEMBLY AND

SOLDER PROCESS.

AVAILABLE ON TAPE AND REEL.

IDEAL FOR BACKLIGHTING.

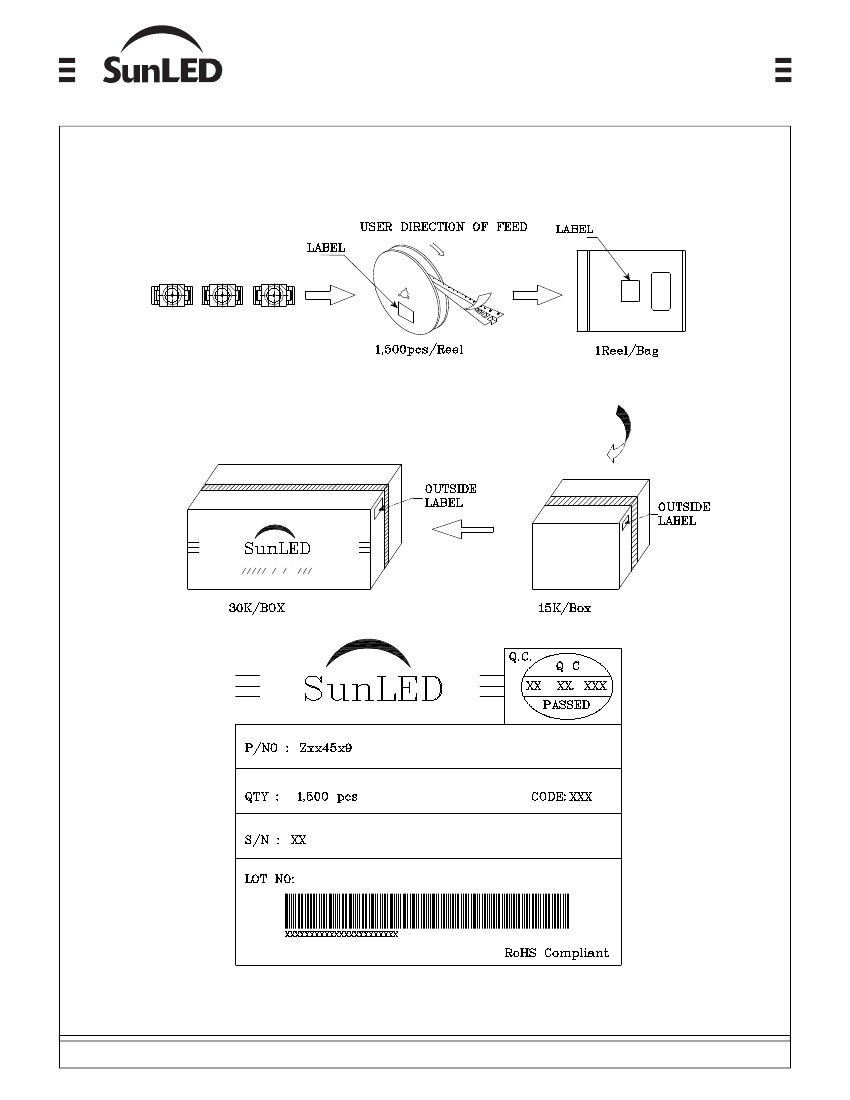

PACKAGE : 1500PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(GaAsP/GaP)

140

-40 ~ +85

Unit

°C

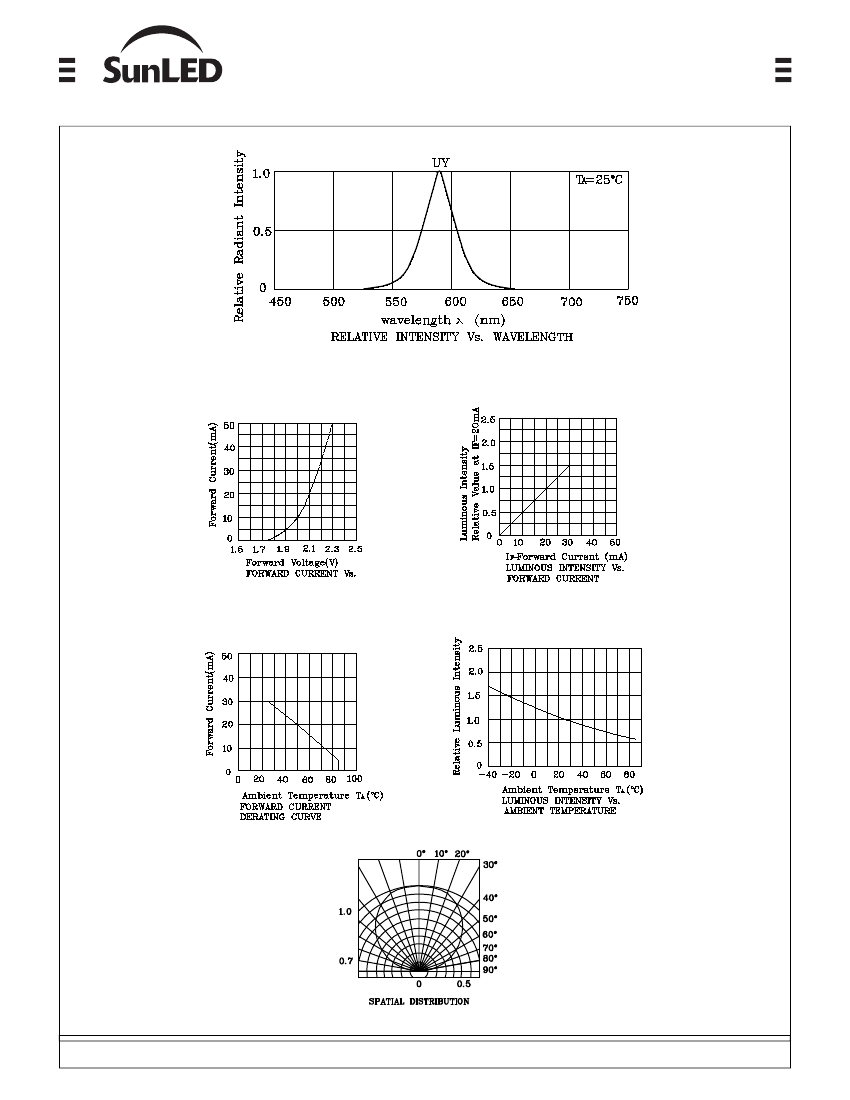

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=20mA)

Wavelength of Dominant

Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaAsP/GaP)

2.1

2.5

Unit

590

588

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

Wavelength

Viewing

Angle

1/2

ZUY45FW-9

Yellow

GaAsP/GaP

Water Clear

590

120°

Published Date : FEB 27, 2008

Drawing No : SDSA6383

Checked : B.L.LIU

P. 1/4
