Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> UA9638RM

Preview

UA9638RM: DescriptionLine Driver/Receiver, 2 Driver, TTL, CDIP8,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size94KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

UA9638RM Overview

Line Driver/Receiver, 2 Driver, TTL, CDIP8,

UA9638RM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP8,.3
Reach Compliance Code	compliant
Differential output	YES
Number of drives	2
High level input current maximum value	0.000025 A
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	2 V
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	20 ns
Base Number Matches	1

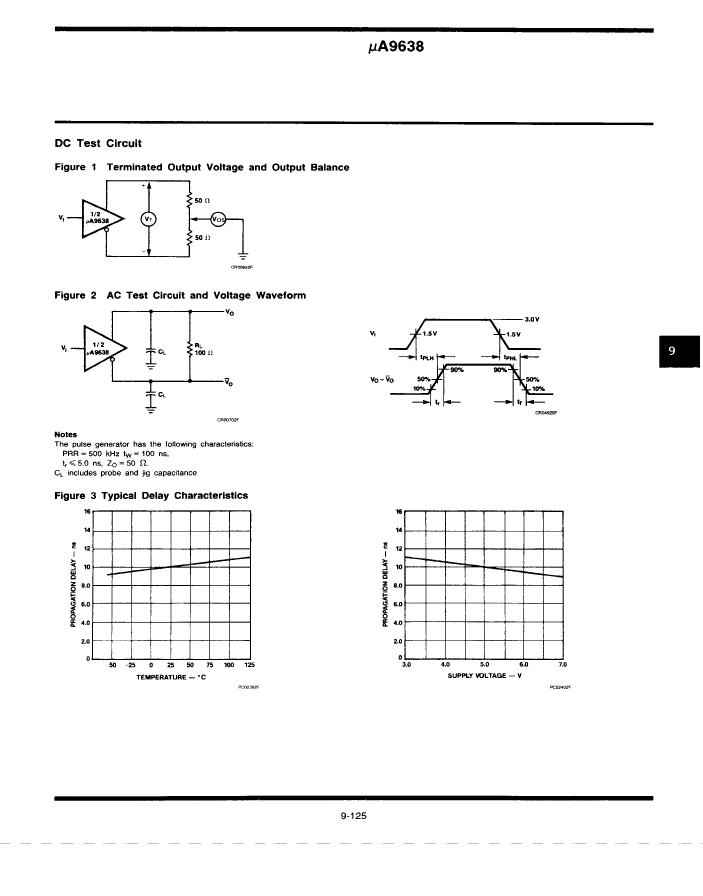

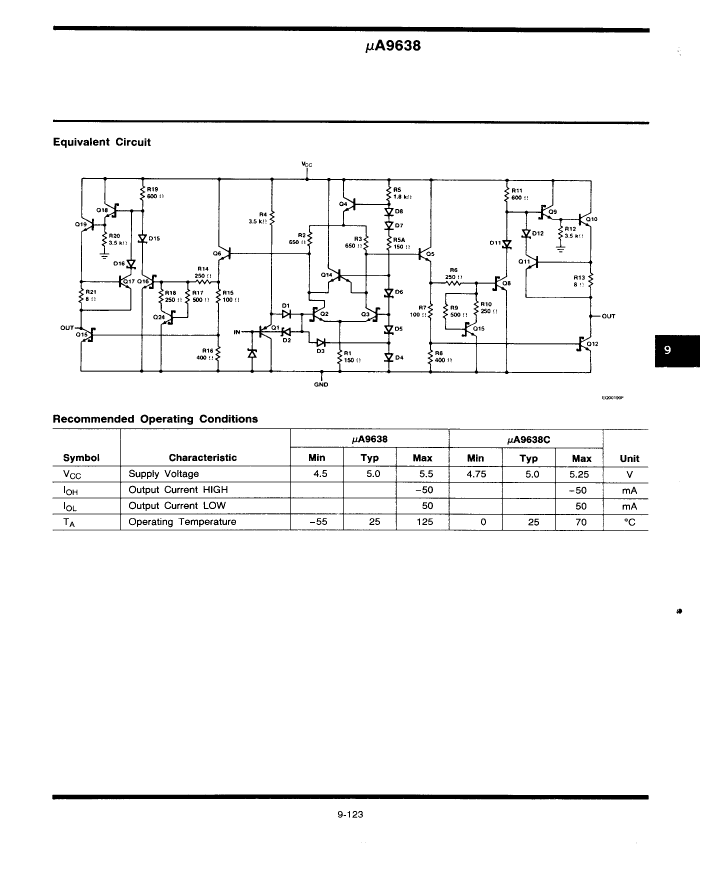

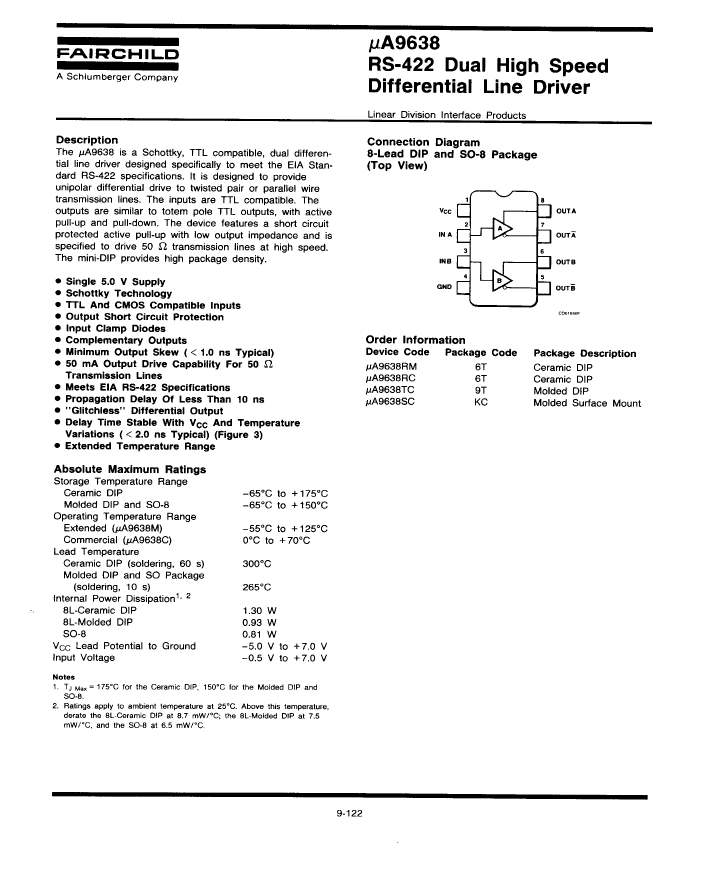

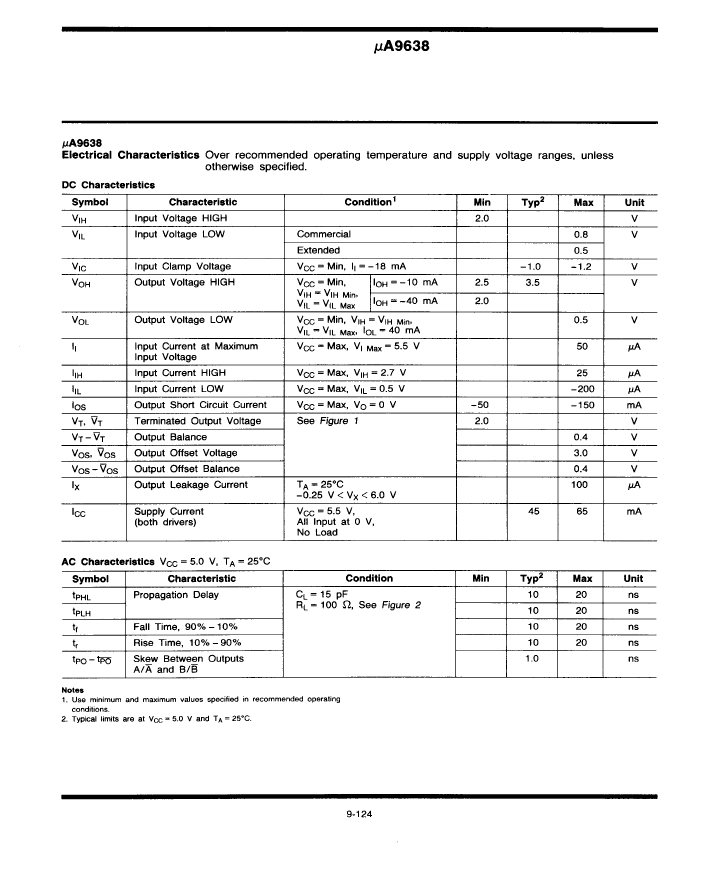

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

UA9638RM Related Products

	UA9638RM	UA9638RC	UA9638SC	UA9638TC
Description	Line Driver/Receiver, 2 Driver, TTL, CDIP8,	Line Driver/Receiver, 2 Driver, TTL, CDIP8,	Line Driver/Receiver, 2 Driver, TTL, PDSO8,	Line Driver/Receiver, 2 Driver, TTL, PDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	SOP, SOP8,.25	DIP, DIP8,.3
Reach Compliance Code	compliant	compliant	compliant	compliant
Differential output	YES	YES	YES	YES
Number of drives	2	2	2	2
High level input current maximum value	0.000025 A	0.000025 A	0.000025 A	0.000025 A
JESD-30 code	R-XDIP-T8	R-XDIP-T8	R-PDSO-G8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C
Minimum output swing	2 V	2 V	2 V	2 V
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	SOP8,.25	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
maximum transmission delay	20 ns	20 ns	20 ns	20 ns
Base Number Matches	1	1	1	-
