CDP6805E3N datasheet, PDF - EEWORLD Datasheet

CDP6805E3N: Description8-BIT, 5MHz, MICROCONTROLLER, PQCC44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size139KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

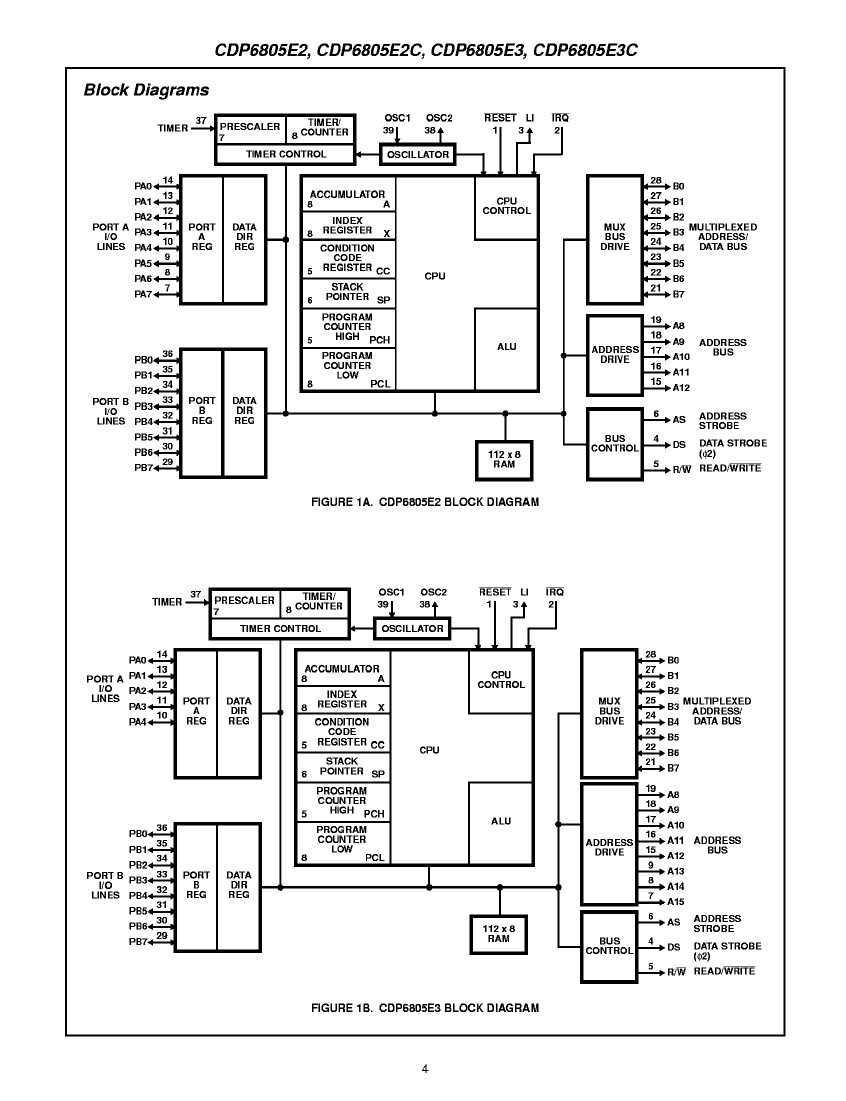

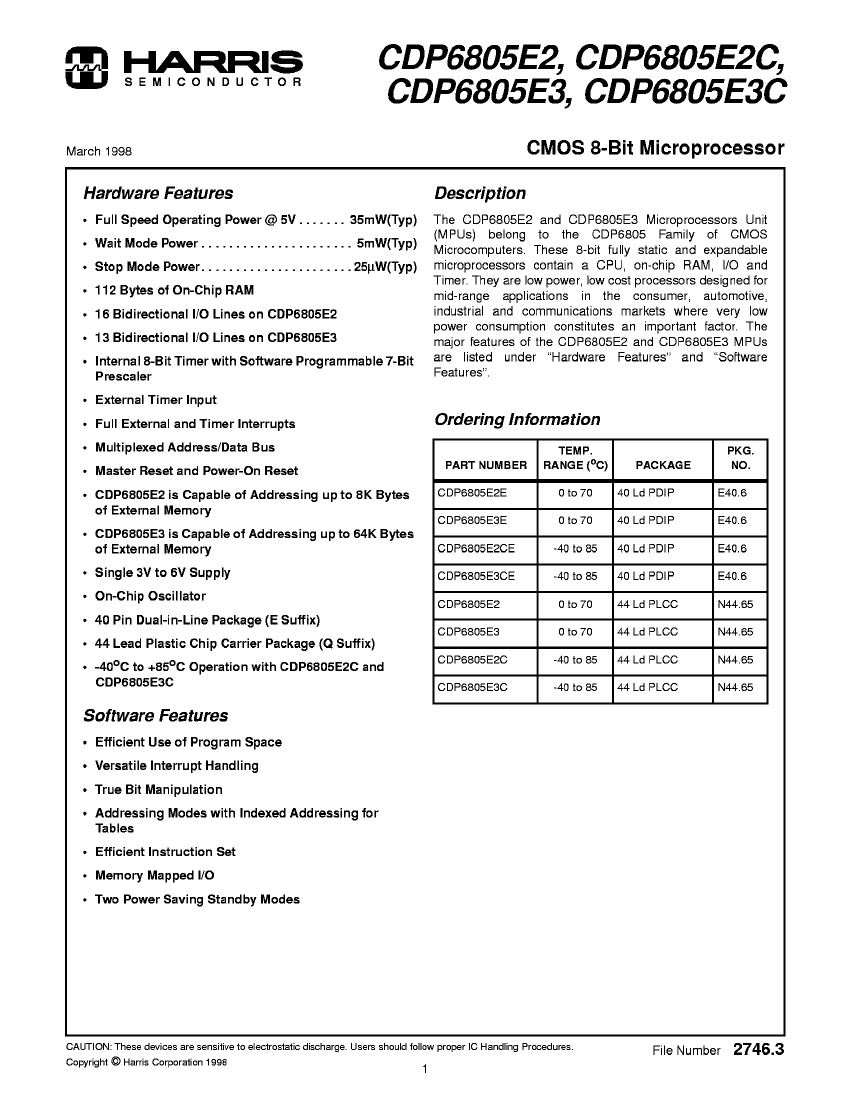

CDP6805E3N Overview

8-BIT, 5MHz, MICROCONTROLLER, PQCC44

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	13
Number of serial I/Os
Number of terminals	44
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	112
rom(word)	0
speed	5 MHz

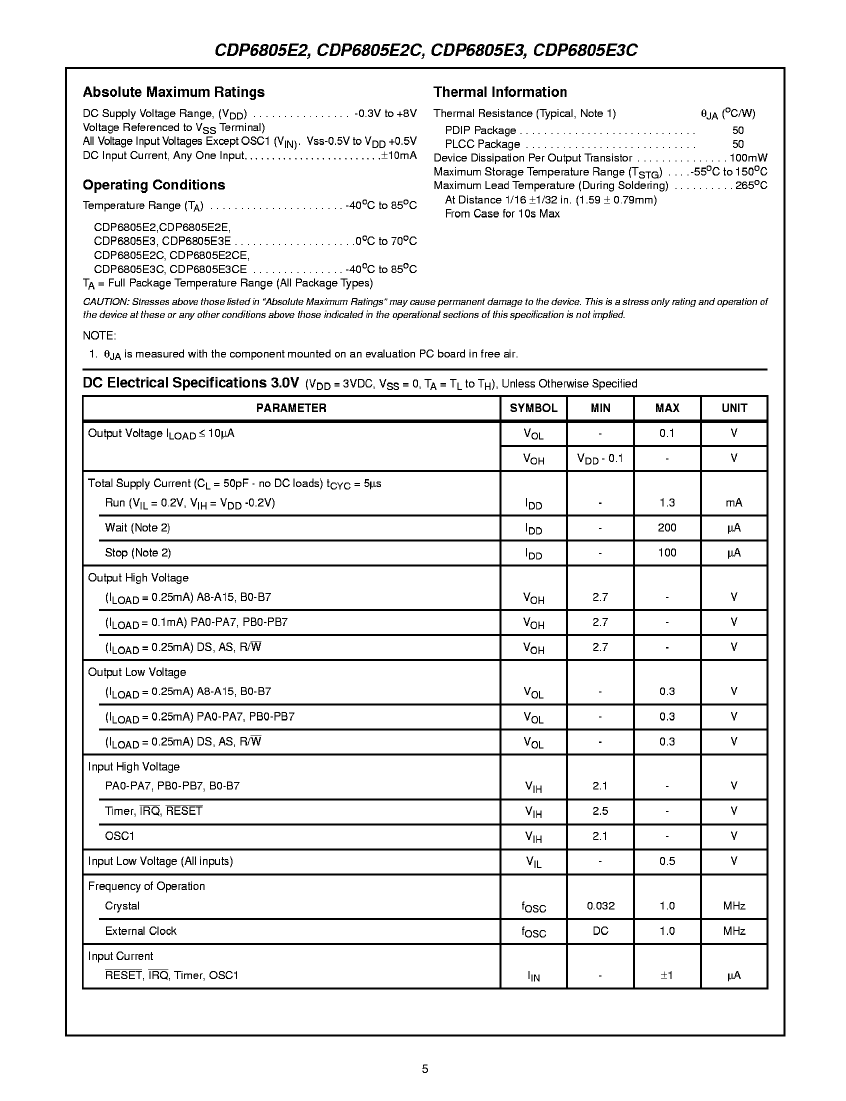

Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
