CR102JPRS115QF7 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> CR102JPRS115QF7

CR102JPRS115QF7: DescriptionROCKER SWITCH, SPST, LATCHED, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size875KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric View All

CR102JPRS115QF7 Overview

ROCKER SWITCH, SPST, LATCHED, PANEL MOUNT, ROHS COMPLIANT

CR102JPRS115QF7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	RED
Executor completed	MATTE
Actuator length	0.217 inch
Actuator material	POLYCARBONATE
Actuator type	PADDLE, ILLUMINATED ROCKER
body height	14.5 mm
Body length or diameter	23 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	16A@125VAC
Maximum contact current (AC)	16 A
Contact function	ON-OFF
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1500VRMS V
Electrical life	10000 Cycle(s)
End contact plating	SILVER
Shell material	NYLON
illumination	RED LED
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	CR
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	IP65
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.319 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

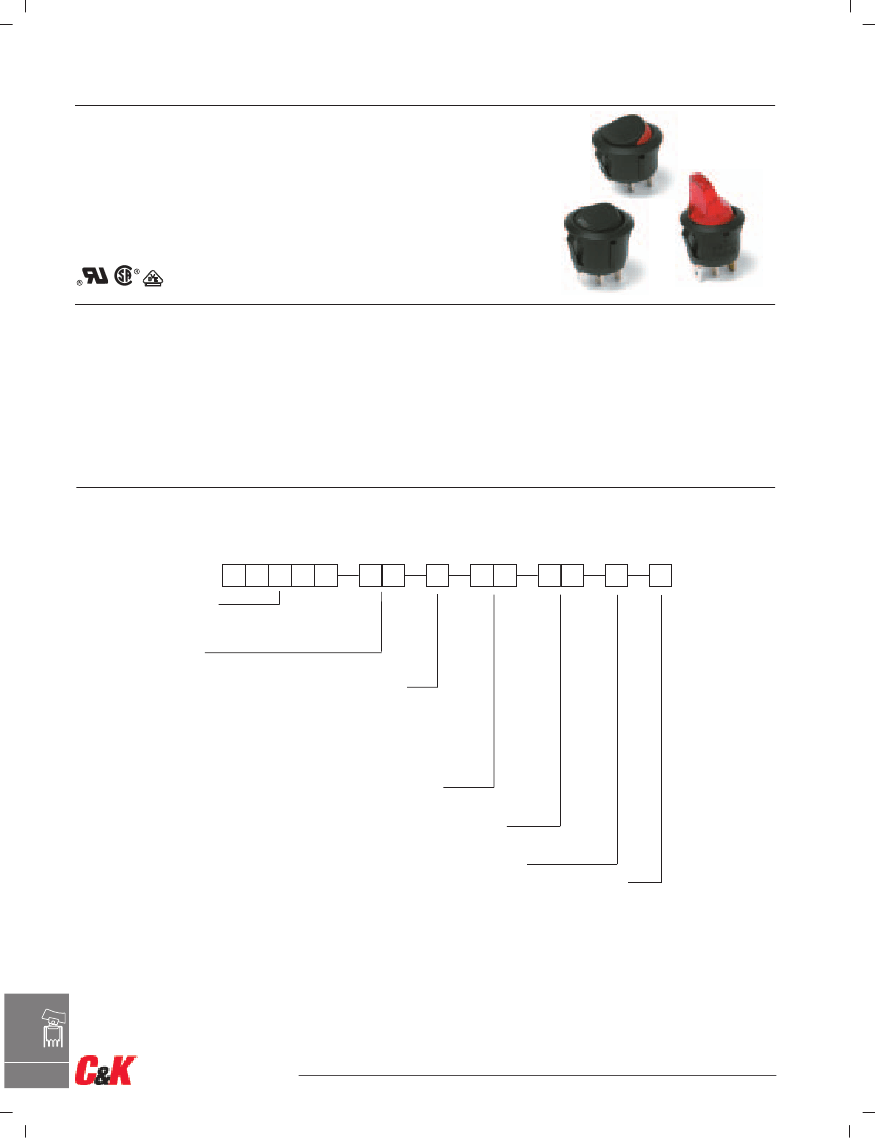

CR Series

Round Single Pole Specialty Rocker Switches

Features/Benefits

•

Round actuator and body

•

Nice styling

•

Multiple illuminated versions

available

•

IP65 splash proof rubber

boot option

Typical Applications

•

Appliances, small and large

•

Office equipment

•

Computers and peripherals

•

Audio/Video equipment

•

RoHS compliant

Models Available

Specifications

CONTACT RATING:

UL: 16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC.

VDE µ T85: 16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC.

ELECTRICAL LIFE: 10,000 make and break cycles at full load.

INSULATION RESISTANCE: 108

Ω

min.

DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.

OPERATING TEMPERATURE: -20ºC to + 85ºC

Materials

HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), matte finish.

ILLUMINATED ACTUATOR: Polycarbonate, matte finish.

CENTER CONTACTS: Silver plated, copper alloy.

END CONTACTS: Silver plated AgSn02ln03.

ALL TERMINALS: Silver plated, copper alloy.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages G–83 through G–85. For additional options not shown in catalog, consult Customer Service Center.

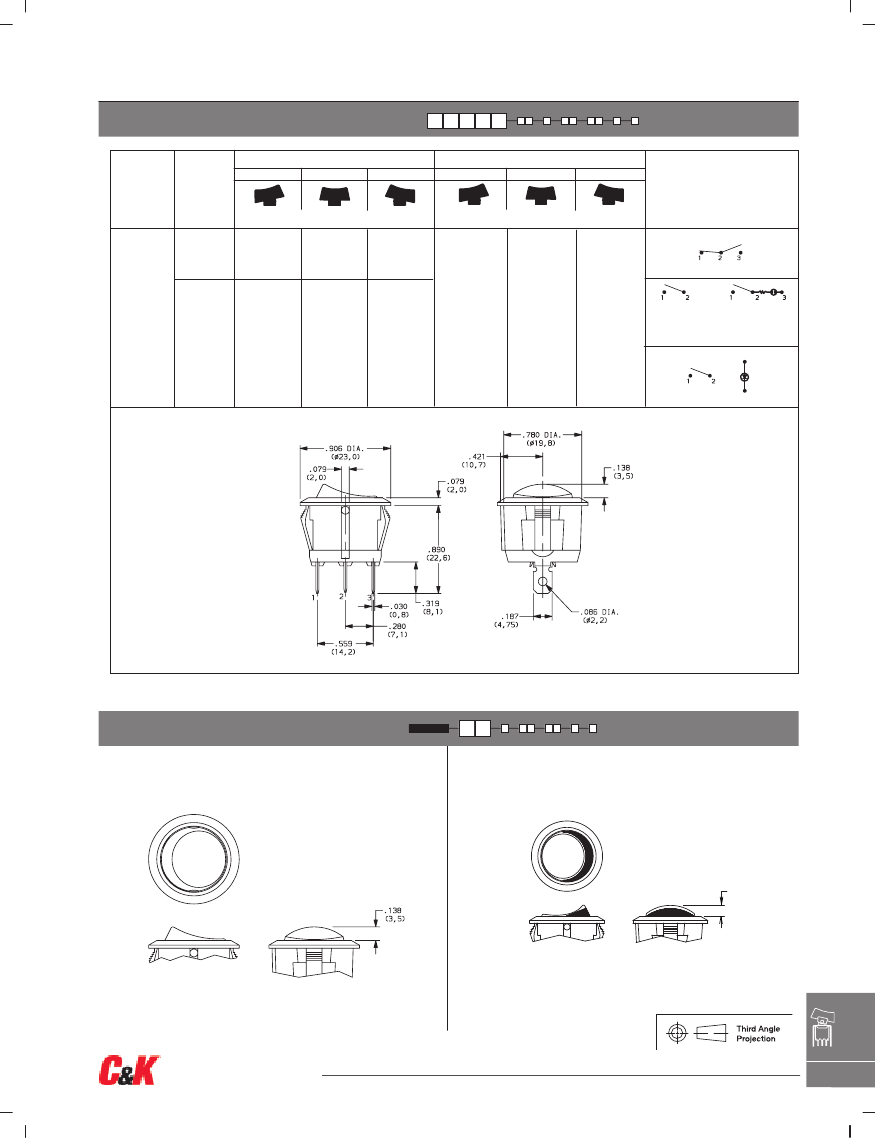

Switch Function

CR101

SPDT On-None-On

CR102

SPST On-None-Off

Actuator

Rocker

J2*

Two-tone rocker

Illuminated rocker

J4**

Circle, illuminated rocker

Oval, illuminated rocker

Paddle, rocker

JP**

Paddle, illuminated rocker

Actuator Color

Black

White

Red

Red, illuminated

Amber, illuminated

Green, illuminated

Mounting Style/Color

Snap-in, black

Snap-in, white

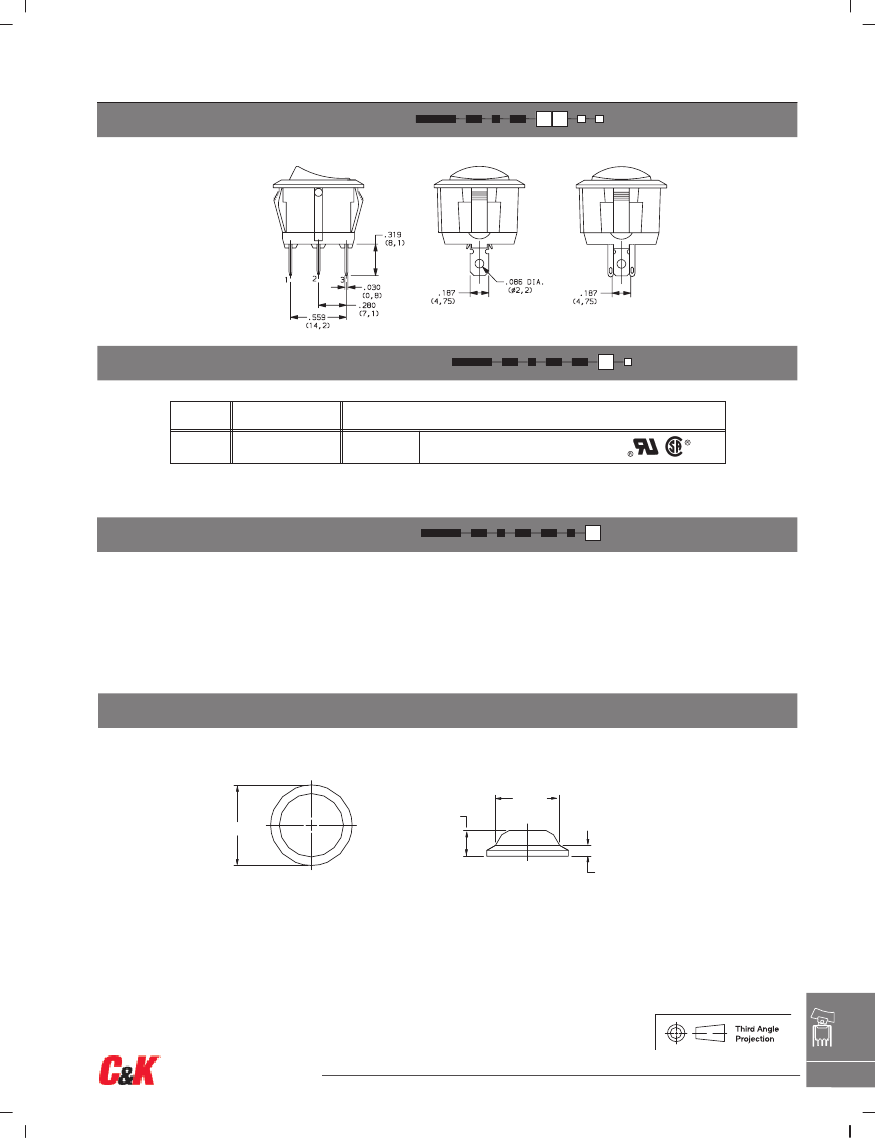

Termination

.187” quick connect

Contact Rating

Silver

Rocker

Lamp Rating

(NONE)

No lamp

LED

125 VAC neon

250 VAC neon

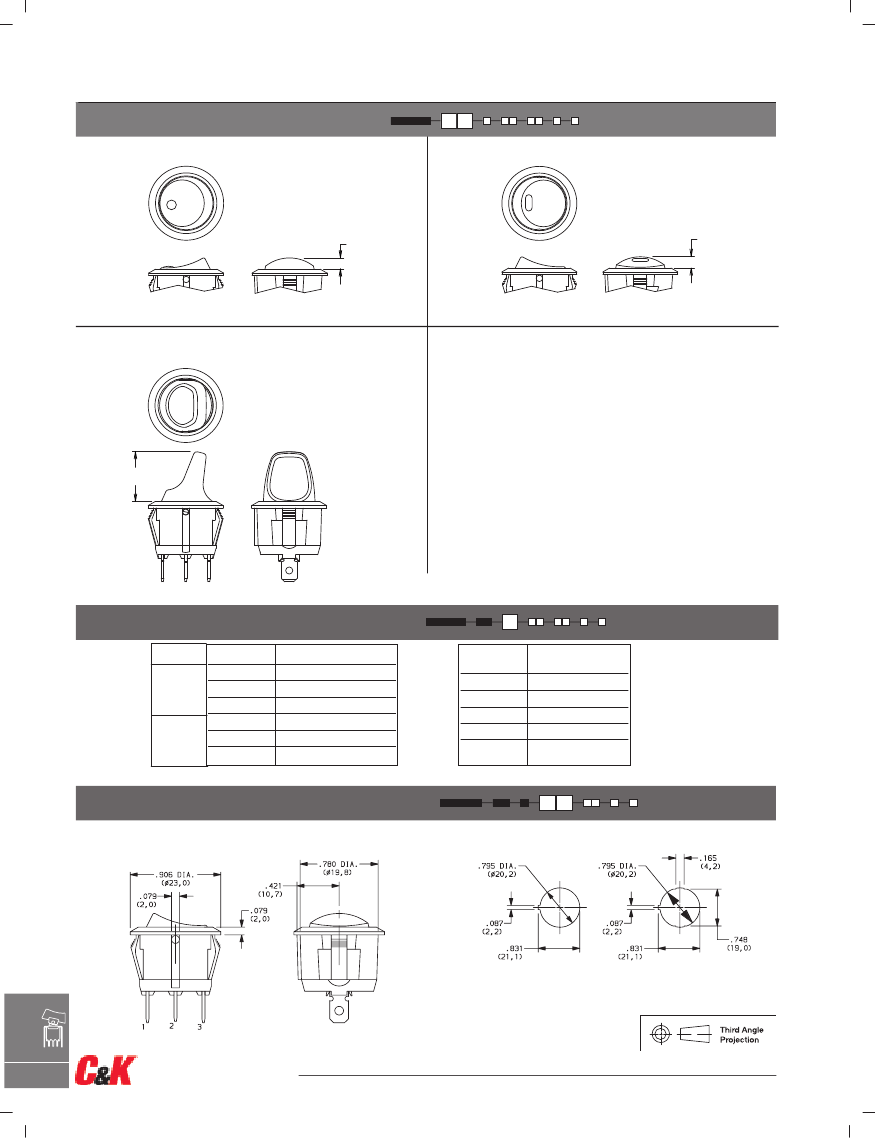

Refer to table on page 84 for actuator options.

** VDE rating for JP: 10 A @ 125 VAC / 6 A at 250 VAC.

G–82

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com
