UT6M628C-55PSAH datasheet, PDF

Datasheet> All Categories > storage> storage> UT6M628C-55PSAH

UT6M628C-55PSAH: DescriptionStandard SRAM, 8KX16, 55ns, CMOS, DIP-40; Categorystorage storage; File Size574KB，14 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

UT6M628C-55PSAH Overview

Standard SRAM, 8KX16, 55ns, CMOS, DIP-40

UT6M628C-55PSAH Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
package instruction	DIP,
Reach Compliance Code	unknown
Maximum access time	55 ns
JESD-30 code	R-XDIP-T40
length	50.8 mm
memory density	131072 bit
Memory IC Type	STANDARD SRAM
memory width	16
Number of functions	1
Number of terminals	40
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8KX16
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Filter level	MIL-PRF-38535 Class V
Maximum seat height	4.699 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	1M Rad(Si) V
width	15.24 mm
Base Number Matches	1

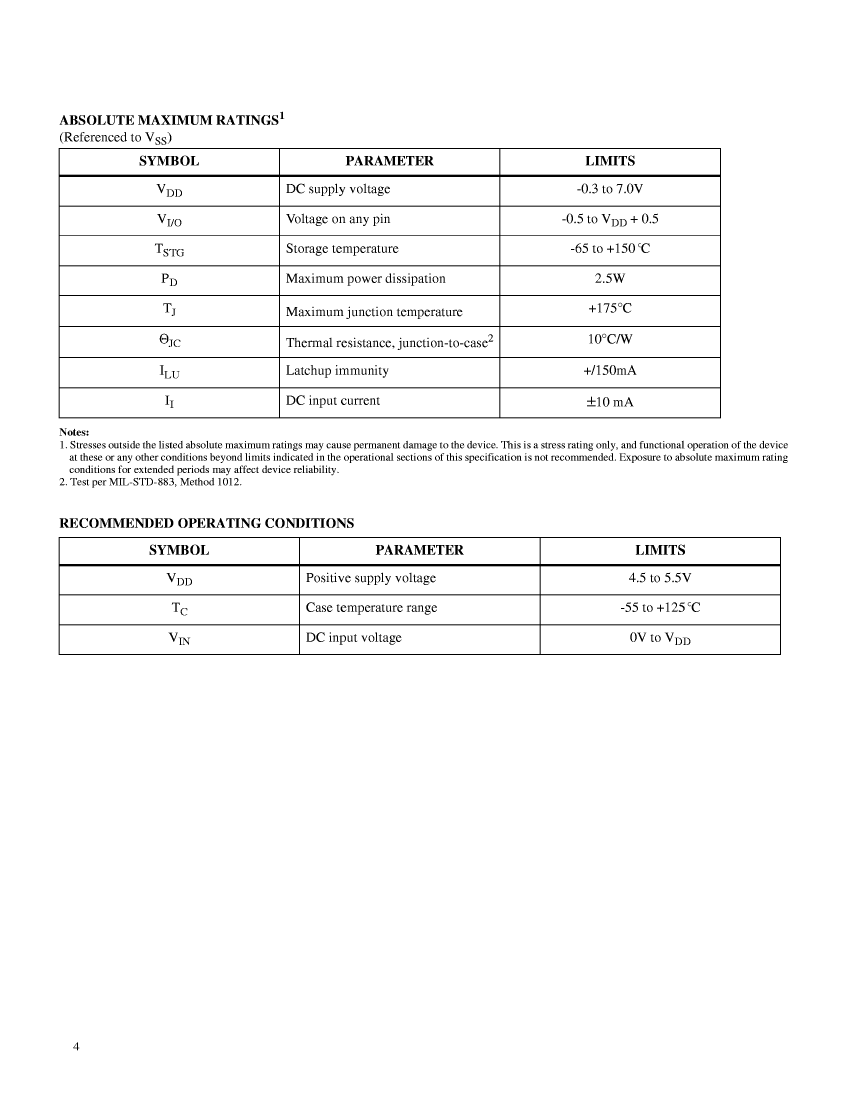

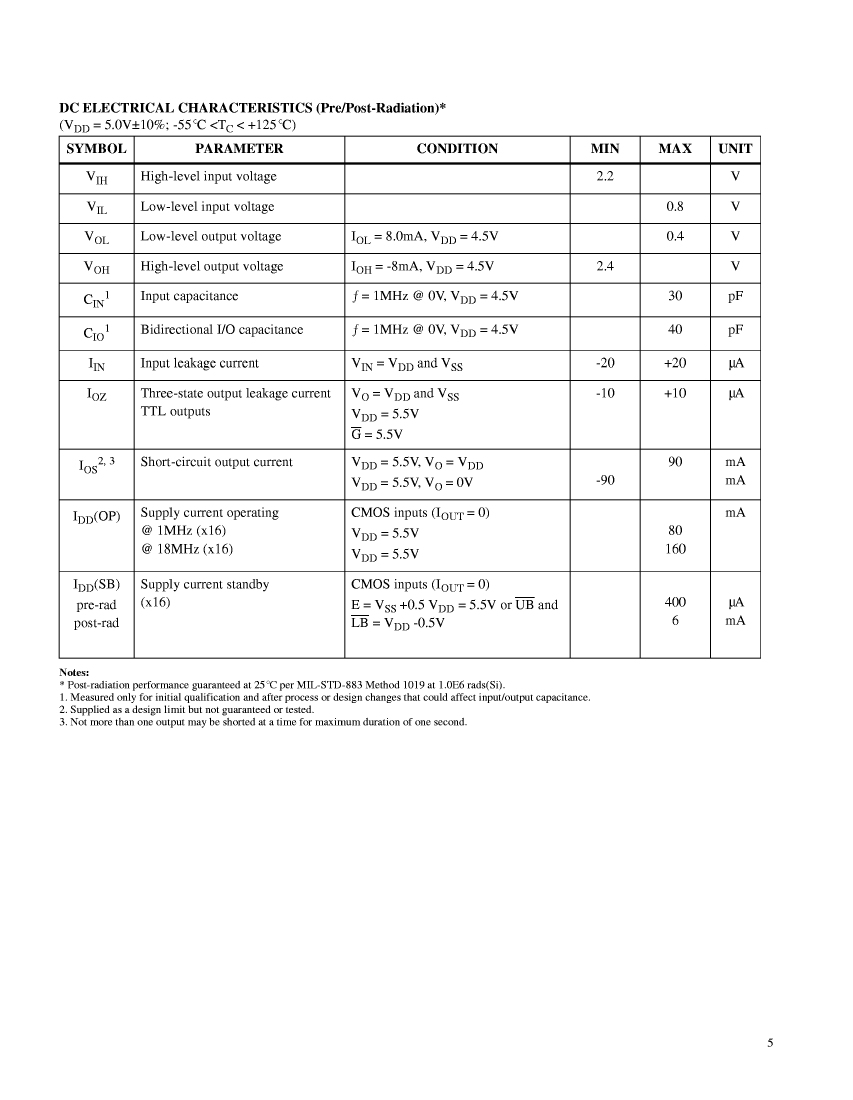

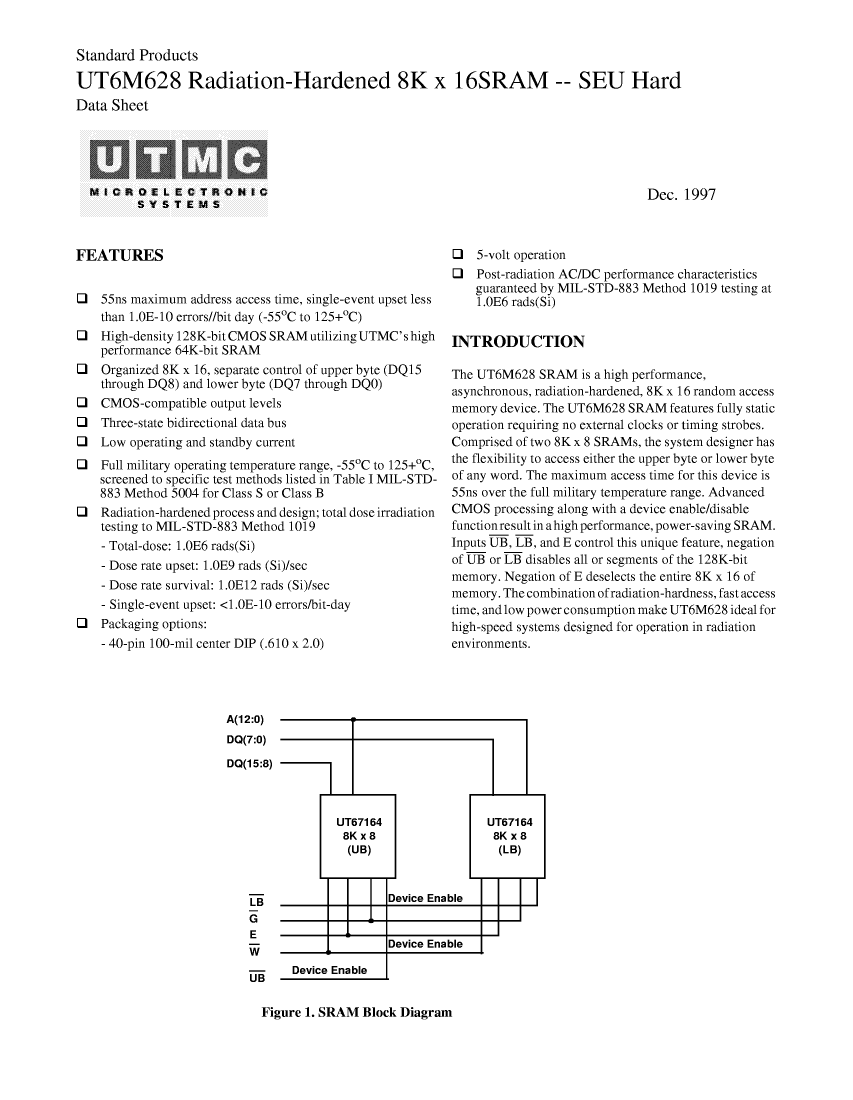

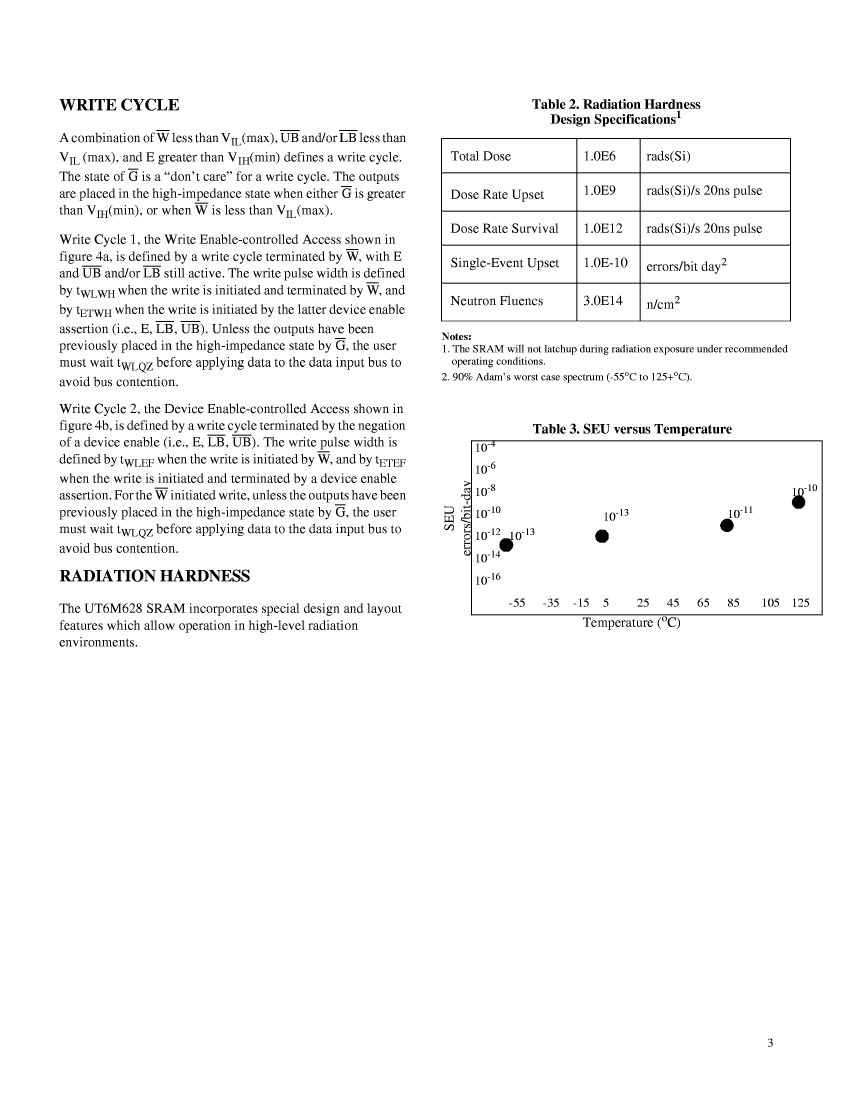

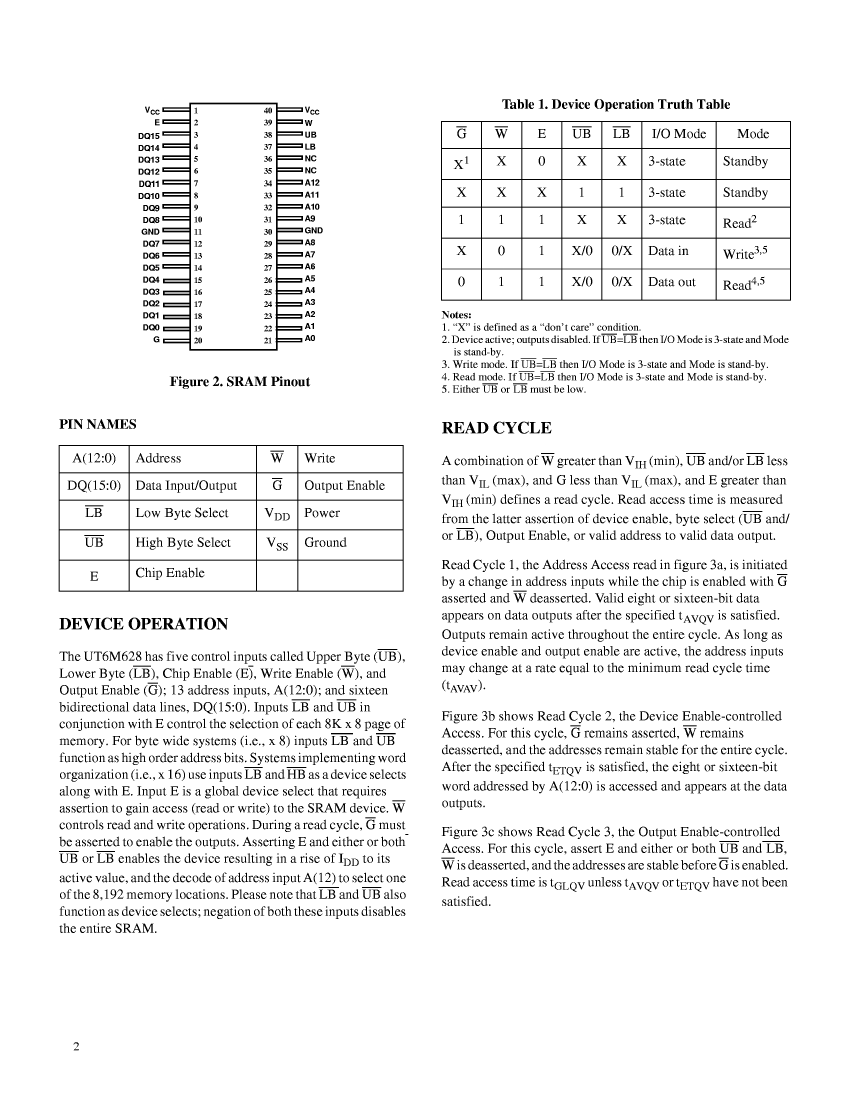

Preview

Download Datasheet

View All

UT6M628C-55PSAH Related Products

	UT6M628C-55PSAH	UT6M628C-55PBCH	UT6M628C-55PBCR
Description	Standard SRAM, 8KX16, 55ns, CMOS, DIP-40	Standard SRAM, 8KX16, 55ns, CMOS, DIP-40	Standard SRAM, 8KX16, 55ns, CMOS, DIP-40
Maker	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
package instruction	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	55 ns	55 ns	55 ns
JESD-30 code	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
length	50.8 mm	50.8 mm	50.8 mm
memory density	131072 bit	131072 bit	131072 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	16	16	16
Number of functions	1	1	1
Number of terminals	40	40	40
word count	8192 words	8192 words	8192 words
character code	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	8KX16	8KX16	8KX16
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q
Maximum seat height	4.699 mm	4.699 mm	4.699 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
total dose	1M Rad(Si) V	1M Rad(Si) V	100k Rad(Si) V
width	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1
