52287-0511: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52287-0511 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket

52287-0511 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	52287
Plug information	RIBBON CABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 2 to 15 circuits

s

For 26 AWG topcoated ribbon cable

s

Kinked PC tails for secure board retention

(except 2-circuit product)

s

Insulation Diameter: 1.60mm max.

s

Strip Length: 4.50mm

Reference Information

Packaging: Tube

Designed In: Millimeters

Electrical

Voltage: 150V AC

Current: 2.0A max.

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Wire Insertion Force: 4.9N (0.5kgf) max.

Wire Retention Force: 1.0N (0.1kgf) min.

Physical

Housing: PBTP, UL 94V-0

Terminal: Phosphor Bronze

Plating: Tin

Operating Temperature: -40 to +105˚C

2.00mm (.079") Pitch

Jumper Socket

52287

Removable Type

Vertical

Wire Traps/Jumpers/Holders

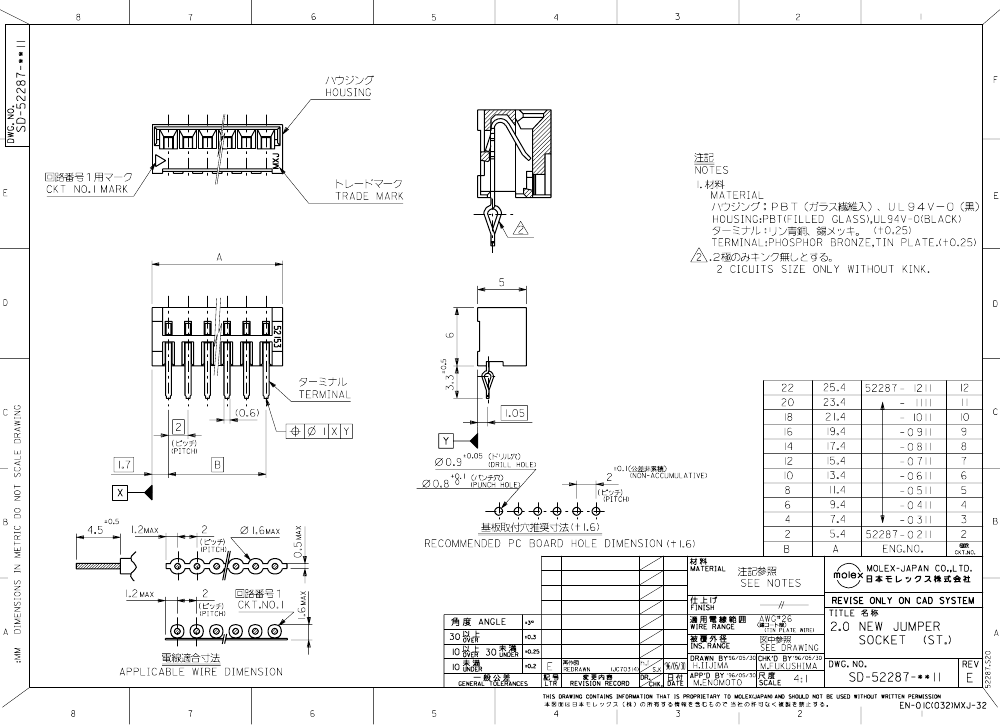

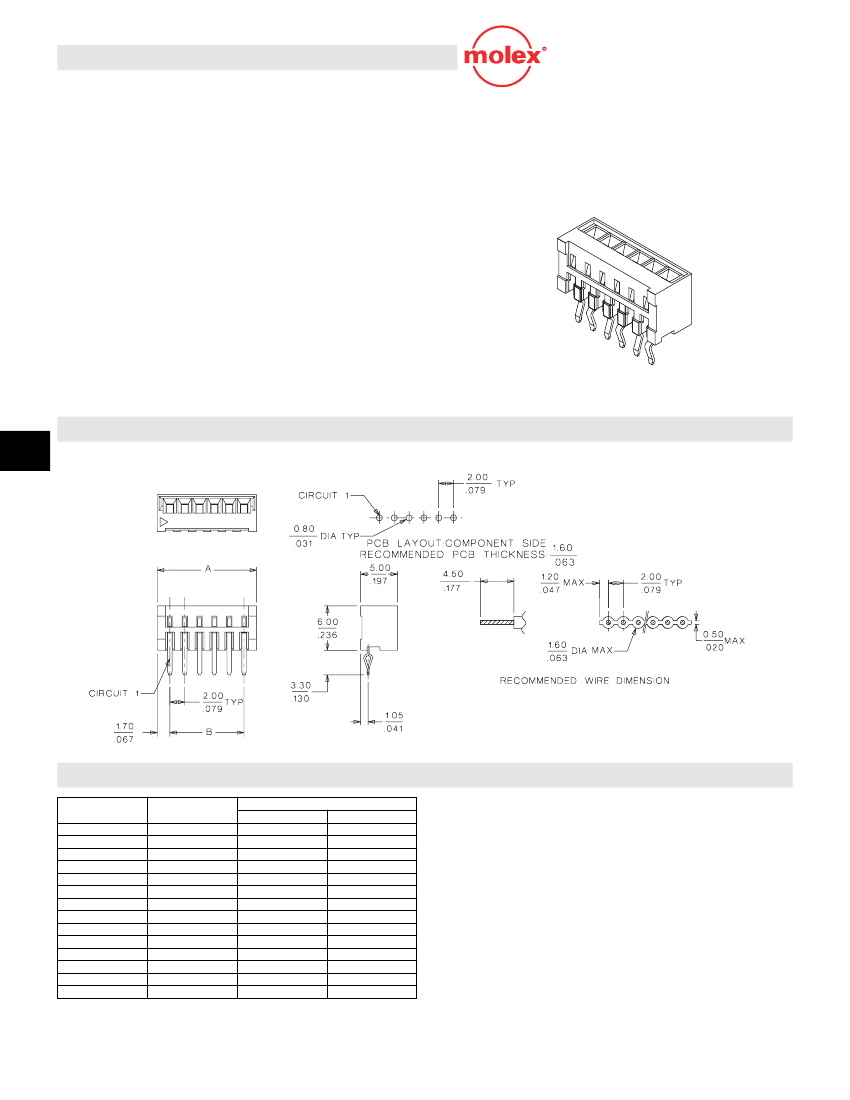

CATALOG DRAWING (FOR REFERENCE ONLY)

I

ORDERING INFORMATION AND DIMENSIONS

Circuits

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Order No.

52287-0211

52287-0311

52287-0411

52287-0511

52287-0611

52287-0711

52287-0811

52287-0911

52287-1011

52287-1111

52287-1211

52287-1311

52287-1411

52287-1511

5.40

7.40

9.40

11.40

13.40

15.40

17.40

19.40

21.40

23.40

25.40

27.40

29.40

31.40

Dimension

A

(.213)

(.291)

(.370)

(.449)

(.528)

(.606)

(.685)

(.764)

(.843)

(.921)

(1.000)

(1.079)

(1.157)

(1.236)

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

B

(.079)

(.157)

(.236)

(.315)

(.394)

(.472)

(.551)

(.630)

(.709)

(.787)

(.866)

(.945)

(1.024)

(1.102)

I-16
