Z84C0010VEC datasheet, PDF - EEWORLD Datasheet

Z84C0010VEC: DescriptionMicroprocessor, 8-Bit, 10MHz, CMOS, PQCC44, CC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，36 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C0010VEC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z84C0010VEC	-	-	View	Buy Now

Microprocessor, 8-Bit, 10MHz, CMOS, PQCC44, CC-44

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFN
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
Other features	DRAM MEMORY REFRESH COUNTER
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	10 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	10 MHz
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

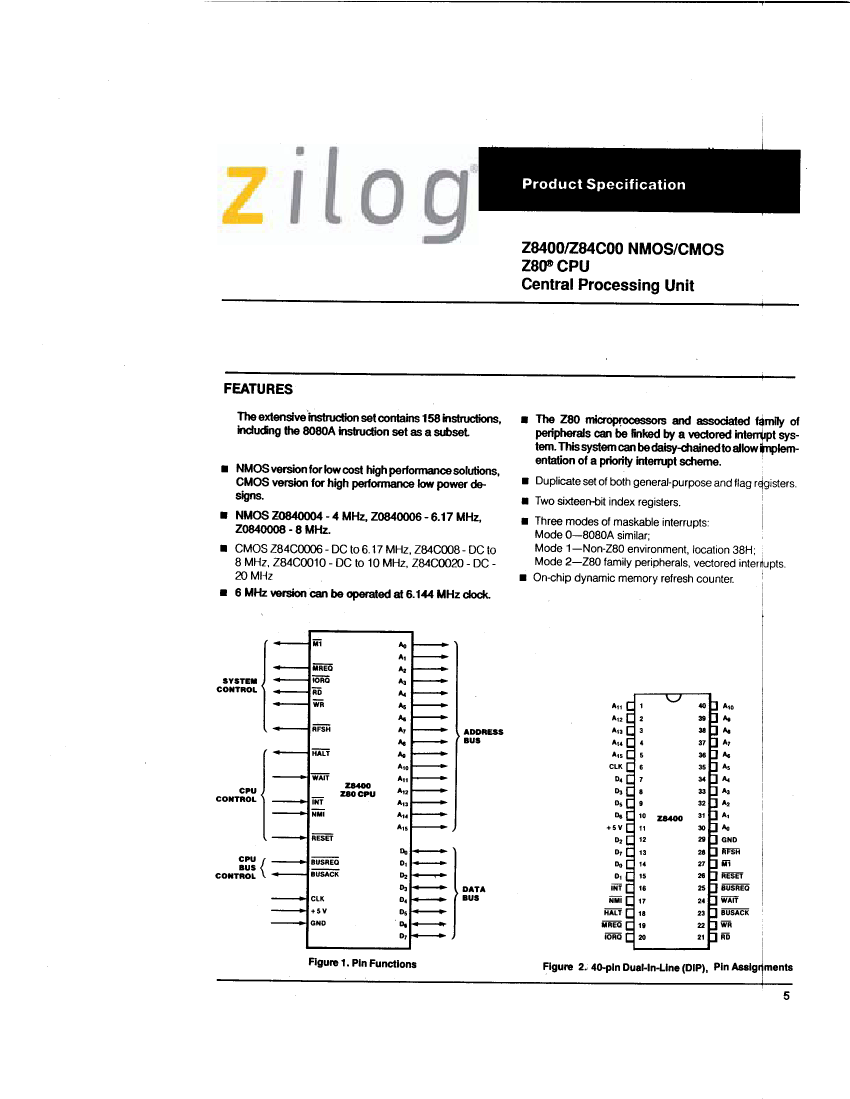

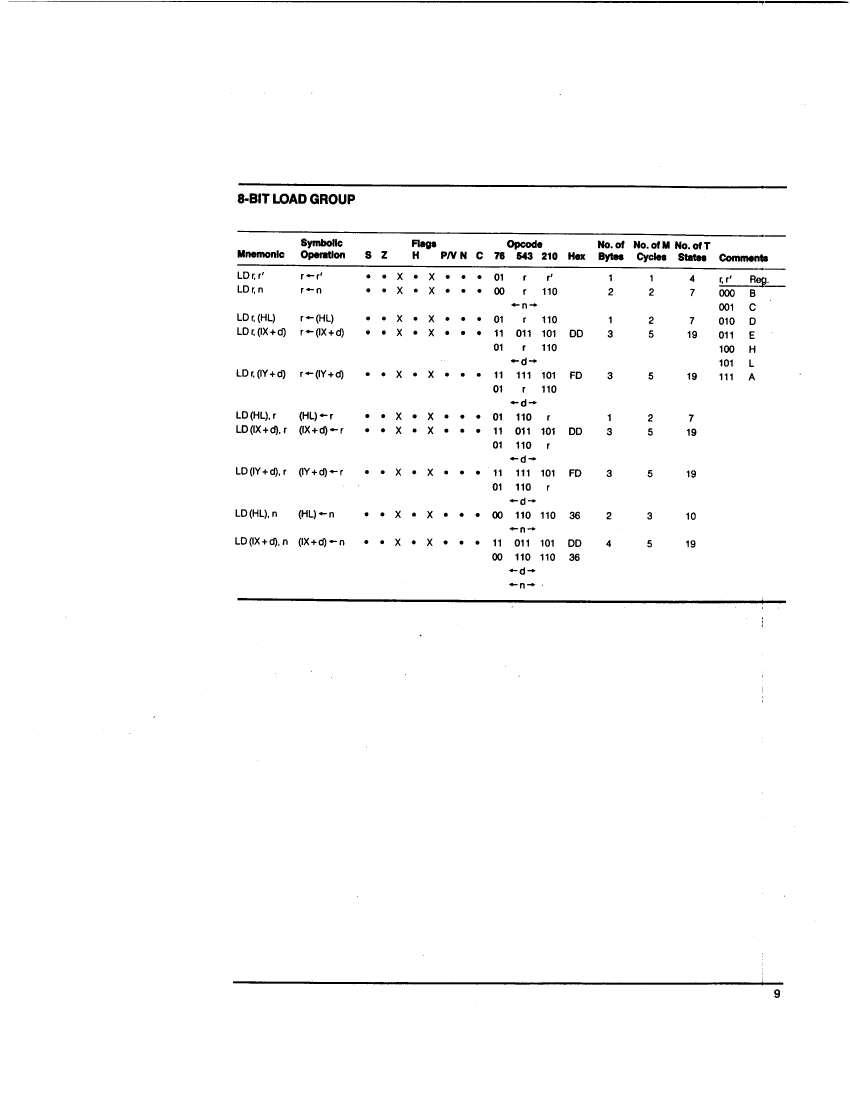

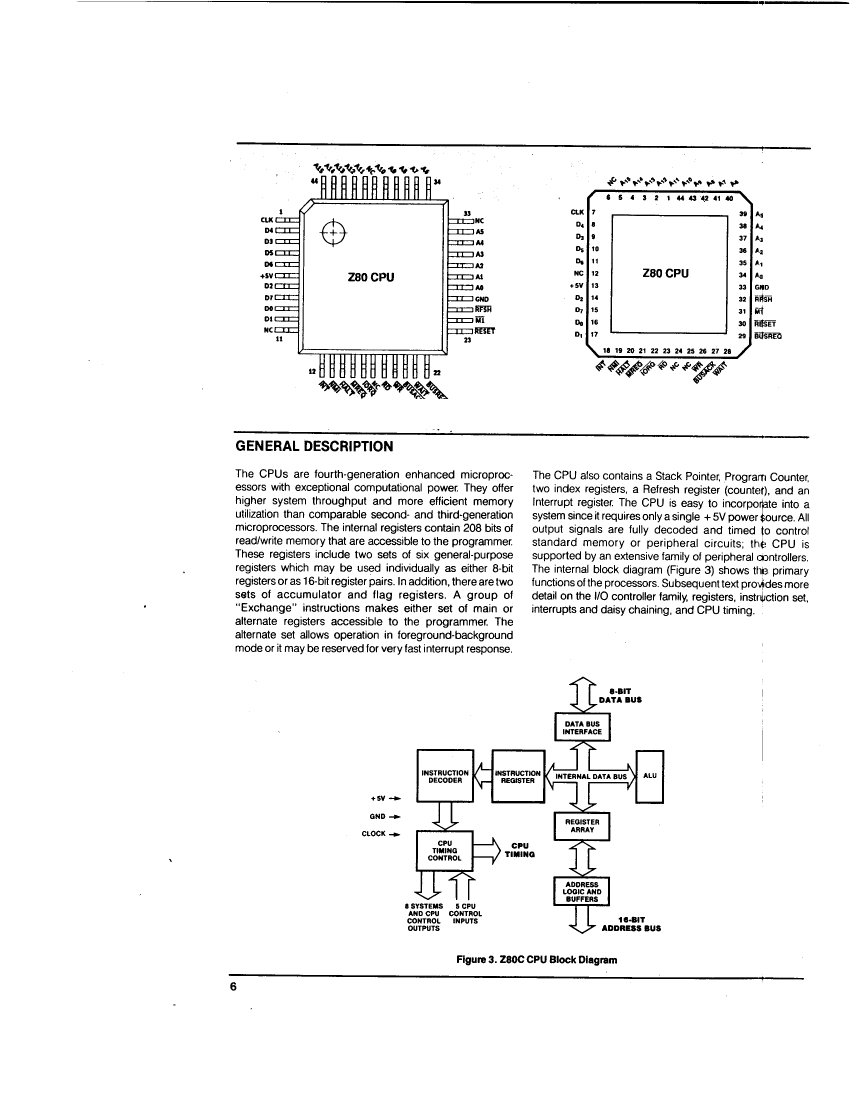

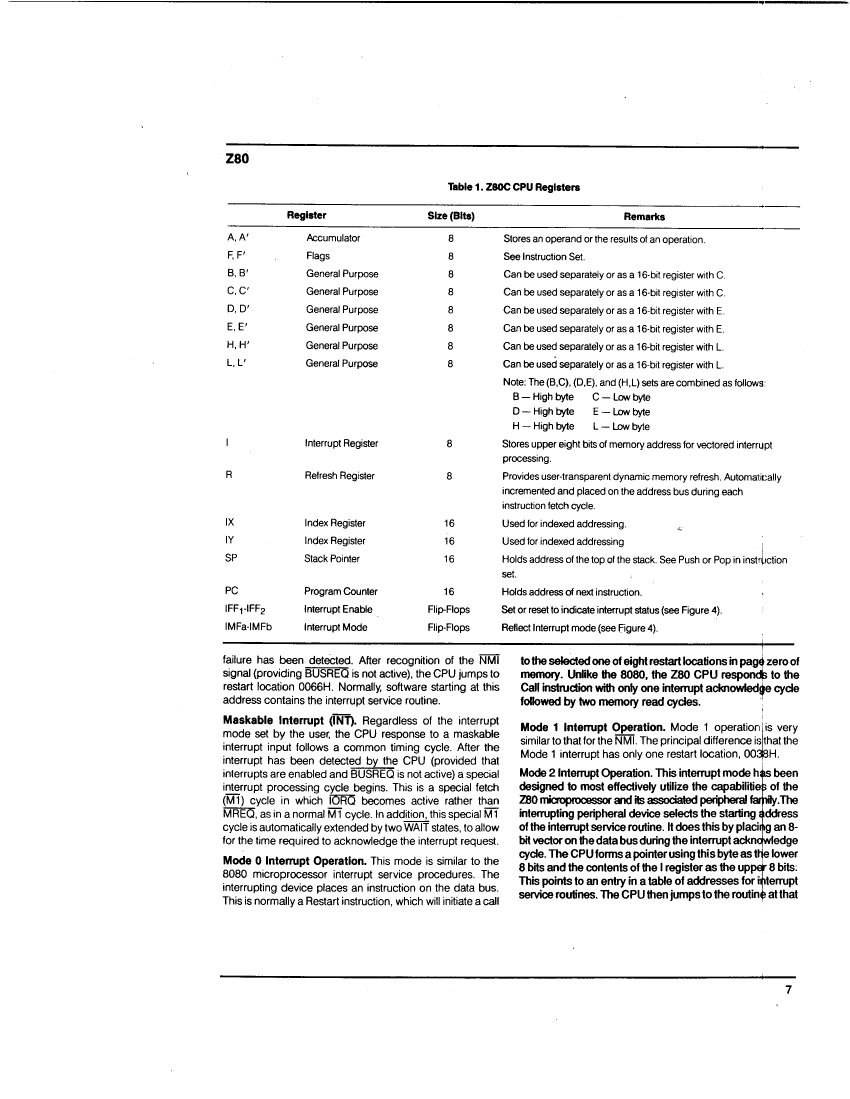

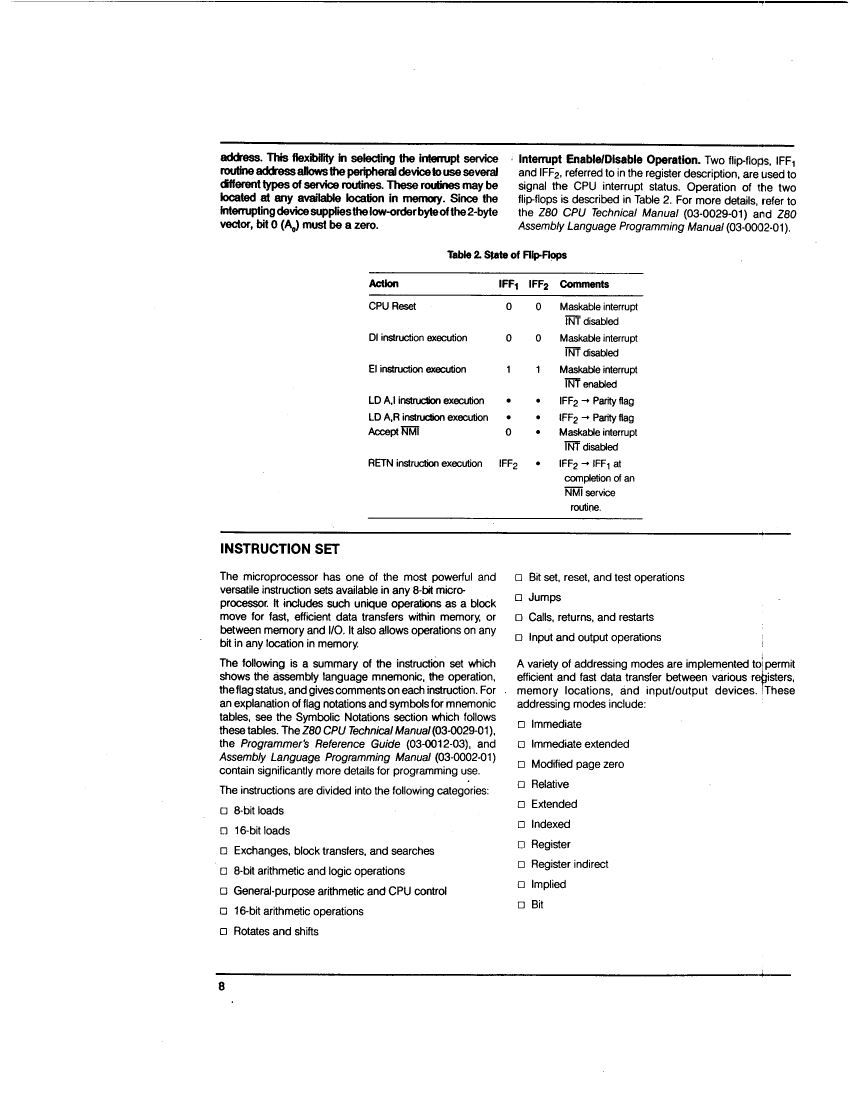

PS017801-0602

	Z84C0010VEC	Z84C0010VEC00TR
Description	Microprocessor, 8-Bit, 10MHz, CMOS, PQCC44, CC-44	RISC Microprocessor, 8-Bit, 10MHz, CMOS, PQCC44
Is it Rohs certified?	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.
package instruction	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown	unknown
bit size	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0
Number of terminals	44	44
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
speed	10 MHz	10 MHz
Maximum slew rate	50 mA	50 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR, RISC
Base Number Matches	1	1
