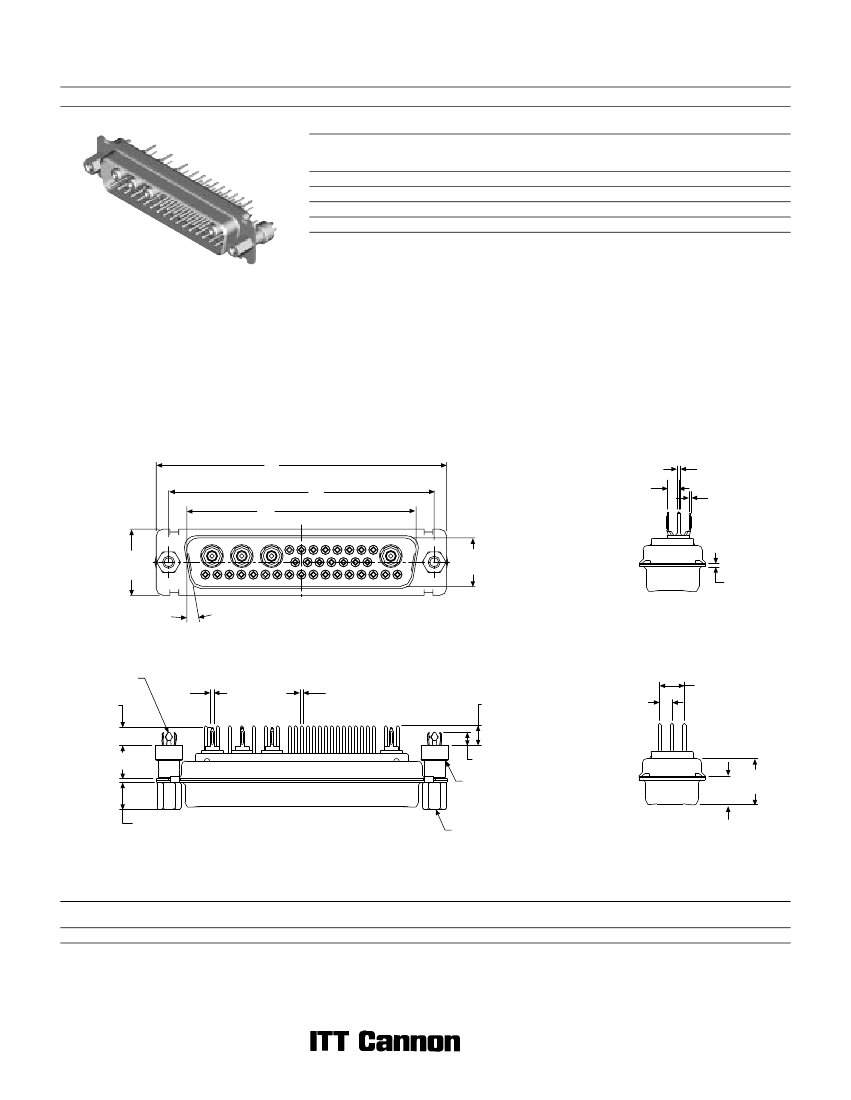

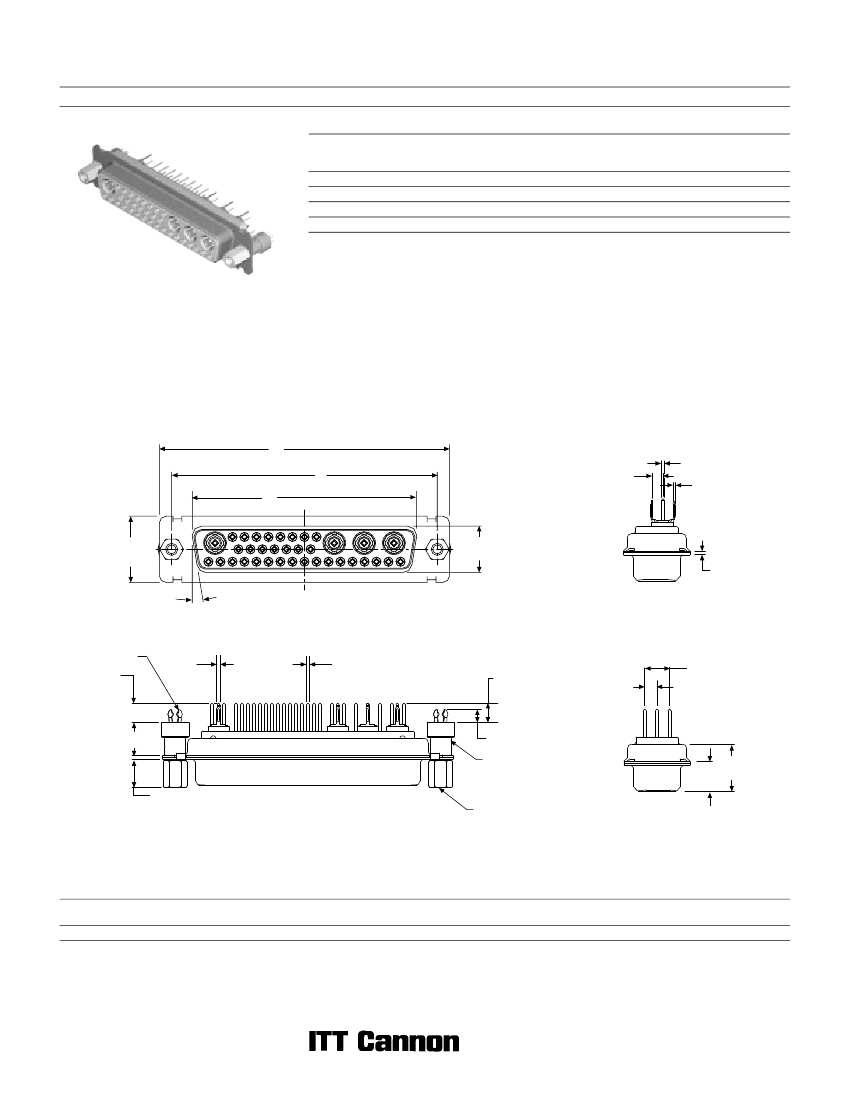

D Subminiature
Coaxial Straight PCB (Size DD)
Plug
Military/High Reliability
75 Ohm Part Numbers* with Standoff #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Part Number
Without Screw Locks
Without Boardlocks
DDMMV24C7PN
DDMMV36C4PN
DDMMV43C2PN
DDMMV47C1PN
Part Number
Without Screw Locks
With Boardlocks
DDMMZ24C7PN
DDMMZ36C4PN
DDMMZ43C2PN
DDMMZ47C1PN
Part Number
With Screw Locks
With Boardlocks
DDMMN24C7PN
DDMMN36C4PN
DDMMN43C2PN
DDMMN47C1PN
Note: *For 50 Ohm Coaxial substitute X for C. Example: DDMMV24XPN
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see page 256.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
For alternate 50 Ohm coaxial configuration,
see page 225.
Engaging Face
A
C
B
2,54
(.100)
Ø 0,51
(.020)
0,62
(.024)
E
D
L
10°
Screw lock, boardlock, and signal contacts
removed for clarity
BOARDLOCK
3,45
(.136)
0,82
(.032)
Ø 0,76
(.030)
4,52
(.178)
2,84
(.112)
5,69
(.224)
7,62
±
0,25
(.300
±
.010)
2,92
(.115)
STANDOFF
#4-40 UNC
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and coaxial contact
removed for clarity
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,81 (2.079)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
11,07 (.436)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,82 (.426)
W
±0,41
(.016)
6,84 (.269)
L
±0,25
(.010)
0,99 (.039)
152
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
Coaxial Straight PCB (Size DD)
Receptacle
Military/High Reliability
75 Ohm Part Numbers* with Standoff #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Part Number
Without Screw Locks
Without Boardlocks
DDMMV24C7SN
DDMMV36C4SN
DDMMV43C2SN
DDMMV47C1SN
Part Number
Without Screw Locks
With Boardlocks
DDMMZ24C7SN
DDMMZ36C4SN
DDMMZ43C2SN
DDMMZ47C1SN
Part Number
With Screw Locks
With Boardlocks
DDMMN24C7SN
DDMMN36C4SN
DDMMN43C2SN
DDMMN47C1SN
Note: *For 50 Ohm Coaxial substitute X for C. Example: DDMMV24X7SN
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see page 259.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
For alternate 50 Ohm coaxial configuration,
see page 225.
Engaging Face
A
C
B
2,54
(.100)
Ø 0,51
(.020)
0,62
(.024)
E
D
L
10°
Screw lock, boardlock, and signal contacts
removed for clarity
BOARDLOCK
3,45
(.136)
0,82
(.032)
Ø 0,76
(.030)
4,52 (.178)
2,84
(.112)
5,69
(.224)
7,62
±
0,25
(.300
±
.010)
2,92
(.115)
STANDOFF
#4-40 UNC
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and coaxial contact
removed for clarity
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,42 (2.064)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
10,74 (.423)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
