Z84C3006CME datasheet, PDF - EEWORLD Datasheet

Z84C3006CME: DescriptionProgrammable Timer, 4 Timer(s), CMOS, CDIP28, HERMETIC SEALED, CERAMIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size426KB，16 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

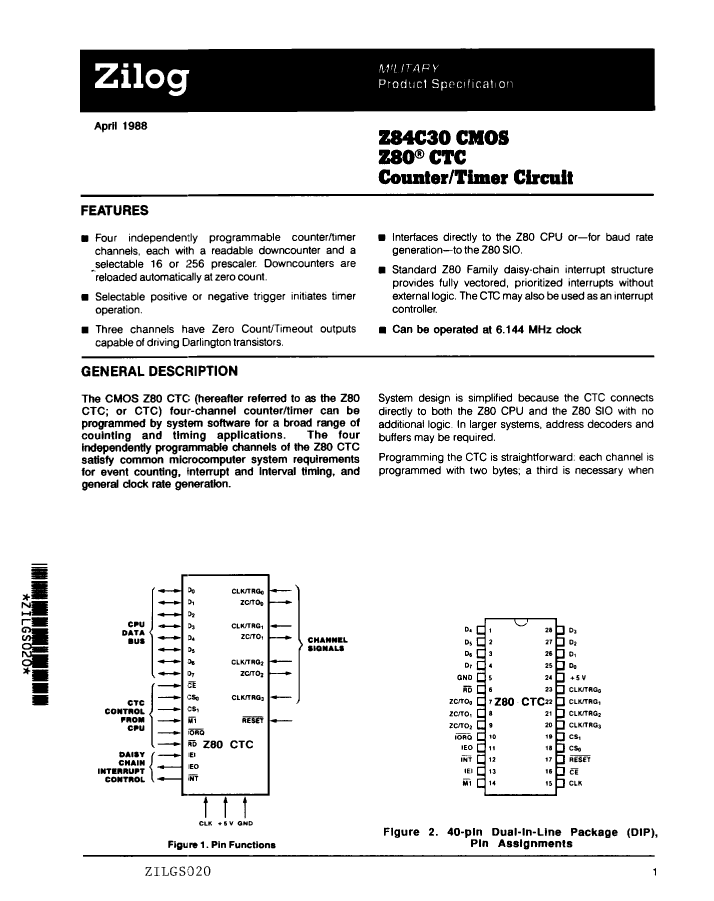

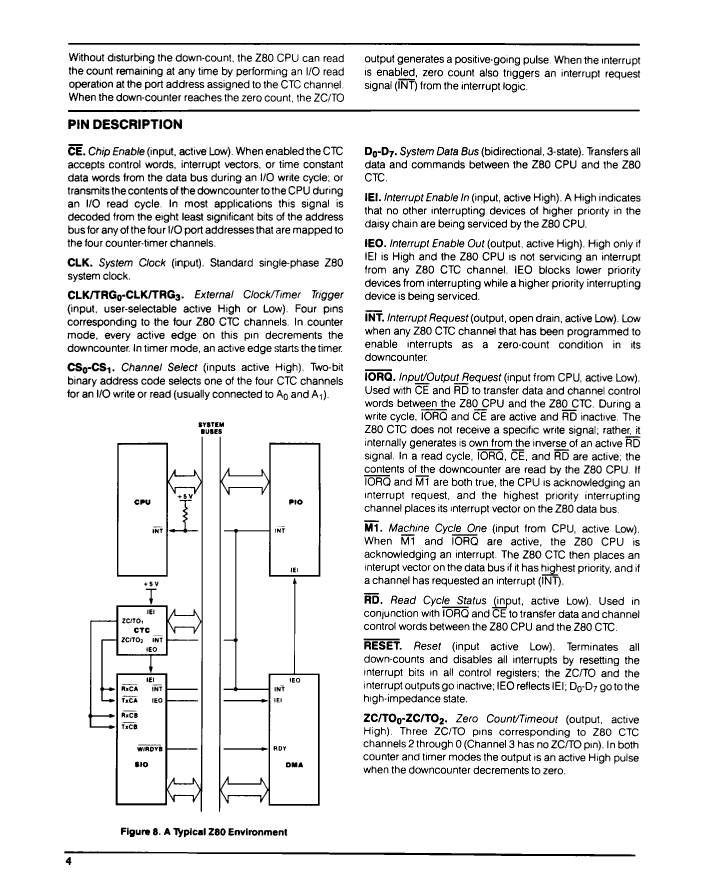

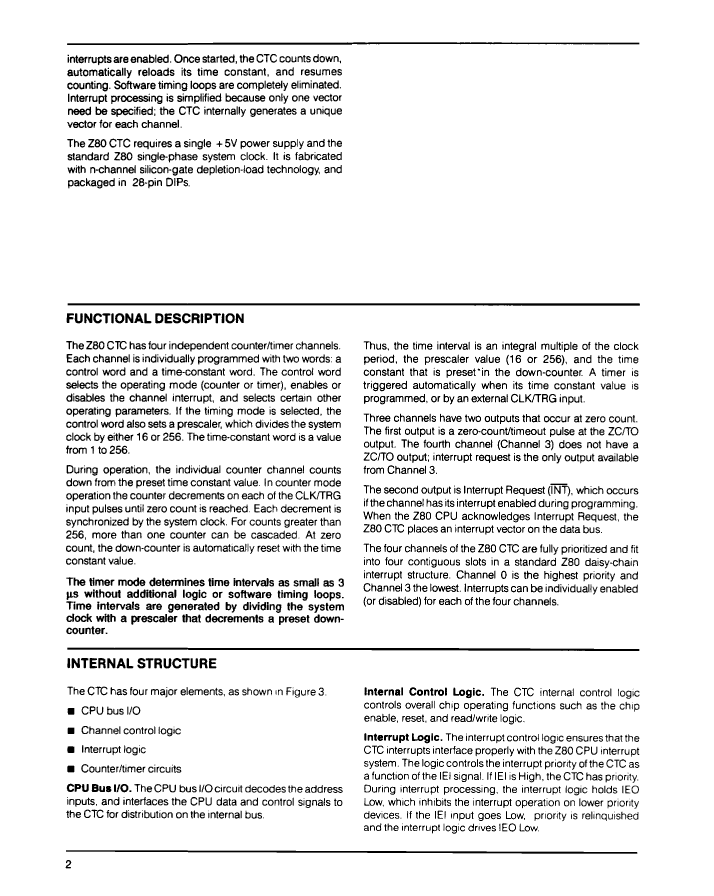

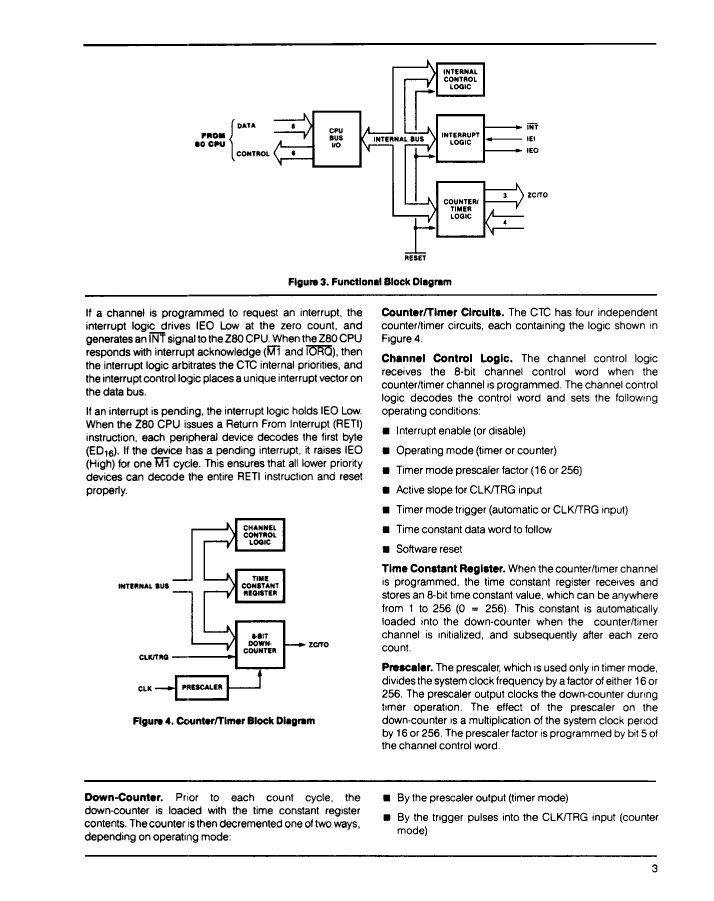

Z84C3006CME Overview

Programmable Timer, 4 Timer(s), CMOS, CDIP28, HERMETIC SEALED, CERAMIC, DIP-28

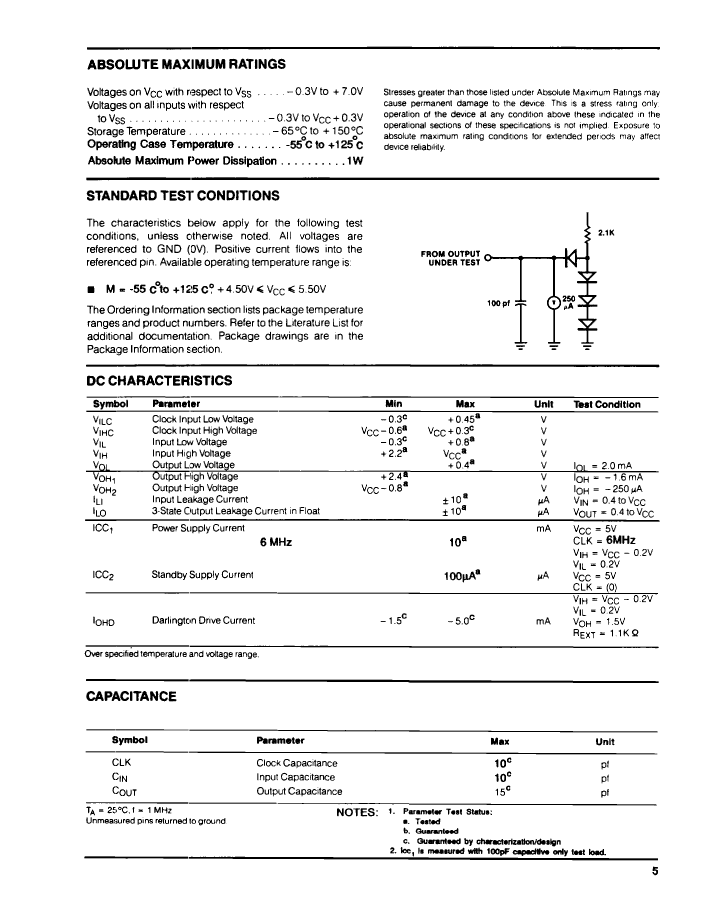

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PRESCALED /16, /256 TIMER I/P'S
Bus compatibility	Z80
maximum clock frequency	6 MHz
External data bus width	8
Information access methods	PARALLEL, DIRECT ADDRESS
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
length	35.179 mm
Number of digits	8
Number of terminals	28
Number of timers	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.699 mm
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE
Base Number Matches	1

	Z84C3006CME	5962-8951501XX
Description	Programmable Timer, 4 Timer(s), CMOS, CDIP28, HERMETIC SEALED, CERAMIC, DIP-28	Programmable Timer, 1 Timer(s), CMOS, CDIP28, CERAMIC, DIP-28
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	28	28
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
External data bus width	8	8
JESD-30 code	R-CDIP-T28	R-CDIP-T28
length	35.179 mm	35.179 mm
Number of digits	8	8
Number of terminals	28	28
Number of timers	4	1
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.699 mm	4.699 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, PROGRAMMABLE	TIMER, PROGRAMMABLE
Base Number Matches	1	1
