BNC Isolated Receptacle
(PCB Mounting)
BNC- □□ RD Series
Conforming
Standard
MIL-C-39012
Lock Type

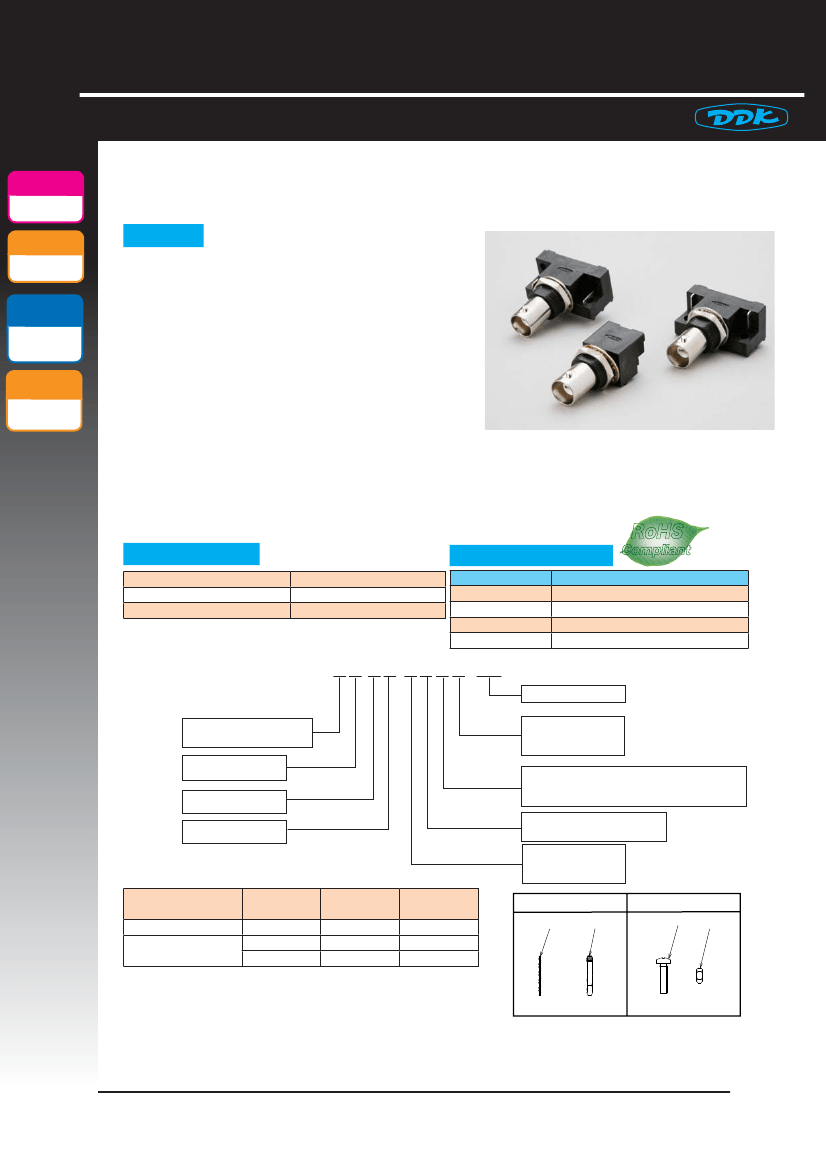

FEATURE
・
BNC-RD series is an isolated BNC receptacle connector
for PCB mounting.
BNC
Characteristic
Impedance
Unmatched
・The outer conductor and PCB are isolated by PBT resin
housing.
・The ground contact is installed along the outer conductor
and united with insulator adjacent to the contact.
・The tuning fork contact design for low cost.
・Horizontal and vertical mounting styles are available.
・The horizontal mounting height is 14.0mm from PCB
surface.
・Varieties of applications such as, computer, communication and medical equipment.
Mounting
Type
DIP
RoHS
SPECIFICATIONS
Characteristic Impedance
Dielectric Withstanding Voltage
Insulation Resistance
Unmatched
1500V AC(r.m.s.) / 1 minute
5000M Ω (min.) at 500V DC
MATERIAL / FINISH
Item
Housing
Outer Conductor
Contact(Socket)
Insulator
Compliant
Compliant
Material / Finish
PBT(UL94V-0）
Zinc Alloy / Ni Plating
Copper Alloy
PBT（UL94V-0）
BNC- □□ RD- □□□□ -FA
FA: Lead Free
L ：Right Angle
S：Straight
F：with Flange
N：without Flange
R : Receptacle
Deviation
Contact Plating
A：Ag Plating
B：Au Plating
Panel Mounting Hex Nut, Lock Washer
A：with Hex Nut, Lock Washer
B： without Hex Nut, Lock Washer
P ：Board Lock
S：Thread (Attached)
Houing Color
B ：Black
W：White
Connector Style
Straight Style
Right Angle Style
Flange
with Flange
Less Flange
with Flange
Board Lock
Type
○
○
○
○
○：available
：not available
※ BNC-SFRD- □ P □□ -FA: Straight Style, Board Lock Type
※ BNC-LFRD- □ S □□ -FA: Right Angle Style, Thread Type
＊Option
＊Attached
Thread Type
○
Panel Mounting Fitting
Lock Washer Hex Nut
PCB Mounting Fitting
Pan-head
Screw
Hex Nut
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
090707
http://www.ddknet.co.jp
BNC- □ □ RD Series
Unit：mm

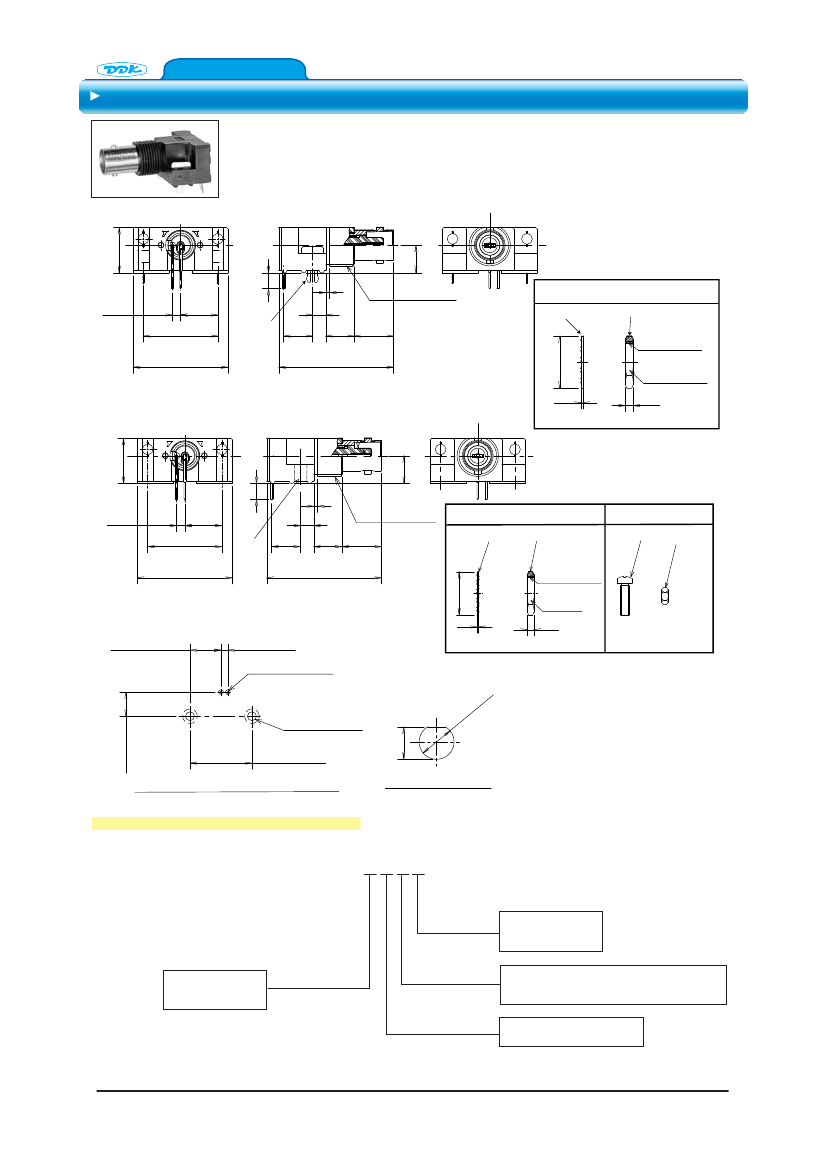

○ Horizontal Mounting Style (with Flange)
＜Board Lock Type＞
14
8.56
1.2
2.54
11.43
22.86
4.75
4.06
8.64
12
１／２−２８ＵＮＥＦ−２Ｂ
29.2
(35)
16
1/2-28UNEF-2A
Panel Mounting Fitting
Lock Washer Hex Nut
Board Lock 8.89
Hex Diagonal Width：
１４
0.6
2.4
＊Option
＜Thread Type＞
14
8.56
1.2
4.75
2.54
11.43
22.86
4.06
8.64
12
1/2-28UNEF-2A
Panel Mounting Fitting
Lock Washer
Hex Nut
PCB Mounting Fitting
Pan-head
Screw
Hex Nut
29.2
8.89
PCB
Mounting
Hole
(35)
16
１／２−２８ＵＮＥＦ−２Ｂ
Hex Diagonal Width：
１４
0.6
11.43
0.05
2.4
※Attached
※Option
2.54
0.05
２− ０．
８９
０．
０８
(Thru-hole)
.1
+0
0
2-Ø1.5 (Land)
Ｓ
Ｇ
0.05
2-Ø4.5 (Land)※
22.86
0.05
8.89
PCB Mounting Dimensions t=1.6）
（
Note ※ Board lock style requires φ 4.5 land.
Panel Mounting Dimension
※
Boad lock pins also requires soldering when mounting.
BNC-LFRD- □□□□ -FA
12
0.1
２− ３．
３
０．
０５
(Thru-hole)
12
.9
Contact Plating
A：Ag Plating
B：Au Plating
Panel Mounting Hex Nut, Lock Washer
A：with Hex Nut, Lock Washer
B： without Hex Nut, Lock Washer
P ：Board Lock
S：Thread (Attached)
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
Housing Color
B ：Black
W：White
2
BNC- □ □ RD Series
Unit：mm

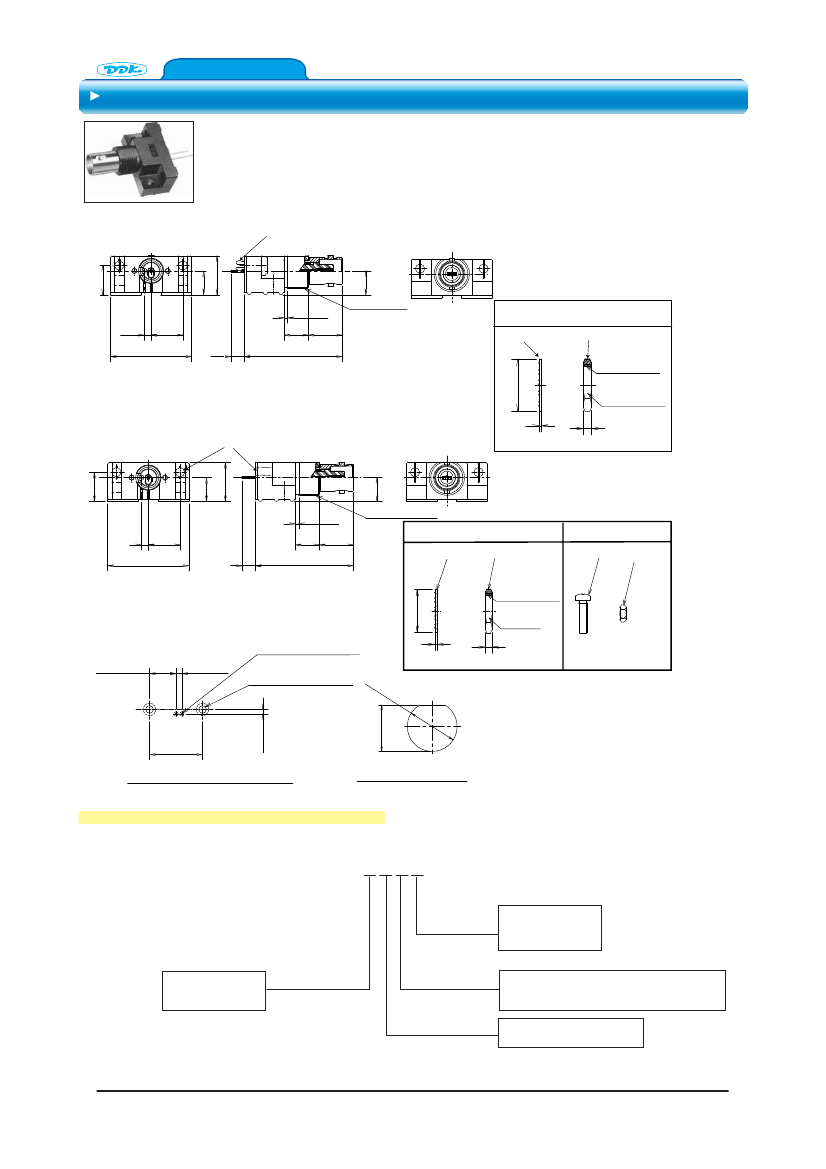

○ Horizontal Mounting Style (without Flange)
14
4.75
1/2-28UNEF-2A
1.2
2.54
5.08
10.16
14.76
Board Lock
5.08 7.87
8.64
(35.0)
12.0
8.56
Panel Mounting Fitting
Lock Washer Hex Nut
１／２−２８ＵＮＥＦ−２Ｂ
16
Hex Diagonal Width：
１４
0.6
＊Option
0.05
2.4
10.16
0.05
5.08
2-φ2.01
0.05
（Thru-hole）
2-φ3.0(Land)
2-φ0.89
2-φ1.5(Land)
0.08
(Thru-hole）
0.1
φ
12
.9
+0
0 .1
G S
2.54
0.05
5.08
0.05
PCB Mounting Dimensions t=1.6）
（
Panel Mounting Dimension
※ Board lock style is only available.
※ Boad lock pins also requires soldering when mounting.
BNC-LNRD- □ P □□ -FA
12.0
Contact Plating
A：Ag Plating
B：Au Plating
Panel Mounting Hex Nut, Lock Washer
A：with Hex Nut, Lock Washer
B： without Hex Nut, Lock Washer
Housing Color
B ：Black
W：White
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
BNC- □ □ RD Series
Unit：mm

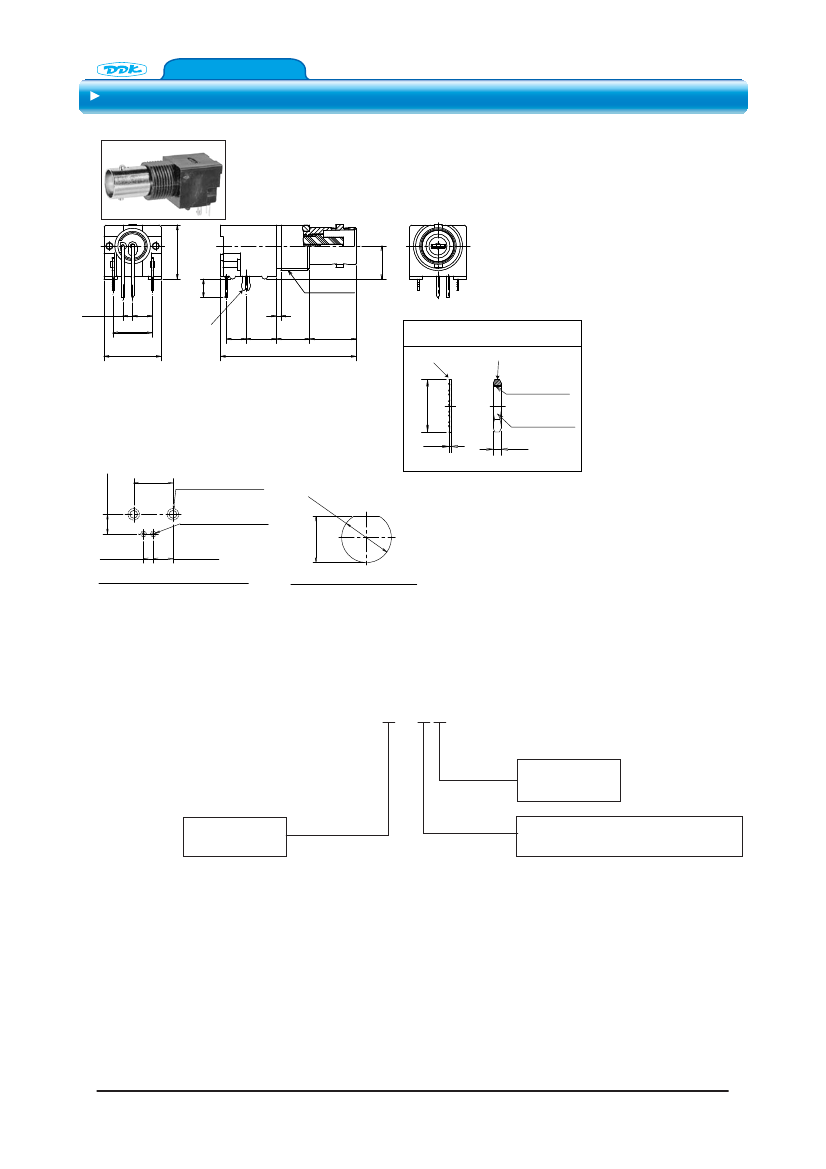

○ Vertical Mounting Style (with Flange)
＜Board Lock Type＞
14.0
Board Lock
10.5
8.56
1.2
2.54
11.43
4.75
8.64
(35.0)
12.0
１／２−２８ＵＮＥＦ−２Ａ
8.56
Panel Mounting Fitting
Lock Washer Hex Nut
29.2
１／２−２８ＵＮＥＦ−２Ｂ
16
Hex Diagonal Width：
１４
0.6
＜Thread Type＞
2.4
＊Option
PCB Mounting Hole
10.5
8.56
14
1.2
2.54
11.43
29.2
4.75
8.64
(35)
12
8.56
１／２−２８ＵＮＥＦ−２Ａ
Panel Mounting Fitting
Lock Washer
Hex Nut
PCB Mounting Fitting
Pan-head
Screw
Hex Nut
16
１／２−２８ＵＮＥＦ−２Ｂ
Hex Diagonal Width：
１４
0.6
0.05
2-φ0.89
0.08
(Thru-hole）
2-φ1.5(Land)
2.54
0.05
2.4
※Attached
※Option
11.43
2-φ3.3
0.05
（Thru-hole）
2-φ4.5(Land)
※
φ
12
.9
+0
0 .1
ＳＧ
22.86
0.05
0.05
1.94
PCB Mounting Dimensions(½＝1.6）
Panel Mounting Dimension
Note ※ Board lock style requires φ 4.5 land.
※
Boad lock pins also requires soldering when mounting.
BNC-SFRD- □□□□ -FA
Contact Plating
A：Ag Plating
B：Au Plating
12
0.1
Housing Color
B ：Black
W：White
Panel Mounting Hex Nut, Lock Washer
A：with Hex Nut, Lock Washer
B： without Hex Nut, Lock Washer
P ：Board Lock
S：Thread (Attached)
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
