DeviceNet Mini-style Connectors
CM03A Series (Overmolded Cable Assembly)
Conforming
Standard
DeviceNet

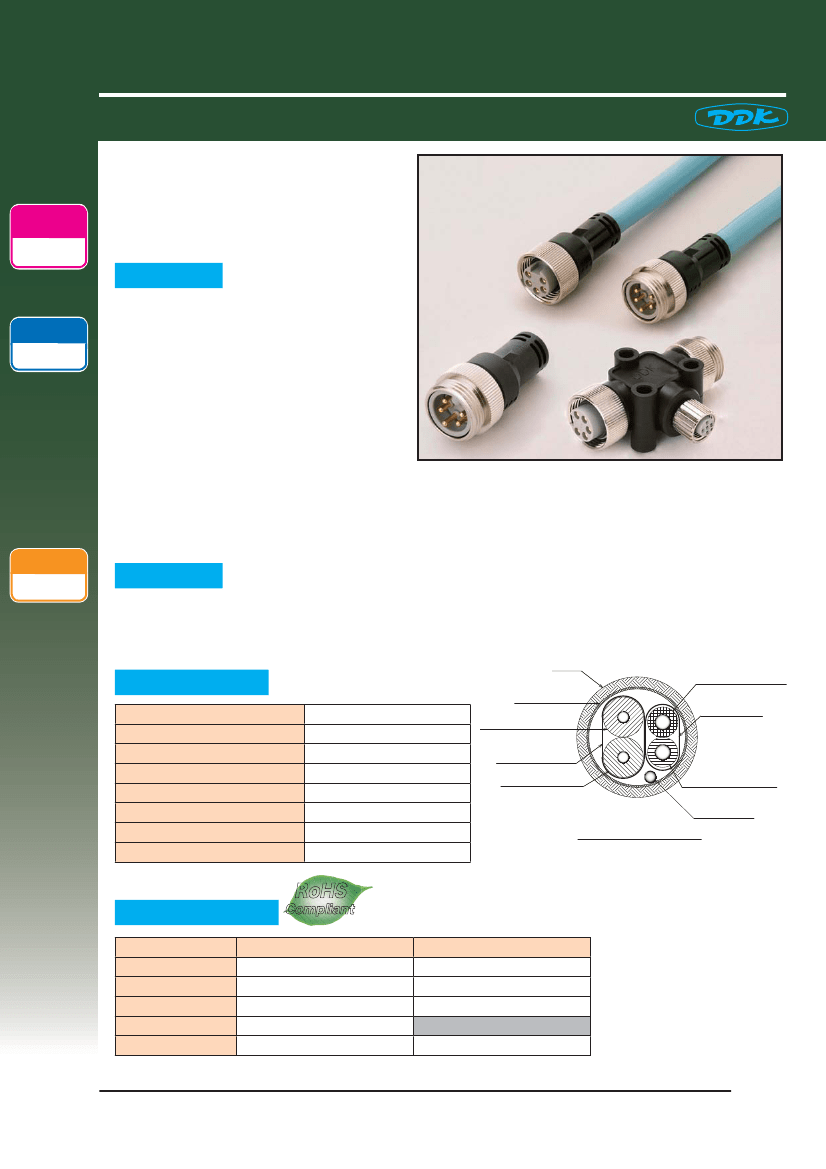

◆ OUTLINE
CM03A series is a overmolded cable
Wa t e r p r o o f
IP 67
assembly which is in accordance with
DeviceNet Mini-Style,an official standard of
ODVA(Open DeviceNet Vendor Association,
lnc.).The connectors are provided with a
premating contact which is a first
make-last break contact to protect the
circuit.
When mated, the premating contact is connected first before the other contacts and is detached last
when dismated. CM03A series will be supplied by the style of the cable assemblies in order for you to
eliminate the termination job. The cable assemblies for power are also available from our product line.
Lock Type
Threaded
Coupling
◆ FEATURES
・Intermateable with CM03 series.
・Rated for IP67 for environments.
・Solder termination style.
Jacket
◆ SPECIFICATIONS
Braid Shield
DC power lnsulation
Color:Black (AWG15)
AL/MY Shield
Rated Current
Rated Voltage
Dielectric Withstanding Voltage
Insulation Resistance
Operating Temperature Range
Waterproof
Pin Contact Size
No. of Contacts
8A/Contact
125V DC
1500V AC(r.m.s.) for 1 minute
100M Ω Min. at 500V DC
-20℃ to +70℃
IP67 when mated
φ 2.0 mm
4 and 5
Data lnsulation
Color:White (AWG18)
AL/MY Shield
Data lnsulation
Color:Biue(AWG18)
DC power lnsulation
Color:Red (AWG15)
Drain Wire
DeviceNet Thick Cable
RoHS
Compliant
◆ MATERIAL/FINISH
Compliant
Item
Contact
Insulator
Coupling Ring
O Ring
Overmolding Resin
Plug
Copper Alloy/Gold Plating
Synthetic Resin(UL94V-0)/Gray
Zinc Alloy/Nickel Plating
Synthetic Rubber/Black
Plastic(UL94V-0)/Black
Jack
Copper Alloy/Gold Plating
Synthetic Resin(UL94V-0)/Gray
Zinc Alloy/Nickel Plating
Plastic(UL94V-0)/Black
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
090209
http://www.ddknet.co.jp
CM03A Series
Unit：mm

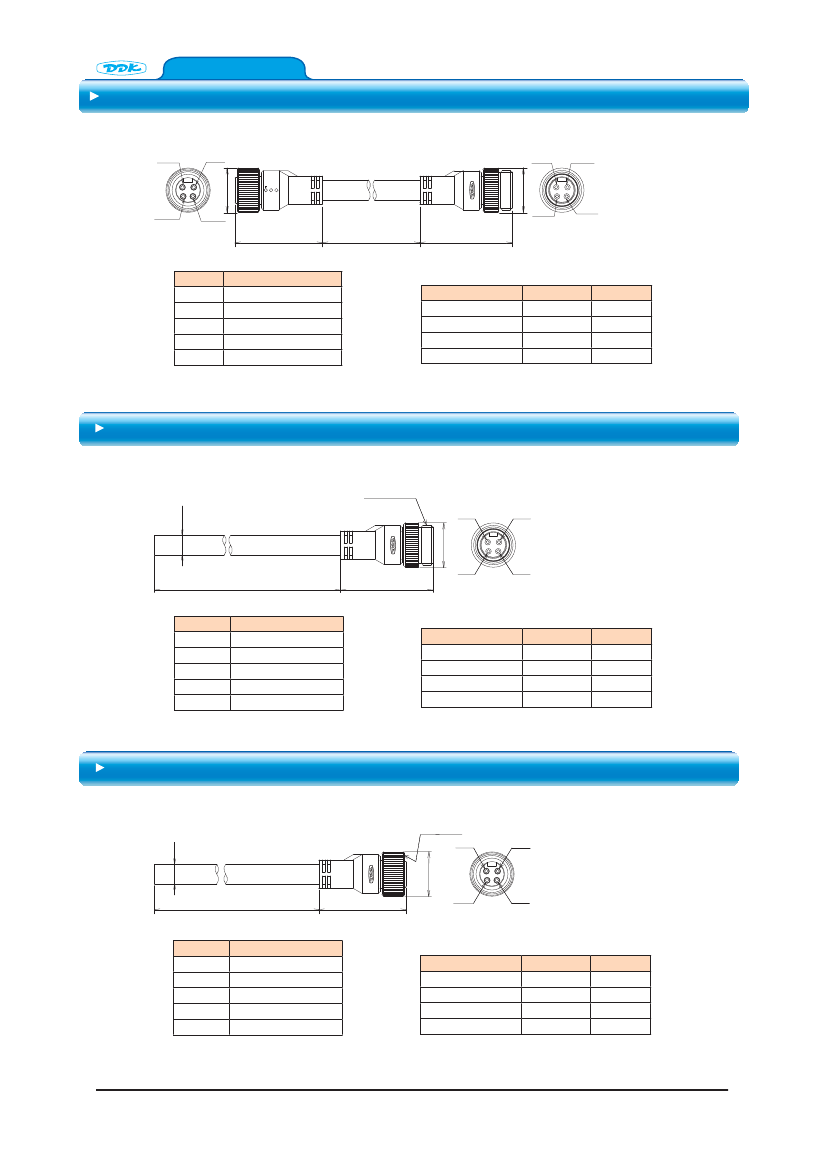

○ Double-Ended Cable Assemblies (4 Contacts)
・A plug connector with socket contacts and a jack connector with pin contacts
No.4
No.1
No.1
No.4
φ25
No.3
No.2
49.3
L
52
No.2
L
1,000
2,000
3,000
5,000
10,000
P/N
CM03AA-P4S-010
CM03AA-P4S-020
CM03AA-P4S-030
CM03AA-P4S-050
CM03AA-P4S-100
Wiring
Number of Contacts
1
2
3
4
Cable Color
Black
White
Red
Green
Signal
V
V+
V+
V
○ Jack Single-Ended Cable Assemblies (4 Contacts)
・Jack connector with pin contacts
7/8-16UN-2A
（11）
No.1
No.4
φ25
No.2
L
52
No.3
L
1,000
2,000
3,000
5,000
10,000
P/N
CM03A-J4P-010
CM03A-J4P-020
CM03A-J4P-030
CM03A-J4P-050
CM03A-J4P-100
Wiring
Number of Contacts
1
2
3
4
Cable Color
Black
White
Red
Green
Signal
V
V+
V+
V
○ Plug Single-Ended Cable Assemblies (4 Contacts)
・Plug connector with socket contacts
7/8-16UN-2B
（11）
No.4
No.1
φ25
L
49.3
No.3
No.2
L
1,000
2,000
3,000
5,000
10,000
P/N
CM03A-P4S-010
CM03A-P4S-020
CM03A-P4S-030
CM03A-P4S-050
CM03A-P4S-100
Wiring
Number of Contacts
1
2
3
4
Cable Color
Black
White
Red
Green
Signal
V
V+
V+
V
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
DDK
Ｆ １ ２
φ25
DDK
DDK
DDK
No.3
CM03A Series
Unit：mm

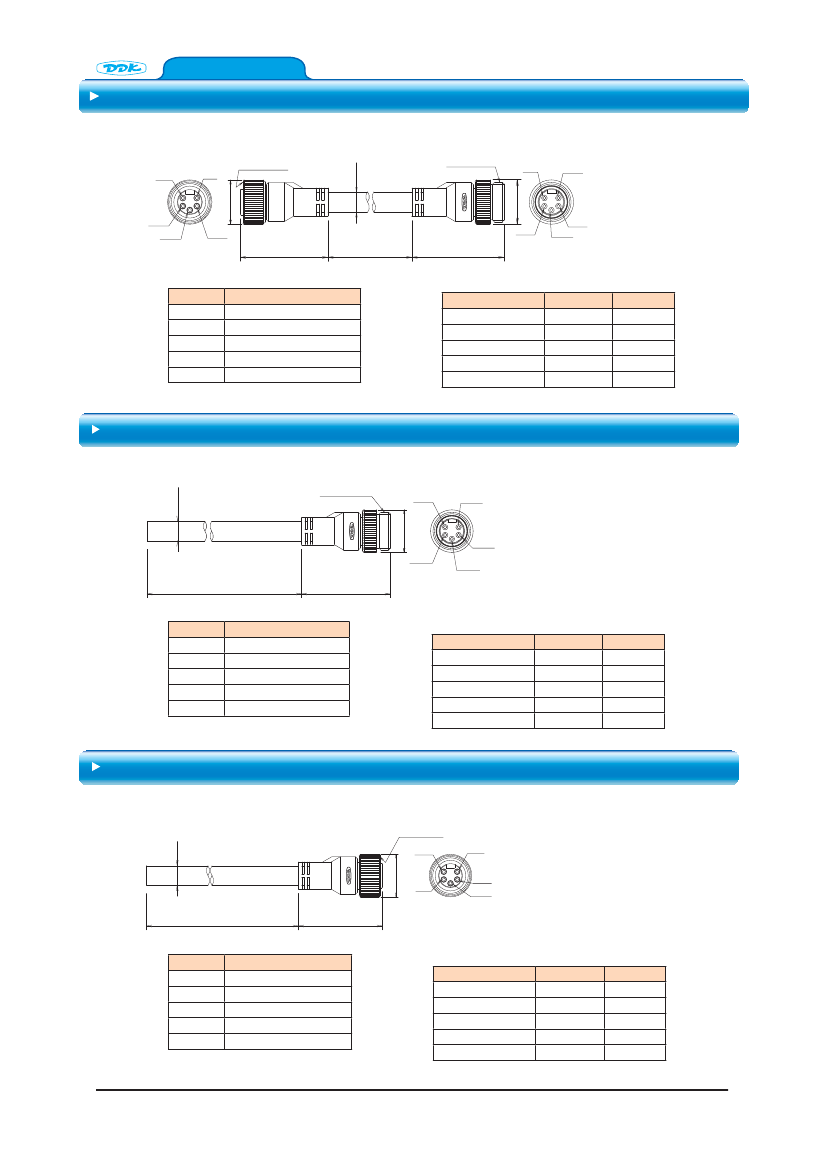

○ Double-Ended Cable Assemblies (5 Contacts)
・Plug with socket contacts and jack with pin contacts
7/8- 16UN-2B
NO.5
NO.1
φ25
11.6
7/8- 16UN-2A
NO.1
NO.5
φ25
NO.4
NO.3
NO.2
49.3
L
52
NO.2
Wiring
L
1,000
2,000
3,000
5,000
10,000
P/N
CM03AA-P5S-010
CM03AA-P5S-020
CM03AA-P5S-030
CM03AA-P5S-050
CM03AA-P5S-100
Number of Contacts
1
2
3
4
5
Cable Color
ー
Red
Black
White
Blue
Signal
DRAIN
V+
V-
CAN H
CAN L
○ Jack Single-Ended Cable Assemblies (5 Contacts)
・Jack connector with pin contacts
11.6
7/8- 16UN-2A
NO.1
NO.5
φ25
NO.4
N0.2
NO.3
L
52
L
1,000
2,000
3,000
5,000
10,000
P/N
CM03A-J5P-010
CM03A-J5P-020
CM03A-J5P-030
CM03A-J5P-050
CM03A-J5P-100
Wiring
Number of Contacts
1
2
3
4
5
Cable Color
ー
Red
Black
White
Blue
Signal
DRAIN
V+
V-
CAN H
CAN L
○ Plug Single-Ended Cable Assemblies (5 Contacts)
・Plug connector with socket contacts
7/8- 16UN-2B
11.6
No.5
φ25
No.1
No.2
No.3
No.4
L
49.3
L
1,000
2,000
3,000
5,000
10,000
P/N
CM03A-P5S-010
CM03A-P5S-020
CM03A-P5S-030
CM03A-P5S-050
CM03A-P5S-100
Wiring
Number of Contacts
1
2
3
4
5
Cable Color
ー
Red
Black
White
Blue
Signal
DRAIN
V+
V-
CAN H
CAN L
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
DDK
DDK
DDK
DDK
NO.4
NO.3
CM03A Series
Unit：mm

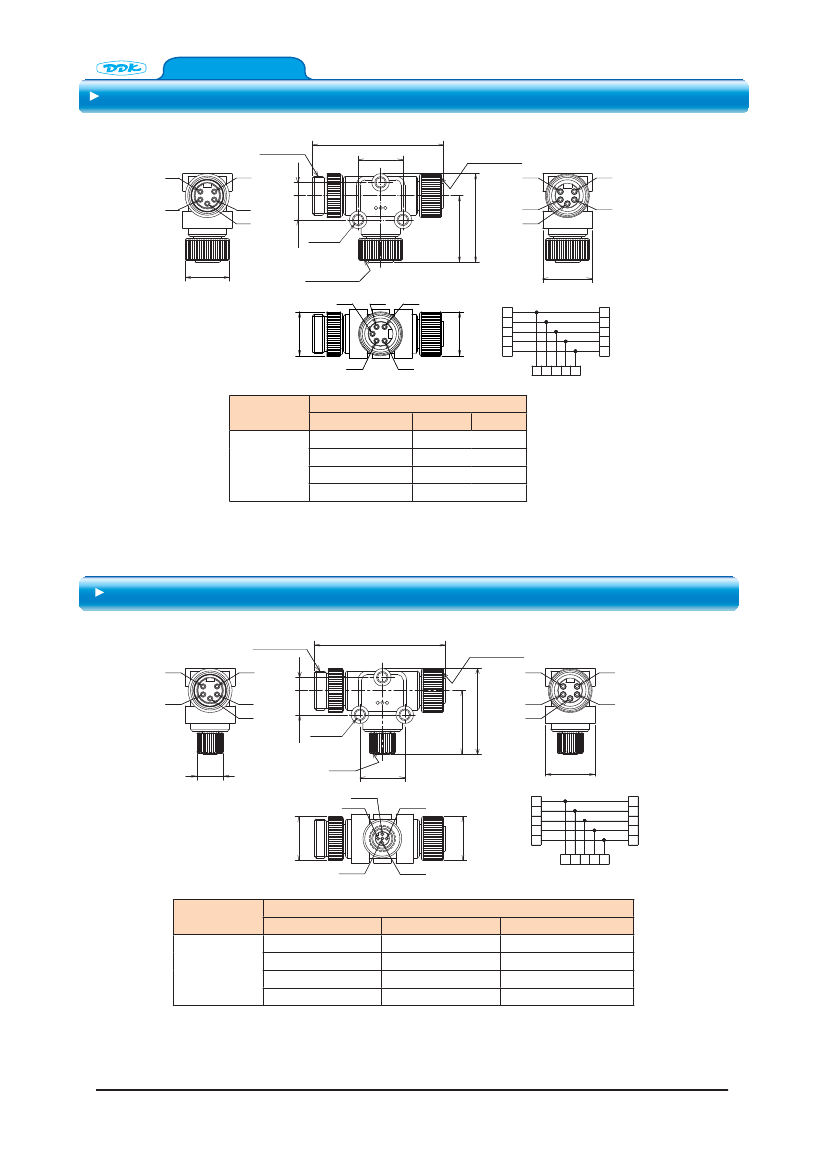

○Terminating Resistor With Jack (Pin)
・ Terminated between No.4 and No.5 with resistor, 121 ohm, 1/4watt.
7/8- 16UN-2A
No.1
No.5
22
No.2
52
○ Cap
Plug Cap
P/N：CM03-PRC
19.9
7/8-16UN-2A Thread
14
7/8-16UN-2B Thread
Receptacle Cap
P/N：CM03-RC
18.3
12.40
φ25
100
φ25
φ4.2
◎ Specifications and/or dimensions in this catalog are subject to change without notice. ◎ Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
5
DDK
P/N : CM03A-ER5P
No.4
No.3
100
φ4.2
