SHARP
LH1562F4
1

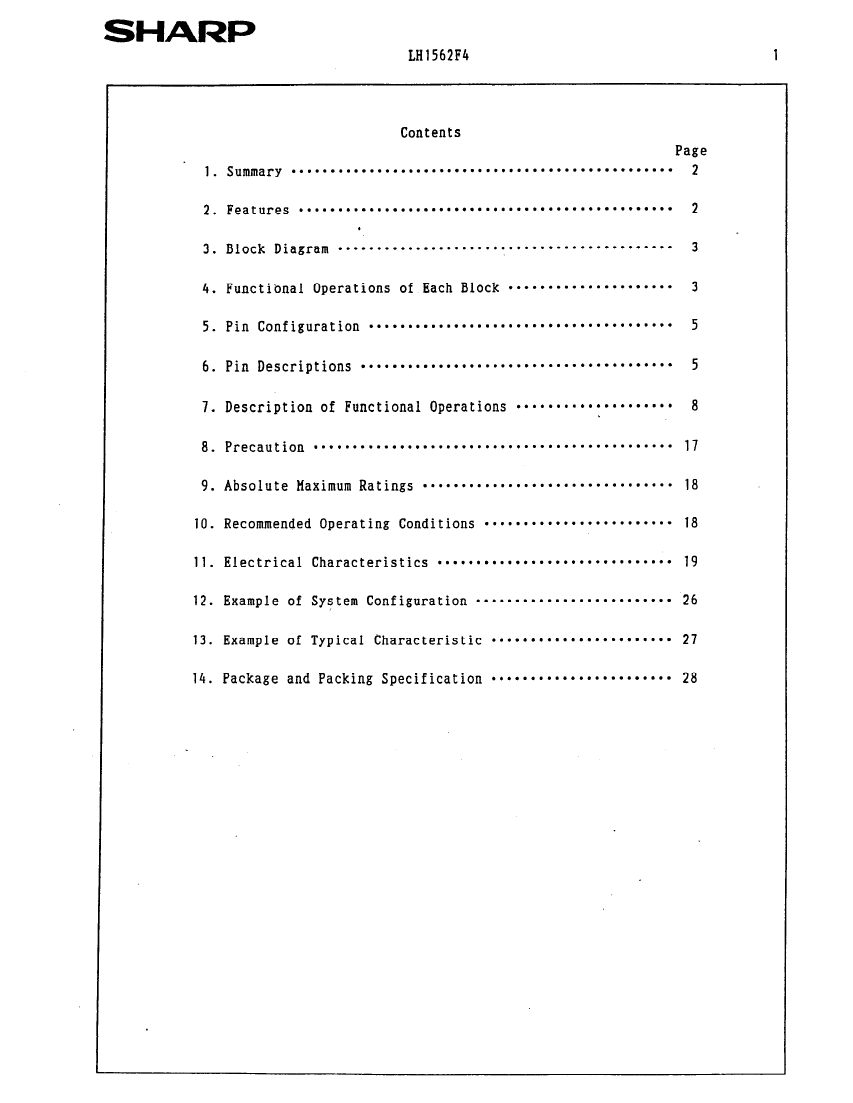

Contents
Page
1. Summary . . . . . . . . . . . . . ..*.................................
2. Features
.. .. .. . ... .. .. ... ... ... . ... .. . .. .. . . .. . .. . ... . ..
2
2
3
3. Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. Functional
Operations
of Each Block •~~~~~~~~~~~~~~~~~~~~ 3
5
5
5. Pin Configuration
6. Pin Descriptions
7. Description
8. Precaution
9. Absolute
.. .. . ... ... ... .. .. .. . .. .. . .. . . .. . ... . ..
.. . .. .. ... .. ... .. .. .. . .. .. . .. . .. . . ... . ..
Operations
of Functional
l
******-**:*****--**
8
17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . ..*...............
Maximum Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
. . . . . . . . . . . . . . . . . . . . . . . .
18
19
26
27
28
10. Recommended Operating
11.
Conditions
Electrical
Characteristics
. . . . . . . . . . . . . . . . . . . . . ...*.....
l
12. Example of System Configuration
13. Example of Typical
Characteristic
***......D........O*O.O.
.......=~~~~**~*~~~~~~*
.....o...........*.....
14. Package and Packing Specification
LH1562F4
2

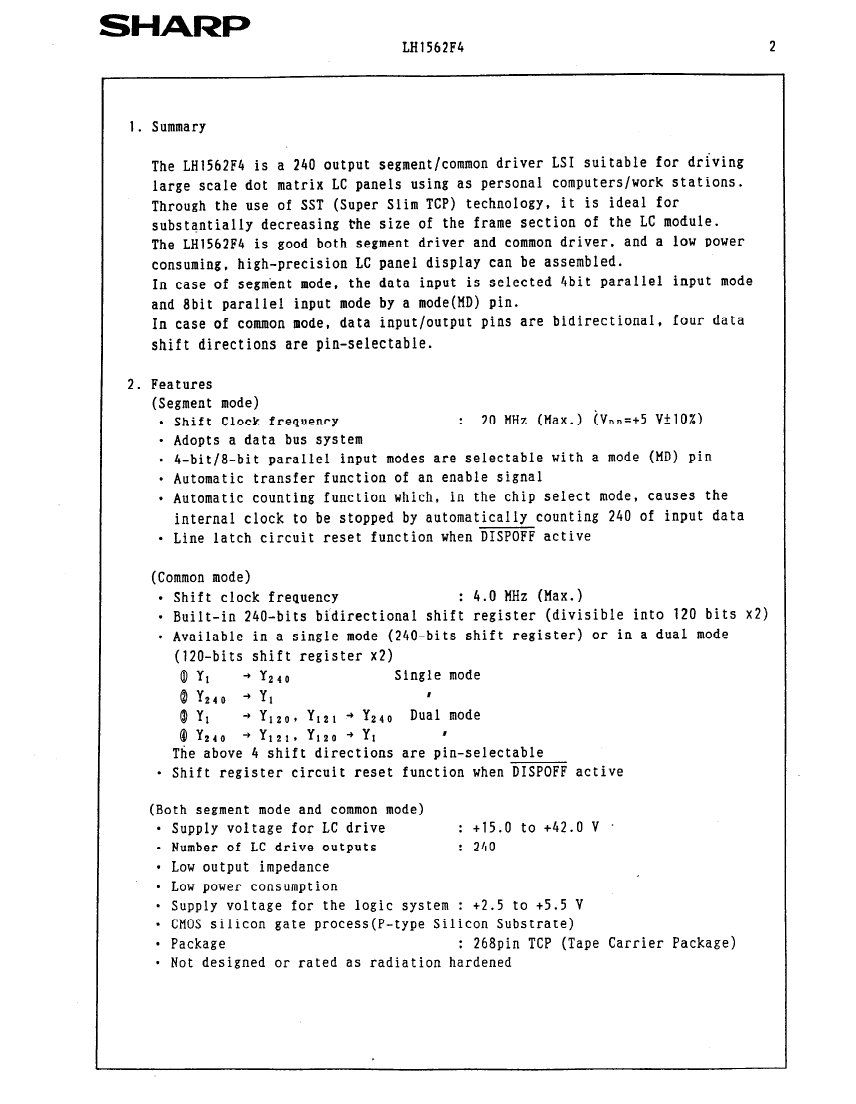

1. Summary
The LH1562F4 is a 240 output
segment/common
driver
LSI suitable
for driving
large scale dot matrix
LC panels using as personal
computers/work
stations.
Through the use of SST (Super Slim TCP) technology,
it is ideal
for
substantially
decreasing
the size of the frame section
of the LC module.
The LH1562F4 is good both segment driver
and common driver,
and a low power
high-precision
LC panel display
can be assembled.
consuming.
In case of segment mode, the data input
is selected
4bit parallel
input
mode
and 8bit parallel
input mode by a mode(MD) pin.
In case of common mode, data input/output
pins are bidirectional,
four data
shift
directions
are pin-selectable.
2. Features
(Segment mode)
: 20 MHz (Max.)
(VDo=+5 V+lO%)
Shift
Clock frequency
Adopts a data bus system
. 4-hit/8-bit
parallel
input modes are selectable
with a mode (MD) pin
Automatic
transfer
function
of an enable signal
Automatic
counting
function
which, in the chip select
mode, causes the
internal
clock
to be stopped by automatically
counting
240 of input
data
Line latch
circuit
reset function
when DISPOFF active
l
l
l
l
l
(Common mode)
Shift
clock frequency
: 4.0 MHz (Max.)
. Built-in
240-bits
bidirectional
shift
register
(divisible
into 120 bits
. Available
in a single
mode (240-bits
shift
register)
or in a dual mode
(120-bits
shift
register
x2)
Single
mode
0 Yl
+ y240
l
x2)
@
0
y240
Yl
+
+
+
yl
y1201
y121.
I
Ylzl
y120
+ Y240
+
Yl
Dual
”
mode
@ y240
l
The above 4 shift
directions
Shift
register
circuit
reset
are pin-selectable
function
when DISPOFF
active
(Both segment mode and common mode)
Supply voltage
for LC drive
: +15.0 to +42.0 V .
Number of LC drive outputs
: 240
Low output
impedance
Low power consumption
Supply voltage
for the logic
system : +2.5 to +5.5 V
CMOS silicon
gate process(P-type
Silicon
Substrate)
Package
: 268pin TCP (Tape Carrier
Not designed
or rated as radiation
hardened
l
l
l
l
l
l
l
l
Package)
