NJM2606M-(TE3) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> NJM2606M-(TE3)

NJM2606M-(TE3): DescriptionBrush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8; CategoryOther integrated circuit (IC) The signal circuit; File Size201KB，6 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

NJM2606M-(TE3) Overview

Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8

NJM2606M-(TE3) Parametric

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	DMP-8
Contacts	8
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	S-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	0.7 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	SQUARE
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	8 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5 mm
Base Number Matches	1

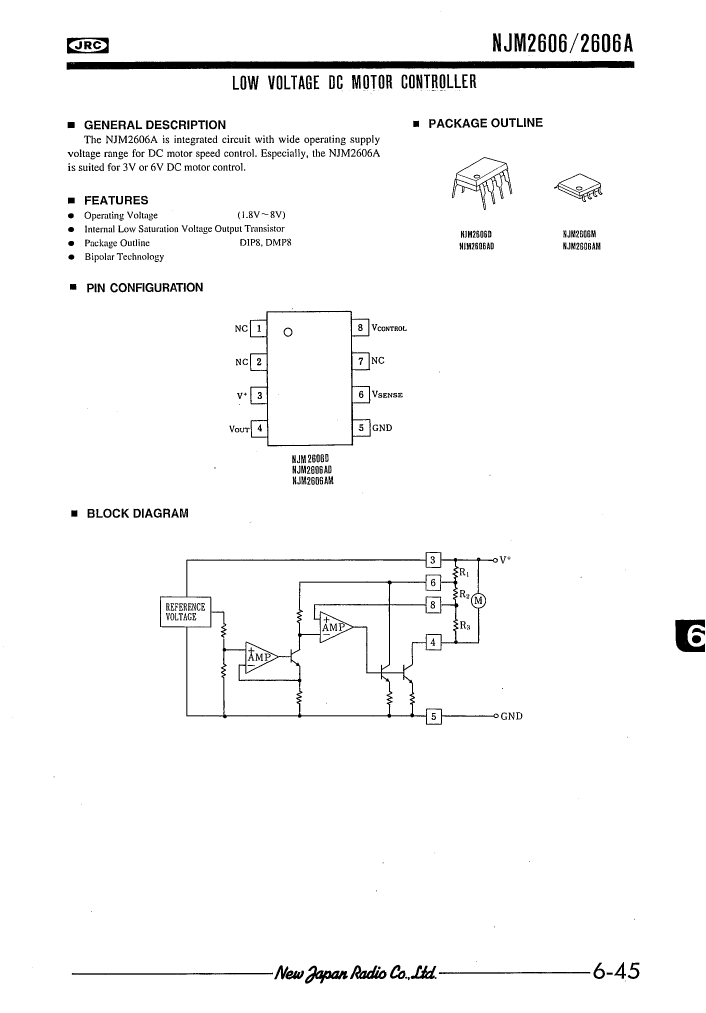

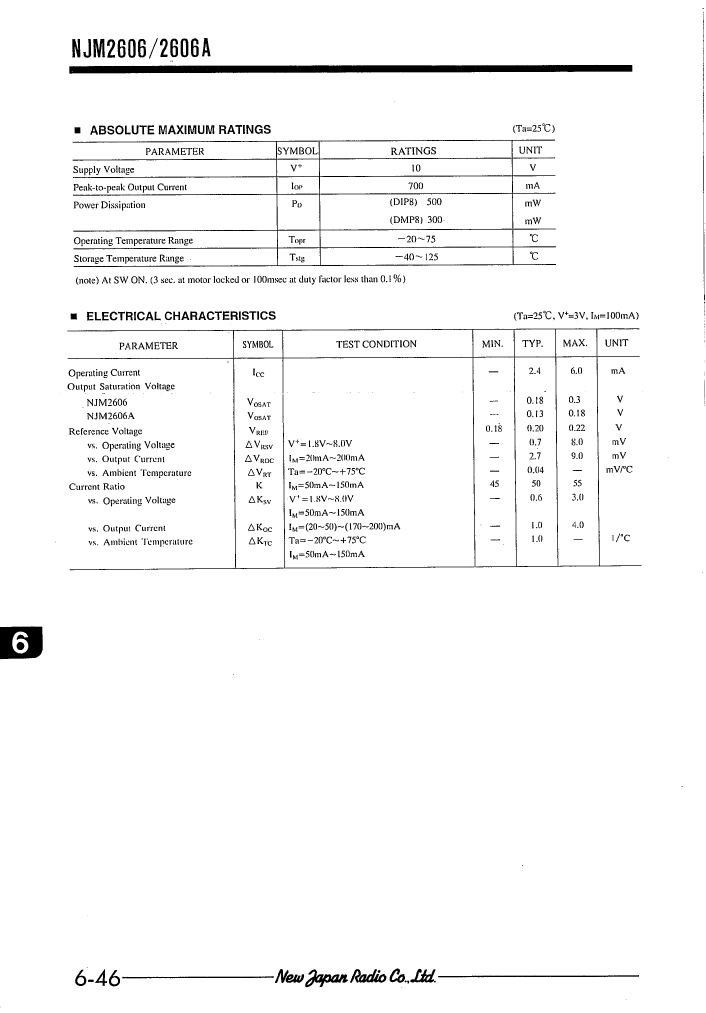

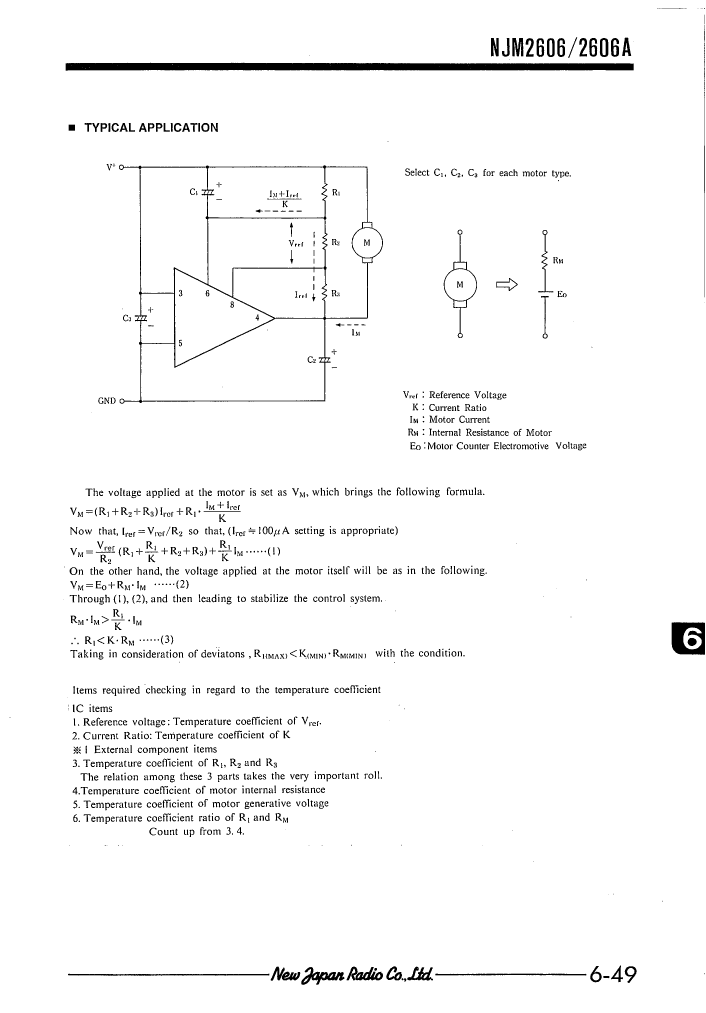

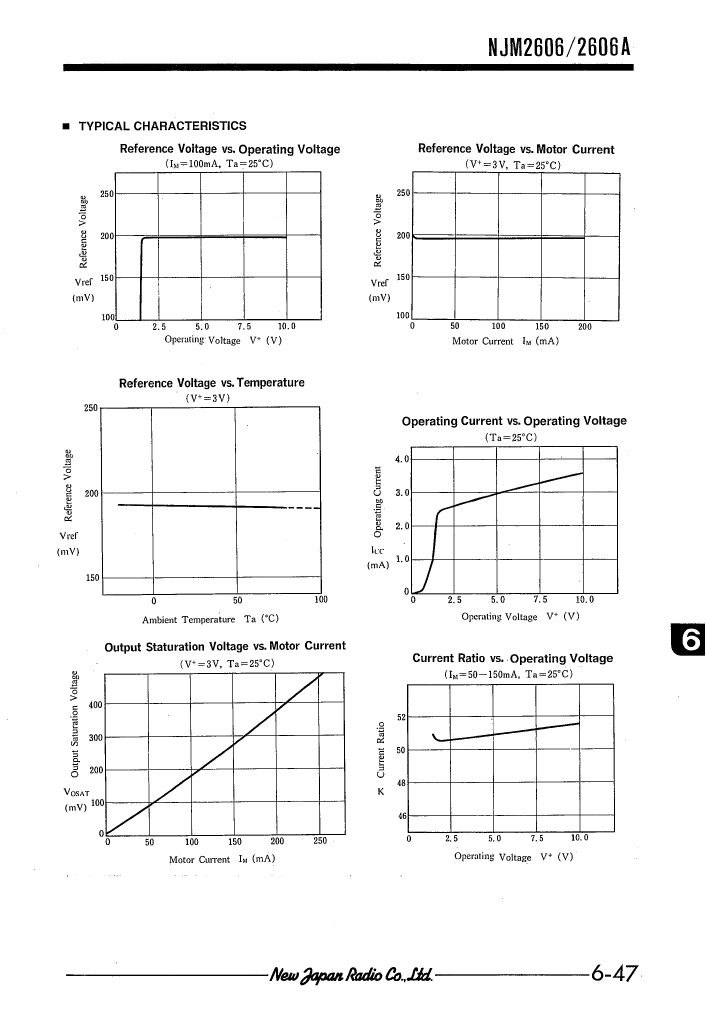

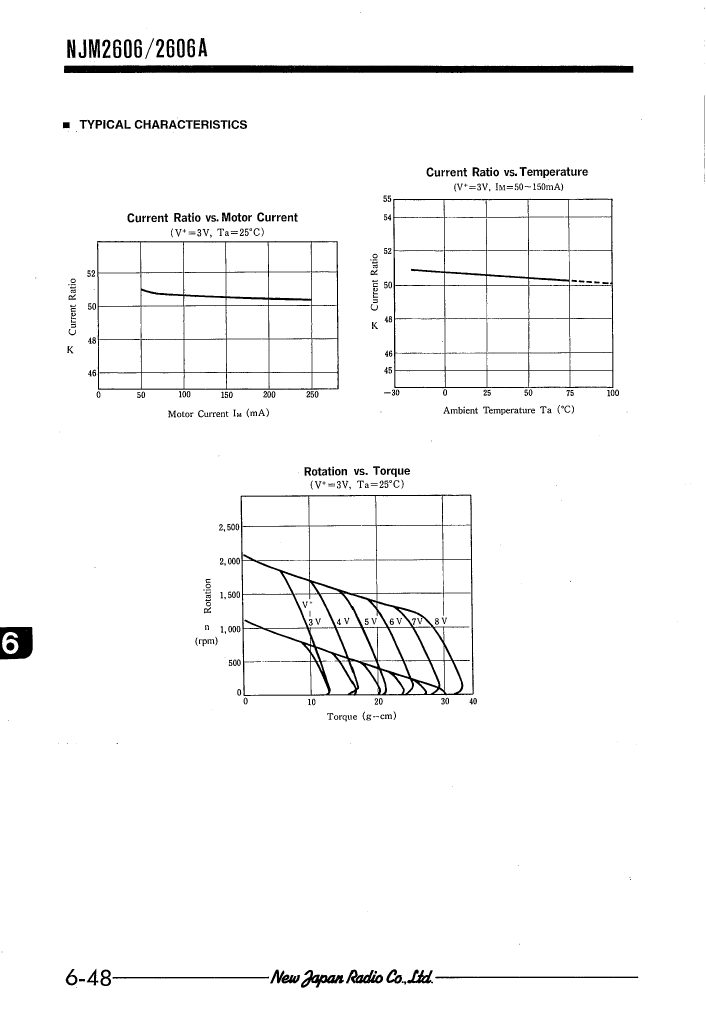

Preview

Download Datasheet

View All

NJM2606M-(TE3) Related Products

	NJM2606M-(TE3)	NJM2606M-(TE1)	NJM2606AM-(T1)	NJM2606AM-(TE1)	NJM2606AM-(T2)	NJM2606AM-(TE4)	NJM2606AM-(TE3)	NJM2606AM-(TE2)	NJM2606M-(TE2)
Description	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8	Brush DC Motor Controller, 0.7A, BIPolar, PDSO8, DMP-8
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	DMP-8	DMP-8	DMP-8	DMP-8	DMP-8	DMP-8	DMP-8	DMP-8	DMP-8
Contacts	8	8	8	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8	S-PDSO-G8
JESD-609 code	e6	e6	e6	e6	e6	e6	e6	e6	e6
length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output current	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A	0.7 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	2 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	2 mm
Maximum supply voltage (Vsup)	8 V	8 V	8 V	8 V	8 V	8 V	8 V	8 V	8 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH	TIN BISMUTH	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Maker	New Japan Radio Co., Ltd..	-	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	-	-	conform to	conform to	conform to	conform to	conform to	conform to	-
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Peak Reflow Temperature (Celsius)	-	-	260	260	260	260	260	260	-
Maximum supply current (Isup)	-	-	6 mA	6 mA	6 mA	6 mA	6 mA	6 mA	-
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
