8L00 Series/Spartan DIP Reed Relays
E
CONOMY
DIP R
EED
R
ELAYS
W!
NE
The Coto 8L00 Spartan Series relays combine Coto quality and economy
in the industry standard 14 pin molded DIP package. This series will cross
to all competitive DIP packages and is ideal for telecom, security, and
other general purpose applications.
8L00 S
ERIES
F
EATURES
u
u
u
u
u
Drop-in low cost replacement for industry standard DIP packages.
Available in Form 1A, 1C, 2A and 1B packages and 5, 12, and
24 V coil designs.
Molded thermoset body on integral lead frame design.
Hermetically Sealed Contacts.
Optional Electrostatic Shield and Coil Suppression Diode.

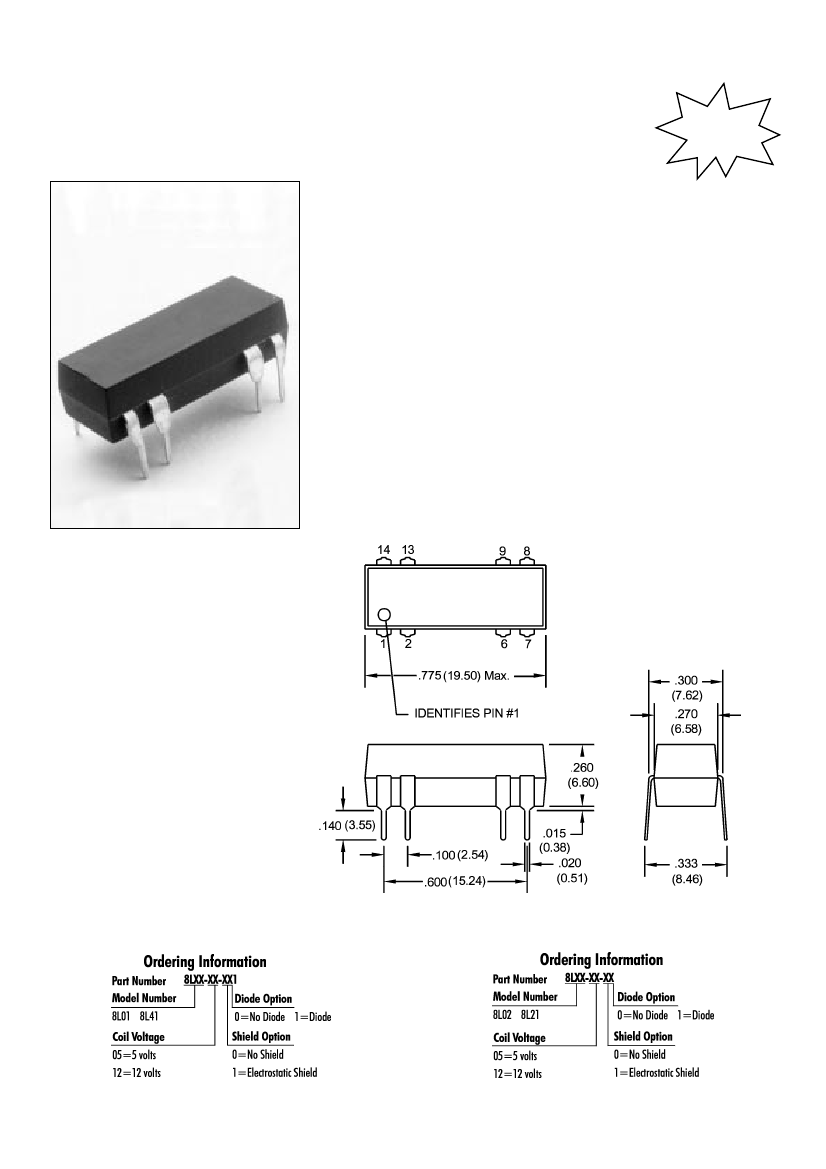

Dimensions in Inches
(Millimeters)
2
3
3
4
4
RHOPOINT COMPONENTS LTD Email: sales@rhopointcomponents.com Web: www.rhopointcomponents.com
8L00 Series/Spartan DIP Reed Relays
Model Number
Parameters
COIL SPECS.
Nom. Coil Voltage
Max. Coil Voltage
Coil Resistance
Operate Voltage
Release Voltage
CONTACT RATINGS
Switching Voltage
Switching Current
Carry Current
Contact Rating
Life Expectancy-Typical
Static Contact Resistance
(max. init.)
Dynamic Contact
Resistance (max. init.)
RELAY SPECIFICATIONS
Insulation Resistance
(minimum)
Dielectric Strength
(minimum)
1
8L01
Test Conditions
Units
2,3,4
8L02
2,3,4
8L21
2,3,4
8L41
2,3,4
1 Form A
2 Form A
1 Form B
1 Form C
+/- 10%, 25° C
Must Operate by
Must Release by
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Signal Level 1.0V,10mA
50mV, 10mA
0.5V, 50mA
at 100 Hz, 1.5 msec
VDC
VDC
Ω
VDC - Max.
VDC - Min.
Volts
Amps
Amps
Watts
x 10 Ops.
Ω
Ω
6
5
6.5
3.8
0.5
12
15
24
32
5
6.5
3.8
0.5
12
15
24
32
5
6.5
3.8
0.5
12
15
24
32
5
6.5
3.8
0.5
12
15
24
32
500 500 2150
9.6 19.2
1.0
2.0
200 500 2000
9.6 19.2
1.0
2.0
200 500 2000
9.6 19.2
1.0
2.0
200 500 2000
9.6 19.2
1.0
2.0
200
0.5
1.0
10
500
0.150
N/A
200
0.5
1.0
10
500
0.150
N/A
200
0.5
1.0
10
500
0.150
N/A
100
0.25
0.5
3
100
0.200
N/A
Between all Isolated Pins
at 100V, 25°C, 40% RH
Between Contacts
Contacts to Shield
Contacts/Shield to Coil
At Nominal Coil Voltage,
30 Hz Square Wave
No Suppression
Diode Suppression
Ω
VDC/peak AC
VDC/peak AC
VDC/peak AC
msec.
msec.
msec.
x
10
10
x
10
10
x
10
9
x
10
9
250
1500
1500
250
1500
1500
250
1500
1500
250
1500
1500
Operate Time - including
bounce - Typical
Release Time - Typical
0.5
0.5
1.0
0.5
0.5
1.0
0.5
0.5
1.0
1.0
1.0
1.5
Top View:
Dot stamped on top of relay refers to pin #1 location
Grid = .1"x.1" (2.54mm x 2.54mm)
Notes:
1
Consult factory for life expectancy at other
switching loads.
2
Molded Depression on top of relay refers to
pin #1 location.
3
Optional coil suppression diode across pins
2(+) and 6(-).
4
Optional ES shield is tied to pins 9 and 13
Environmental Ratings
Storage Temp: -35 °C to +100 °C; Operating Temp: -20 °C to + 85 °C
The operate and release voltage and the coil resistance are specified at
25 °C. These values vary by approximately 0.4%/°C as the ambient
temperature varies.
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
