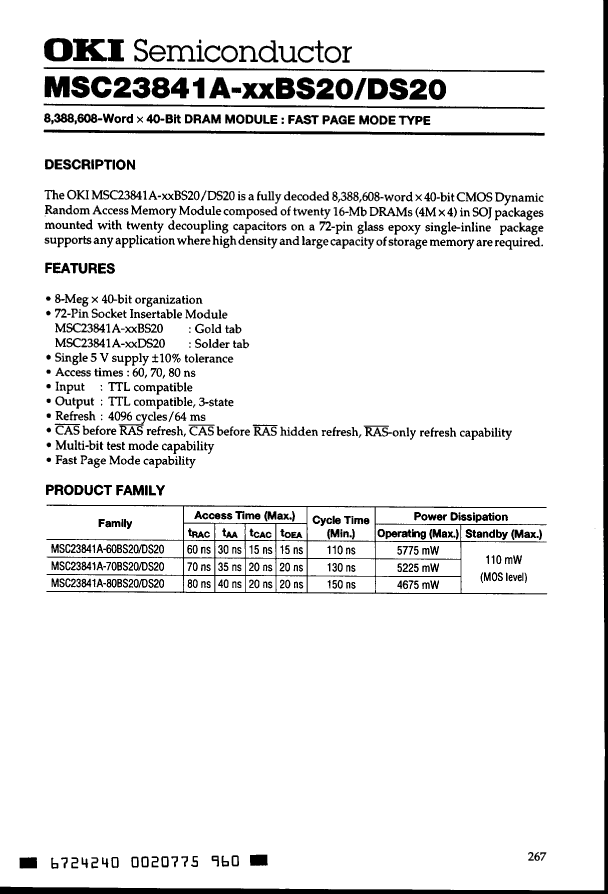

MSC23841A-80DS20 datasheet, PDF

MSC23841A-80DS20: DescriptionMemory IC, 8MX40, CMOS, PSMA72; Categorystorage storage; File Size451KB，8 Pages; ManufacturerLAPIS Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

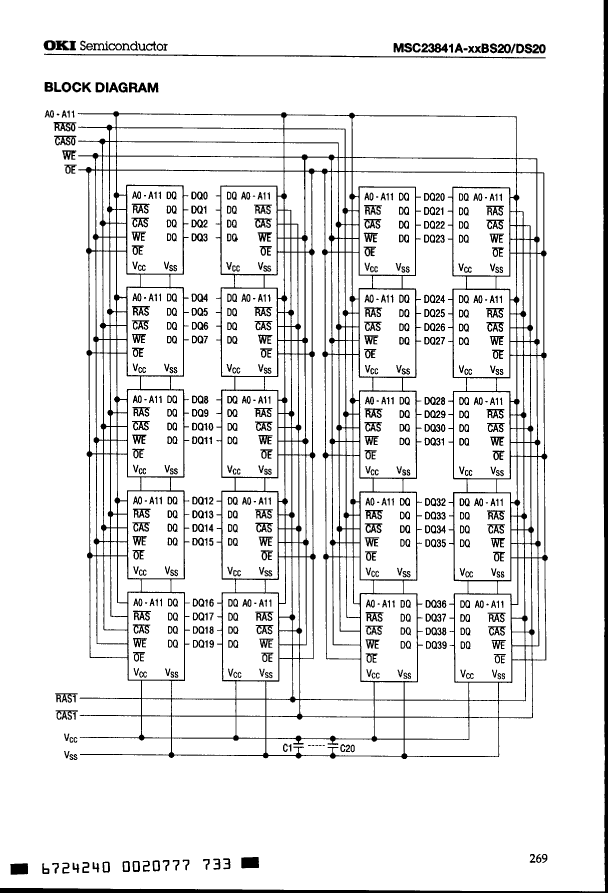

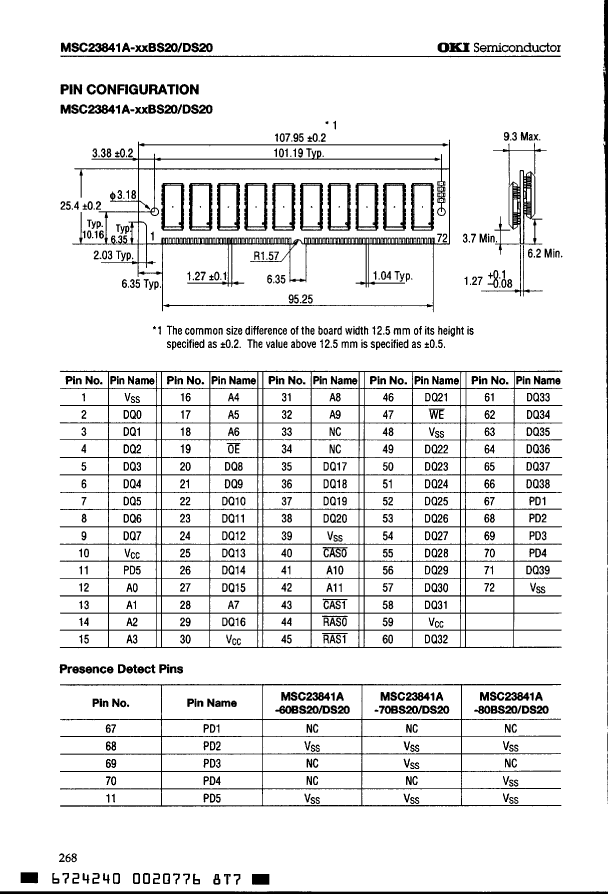

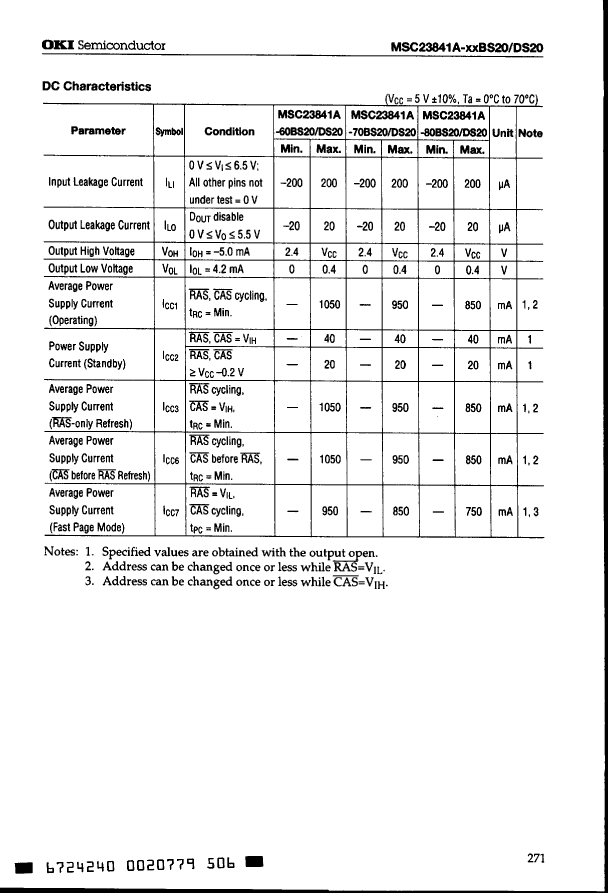

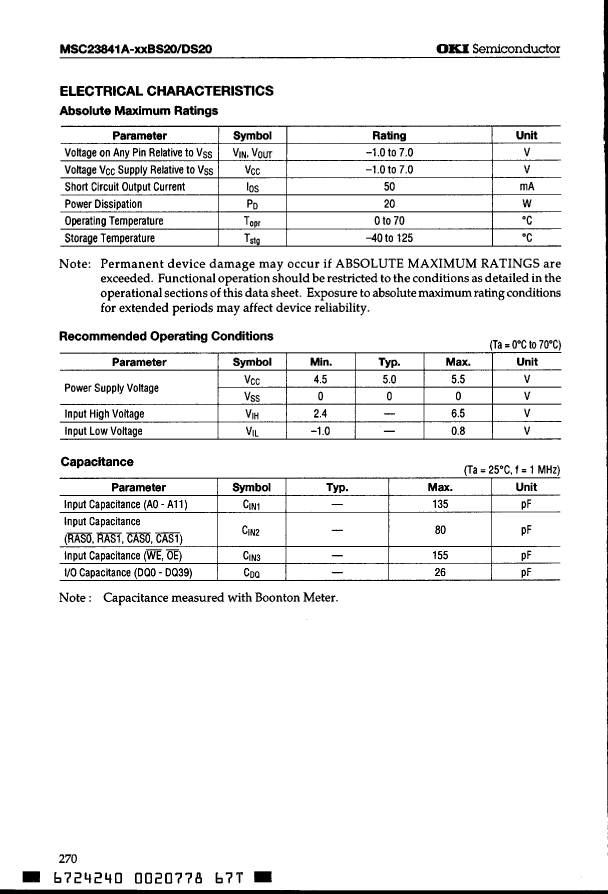

MSC23841A-80DS20 Overview

Memory IC, 8MX40, CMOS, PSMA72

Parameter Name	Attribute value
Maker	LAPIS Semiconductor Co., Ltd.
package instruction	SIMM, SSIM72
Reach Compliance Code	unknown
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N72
memory density	335544320 bit
memory width	40
Number of terminals	72
word count	8388608 words
character code	8000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX40
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	25.4 mm
Maximum standby current	0.02 A
Maximum slew rate	0.85 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Base Number Matches	1

	MSC23841A-80DS20	MSC23841A-70DS20	MSC23841A-60DS20
Description	Memory IC, 8MX40, CMOS, PSMA72	Memory IC, 8MX40, CMOS, PSMA72	Memory IC, 8MX40, CMOS, PSMA72
Maker	LAPIS Semiconductor Co., Ltd.	LAPIS Semiconductor Co., Ltd.	LAPIS Semiconductor Co., Ltd.
package instruction	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	80 ns	70 ns	60 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72
memory density	335544320 bit	335544320 bit	335544320 bit
memory width	40	40	40
Number of terminals	72	72	72
word count	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000
Maximum operating temperature	70 °C	70 °C	70 °C
organize	8MX40	8MX40	8MX40
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096
Maximum seat height	25.4 mm	25.4 mm	25.4 mm
Maximum standby current	0.02 A	0.02 A	0.02 A
Maximum slew rate	0.85 mA	0.95 mA	1.05 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	-
