Small Signal Bipolar Transistor, 0.4A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-92

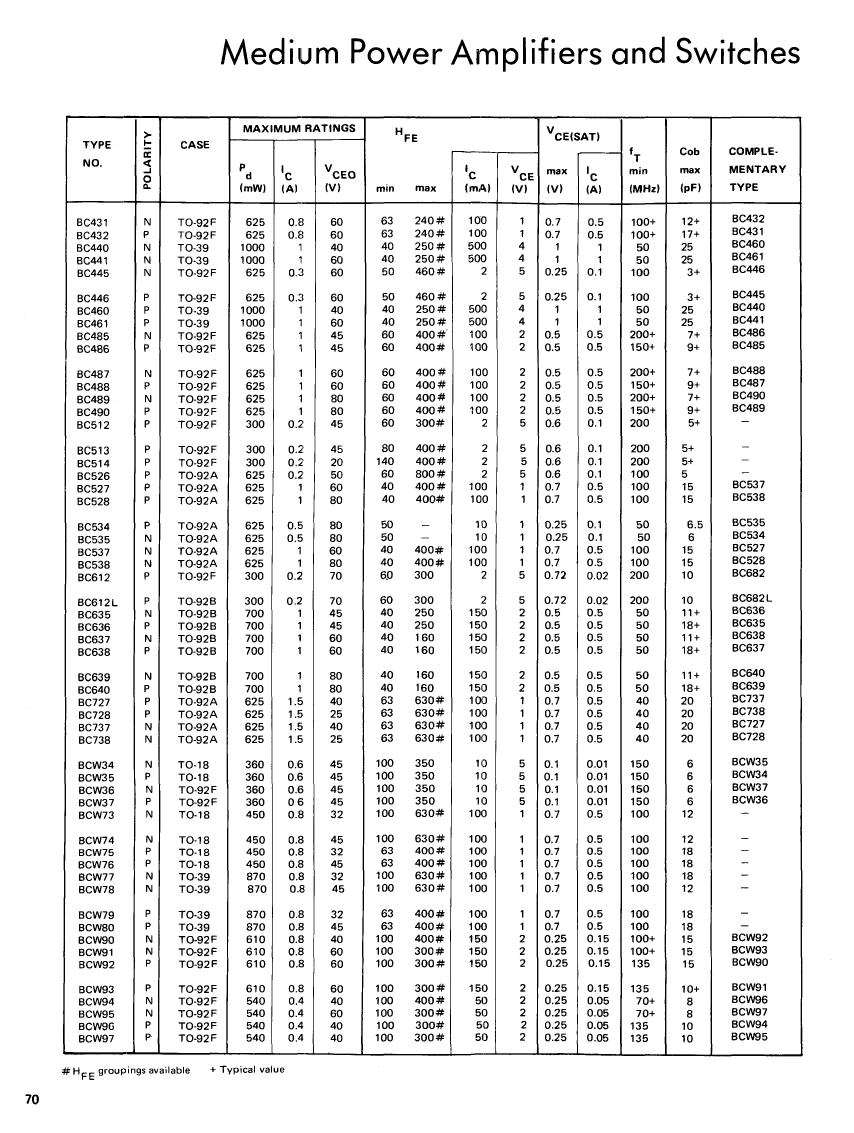

| Parameter Name | Attribute value |
| Maker | Micro Electronics |
| package instruction | CYLINDRICAL, O-PBCY-W3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.4 A |
| Collector-emitter maximum voltage | 40 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 100 |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-W3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Polarity/channel type | PNP |
| Maximum power dissipation(Abs) | 0.54 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 135 MHz |
| Base Number Matches | 1 |
| BCW96 | BC534 | BC526 | BCW78 | BCW74 | BCW36 | BCW35 | |
|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.4A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 | Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 | Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, TO-92 | Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-39 | Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-18 | Small Signal Bipolar Transistor, 0.6A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 0.6A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18 |
| package instruction | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-PBCY-W3 | CYLINDRICAL, O-MBCY-W3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.4 A | 0.5 A | 0.2 A | 0.8 A | 0.8 A | 0.6 A | 0.6 A |
| Collector-emitter maximum voltage | 40 V | 80 V | 50 V | 45 V | 45 V | 45 V | 45 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 100 | 50 | 60 | 100 | 100 | 100 | 100 |
| JEDEC-95 code | TO-92 | TO-92 | TO-92 | TO-39 | TO-18 | TO-92 | TO-18 |
| JESD-30 code | O-PBCY-W3 | O-PBCY-W3 | O-PBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-PBCY-W3 | O-MBCY-W3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | METAL | METAL | PLASTIC/EPOXY | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | PNP | PNP | PNP | NPN | NPN | NPN | PNP |
| Maximum power dissipation(Abs) | 0.54 W | 0.625 W | 0.625 W | 0.87 W | 0.45 W | 0.3 W | 0.36 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 135 MHz | 50 MHz | 100 MHz | 100 MHz | 100 MHz | 150 MHz | 150 MHz |
| Maker | Micro Electronics | Micro Electronics | - | Micro Electronics | Micro Electronics | Micro Electronics | Micro Electronics |
| Maximum operating temperature | 150 °C | 150 °C | - | - | - | 175 °C | 175 °C |
