KP13F-820C: DescriptionParabolic Antenna, 820MHz Min, 960MHz Max, 27.3dB Gain, 5.8deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size64KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

KP13F-820C Overview

Parabolic Antenna, 820MHz Min, 960MHz Max, 27.3dB Gain, 5.8deg 3dB Beamwidth

KP13F-820C Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	4.9 deg
Beamwidth-H	5.8 deg
diameter	4 mm
front to back ratio	30 dB
Gain	27.3 dB
Omnidirectional	NO
Maximum operating frequency	960 MHz
Minimum operating frequency	820 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-50 °C
polarization	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA
Maximum transmission power	150 W
Maximum voltage standing wave ratio	1.35
Commentary	125 mph
Base Number Matches	1

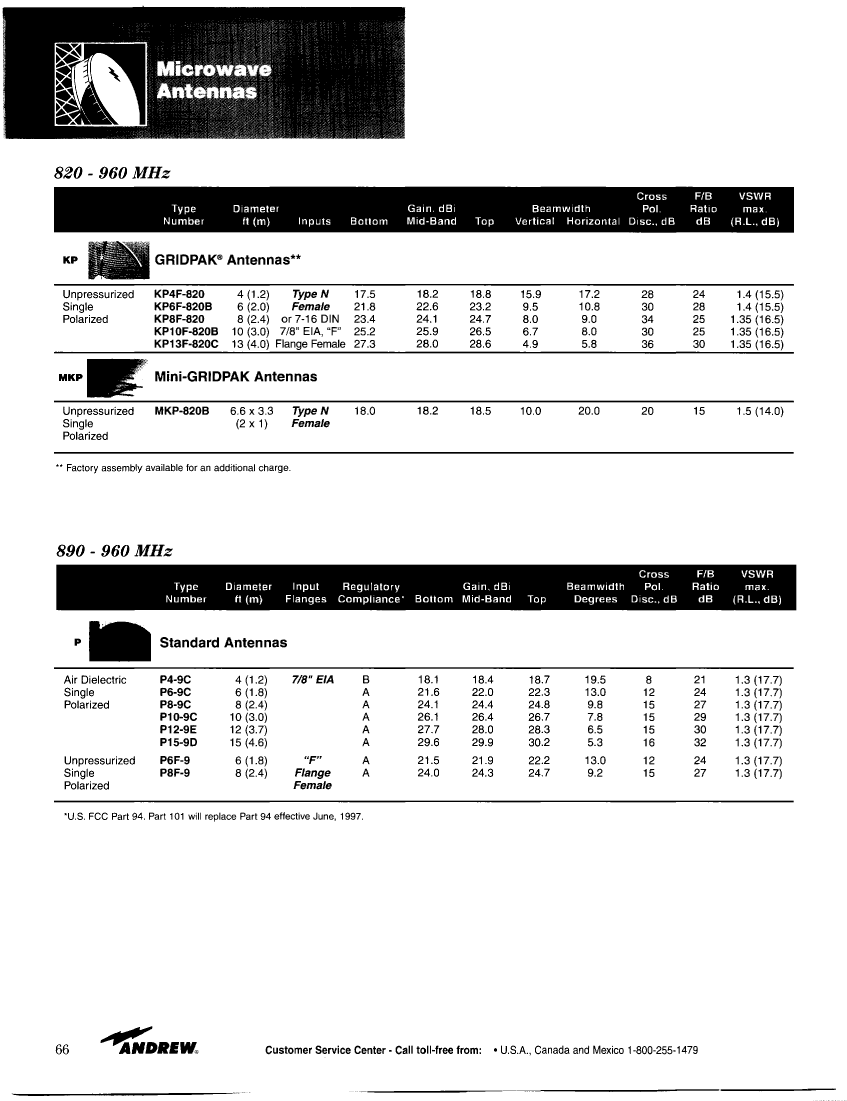

Preview

Download Datasheet

View All

KP13F-820C Related Products

	KP13F-820C	KP6F-820B	P4-9C	P6-9C	P10-9C	KP10F-820B	MKP-820B	P15-9D
Description	Parabolic Antenna, 820MHz Min, 960MHz Max, 27.3dB Gain, 5.8deg 3dB Beamwidth	Parabolic Antenna, 820MHz Min, 960MHz Max, 21.8dB Gain, 10.8deg 3dB Beamwidth	Parabolic Antenna, 890MHz Min, 960MHz Max, 18.1dB Gain	Parabolic Antenna, 890MHz Min, 960MHz Max, 21.6dB Gain	Parabolic Antenna, 890MHz Min, 960MHz Max, 26.1dB Gain	Parabolic Antenna, 820MHz Min, 960MHz Max, 25.2dB Gain, 8deg 3dB Beamwidth	RF/Microwave Antenna, 820MHz Min, 960MHz Max, 18dB Gain, 20deg 3dB Beamwidth	Parabolic Antenna, 890MHz Min, 960MHz Max, 29.6dB Gain
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
front to back ratio	30 dB	28 dB	21 dB	24 dB	29 dB	25 dB	15 dB	32 dB
Gain	27.3 dB	21.8 dB	18.1 dB	21.6 dB	26.1 dB	25.2 dB	18 dB	29.6 dB
Omnidirectional	NO	NO	NO	NO	NO	NO	NO	NO
Maximum operating frequency	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz	960 MHz
Minimum operating frequency	820 MHz	820 MHz	890 MHz	890 MHz	890 MHz	820 MHz	820 MHz	890 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
polarization	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	CIRCULAR	LINEAR	CIRCULAR
RF/Microwave Device Types	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	PARABOLIC ANTENNA	ANTENNA-OTHER	PARABOLIC ANTENNA
Maximum transmission power	150 W	150 W	150 W	150 W	150 W	150 W	150 W	150 W
Maximum voltage standing wave ratio	1.35	1.4	1.3	1.3	1.3	1.35	1.5	1.3
Commentary	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph	125 mph
Maker	CommScope Inc	CommScope Inc	-	-	-	CommScope Inc	CommScope Inc	CommScope Inc
diameter	4 mm	2 mm	1.2 mm	1.8 mm	3 mm	3 mm	-	4.6 mm
Base Number Matches	1	1	1	1	1	1	-	-
