HCB05-600-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> HCB05-600-RC

HCB05-600-RC: Description1 FUNCTIONS, 3 A, FERRITE CHIP; CategoryAnalog mixed-signal IC filter; File Size519KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

HCB05-600-RC Overview

1 FUNCTIONS, 3 A, FERRITE CHIP

HCB05-600-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
Reach Compliance Code	compli
ECCN code	EAR99
Maximum DC resistance	0.04 Ω
filter type	FERRITE CHIP
high	0.79 mm
length	1.6 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	60 OHM Ω
method of packing	TAPE AND REEL
physical size	L1.6XB0.79XH0.79 (mm)/L0.063XB0.031XH0.031 (inch)
Rated current	3 A
width	0.79 mm

Preview

Download Datasheet

View All

RoHS

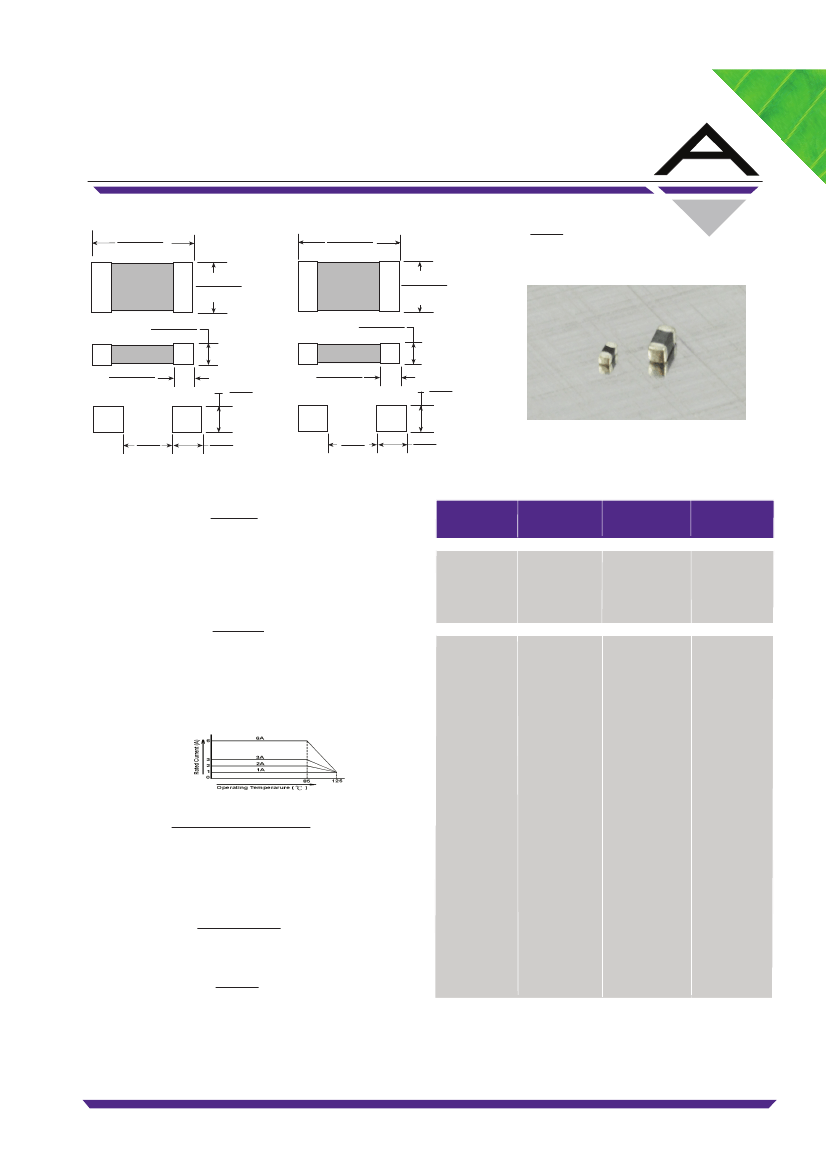

HCB03 thru 05

HCB03

0.039±0.006

(0.99±0.15)

0.020±0.006

(0.51±0.15)

0.020±0.006

(0.51±0.15)

High Current Beads

HCB05

0.063±0.008

(1.60±0.20)

0.031±0.006

(0.79±0.15)

0.031±0.006

(0.79±0.15)

Dimensions:

Inches

(mm)

0.010±0.006

(0.25±0.15)

0.016

(0.41)

0.016±0.008

(0.41±0.20)

0.023

(0.58)

0.016

(0.41)

0.018

(0.46)

0.031

(0.79)

0.041

(1.04)

•

Features

0402 & 0603 Surface mount EMI suppression components

Nickel barrier termination for excellent resistance to solder heat

High current capacity

Wide range of impedance values

Multi layer technology

Low DCR

Flow and reflow soldering

Electrical

Impedance Range:

HCB03 10Ω to 120Ω

HCB05 10Ω to 1500Ω

Tolerance:

25% over entire range

Operating Temp:

-55ºC ~ +125ºC

Storage Temp:

Under 25ºC at 40~60% Humidity

Rate Current:

Based on temp rise not to exceed 30ºC

Rate current is derated as indicated below based on

operating temp.

Allied

Part

Number

HCB03-100-RC

HCB03-300-RC

HCB03-400-RC

HCB03-600-RC

HCB03-700-RC

HCB03-800-RC

HCB03-121-RC

Impedance (Ω)

@ 100 MHz

+/- 25%

120

HCB03

Resistance

(Ω) Max.

0.03

0.05

.075

0.09

0.02

0.03

.035

0.04

0.05

0.08

.085

.090

.095

0.10

0.12

0.15

0.20

0.25

0.40

notice.

Rated

Current

(mA)

2000

1700

1500

1200

4000

3000

2500

2000

1500

1200

1000

800

500

Resistance to Solder Heat

Pre-Heat 150ºC, 1 minute

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260±5ºC for 10sec ±1 sec.

Minimum of 75% of Electrode covered with new solder.

Impedance within 30% of initial value.

Test Equipment

(Z):

HP4291A RF Impedance/Material Analyzer

(RDC):

Chen Hwa 502BC

Physical

Packaging:

HCB03 - 10000 per 7 inch reel.

HCB05 - 4000 per 7 inch reel.

Marking:

None

HCB05

HCB05-100-RC

HCB05-110-RC

HCB05-150-RC

HCB05-170-RC

HCB05-190-RC

HCB05-200-RC

HCB05-220-RC

HCB05-250-RC

HCB05-300-RC

HCB05-310-RC

HCB05-320-RC

HCB05-330-RC

HCB05-400-RC

HCB05-470-RC

HCB05-500-RC

HCB05-560-RC

HCB05-600-RC

HCB05-680-RC

HCB05-700-RC

HCB05-750-RC

HCB05-800-RC

HCB05-900-RC

100

HCB05-101-RC

120

HCB05-121-RC

150

HCB05-151-RC

180

HCB05-181-RC

200

HCB05-201-RC

220

HCB05-221-RC

240

HCB05-241-RC

300

HCB05-301-RC

330

HCB05-331-RC

400

HCB05-401-RC

450

HCB05-451-RC

470

HCB05-471-RC

500

HCB05-501-RC

600

HCB05-601-RC

700

HCB05-701-RC

750

HCB05-751-RC

800

HCB05-801-RC

1000

HCB05-102-RC

1500

HCB05-152-RC

All specifications subject to change without

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 6/3/09

www.alliedcomponents.com
