HCB10-751-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> HCB10-751-RC

HCB10-751-RC: DescriptionHigh Current Beads; CategoryAnalog mixed-signal IC filter; File Size831KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

HCB10-751-RC Overview

High Current Beads

HCB10-751-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
Reach Compliance Code	compli
ECCN code	EAR99
Maximum DC resistance	0.12 Ω
filter type	FERRITE CHIP
high	0.89 mm
length	2.01 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	750 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.01XB1.24XH0.89 (mm)/L0.079XB0.049XH0.035 (inch)
Rated current	1.5 A
width	1.24 mm

Preview

Download Datasheet

View All

RoHS

HCB10

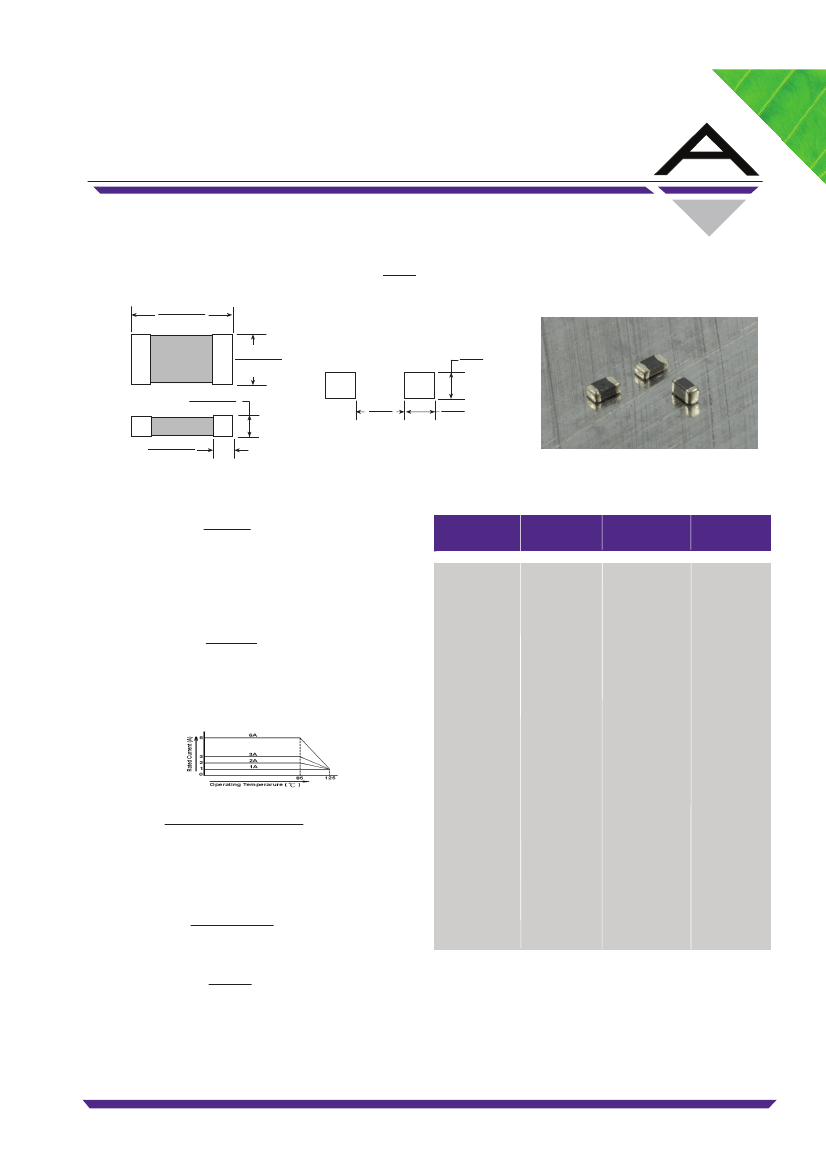

Dimensions:

High Current Beads

HCB10

0.079±0.008

(2.01±0.20)

Inches

(mm)

0.049±0.008

(1.24±0.20)

0.035±0.008

(0.89±0.20)

0.039

(0.99)

0.047

(1.19)

0.045

(1.14)

0.020±0.012

(0.51±0.30)

•

Features

Surface mount EMI suppression components

Nickel barrier termination for excellent resistance to solder heat

High current capacity

Wide range of impedance values

Multi layer technology

Low DCR

Flow and reflow soldering

Electrical

Impedance Range:

5 to 1500Ω

Tolerance:

25% over entire range

Operating Temp:

-55ºC ~ +125ºC

Storage Temp:

Under 25ºC at 40~60% Humidity

Rate Current:

Based on temp rise not to exceed 30ºC

Rate current is derated as indicated below based on

operating temp.

Allied

Part

Number

Impedance (Ω)

@ 100 MHz

+/- 25%

HCB10

Resistance

(Ω) Max.

0.01

0.02

.025

0.03

0.04

0.05

0.08

0.10

0.12

0.30

notice.

Rated

Current

(mA)

6000

5000

4000

3000

2500

2000

1500

1000

Resistance to Solder Heat

Pre-Heat 150ºC, 1 minute

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260±5ºC for 10sec ±1 sec.

Minimum of 75% of Electrode covered with new solder.

Impedance within 30% of initial value.

Test Equipment

(Z):

HP4291A RF Impedance/Material Analyzer

(RDC):

Chen Hwa 502BC

Physical

Packaging:

4000 per 7 inch reel.

Marking:

None

HCB10-050-RC

HCB10-070-RC

HCB10-110-RC

HCB10-130-RC

HCB10-150-RC

HCB10-170-RC

HCB10-190-RC

HCB10-220-RC

HCB10-260-RC

HCB10-280-RC

HCB10-300-RC

HCB10-310-RC

HCB10-320-RC

HCB10-330-RC

HCB10-390-RC

HCB10-400-RC

HCB10-420-RC

HCB10-500-RC

HCB10-600-RC

HCB10-700-RC

HCB10-750-RC

HCB10-800-RC

HCB10-900-RC

100

HCB10-101-RC

121

HCB10-121-RC

130

HCB10-131-RC

150

HCB10-151-RC

180

HCB10-181-RC

200

HCB10-201-RC

220

HCB10-221-RC

240

HCB10-241-RC

250

HCB10-251-RC

300

HCB10-301-RC

330

HCB10-331-RC

390

HCB10-391-RC

400

HCB10-401-RC

450

HCB10-451-RC

470

HCB10-471-RC

500

HCB10-501-RC

600

HCB10-601-RC

750

HCB10-751-RC

1000

HCB10-102-RC

1500

HCB10-152-RC

All specifications subject to change without

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 6/8/09

www.alliedcomponents.com
