LRHQ30-1R0M-RC: Description1 ELEMENT, 12 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size101KB，1 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet Parametric View All

LRHQ30-1R0M-RC Overview

1 ELEMENT, 12 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

LRHQ30-1R0M-RC Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 Cel
Minimum operating temperature	-25 Cel
Rated inductance	12 uH
self resonant frequency	21 MHz
Processing package description	CHIP, 1813, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
core material	FERRITE
DC Resistance	0.6200 ohm
surface mount	Yes
Terminal shape	WRAPAROUND
special function	Q MEASURED AT 1MHZ
terminal coating	NOT SPECIFIED
Terminal layout	DUAL ENDED
Manufacturer Series	LRHQ30
Inductor applications	RF INDUCTOR
Shape and size description	RECTANGULAR PACKAGE
deviation	10 %
Inductor type	GENERAL PURPOSE INDUCTOR
Quality factor	35
1Rated value test frequency	1 MHz
Maximum rated current	0.3800 A

Preview

Download Datasheet

View All

RoHS

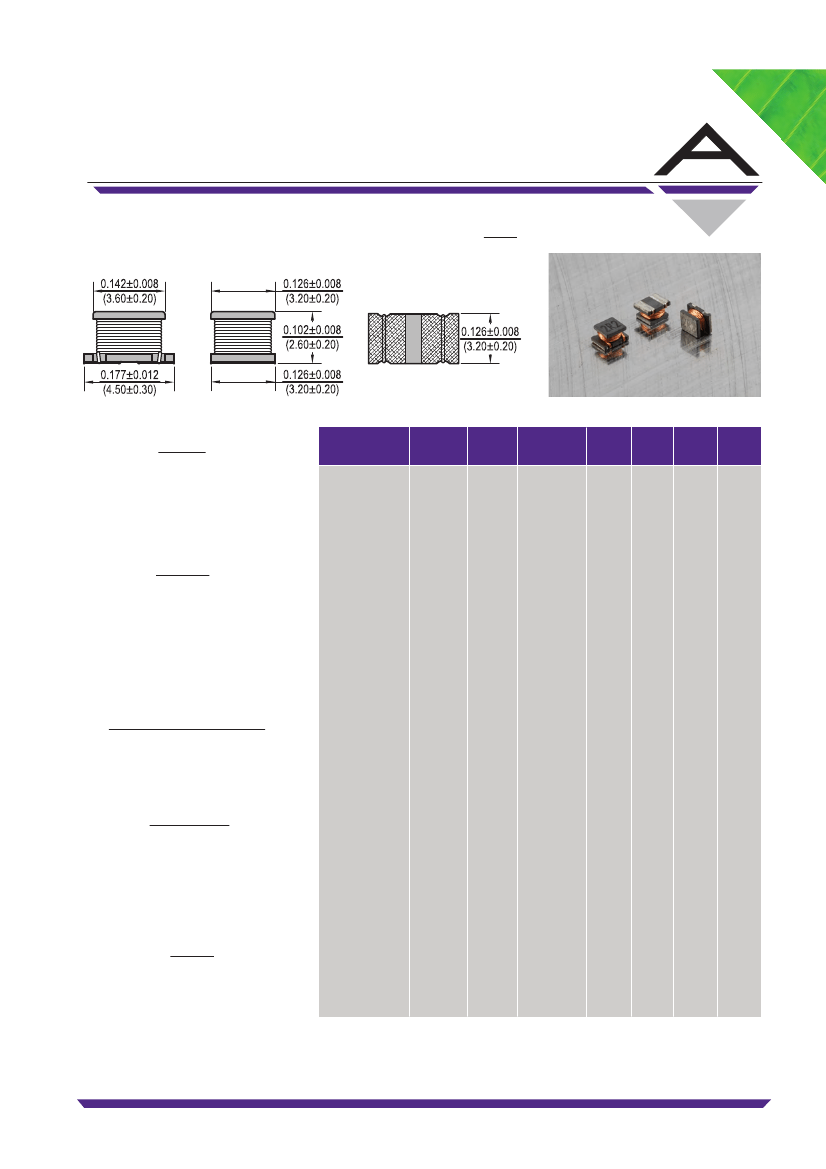

LRHQ30

Low Resistance High Q Chip Inductors

Dimensions:

Inches

(mm)

Features

• Miniture chip inductor wound on

special ferrite core

• Wide inductance range

• Low DC resistance

• High Q value at high frequencies

Allied

Part

Number

LRHQ30-1R0M-RC

LRHQ30-1R2M-RC

LRHQ30-1R5M-RC

LRHQ30-1R8M-RC

LRHQ30-2R2M-RC

LRHQ30-2R7M-RC

LRHQ30-3R3M-RC

LRHQ30-3R9M-RC

LRHQ30-4R7M-RC

LRHQ30-5R6M-RC

LRHQ30-6R8M-RC

LRHQ30-8R2M-RC

LRHQ30-100K-RC

LRHQ30-120K-RC

LRHQ30-150K-RC

LRHQ30-180K-RC

LRHQ30-220K-RC

LRHQ30-270K-RC

LRHQ30-330K-RC

LRHQ30-390K-RC

LRHQ30-470K-RC

LRHQ30-560K-RC

LRHQ30-680K-RC

LRHQ30-820K-RC

LRHQ30-101K-RC

LRHQ30-121K-RC

LRHQ30-151K-RC

LRHQ30-181K-RC

LRHQ30-221K-RC

LRHQ30-271K-RC

LRHQ30-331K-RC

LRHQ30-391K-RC

LRHQ30-471K-RC

LRHQ30-561K-RC

LRHQ30-681K-RC

LRHQ30-821K-RC

LRHQ30-102K-RC

LRHQ30-122K-RC

LRHQ30-152K-RC

LRHQ30-182K-RC

LRHQ30-222K-RC

Inductance Tolerance

(µh)

(%)

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

20

10

L/Q Test

Freq.

1MHz/1MHz

1MHz/.796MHz

1KHz/.796MHz

1KHz/.252MHz

Q

Min.

20

30

35

40

SRF

Min.

(MHz)

120

100

85

75

62

53

47

41

38

33

31

27

23

21

19

17

15

14

12

11

10

9.3

8.4

7.5

6.8

6.2

5.5

5.0

4.5

4.0

3.6

3.3

3.0

2.7

2.5

2.2

2.0

1.8

1.6

1.5

1.3

DCR

Max.

(Ω)

0.20

0.30

0.32

0.35

0.38

0.40

0.47

0.50

0.56

0.62

0.73

0.82

0.94

1.10

1.20

1.40

1.50

1.70

1.90

2.20

2.50

3.00

3.70

4.50

5.40

6.80

8.20

9.70

11.8

14.5

17.5

20.5

25.0

30.0

37.0

45.0

50.0

Rated

Current

(A)Max

0.5

.45

.40

.38

.34

.32

.30

.27

.24

.22

.20

.18

.17

.16

.15

.13

.12

.11

.10

.095

0.09

0.08

0.07

.065

.060

.050

.045

0.04

.035

0.03

Electrical

Inductance Range:

1µh ~ 2200µh

Tolerance:

20% over entire range also

available in tighter tolerances

Operating Temp:

-25ºC ~ +85ºC

Rated Current:

Max temperature rise

35ºC. Inductance drop 10% typ.

L/Q:

Test OSC @ 1V

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 minute.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC for 10 sec.

Test Equipment

(L/Q):

HP4192A

(RDC):

Chen Hwa 502BC

Rated Current:

HP4284A + HP42841A

(SRF):

HP4286A

Physical

Packaging:

500 pieces per 7 inch reel.

Marking:

EIA Inductance Code

All specifications subject to change without notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 12/11/08

www.alliedcomponents.com
