CM102J3GS205QA7 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> CM102J3GS205QA7

CM102J3GS205QA7: DescriptionROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size113KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

CM102J3GS205QA7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CM102J3GS205QA7	-	-	View	Buy Now

CM102J3GS205QA7 Overview

ROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT

CM102J3GS205QA7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	GREEN
Actuator length	0.276 inch
Actuator material	NYLON
Actuator type	ILLUMINATED ROCKER
body width	10.7 mm
body height	18 mm
Body length or diameter	27.2 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	16A@125VAC
Maximum contact current (AC)	16 A
Contact function	ON-OFF
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1500VRMS V
Electrical life	10000 Cycle(s)
End contact plating	SILVER
Shell material	NYLON
illumination	GREEN LAMP
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	CM
Installation features	PANEL MOUNT
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.415 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

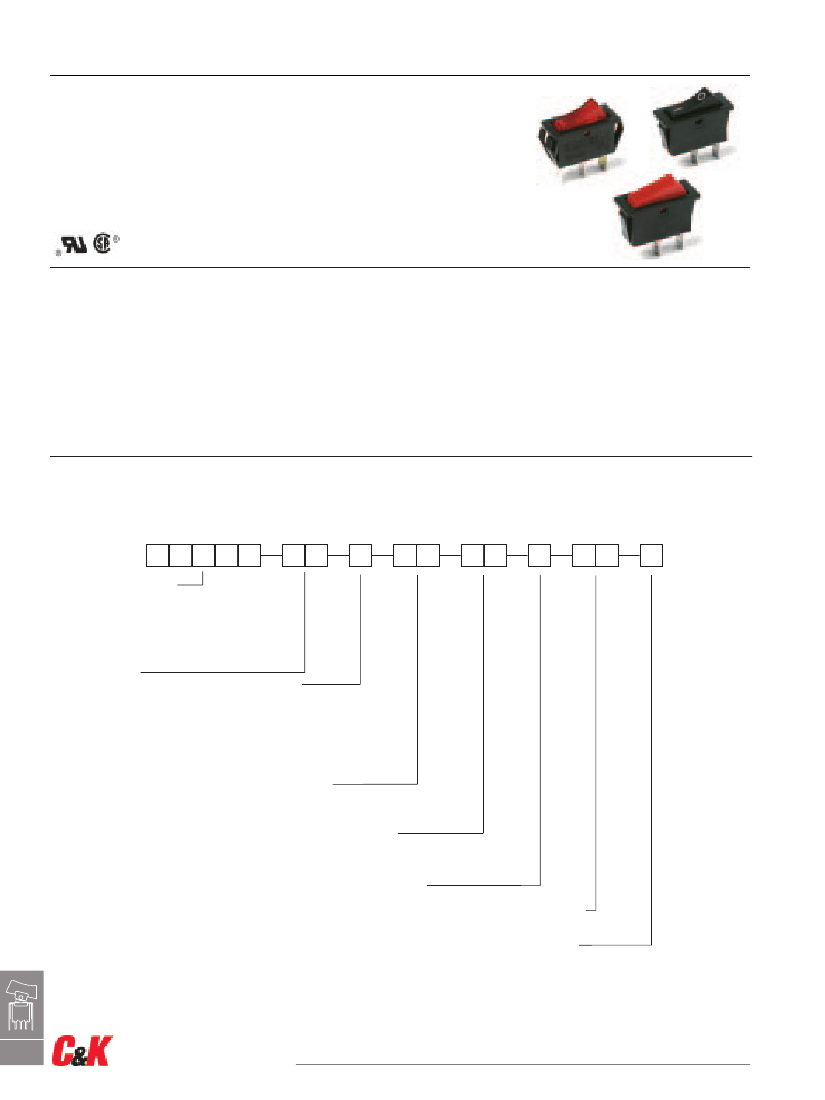

CM Series

Single Pole Power Rocker Switches

Features/Benefits

•

Illuminated versions available

•

Easy to install snap-in design

•

Multiple actuator and termination

styles to choose from

Typical Applications

•

Computers and peripherals

•

Power supplies

•

Industrial equipment

•

Small appliances

•

RoHS compliant

Specifications

CONTACT RATING:

UL/CSA: 16 AMPS @ 125 VAC, 1/8 HP;

10 AMPS @ 250 VAC, 1/3 HP.

ELECTRICAL LIFE: 10,000 make and break cycles at full load.

INSULATION RESISTANCE: 108

Ω

min.

DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.

OPERATING TEMPERATURE: -20ºC to +80ºC

Materials

HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, gloss or

matte finish.

ILLUMINATED ACTUATOR: Polycarbonate, gloss or matte finish.

CENTER CONTACTS: Silver plated, copper alloy.

END CONTACTS: Silver plated.

ALL TERMINALS: Silver plated, copper alloy.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and

described on pages H–95 through H–97. For additional options not shown in catalog, consult Customer Service Center.

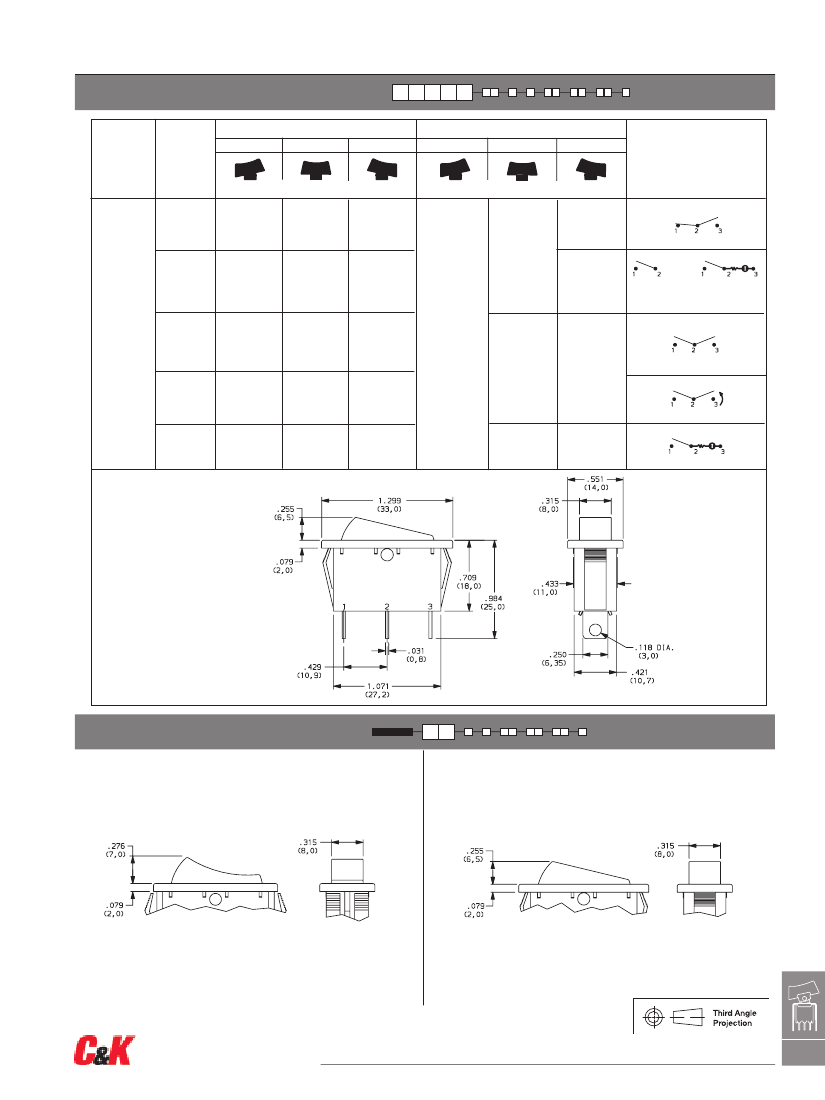

Switch Function

CM101

SPDT On-None-On

CM102

SPST On-None-Off

CM103

SPDT On-Off-On

CM107

SPDT On-Off-Mom.

CM12

SPST On-None-Off

Actuator

Rocker

Illuminated rocker

Rocker

Illuminated rocker

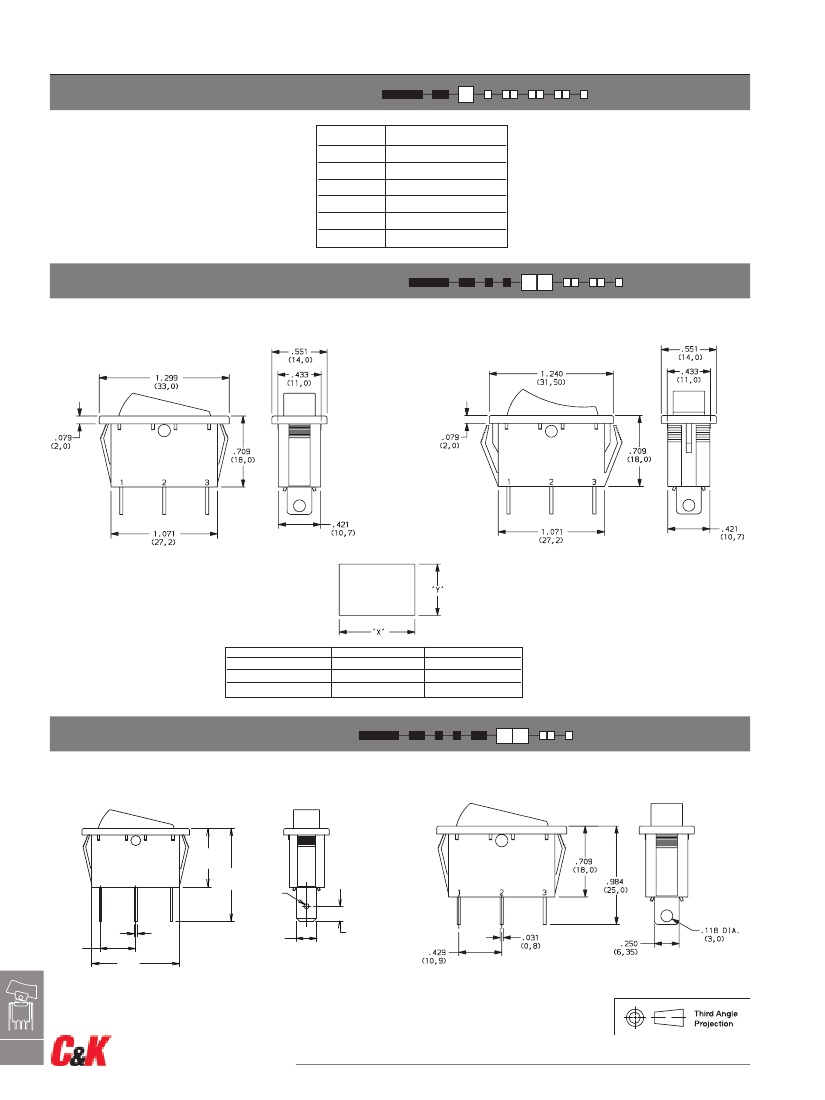

Actuator Color

Black

White

Red

Red, illuminated

Amber, illuminated

Green, illuminated

Mounting Style/Color

Snap-in, black

Snap-in, white

Termination

Snap-in, white

.250” quick connect

Solder lug

Rocker

Actuator Marking

(NONE)

No marking

ON-OFF

”O l” - international ON-OFF

”O -” international ON-OFF

CM12 - for switches with both marking and illumination

Contact Rating

Silver

Lamp Rating

(NONE)

No lamp

125 VAC neon

250 VAC neon

H-94

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

www.ck-components.com

CM102J3GS205QA7 Related Products

	CM102J3GS205QA7	CM102J3AS205QA7	CM102J3AS205QA8	CM102J3RS205QA7	CM107J12S205QA	CM102J3GS205QA8
Description	ROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT	ROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT	ROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT	ROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT	ROCKER SWITCH, SPDT, LATCHED AND MOMENTARY, PANEL MOUNT, ROHS COMPLIANT	ROCKER SWITCH, SPST, MOMENTARY, PANEL MOUNT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	C&K	C&K	C&K	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	GREEN	AMBER	AMBER	RED	BLACK	GREEN
Actuator length	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
Actuator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Actuator type	ILLUMINATED ROCKER	ILLUMINATED ROCKER	ILLUMINATED ROCKER	ILLUMINATED ROCKER	ROCKER	ILLUMINATED ROCKER
body width	10.7 mm	10.7 mm	10.7 mm	10.7 mm	10.7 mm	10.7 mm
body height	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Body length or diameter	27.2 mm	27.2 mm	27.2 mm	27.2 mm	27.2 mm	27.2 mm
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	16A@125VAC	16A@125VAC	16A@125VAC	16A@125VAC	16A@125VAC	16A@125VAC
Maximum contact current (AC)	16 A	16 A	16 A	16 A	16 A	16 A
Contact function	ON-OFF	ON-OFF	ON-OFF	ON-OFF	ON-(OFF)	ON-OFF
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V
Dielectric withstand voltage	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V	1500VRMS V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
End contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Shell material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
JESD-609 code	e4	e4	e4	e4	e4	e4
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	LATCHED AND MOMENTARY	MOMENTARY
switch function	SPST	SPST	SPST	SPST	SPDT	SPST
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal length	0.415 inch	0.415 inch	0.415 inch	0.415 inch	0.415 inch	0.415 inch
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
illumination	GREEN LAMP	AMBER LAMP	AMBER LAMP	RED LAMP	-	GREEN LAMP
Base Number Matches	1	1	1	1	1	-
