PCHC127H-100M-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PCHC127H-100M-RC

PCHC127H-100M-RC: Description1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size78KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

PCHC127H-100M-RC Overview

1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD

PCHC127H-100M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	5454
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	5454
DC Resistance	0.0168 Ω
Nominal inductance(L)	10 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

RoHS

Power Choke High Current

Inches

(mm)

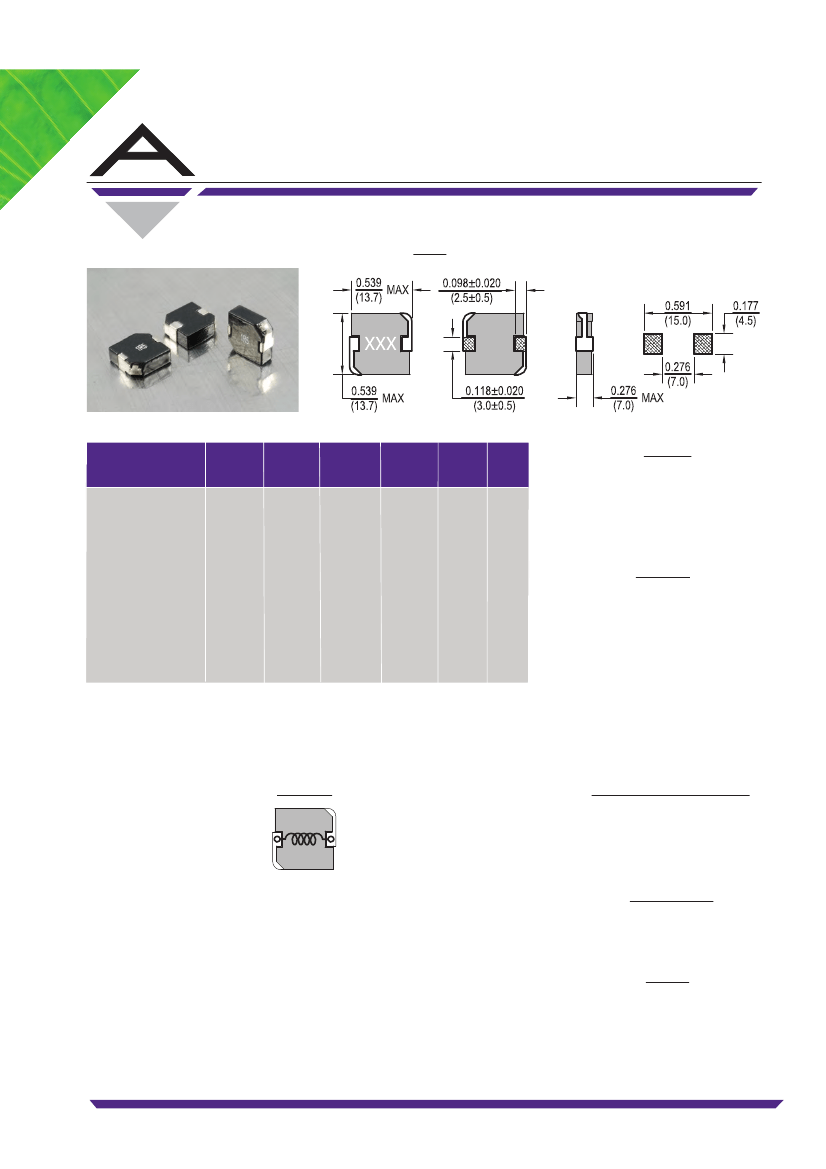

PCHC127H

Dimensions:

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz,1v

DCR

(Ω)

Max

Isat

(A)

Irms

(A)

Max.

Features

•

Magnetically shielded construction

High saturation current up to 65A

Expanded operating temp range

Low DC Resistance

Suitable for pick and place

Electrical

Inductance Range:

.47µH to 10µH

Additional values available

Tolerance:

20% over entire range,

Available in tighter tolerances

Test Frequency:

100KHz, 1.0Vdc

Operating Temp:

-55ºC ~ +125ºC

Storage Temp:

-55ºC ~ +125ºC

Temp Rise:

∆

T=40ºC Typical at rated Irms

without core loss.

Part temperature should not exceed 125ºC

including temperature rise.

Inductance Drop:

20% typical at rated Isat

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 minute.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC

Immersion Time:

10 sec. ± 1 sec.

Test Equipment

(L):

HP4284A LCR meter or equivalent

(DCR):

CH16502, Agilent 33420A Mico-Ohm Meter

IDC:

3260B WK & DC Bias 3265BWK

Physical

Packaging:

500 pieces per 13 inch reel.

Marking:

EIA Inductance Code

PCHC127H-R47M-RC

PCHC127H-R68M-RC

PCHC127H-1R0M-RC

PCHC127H-1R5M-RC

PCHC127H-2R2M-RC

PCHC127H-3R3M-RC

PCHC127H-4R7M-RC

PCHC127H-6R8M-RC

PCHC127H-100M-RC

0.47

0.68

1.00

1.50

2.20

3.30

4.70

6.80

100

1.2

1.6

2.1

2.6

4.2

6.8

11.2

16.8

All specifications subject to change without notice.

Schematic

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 7/7/09

www.alliedcomponents.com

PCHC127H-100M-RC Related Products

	PCHC127H-100M-RC	PCHC127H-1R0M-RC	PCHC127H-1R5M-RC	PCHC127H-2R2M-RC	PCHC127H-4R7M-RC	PCHC127H-3R3M-RC	PCHC127H-R47M-RC	PCHC127H-6R8M-RC	PCHC127H-R68M-RC
Description	1 ELEMENT, 10 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1.5 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.2 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 4.7 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 3.3 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.47 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 6.8 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.68 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	ALLIED [Allied Electronics]	-	ALLIED [Allied Electronics]	ALLIED [Allied Electronics]	ALLIED [Allied Electronics]	-	ALLIED [Allied Electronics]	ALLIED [Allied Electronics]	ALLIED [Allied Electronics]
package instruction	5454	-	5454	5454	5454	-	5454	5454	5454
Reach Compliance Code	compli	-	compli	compli	compli	-	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
uppercase and lowercase codes	5454	-	5454	5454	5454	-	5454	5454	5454
DC Resistance	0.0168 Ω	-	0.0026 Ω	0.0042 Ω	0.0112 Ω	-	0.0012 Ω	0.014 Ω	0.0016 Ω
Nominal inductance(L)	10 µH	-	1.5 µH	2.2 µH	4.7 µH	-	0.47 µH	6.8 µH	0.68 µH
Inductor Applications	HIGH CURRENT INDUCTOR	-	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	-	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1	-	e1	e1	e1	-	e1	e1	e1
Number of functions	1	-	1	1	1	-	1	1	1
Number of terminals	2	-	2	2	2	-	2	2	2
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	YES	-	YES	YES	YES
surface mount	YES	-	YES	YES	YES	-	YES	YES	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	-	20%	20%	20%	-	20%	20%	20%
