HPL1005-1N0-E02

Description
General Purpose Inductor, 0.001uH, 2 Element, SMD, 1005, CHIP, 1005, ROHS COMPLIANT
CategoryPassive components    inductor
File Size561KB,1 Pages
ManufacturerSUSUMU
Environmental Compliance
Download Datasheet Parametric View All

HPL1005-1N0-E02 Overview

General Purpose Inductor, 0.001uH, 2 Element, SMD, 1005, CHIP, 1005, ROHS COMPLIANT

HPL1005-1N0-E02 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUSUMU
package instruction1005
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes1005
structureChip
DC Resistance0.01 Ω
Nominal inductance(L)0.001 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberHPL
Number of functions2
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.4 mm
Package length1 mm
Package formSMT
Package width0.5 mm
method of packingTR
Minimum quality factor (at nominal inductance)20
Maximum rated current1.8 A
self resonant frequency7000 MHz
seriesHPL1005
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsINDUCTANCE TOLERANCE IS 0.1 AND 0.2 NANO HENRY
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency300 MHz
Base Number Matches1
Components

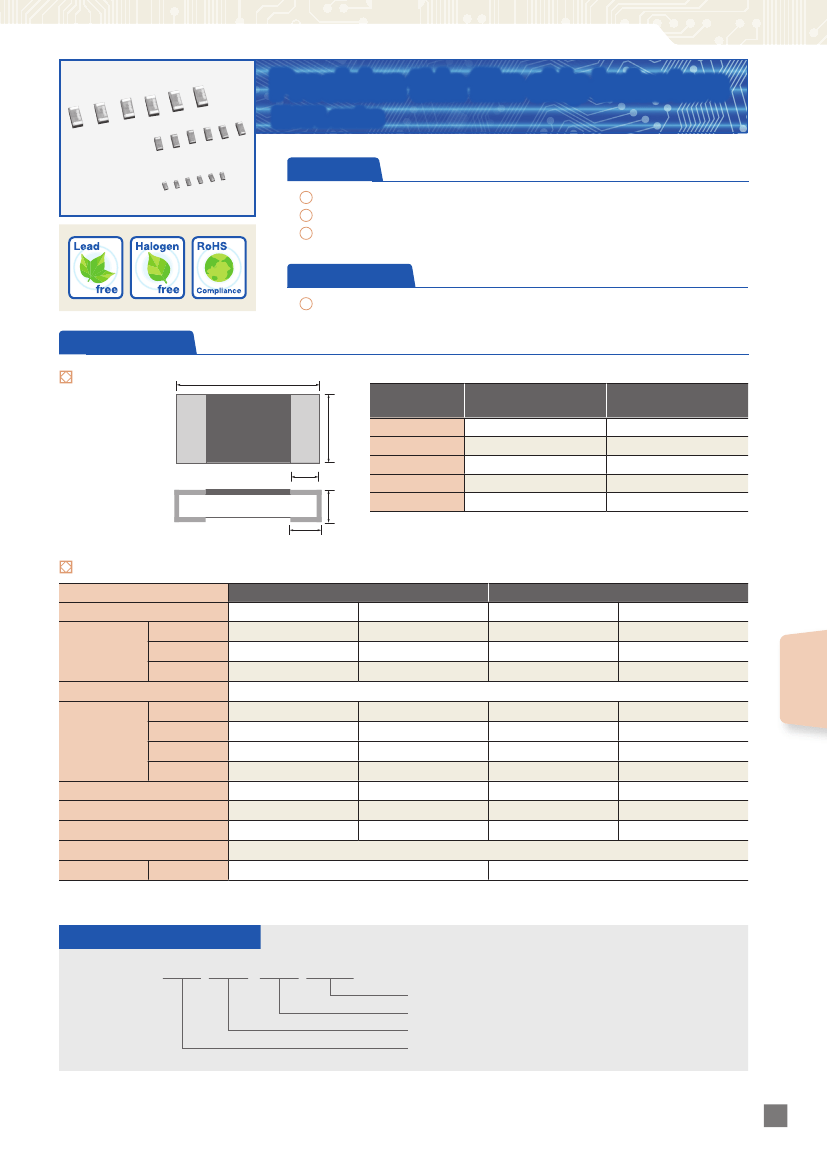

Precision thin film chip inductors
HPL series
Features
Highly precise chip inductors: inductance tolerance +/-0.1nH for 0603 size
High Q and high current
Small temperature coefficient of inductance: 0 to -200ppm/°C
Applications
Automotive electronics, high frequency circuitries such as wireless
communication devices and base stations
Specifications
Dimensions
*All made to order.
L
unit:mm
Dimension
(inch)
W
HPL0603
(0201)
0.60±0.05
0.30±0.05
0.07±0.05
0.12±0.05
0.28±0.05
HPL1005
(0402)
1.00±0.10
0.50±0.10
0.15±0.15
0.25±0.20
0.40±0.10
L
W
A
B
T
A
T
B
Electrical characteristics
Series name
Inductance range
Inductance
tolerance
(E02)
±0.1nH
±0.2nH
±2%
at 300MHz
Q value
at 500MHz
at 800MHz
at 1.5GHz
Self-resonance frequency
(GHz)
DC resistance
(Ω)typ.
Rated current A)
Operating temperature
Packaging
10,000pcs
・Mesured at 500MHz in case of HPL0603, at 300MHz in case of HPL1005.
1.0 〜 5.6
HPL0603
6.2 〜10
E-24
10
17 〜14
25 〜18
10 〜6.0
0.1 〜 0.8
0.5 〜 0.2
10 〜 8
16 〜 14
20 〜 18
3.5
0.8 〜 1.5
0.2 〜 0.15
 −40 〜125℃
20 〜 15
35 〜25
50 〜30
7.0 〜 4.0
0.01 〜0.4
1.8 〜 0.34
1.0 〜 9.1
HPL1005
10 〜18
High frequency surface
mount components
Inductance value offered
15 〜 13
HPL series
25 〜20
30 〜25
3.5
0.5 〜 0.8
0.3 〜0.24
Part numbering system
HPL 1005 - 1N0
(
-E02
)
Designates tighter inductance tolerance
Inductance value
(1N0=1.0nH)
Size
Part code
