L120TG1KN
Super Green
3mm, Flanged Cylindrical, 4.5mm Height
50° viewing angle
DWG BY:
BL / GP
02-15-07
CHK BY:
PL
05-16-08
QA:
__
__-__-__
MFG:
__
__-__-__
REVISION LTR: -
05-15-08
Part No.
L120TG1KN
DWG NO.
DSDD0199
Page
1 of 3
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
●
Features:
1. Chip material: AllnGan
2. Emitted color : Super Green
3. Lens Appearance : Green Diffused
4. Low power consumption.
5. High efficiency.
6. Versatile mounting on P.C. Board or panel.
7. Low current requirement.
8. 3mm diameter package
9. This product is RoHS compliant.
●
Package dimensions:
3.00(.118)
1.00(.039)
4.50(.177)
1.5(.059)
MAX.
25.4(1.00) MIN.
0.5(.02)
SQ.TYP.
Cathode
3.16(.124)
●
Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
Notes:
2.54(.100) 1.0(.039) MIN.
NOM.
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3. Lead spacing is measured where the leads emerge from
the package.
4. Specifications are subject to change without notice.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
1
Peak Forward Current*
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
110
30
150
5
-40
℃
~80
℃
-40
℃
~85
℃
260
℃
(for 5 seconds)
Unit
mW
mA
mA
V
Reverse
Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
*
1
Condition for I
FP
is pulse of 1/10 duty and 0.1msec width.
Part No.
L120TG1KN
DWG NO.
DSDD0199
Page
2 of 3
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Symbol
V
F
Iv
I
R
λp
λd
∆λ
2
θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
-
-
571
570
-
-
-
-
-
Typ.
2.0
200
-
574
572
17
50
-
0.46
0.53
Max.
2.6
-
100
579
579
-
-
-
-
-
Unit
V
mcd
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
Radiant Intensity
Chromaticity Coordinates
µA
nm
nm
nm
deg
µW/sr
X
Y
I
F
=20mA
●

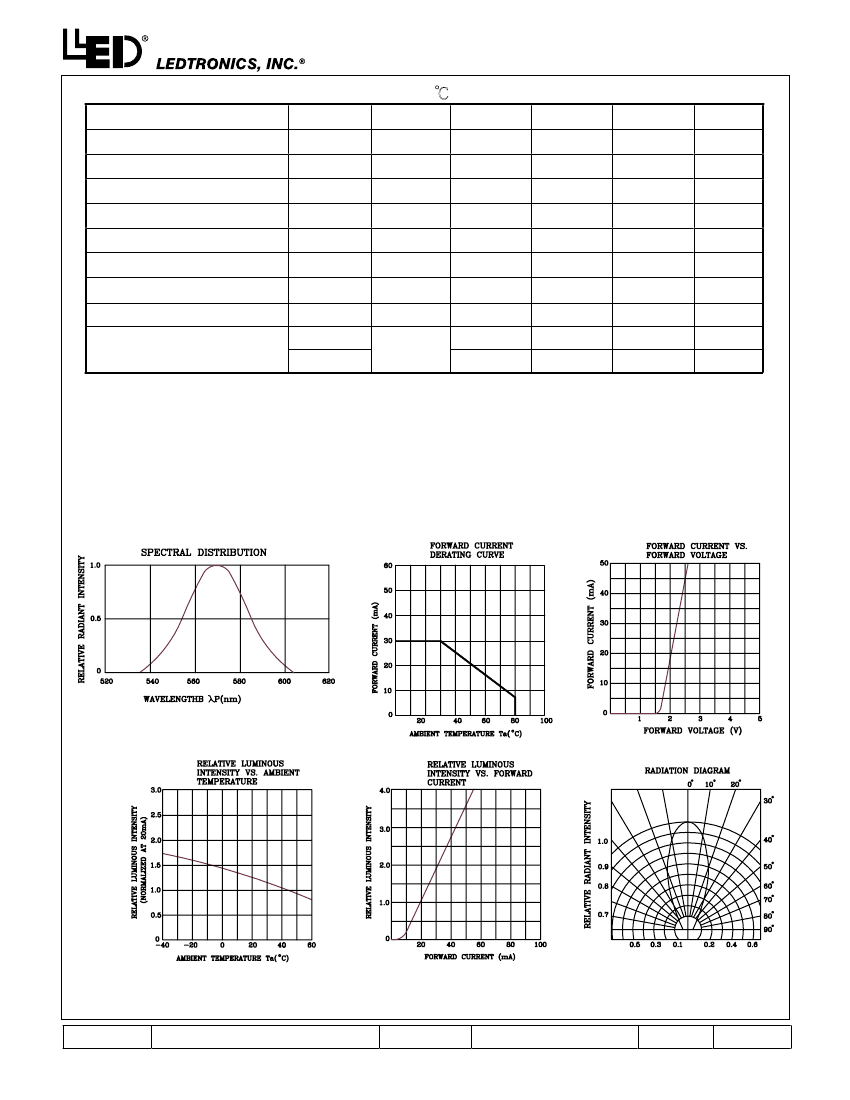

Typical electro-optical characteristics curves
Part No.
L120TG1KN
DWG NO.
DSDD0199
Page
3 of 3
