PCS104-3R3T-RC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> PCS104-3R3T-RC

Preview

PCS104-3R3T-RC: Description1 ELEMENT, 3.3 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size78KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

PCS104-3R3T-RC Overview

1 ELEMENT, 3.3 uH, GENERAL PURPOSE INDUCTOR, SMD

PCS104-3R3T-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	4141
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	4141
DC Resistance	0.013 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

RoHS

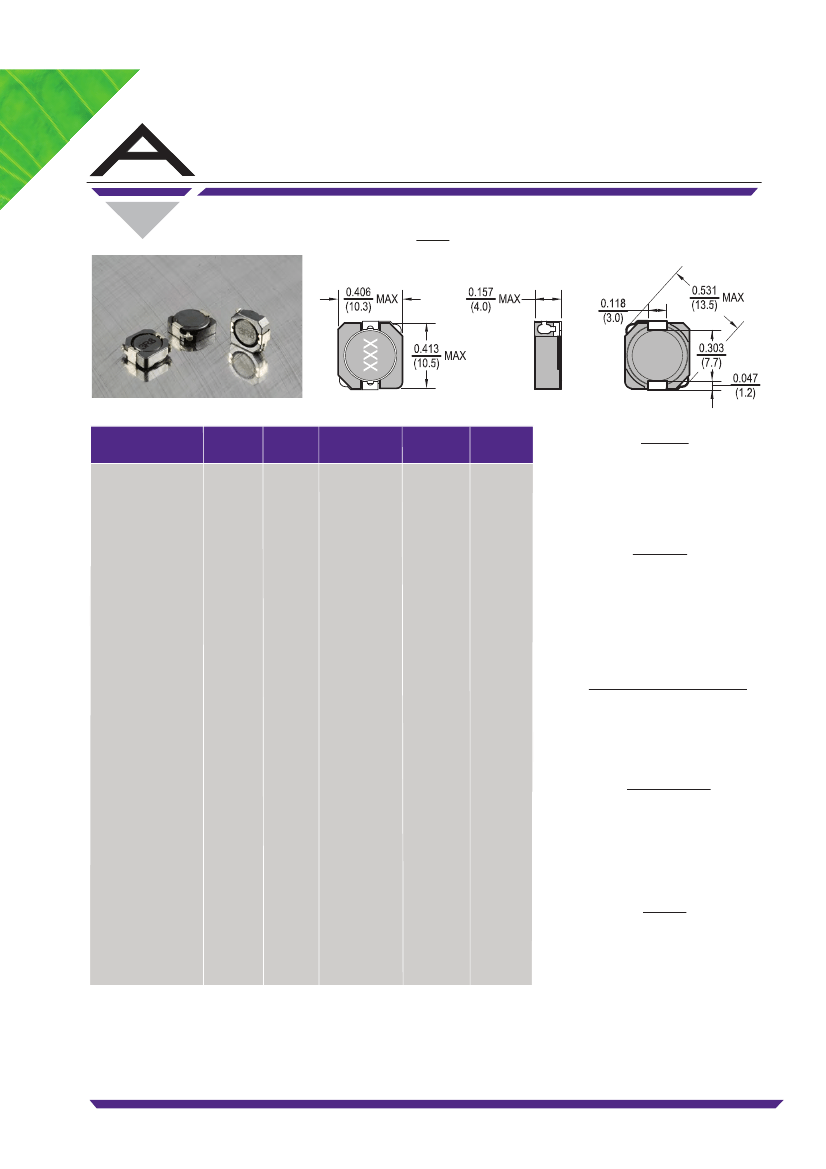

Power Chip Shielded Inductors

Dimensions:

Inches

(mm)

PCS104

Allied

Part

Number

Inductance

(µh)

Tolerance

(%)

Test

Freq.

KHz, 1V

DCR

Max

(Ω)

IDC

Current

(A)

Features

•

Shielded SMD Power Inductor

Available in magnetically shielded

Low DC resistance

Ideal for DC-DC converter applications

Electrical

Inductance Range:

1µh to 470µh

Tolerance:

1.0µh ~ 7.0µh 30%

10µh ~ 470µh 20%

Operating Temp:

-40ºC ~ +85ºC

IDC:

Current at which inductance drop =

35% typ.

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 minute.

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC

PCS104-1R0T-RC

PCS104-1R5T-RC

PCS104-2R2T-RC

PCS104-2R5T-RC

PCS104-3R3T-RC

PCS104-3R8T-RC

PCS104-4R7T-RC

PCS104-5R2T-RC

PCS104-5R6T-RC

PCS104-6R8T-RC

PCS104-7R0T-RC

PCS104-100M-RC

PCS104-150M-RC

PCS104-180M-RC

PCS104-220M-RC

PCS104-270M-RC

PCS104-330M-RC

PCS104-390M-RC

PCS104-470M-RC

PCS104-680M-RC

PCS104-101M-RC

PCS104-151M-RC

PCS104-201M-RC

PCS104-221M-RC

PCS104-331M-RC

1.0

1.5

2.2

2.5

3.3

3.8

4.7

5.2

5.6

6.8

7.0

10

15

18

22

27

33

39

47

68

100

150

200

220

330

30

20

100

0.0075

0.0081

0.0105

0.013

0.018

0.022

0.027

0.038

0.050

0.070

0.073

0.090

0.093

0.128

0.213

0.304

0.506

0.756

1.090

1.600

10.5

10.0

7.5

6.0

5.7

5.5

5.0

4.8

4.4

3.6

3.5

2.9

2.5

2.3

2.1

1.5

1.35

1.15

0.92

0.7

0.5

Test Equipment

(L):

HP 4192A LF Impedance Analyzer

(RDC):

Chen Hwa 502

(IDC):

HP4284A + HP42841A

Physical

Packaging:

1000 pieces per 13 inch reel.

Marking:

EIA Inductance Code

PCS104-471M-RC

470

20

All specifications subject to change wtihout notice.

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED

15

6/9/09

www.alliedcomponents.com
